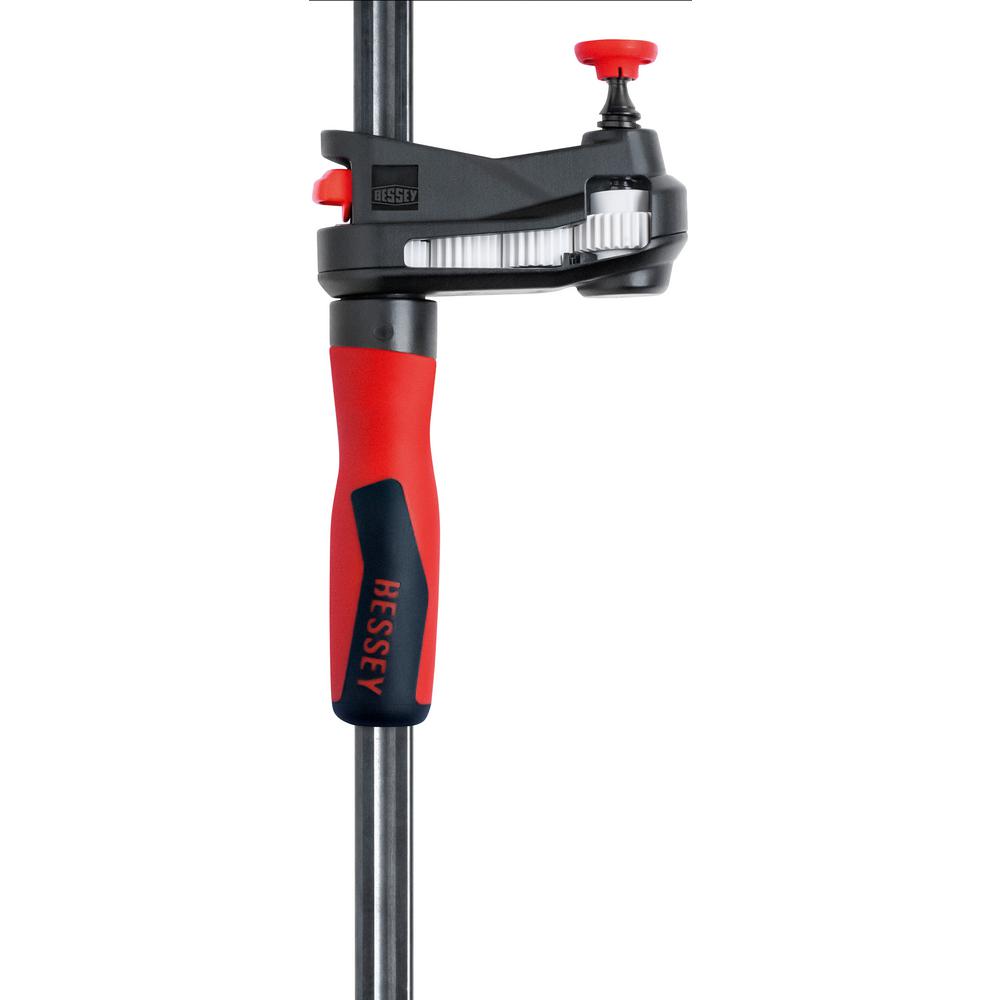

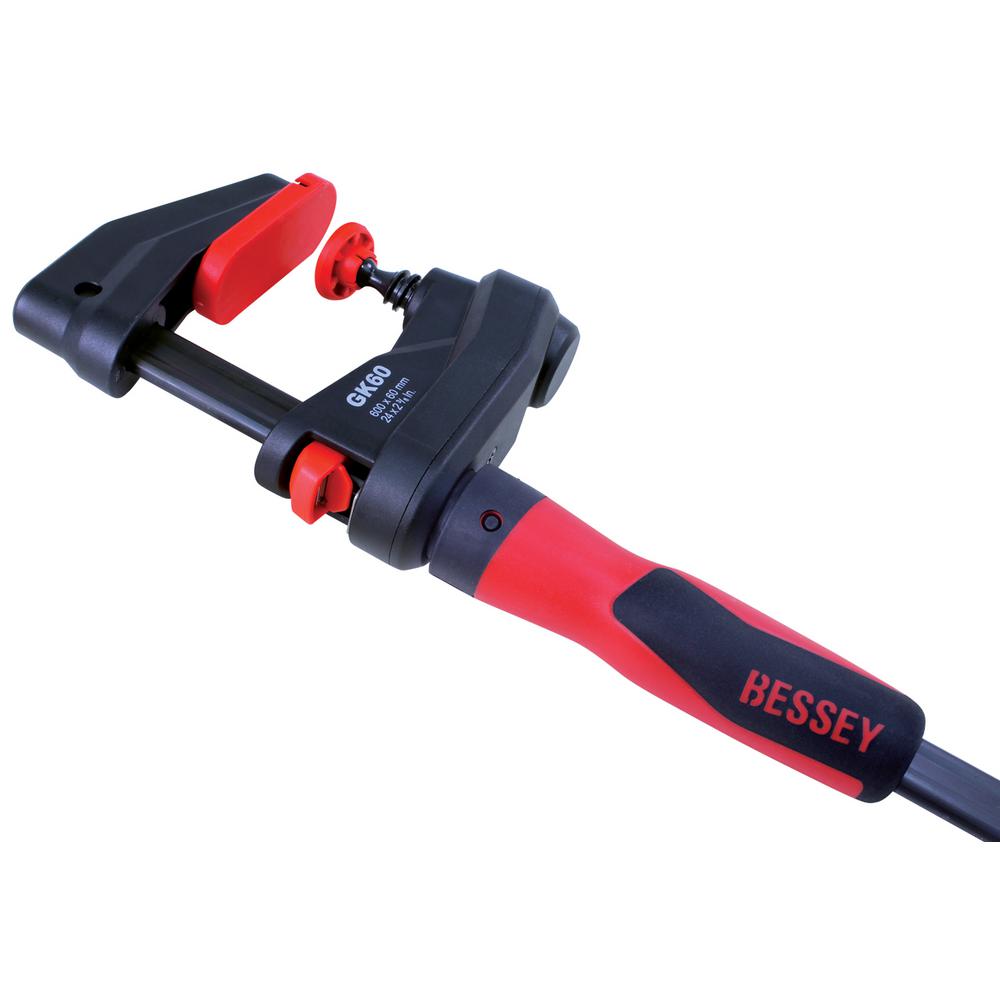

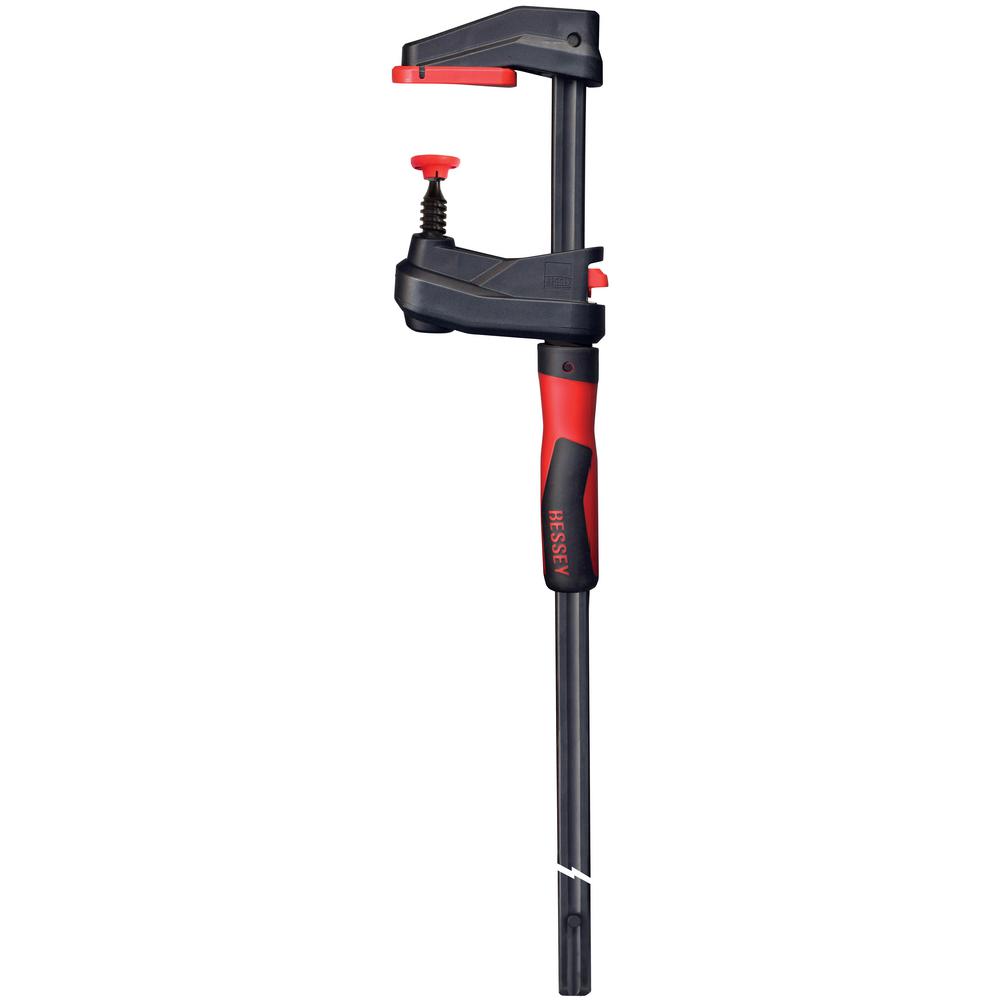

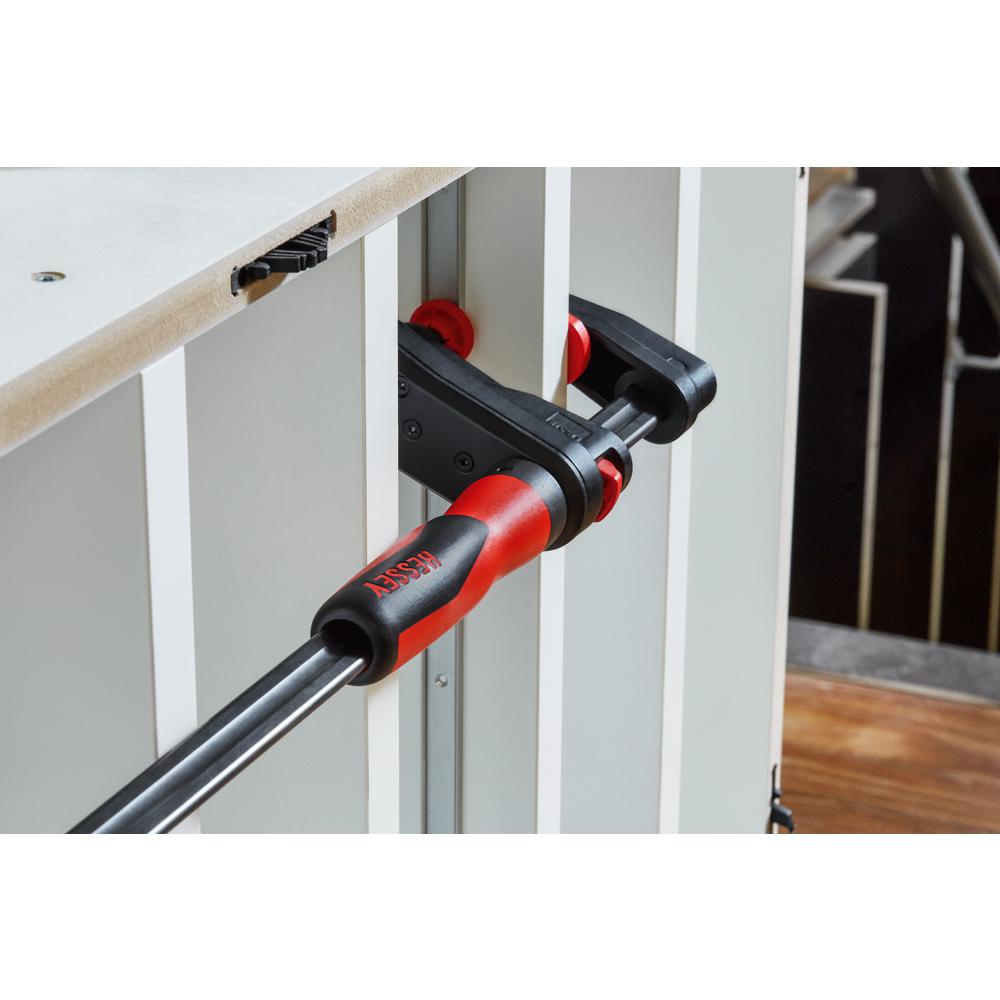

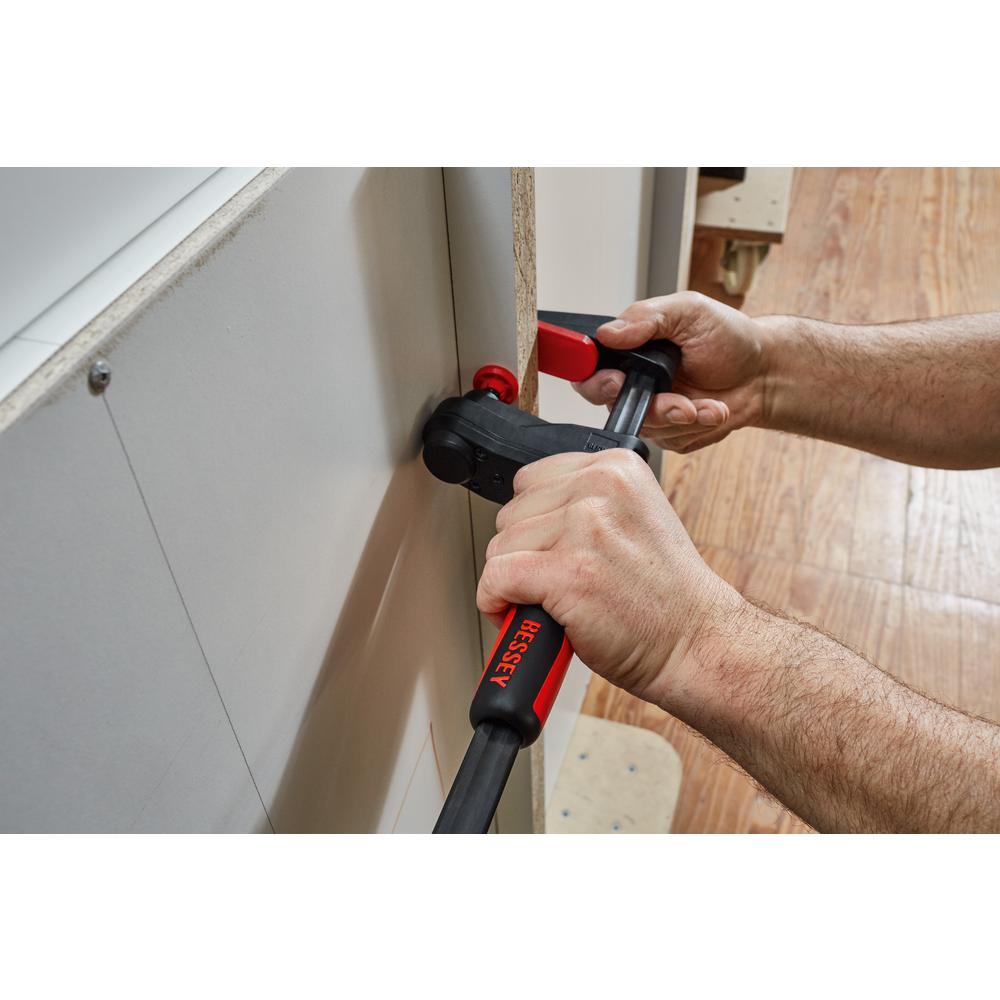

The 1 of its kind in the world, the BESSEY GearKlamp works BIG in small spaces to provide a unique clamping solution for cramped locations, up against another object or, when reaching across something to clamp. The patented gear mechanism separates the spindle from the handle for greater clearance and is fully enclosed to keep out dust and debris. A quick release shift button for fast set-up and a rotating rail-mounted handle for final pressure application makes using the clamp very intuitive. Available in 6 in., 12 in., 16 in. and 24 in. capacities with 450 lbs. of nominal clamping force.
- Clamping handle is outside the work area
- Ergonomic handle drives the clamping spindle with gear train power
- Fully enclosed gear train keeps out dust and debris
- Hardened and tempered cold drawn steel rail
- Durable molded reinforced clamping arms
- V-grooved anvil for clamping round parts

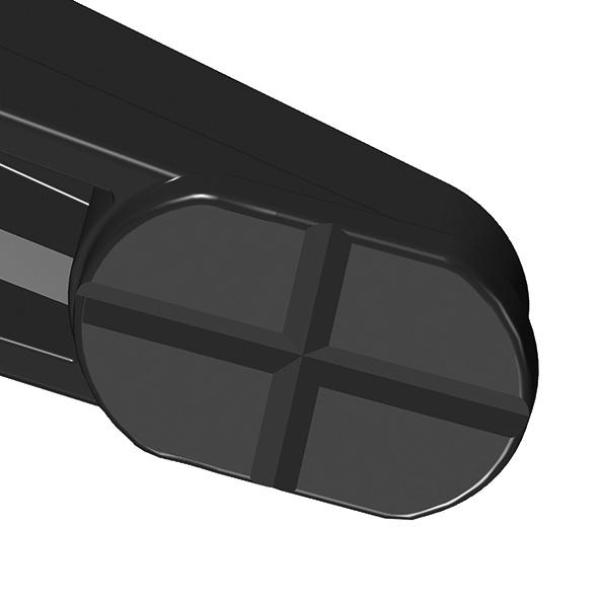

- Non-marring caps included
- Fast action, secure clamping force up to 450 lbs.

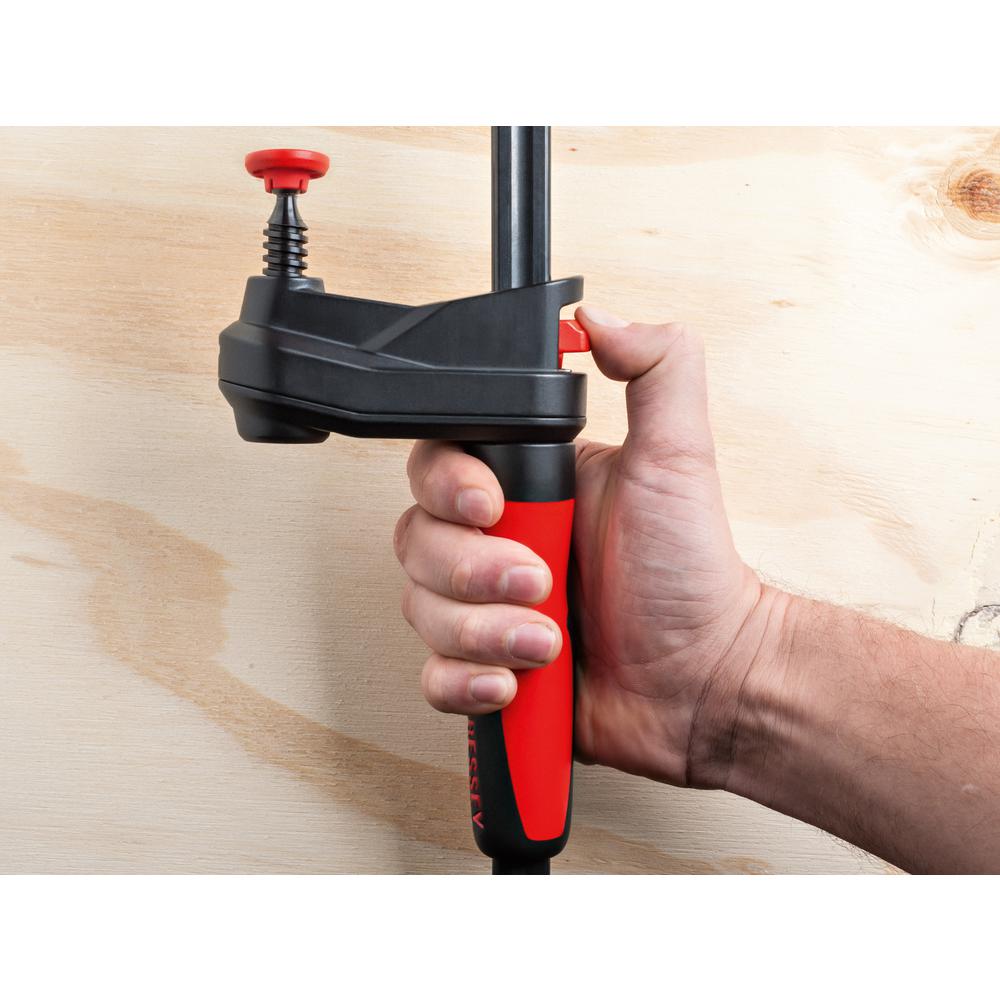

- Quick release button for fast set-ups
- Swiveling pressure pad self-aligns on clamped parts
Specifications
- Material: Fibre Reinforced Polymer (FRP)
- Clamp Type: Bar
- Tools Product Type: Hand Tool
- Maximum Opening (in.): 24 in
- Duty Rating: Standard
- Hand Tool Type: Clamp
- Clamping Strength (lb.): 450
- Individual/Set: Individual
- Throat Depth: 2.375 in
- Jaw Width: 1.17 in
