Accurate, easy to setup and operate, the Delta 3/8 in. Bench Top Mortising Machine is designed for the professional user. Including a multi-position hand lever and rotating mortising head for off-table projects, this machine also has adjustable height for added versatility. Powered by a 1/2 hp, 120-volt, 60 hz single-phase induction motor, this machine produces smooth-sided, burn-feed results. Built to handle your toughest jobs, the heavy-duty cast-iron base with center through hole ensures stability, while an adjustable stop makes repeat mortises easier.
- Easy and open access to drill chuck for quick bit changing
- Large cast-iron base with center through hole for strength and stability

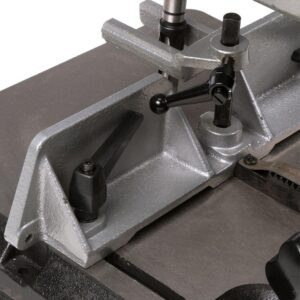

- Adjustable rack and pinion fence and rack and pinion head raising and lowering
- Mortising head column can be turned 180-degrees and remounted for off-table mortising

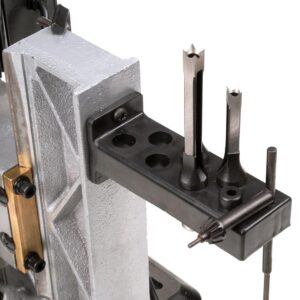

- Includes: 1 mortiser, 3/8 in. capacity chuck and key, four mortising chisels and bits, tool and chisel holder and riser block
- 5-year warranty on parts and labor

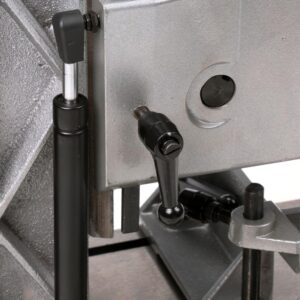

- Gas-filled head-stabilizer reduces motor vibration
Specifications
- Maximum Speed (rpm): 1720
- Chuck Capacity: 3/8 In.
- Chuck Key Storage: Yes
- Tools Product Type: Power Tool
- Amperage (amps): 9.8
- Minimum speed (rpm): 1720
- 360- Degree Swivel: No
- PT Horsepower (Hp): 1/2
- Color Family: Gray
- Condition: New
- Bench & Stationary Tool Type: Mortiser
- Built-In Light: No
- Portability: Bench
- Cord Length (ft.): 5
- Voltage (volts): 120
- Product Weight (lb.): 74
- Pivot Head: No
- Product Height (in.): 30
- Product Depth (in.): 16.25
- Base Length (in.): 16.5
- Base Width (in.): 13.5
- Product Width (in.): 13.5
