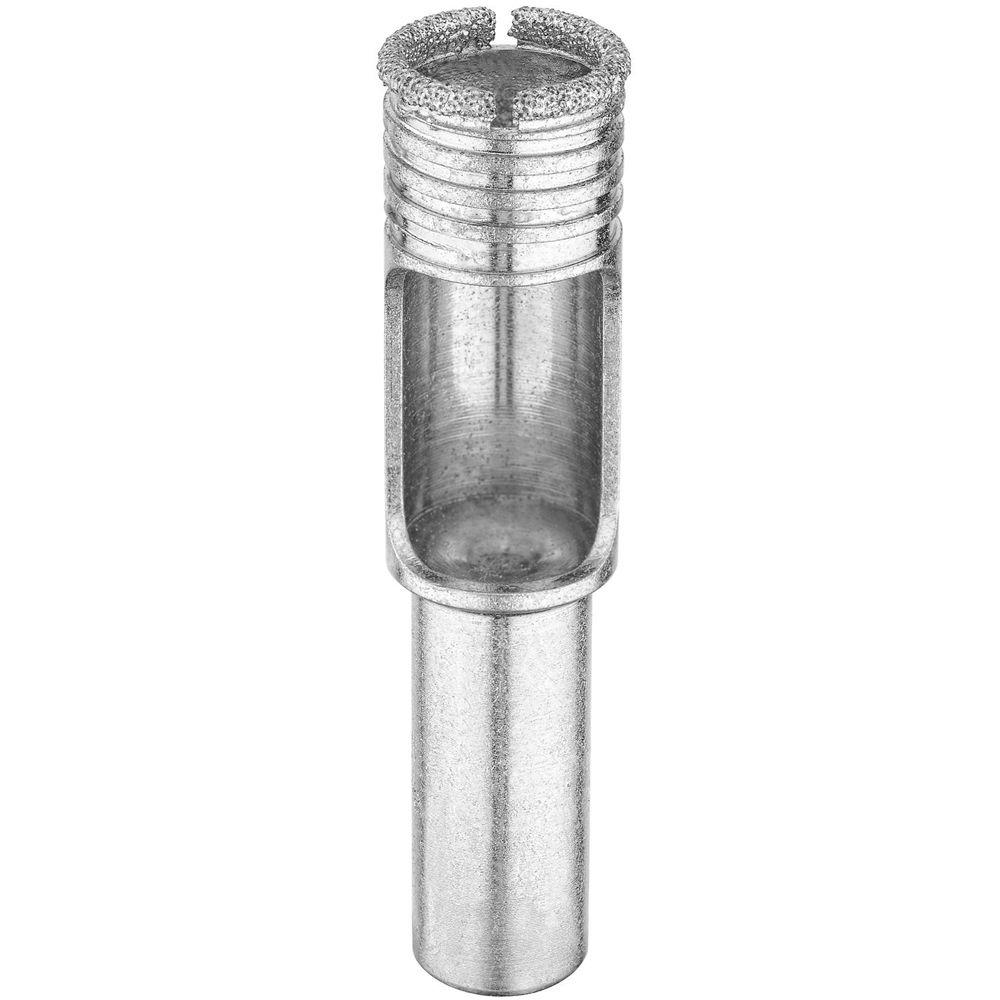

DEWALT Diamond Tile Bits provide a quick, clean way to precisely drill through the densest, most-abrasive tiles, including glazed ceramic and rock-hard porcelain (both solid-body and glazed). The bits feature an ultra-durable welded-diamond tip, which easily outperforms and outlasts conventional masonry bits. Reverse spiral threads permit continuous water cooling, so you can run the bits at higher speeds without fear of overheating. There’s even a core-ejection slot that removes a plug of waste material, which is ideal for repetitive hole-boring jobs.
- Diamond welded tip for greater life and durability
- Reverse spiral thread delivers continuous water feed for longer life and increased speed
- Core ejection slot removes plug for repetitious holes
- Ideal for kitchen and bath installers and residential or commercial plumbers
Specifications
- Self-Feeding: No
- Drill Bit Type(s) Included: Masonry Bit
- Shank Style: Straight
- Tools Product Type: Power Tool
- Bit Material: Diamond
- Material Application: Ceramic Tile
- Individual/Set: Individual
- Drill Bit Type: Diamond Core
- Assembled Depth (in.): 4.75 in
- Shank Diameter: 9.8 mm
- Assembled Width (in.): 3 in
- Bit Diameter: 5/8 in
- Bit Length (in.): 2.17
- Assembled Height (in.): 1.375 in
