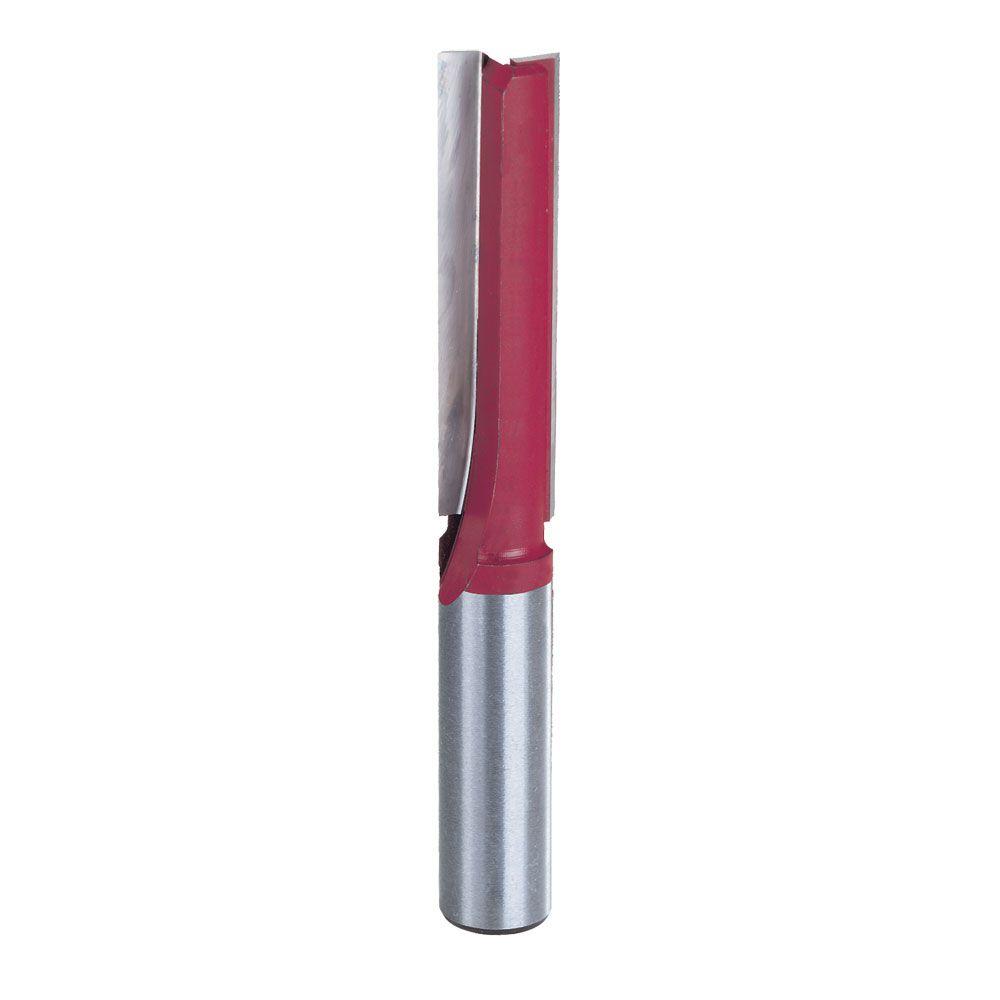

DIABLO 1/2 in. x 2 in. Carbide Straight Router Bit

Fashioned with unique back-relief grind, the Diablo 1/2 in. x 2 in. Carbide Straight Router Bit delivers superb chip clearance resulting in limited heat buildup to produce controlled, balanced cuts. Its high-density carbide and titanium composition is designed to tackle heavy-duty jobs, with impacts and vibrations kept to a minimum thanks to tri-metal brazing.

• Tri-metal brazing provides an impact-resistant bond between the carbide and bit
• Provides a safe, controlled cut ideal for plywood, laminate and MDF
• High-density carbide body with titanium construction offers a long cutting life
• Back-relief grind reduces heat buildup

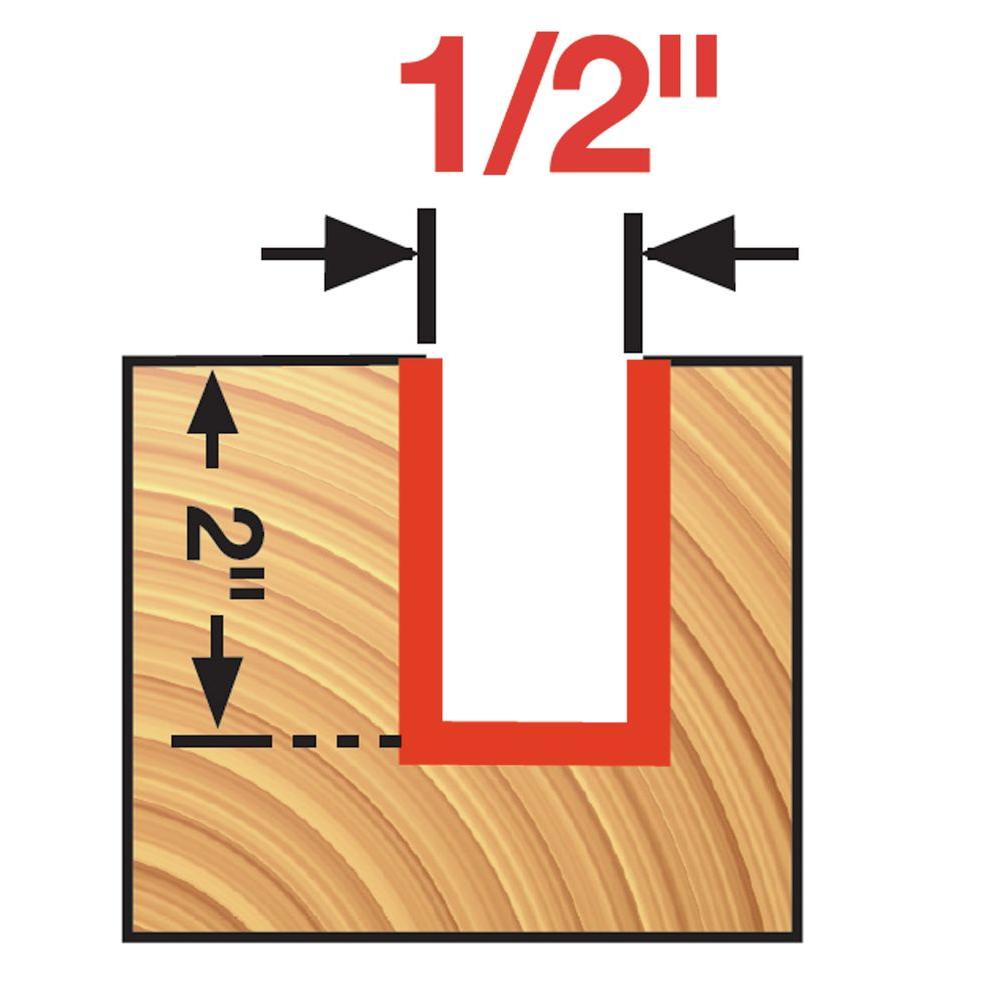

• 1/2 in. Bit diameter with 2 in. cutting depth
• Requires a minimum chuck size of 1/2 in.
• Great for cutting all composition materials, plywood, hardwoods and softwoods
• Red router bits are a registered trademark of Freud America, Inc.
• Overall diameter = 1/2 in.
• Carbide height = 2 in.
• Shank diameter = 1/2 in.
• Overall length = 4-1/8 in.

Specifications

• Self-Feeding: No
• Router/planer type: Straight
• Shank Style: Straight
• Number of Pieces: 1
• Number of Flutes: 2
• Tools Product Type: Power Tool
• Bit Material: Carbide
• Individual/Set: Individual
• Product Length (in.): 4.125
• Product Height (in.): 1.65
• Product Depth (in.): 5.75
• Shank Diameter (in.): 1/2″
• Cut Diameter: .5
• Product Width (in.): 1.65 in
