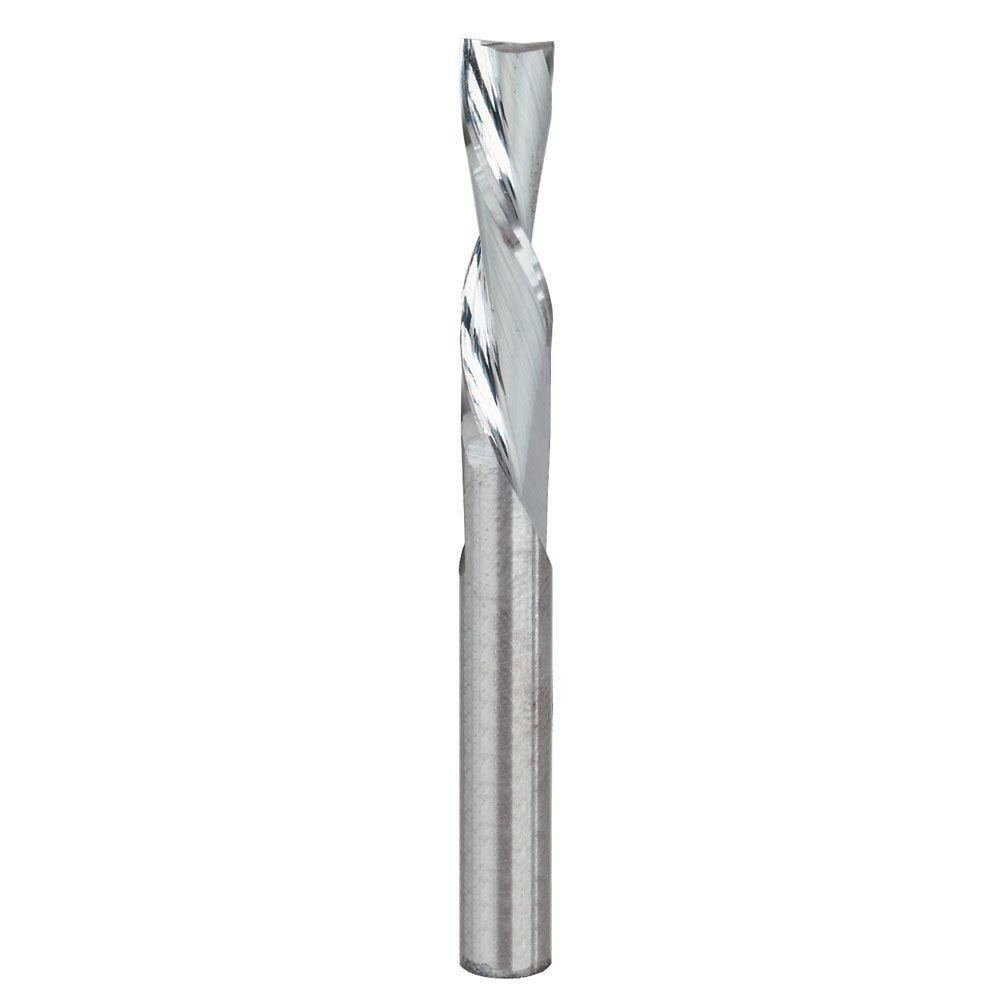

DIABLO 1/4 in. Down Spiral Bit

Diablo’s Solid Carbide up Spiral Router Bits combine effective chip removal with a cut that can’t be matched by standard straight bits. Featuring TiCo carbide with titanium, these bits provide a long cutting life and ultra-fine finish. Perma-shield, Diablo’s high performance coating, reduces friction and build-up on the bits. The bits kick-back reducing design allows for safer, more controlled cuts. These bits are computer balanced for a smooth and accurate cut. All Diablo router bits feature exceptional quality, unmatched precision and maximum cutting life.

• For grooves and dadoes
• Cutting mortises and routing deep blind holes
• Cuts all composition materials, plywood’s hardwoods and softwoods
• Use on CNC and other automatic routers
• Use on hand-held and table-mounted portable routers
• Red router bits are a registered trademark of Freud America, Inc.

Specifications

• Self-Feeding: No
• Router/planer type: Straight
• Shank Style: Straight
• Number of Pieces: 1
• Number of Flutes: 2
• Tools Product Type: Power Tool
• Bit Material: Carbide
• Individual/Set: Individual
• Product Length (in.): 2.5
• Product Height (in.): .7
• Product Depth (in.): 3.8
• Shank Diameter (in.): 1/4″
• Cut Diameter: .25
• Product Width (in.): .8 in
