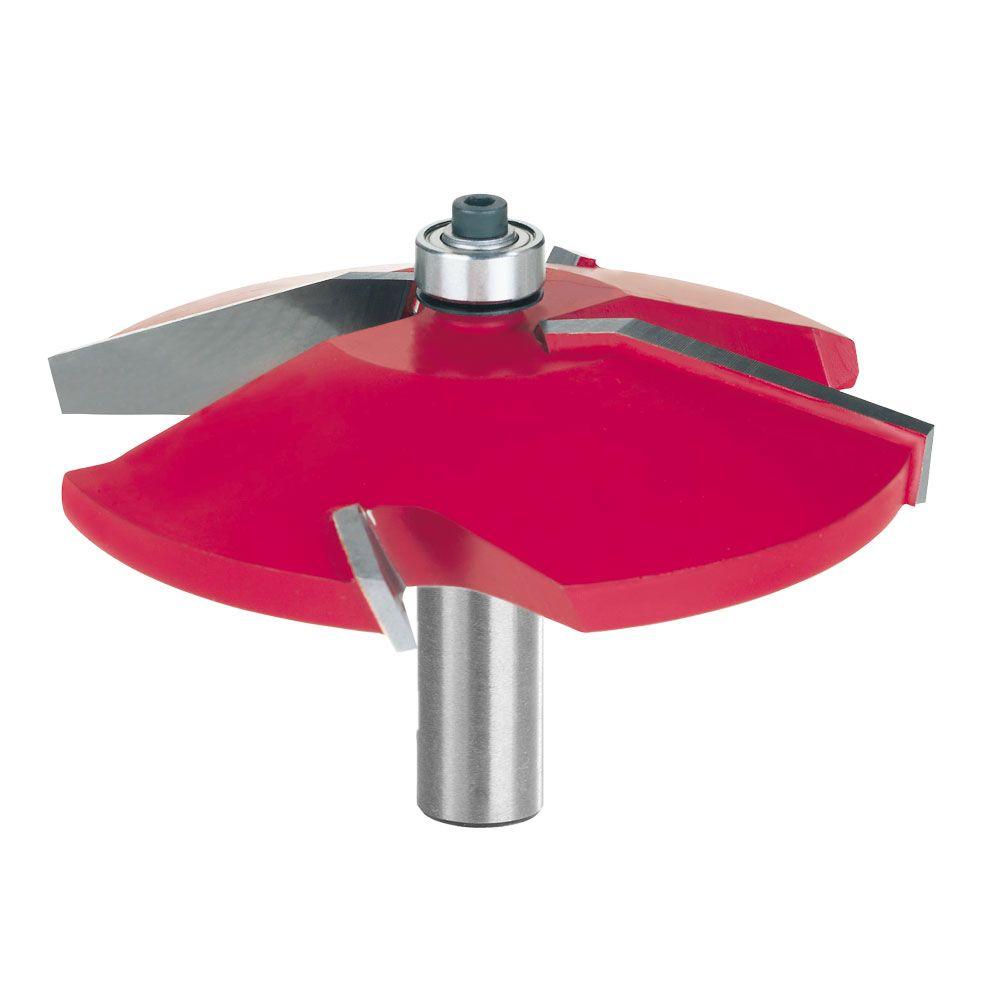

DIABLO 3-1/2 in. Double Shear Cut Raised Panel Router Bit

Diablo’s Double Shear Cut Raised Panel Router Bits are ideal for creating raised panels for doors and paneling, as well as decorative tops, plaques, and molding. Featuring TiCo carbide with titanium, these bits provide a long cutting life and ultra-fine finish. Perma-SHIELD, Diablo’s high performance coating, reduces friction and build-up on the bits. The bits kick-back reducing design allows for safer, more controlled cuts. These bits are computer balanced for a smooth and accurate cut. All Diablo router bits feature exceptional quality, unmatched precision and maximum cutting life.

• Use 1/2 in. height for 5/8 in. stock
• Use 5/8 in. height for 3/4 in. stock
• Ideal for creating raised panels for doors and paneling, as well as decorative tops, plaques and molding
• Cuts all composition materials, plywood’s, hardwoods, and softwoods
• Red router bits are a registered trademark of Freud America, Inc.
• Cut diameter: 3-1/2 in.
• Carbide height: 1-27/64 in.
• Shank diameter: 1/2 in.
• Overall length: 2-7/8 in.

Specifications

• Self-Feeding: No
• Router/planer type: Cabinet
• Shank Style: Straight
• Number of Pieces: 1
• Number of Flutes: 4
• Tools Product Type: Power Tool
• Bit Material: Carbide
• Individual/Set: Individual
• Product Length (in.): 2.5
• Product Height (in.): 2.8
• Shank Diameter (in.): 1/2″
• Cut Diameter: 3.5
• Product Width (in.): 4.4 in
