Drill America m42 x 1.5 x 3 in. O.D. High Speed Steel Round Threading Adjustable Die

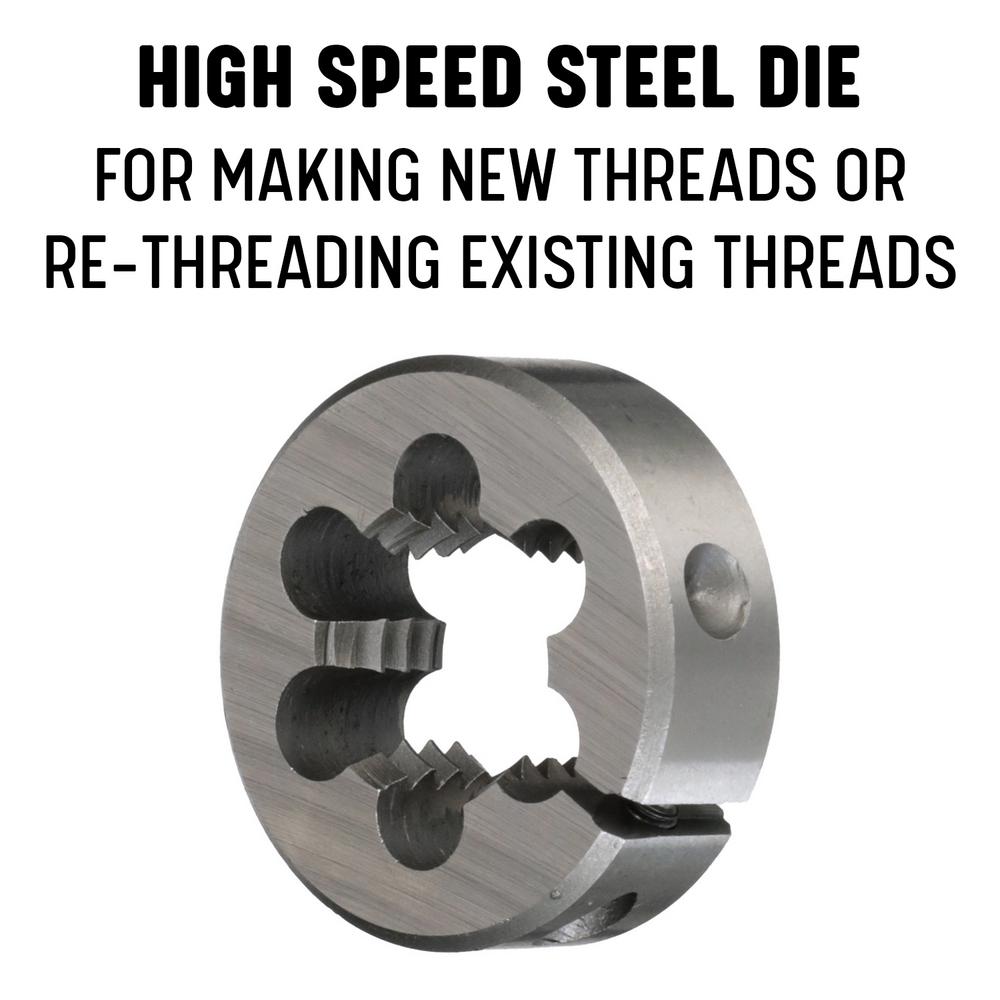

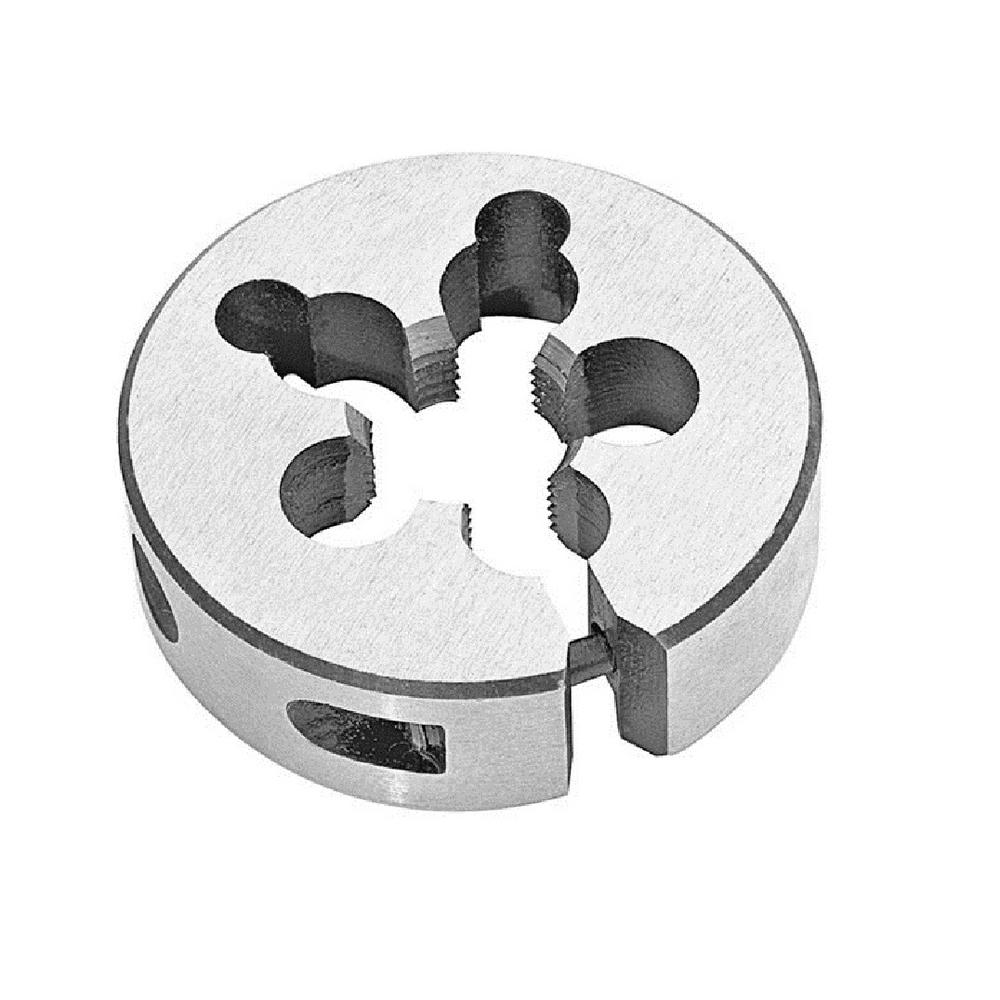

Drill America High Speed Steel Round Adjustable Dies are perfect for use in making new threads or re-threading existing threads. These high-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round Dies are chamfered on both faces. 1-side has a 2 to 3 thread chamfer for threading, the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the die is use in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

• m42 x 1.5
• Metric standard
• 3 in. O.D.
• Right hand thread
• For use in making new threads or re-threading existing threads
• Adjustment is obtained by a fine pitch screw which forces the sides of the die apart, or allows them to spring together
• Round die is chamfered on both faces

Specifications

• Measurement Standard: Metric
• Tools Product Type: Hand Tool
• Hand Tool Type: Dies
• Individual/Set: Individual
• Thread Size (In.): m42 x 1.5
• Product Length (in.): 3
• Product Height (in.): 2
• Product Depth (in.): 3
• Product Width (in.): 3
