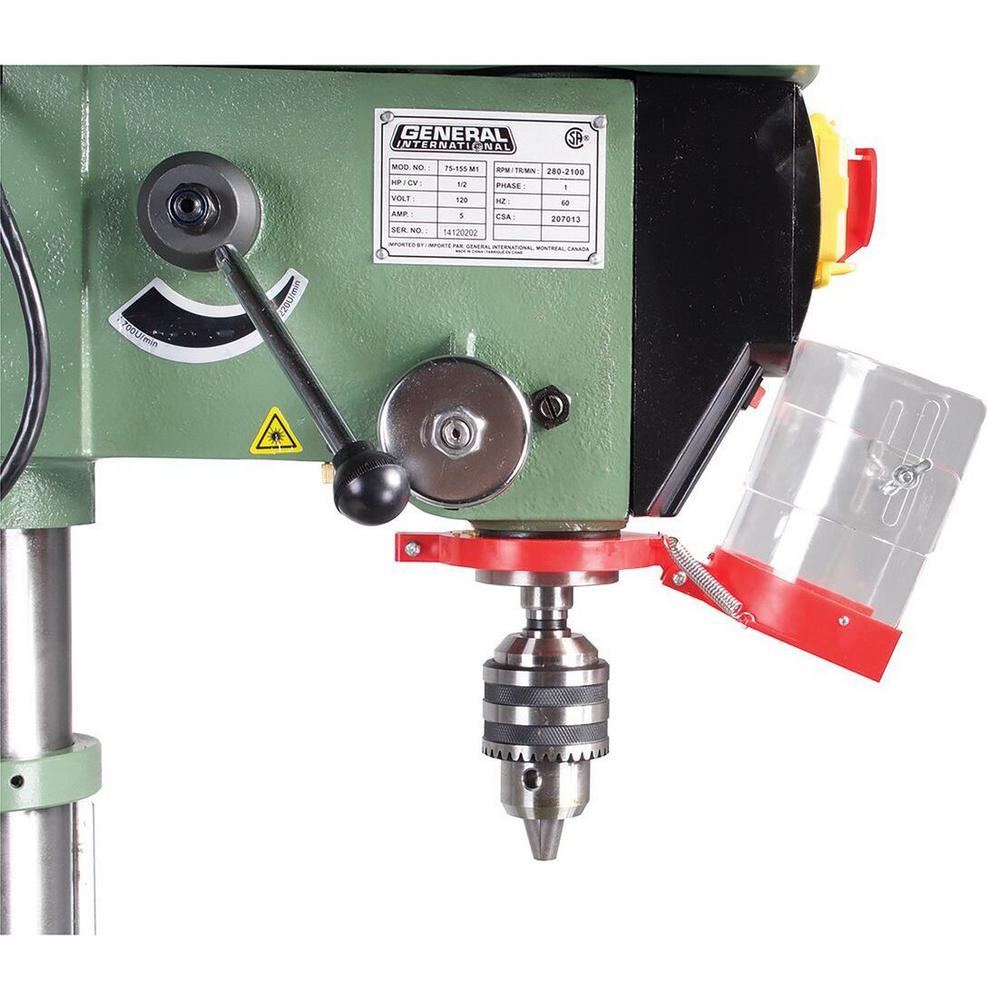

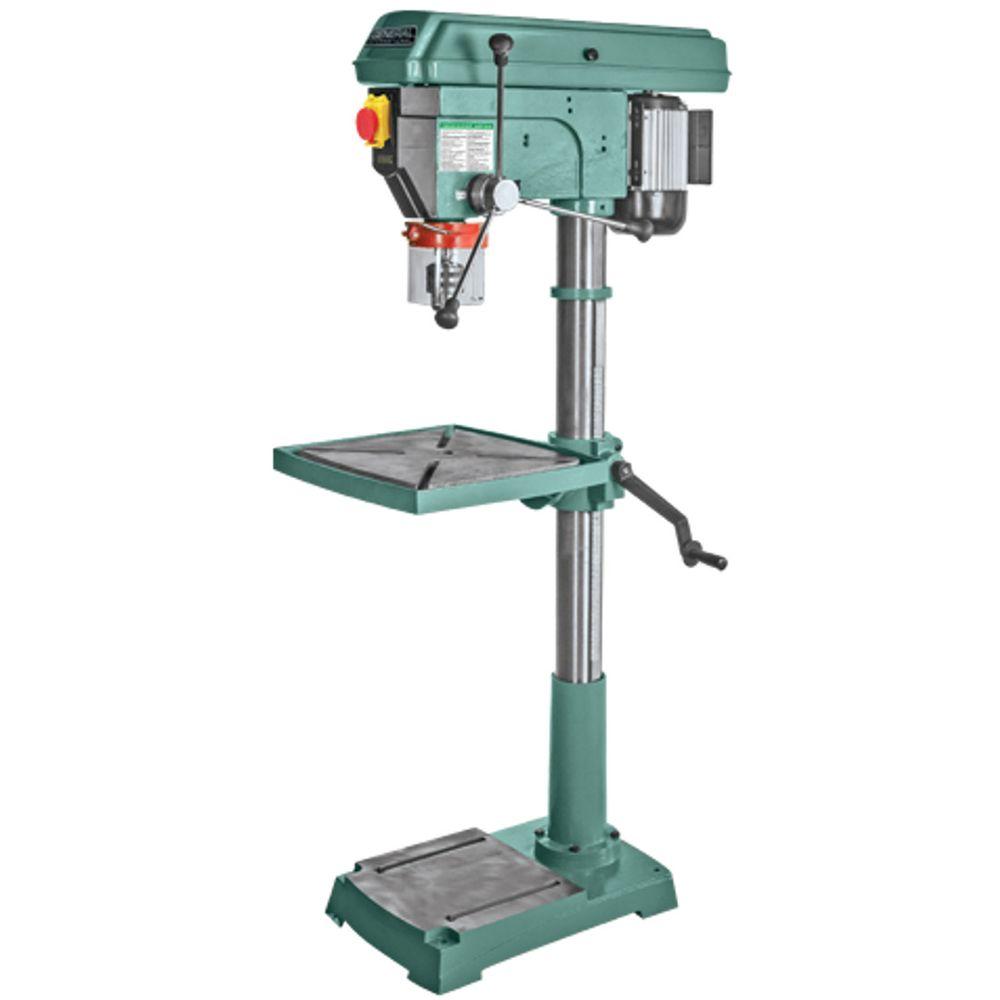

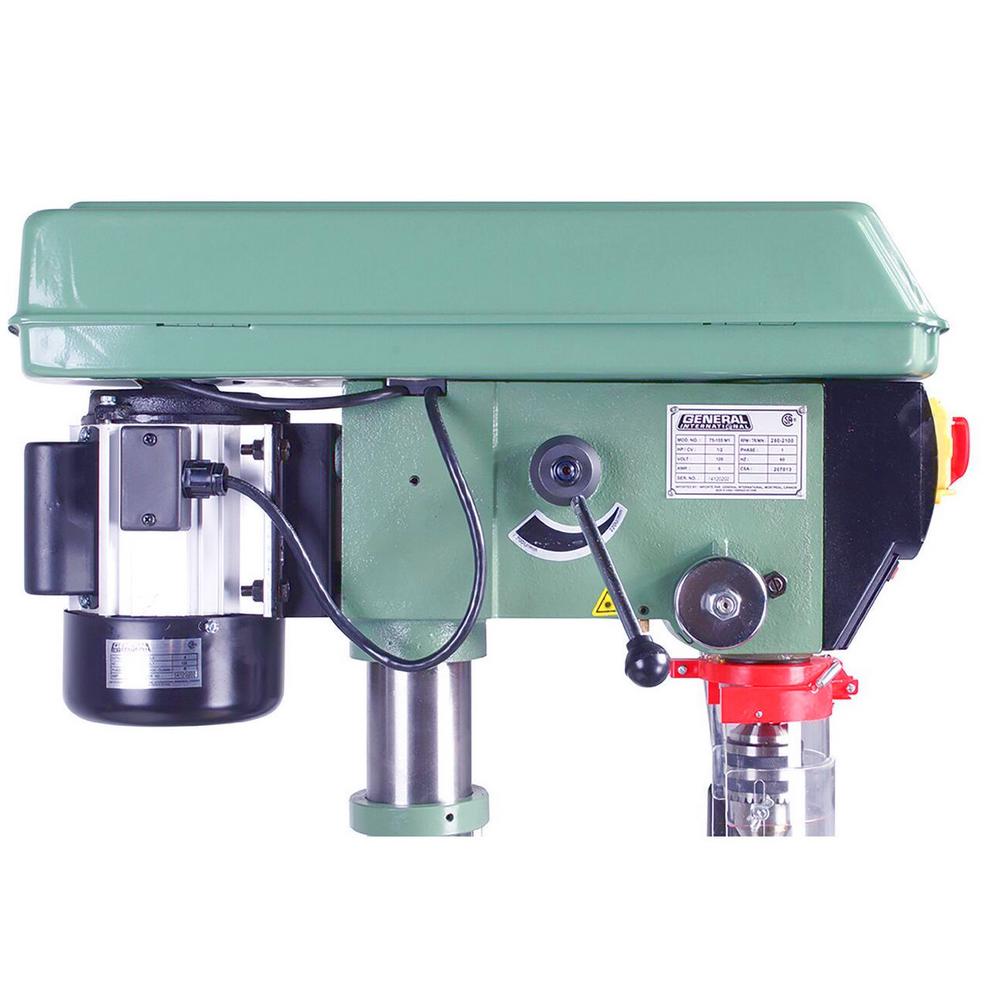

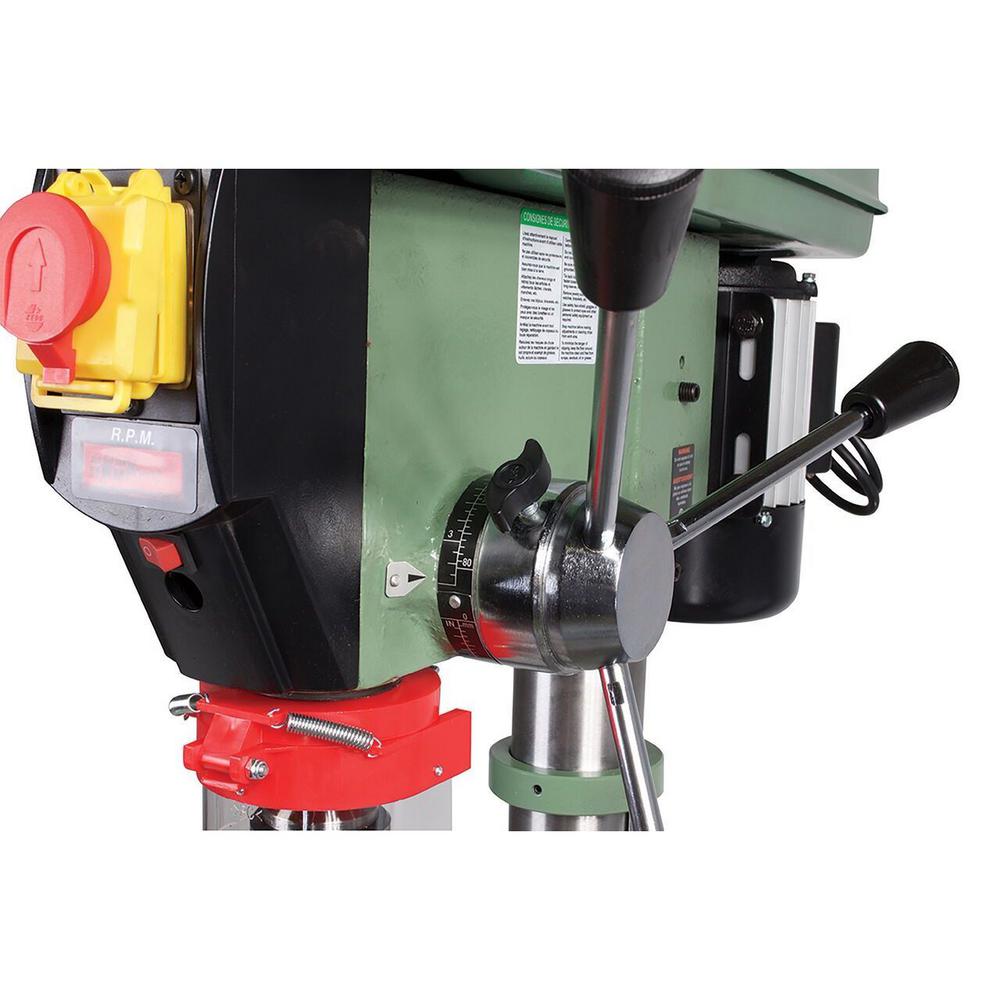

General International specializes in high quality woodworking and metal working machinery and related accessories. The 20 in. Variable Speed Drill Press has a sturdy design with a cast iron head, table and base. It features high-quality bearings for smooth, vibration-free operation and a simple hand lever controlled mechanical variable speed from 280 to 2100 RPMs.
- Adjustable spindle tension returns spring
- Built-in laser guide

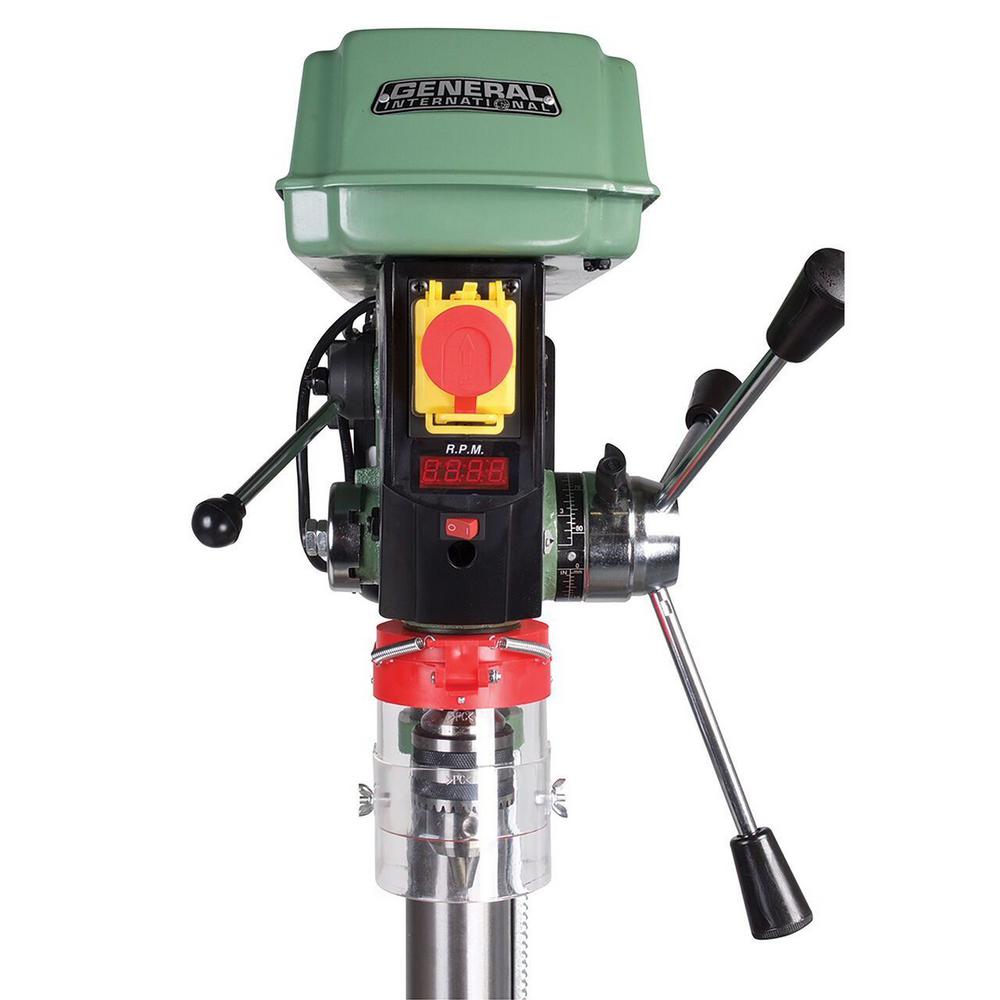

- Digital spindle speed display
- Industrial-quality 120-Volt motor
- Includes chuck with key
- Easy to use see-through flip-up chuck guard included for added safety
- Crank-operated rack and pinion table height adjustment
- 20 in. swing (515 mm)
- Drilling capacity: 1-1/4 in. (32 mm)
- Chuck size: 3/4 in. (20 mm)
- Spindle distance to table 27-3/4 in. (705 mm)
- Spindle distance to base: 46-7/8 in. (1190 mm)
- Table size: 18-3/4 in. x 16-3/4 in. (475 x 425 mm)
- Column diameter: 3-5/8 in. (92 mm)
- Base size: 23-5/8 in. x 5-3/4 in. (600 x 400 mm)
- Motor: 1 HP, 120-Volt, 10-Amp
Specifications
- Magnetic: No
- Maximum Speed (rpm): 2100
- Spindle Travel: 4.75
- Chuck Capacity: 3/4 In.
- Chuck Key Storage: Yes
- Tools Product Type: Power Tool
- Amperage (amps): 10
- Minimum speed (rpm): 280
- 360- Degree Swivel: Yes
- Work Light: No
- Color Family: Green
- Condition: New
- Number of Speeds: 20
- Bench & Stationary Tool Type: Drill Press
- Built-In Light: No
- Portability: Bench
- Cord Length (ft.): 6
- Voltage (volts): 120
- Lockout Power Switch: Yes
- Product Weight (lb.): 284
- Product Height (in.): 20 in
- Product Depth (in.): 23.6
- Product Width (in.): 16.75
