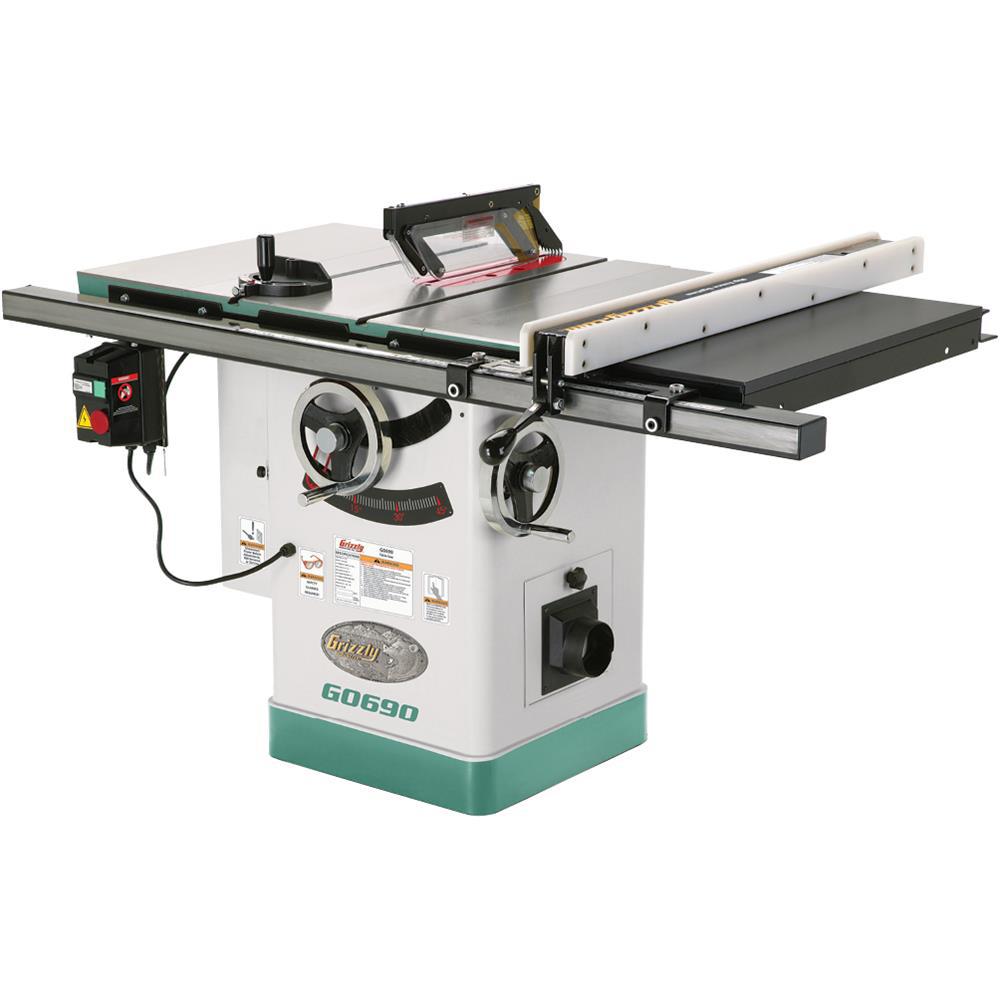

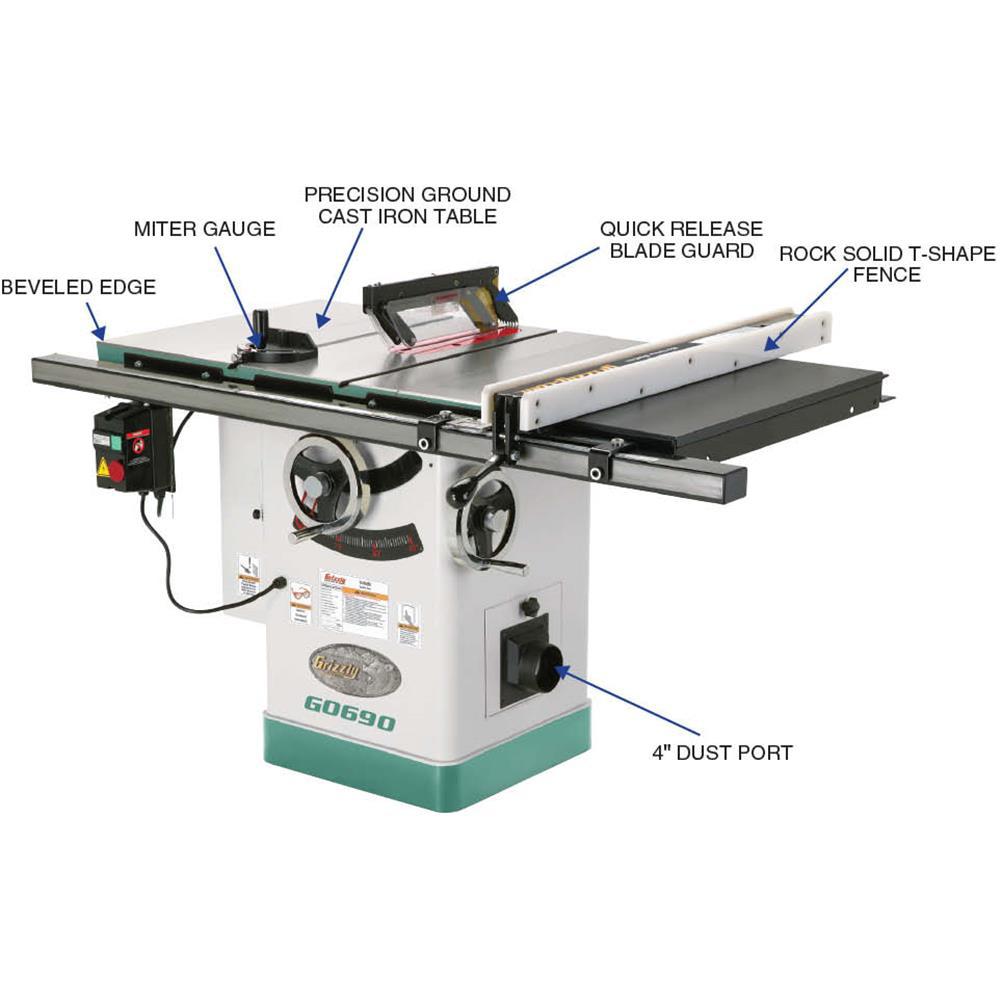

Destined to be the gold standard for 10 in. left tilting Cabinet Table Saws, this saw will be the focal point in any shop. Every part of this saw says quality and performance. From its heavy cast iron trunnions, 3 HP motor and triple belt drive to its massive cast iron table and wings, this Table Saw should last a lifetime. You’ll also appreciate its camlock T-fence, riving knife, heavy cast handwheels, magnetic switch, T-slot miter gauge and 4 in. dust collection port. This saw is what dreams are made of. Made in an ISO 9001 Factory. CSA certified meeting CSA C22.2 #71.2-08 and UL 987 standards.
- Nylon runners inside fence head assembly

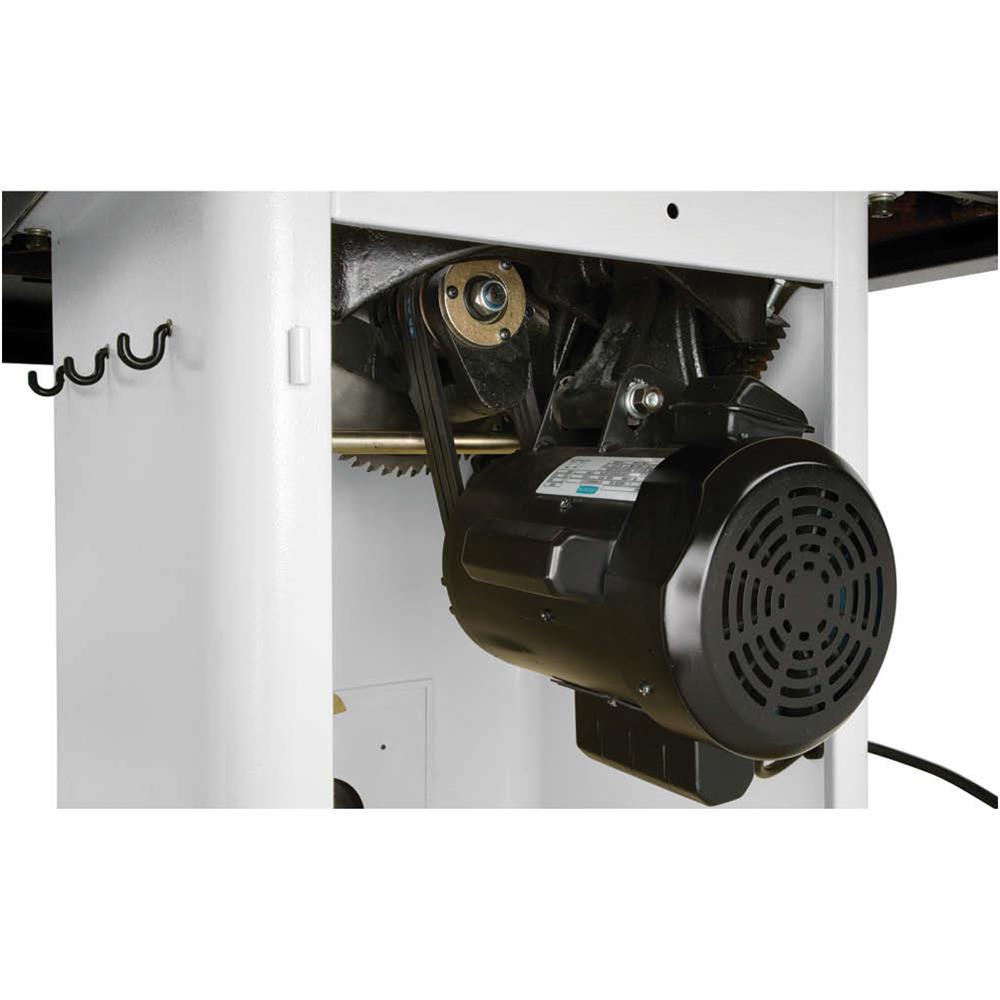

- High quality 3 HP motor
- Included 10 in. x 40 in. T carbide-tipped blade
- Recessed screw holding table insert
- Standard and dado table inserts
- Knurled knobs for adjusting fence
- Easy glide fence system
- Camlock T-shaped fence with HDPE face
- Heavy-duty cast-iron trunnions
- Precision-ground cast-iron table

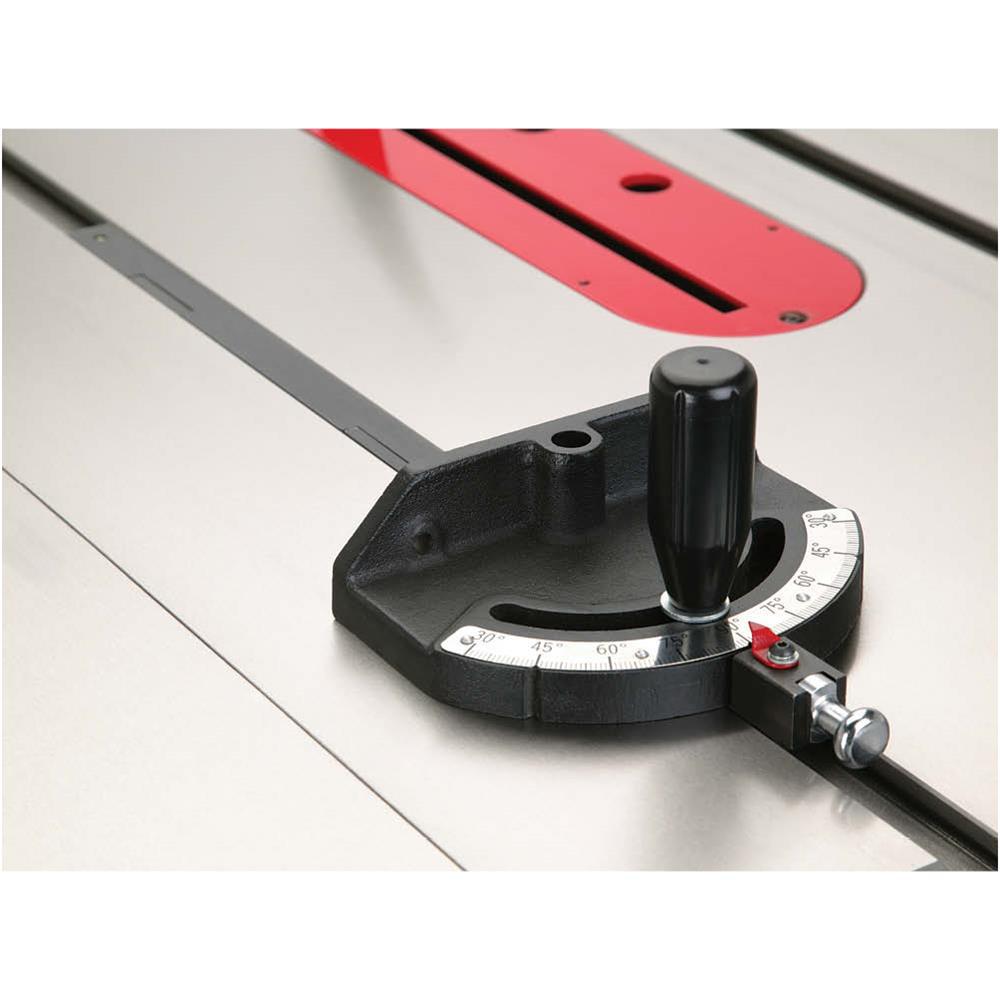

- Heavy-duty T-slot miter gauge
- 4 in. dust port
- Hinged motor cover

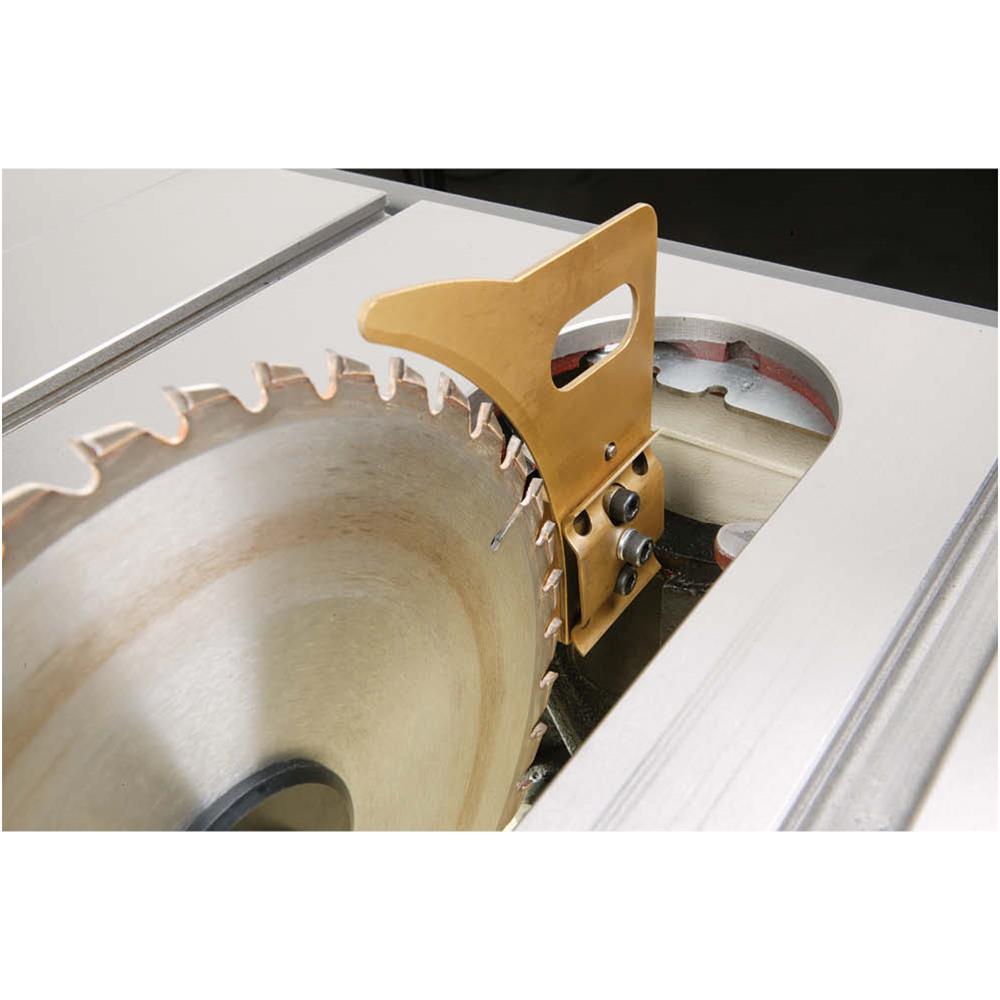

- Quick release riving knife
- Quick-release blade guard and spreader

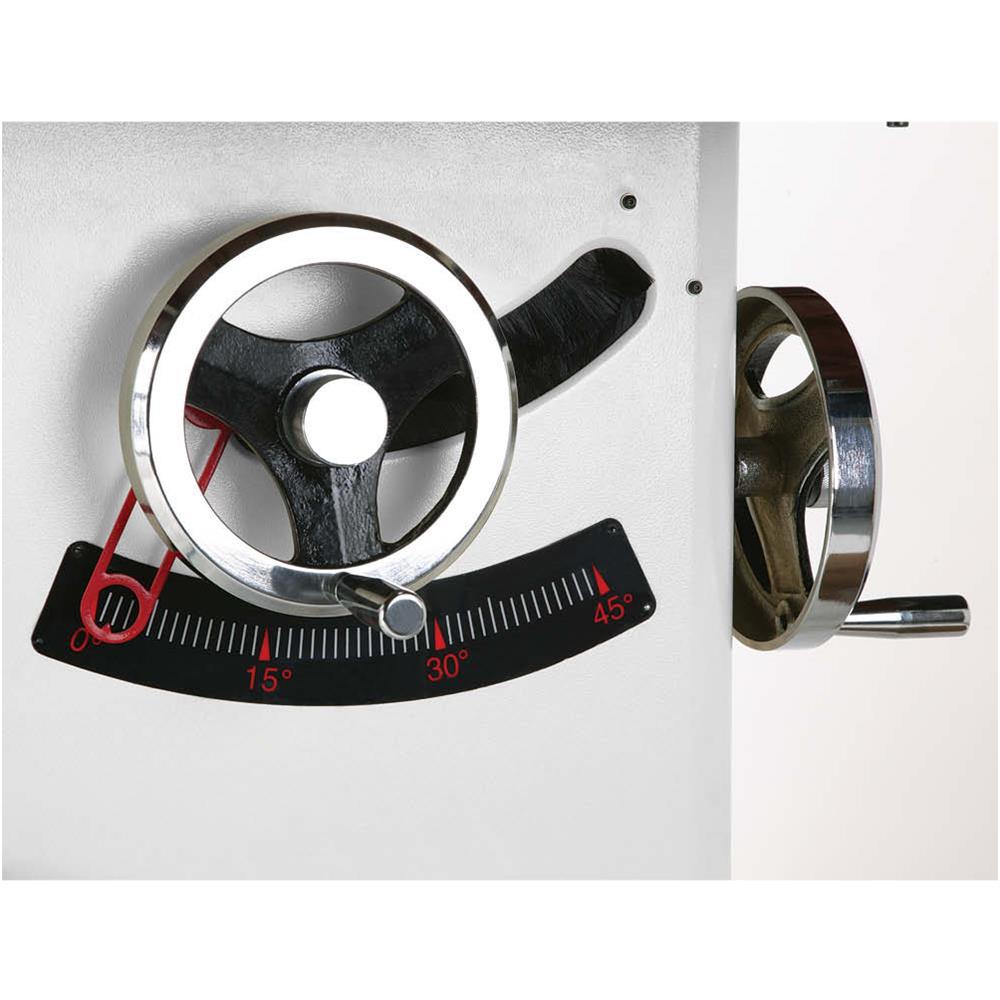

- Heavy-duty handwheels
- Powder coated paint
- Triple V-belts
Specifications
- Blade Diameter (in.): 10
- Maximum Speed (rpm): 4300
- Blade Speed: 4300
- Horsepower (hp): 3
- Table Tilt Right Max (degrees): 0
- Cordless/ Corded: Corded
- Dust Collection Method: 4 in. Dust Port
- Tools Product Type: Power Tool
- Amperage (amps): 12.8 A
- Rip Capacity – Left: 12
- Blade Location: Centered
- PT Horsepower (Hp): 3
- Table Tilt Left Max (degrees): 45
- Color Family: Multi-Colored
- Included Accessories: Blade Guard System,Blades
- Condition: New
- Power Tool Features: Blade Guard System,Stand Included
- Construction Material: Cast Iron
- Bench & Stationary Tool Type: Table Saw
- Cuts Through: Wood
- Portability: Stationary
- Cord Length (ft.): 6
- Depth Control: Adjustable
- Product Weight (lb.): 507
- Rip Capacity – Right: 29.5
- Maximum Cut Depth @ 45 Deg.: 2.19
- Maximum Cut Depth @ 90 Deg.: 3.13
- Table Length (in.): 40
- Product Height (in.): 40
- Product Depth (in.): 41
- Table Width (in.): 40
- Work Table Surface: 40 in. x 40 in.
- Product Width (in.): 41
