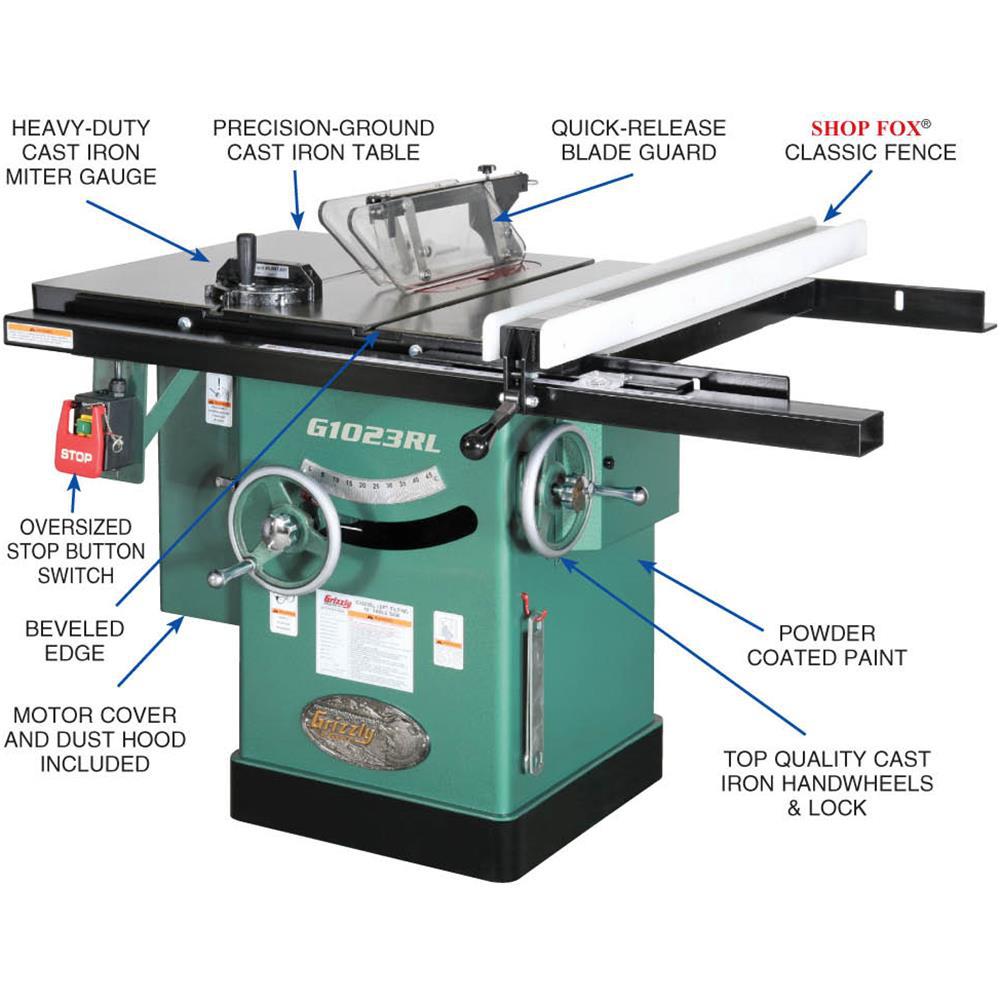

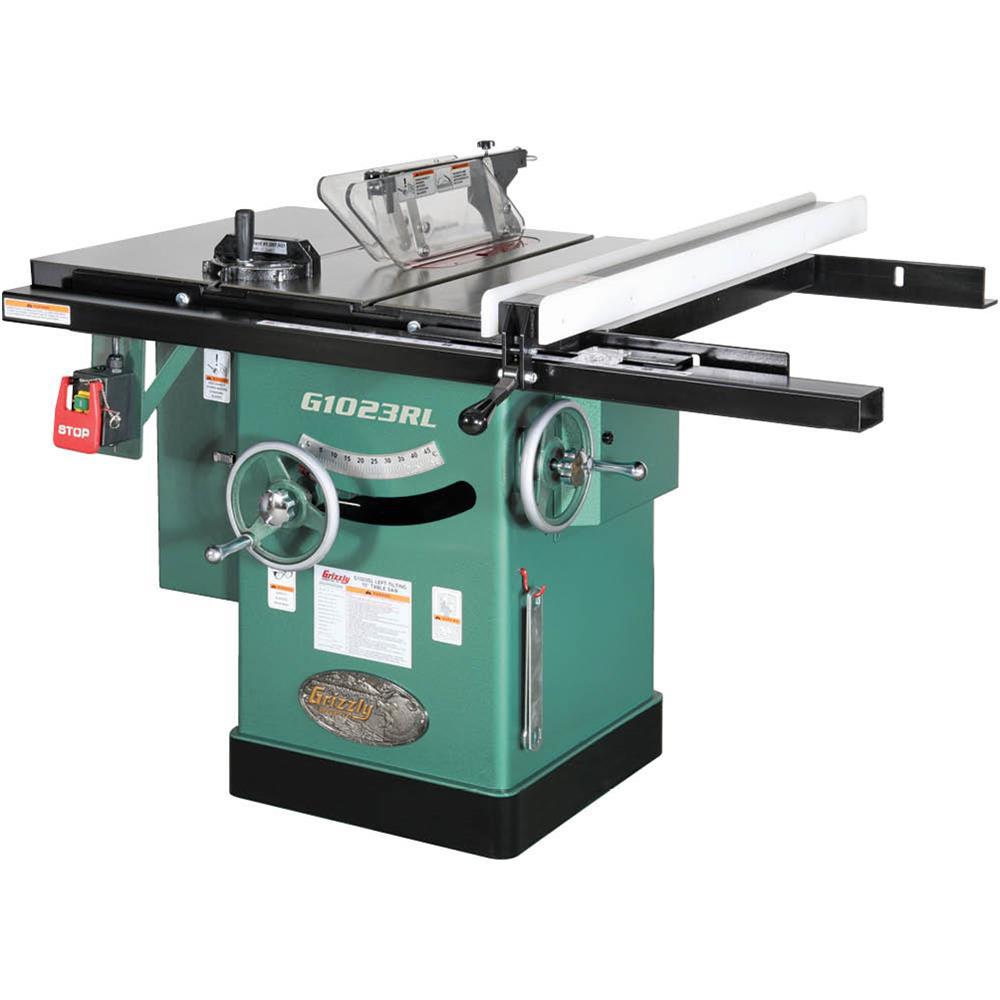

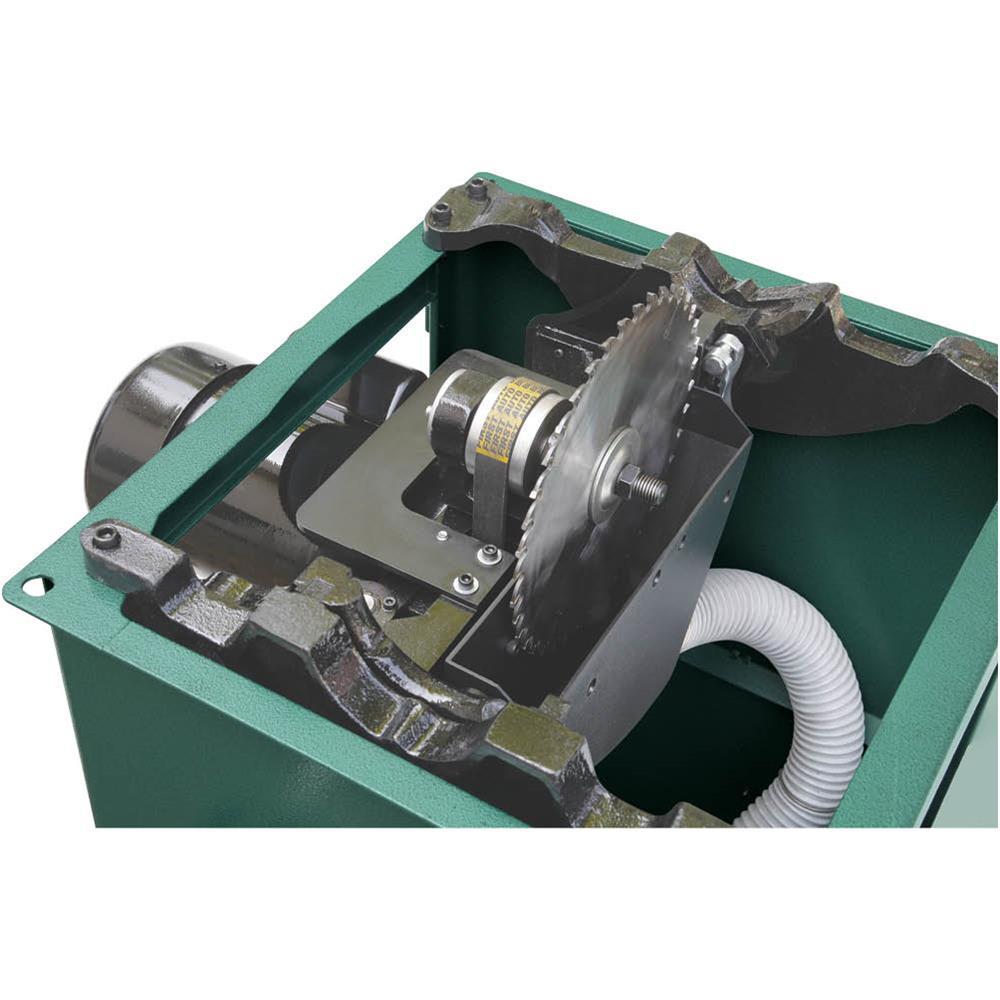

It took nearly 2-years of refinement and design optimization to improve our best-selling “G1023S” series table saws. The result is our new line of “G1023R” series table saws, featuring all the best from the old models plus a new riving knife system, serpentine-belt power transfer that runs quieter and smoother, encapsulated dust collection around the underside of the blade, and an improved quick-release blade guard. CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7th standards. Features: Motor: 3HP, 240-Volt, single-phase, 14 Amp, 3450 RPM. Solid cast iron table is first heat treated for strength then milled perfectly flat and ground to a mirror-like finish. Table size (with 2 solid extension wings attached) is 40 in. x 27 in. Table has T-slots so your miter gauge will not fall off the table when retracted. 5/8 in. Dia arbor is long enough to accept dado blades up to 13 in./16 in. Extra large handwheels really ease arbor movement. Quick change between riving knife and splitter guard. Cutting capacity: 8 in. left, 32 in. right of blade. Maximum depth of cut at 90° 3 in. Maximum depth of cut at 45° 2-1/8 in. 4 in. dust port included. Magnetic safety switch is standard. 1-piece steel cabinet type stand. All sealed ball bearing construction. Poly-V serpentine belt system transfers power more efficiently and with less noise than standard V-belts. Powder coated paint. Footprint: 20-1/2 in. x 20-1/2 in. Approximate shipping weight: 508 lbs. includes 10 in. x 40T blade.
- 2 precision-ground cast-iron wings
- Angled dust chute in bottom of stand
- Included 10 in. x 40 in. T carbide-tipped blade
- 2 table inserts for blade and dado
- Table has T-slots so your miter gauge will not fall off the table when retracted
- 1-piece steel cabinet-style stand
- All sealed ball bearing construction
- Quick-release blade guard and spreader
- Inboard and outboard arbor bearing
- Magnetic safety switch protects motor and operator
- Powder coated paint

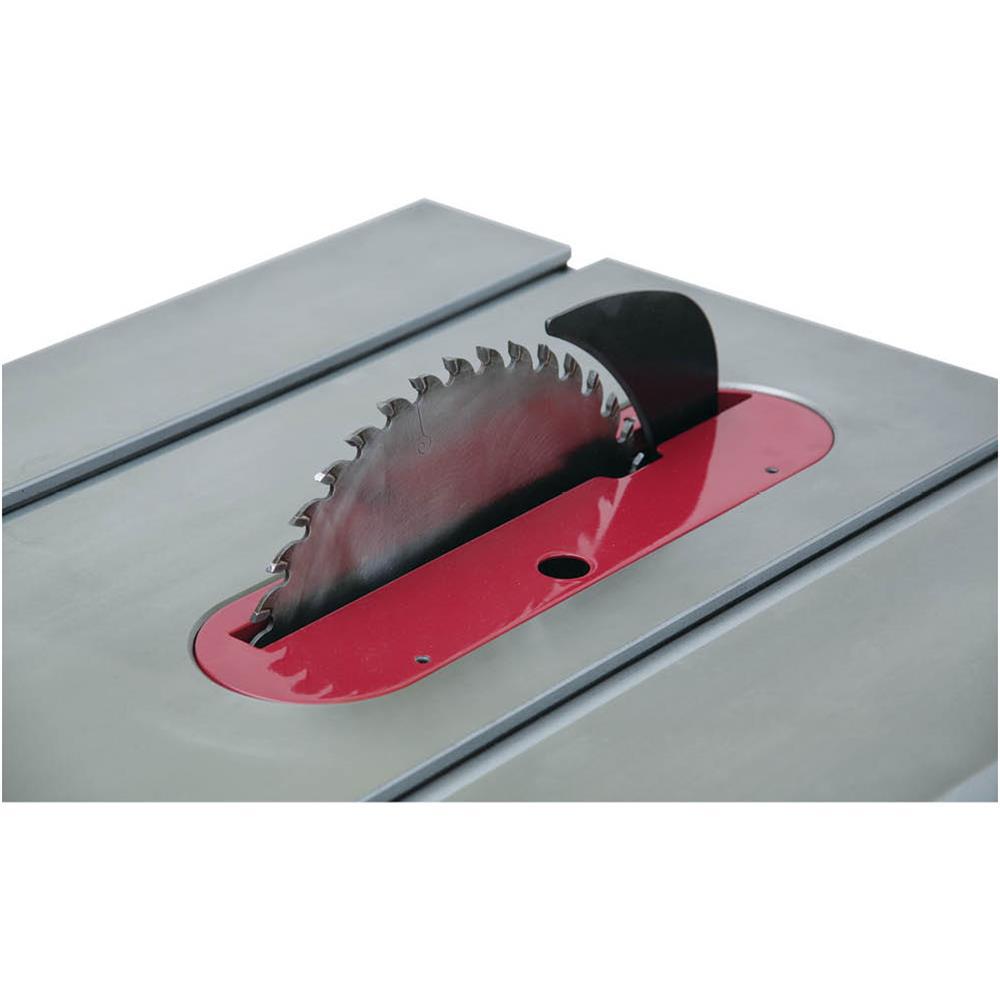

- Riving knife included

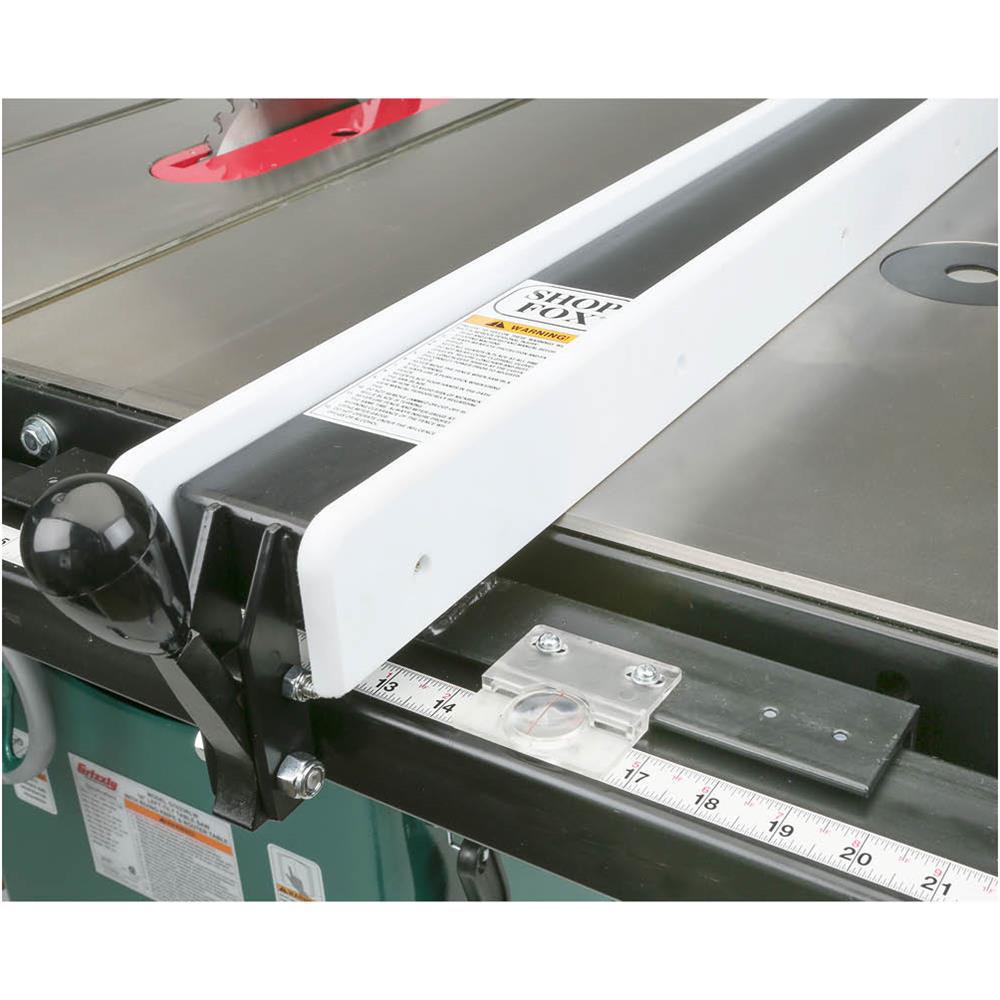

- Shop fox classic table saw fence

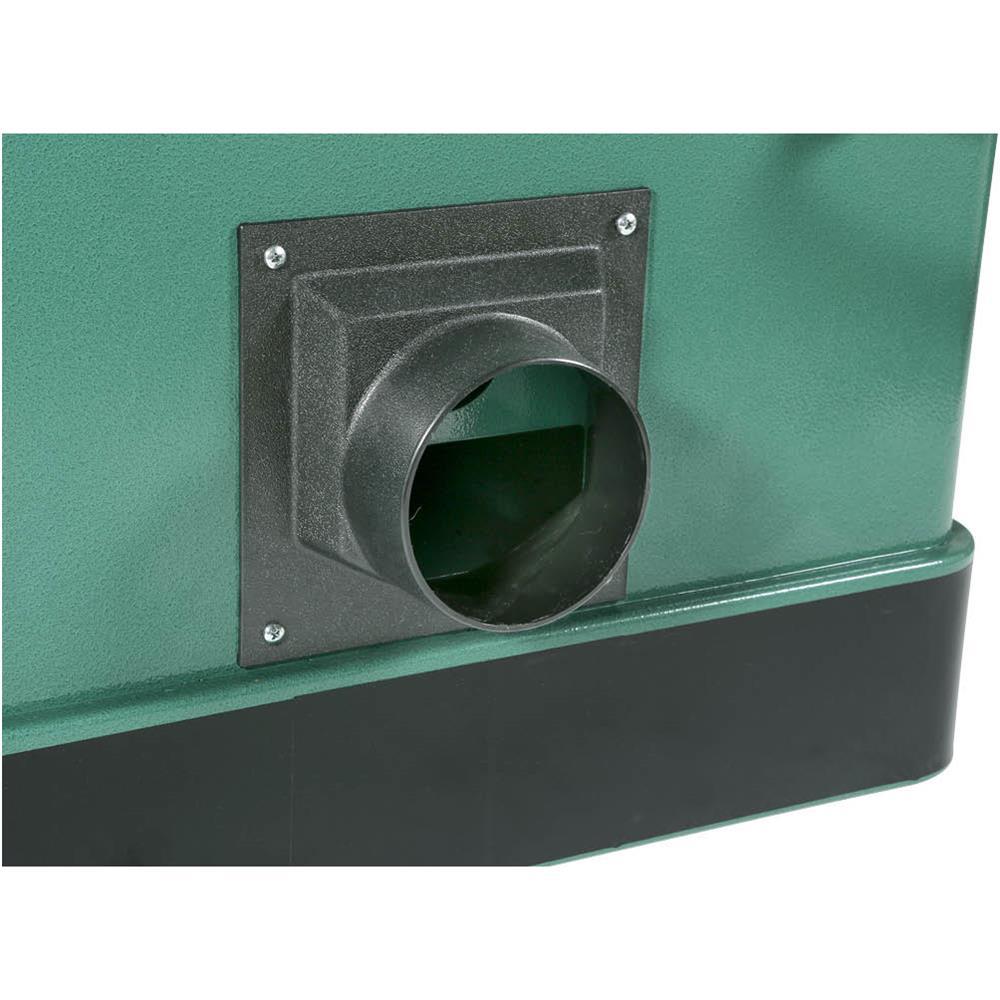

- 4 in. dust port
- Extra-large cast-iron handwheels and lock
- Heavy-duty miter gauge
- Smooth and quiet poly-V serpentine belt system
Specifications
- Blade Diameter (in.): 10
- Maximum Speed (rpm): 4200
- Blade Speed: 4200
- Horsepower (hp): 3
- Table Tilt Right Max (degrees): 0
- Cordless/ Corded: Corded
- Dust Collection Method: 4 in. Dust Port
- Tools Product Type: Power Tool
- Amperage (amps): 14 A
- Rip Capacity – Left: 8
- Blade Location: Centered
- PT Horsepower (Hp): 3
- Table Tilt Left Max (degrees): 45
- Color Family: Multi-Colored
- Included Accessories: Blade Guard System,Blades
- Condition: New
- Power Tool Features: Blade Guard System,Stand Included
- Construction Material: Cast Iron
- Bench & Stationary Tool Type: Table Saw
- Cuts Through: Wood
- Portability: Stationary
- Cord Length (ft.): 10
- Depth Control: Adjustable
- Product Weight (lb.): 471
- Rip Capacity – Right: 32
- Maximum Cut Depth @ 45 Deg.: 2.13
- Maximum Cut Depth @ 90 Deg.: 3
- Table Length (in.): 40
- Product Height (in.): 39.75
- Product Depth (in.): 47
- Table Width (in.): 40
- Work Table Surface: 40 in. x 40 in.
- Product Width (in.): 47
