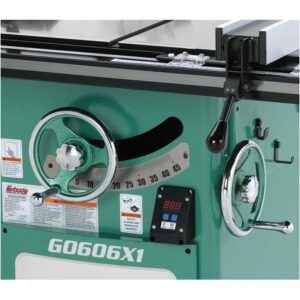

This Extreme Table Saw is ideally suited to handling large panels without blinking an eye. A right-hand and rear-mounted extension table supports the widest panels before, during, and after the cut, and the large rail-mounted switch control won’t get lost under the panel. Other features include ample storage shelves, a user friendly blade guard, a riving knife, a digital readout for blade angle and an efficient dust management system that includes an internal dust port and sloped cabinet floor that directs saw dust into the 4 in. dust port. Enjoy all of the innovative features this big capacity saw has to offer. CSA certified meeting CSA C22.2 #71.2-08, CSA C22.2 #105-1953, and UL 987 standards.
- Heavy-duty miter gauge
- Heavy-duty legs
- Large rail-mounted switch
- Blade angle digital readout
- Outfeed and extension tables with storage shelves
- Included 12 in. x 60 in. T carbide-tipped blade
- Smooth and quiet poly-V serpentine belt system
- 4 in. dust port
- Hinged motor cover
- Riving knife included
- Quick-release blade guard and spreader
- Comfortable polished chrome handles
- Precision-ground cast-iron table
Specifications
- Blade Diameter (in.): 12
- Maximum Speed (rpm): 3600
- Blade Speed: 3600
- Horsepower (hp): 7.5
- Table Tilt Right Max (degrees): 0
- Cordless/ Corded: Corded
- Dust Collection Method: 4 in. Dust Port
- Tools Product Type: Power Tool
- Amperage (amps): 19.5 A
- Rip Capacity – Left: 18
- Blade Location: Centered
- PT Horsepower (Hp): 7-1/2
- Table Tilt Left Max (degrees): 45
- Color Family: Multi-Colored
- Included Accessories: Blade Guard System,Blades
- Condition: New
- Power Tool Features: Blade Guard System,Stand Included
- Construction Material: Cast Iron
- Bench & Stationary Tool Type: Table Saw
- Cuts Through: Wood
- Portability: Stationary
- Cord Length (ft.): 10
- Depth Control: Adjustable
- Product Weight (lb.): 715
- Rip Capacity – Right: 52
- Maximum Cut Depth @ 45 Deg.: 2.75
- Maximum Cut Depth @ 90 Deg.: 4
- Table Length (in.): 78.75
- Product Height (in.): 42.5
- Product Depth (in.): 79.5
- Table Width (in.): 78.75
- Work Table Surface: 78.75 in. x 78.75 in.
- Product Width (in.): 79.5
