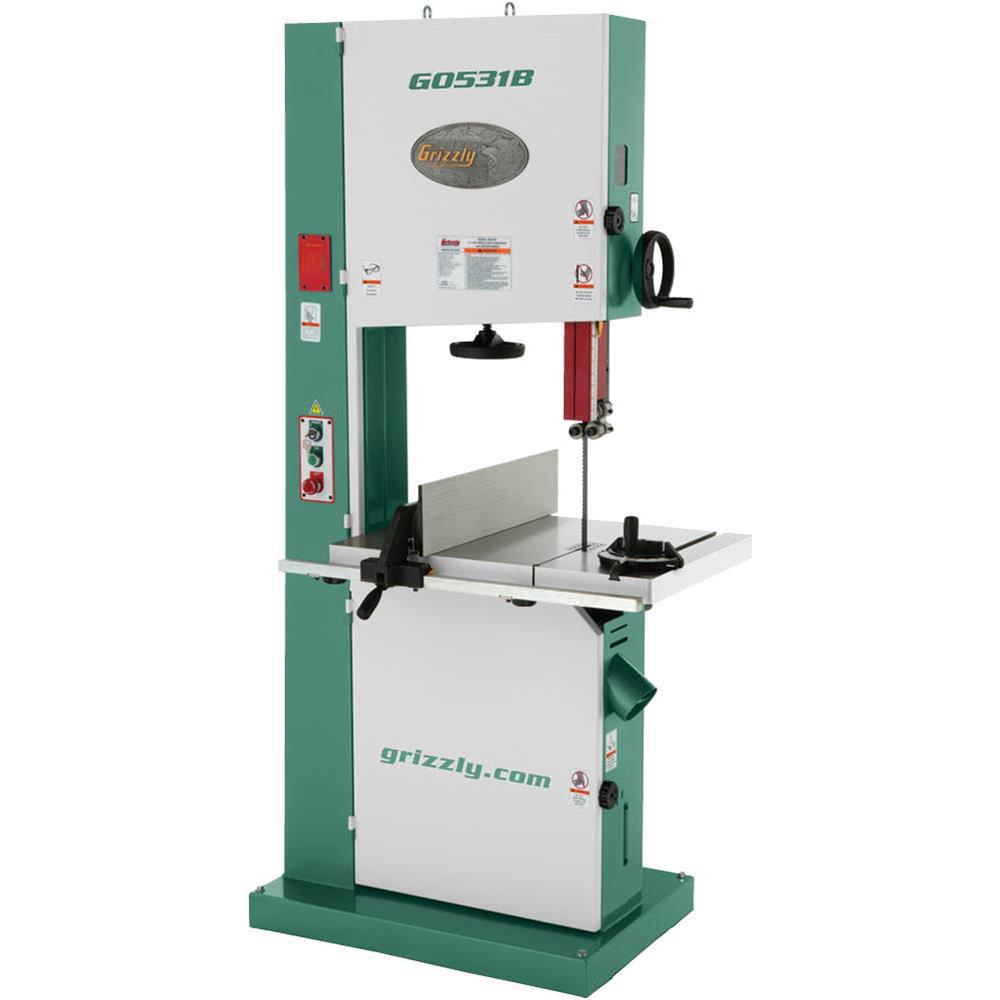

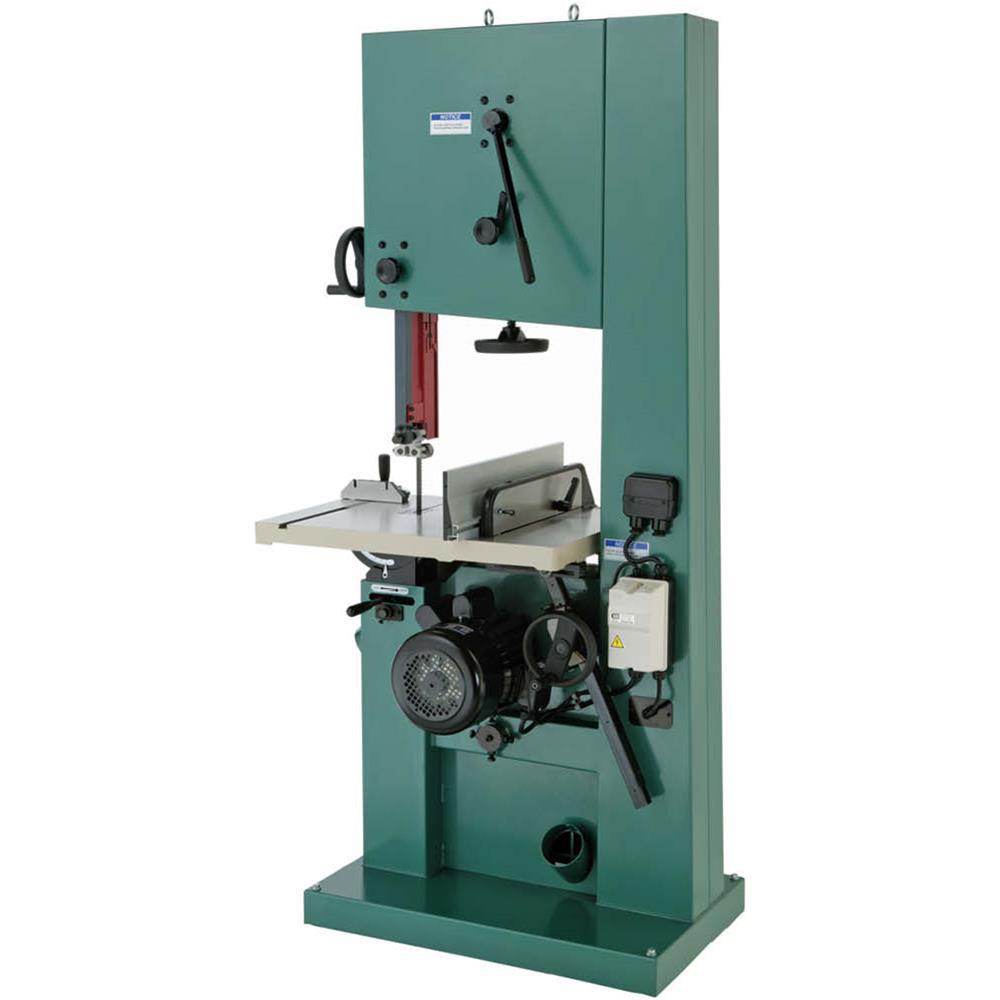

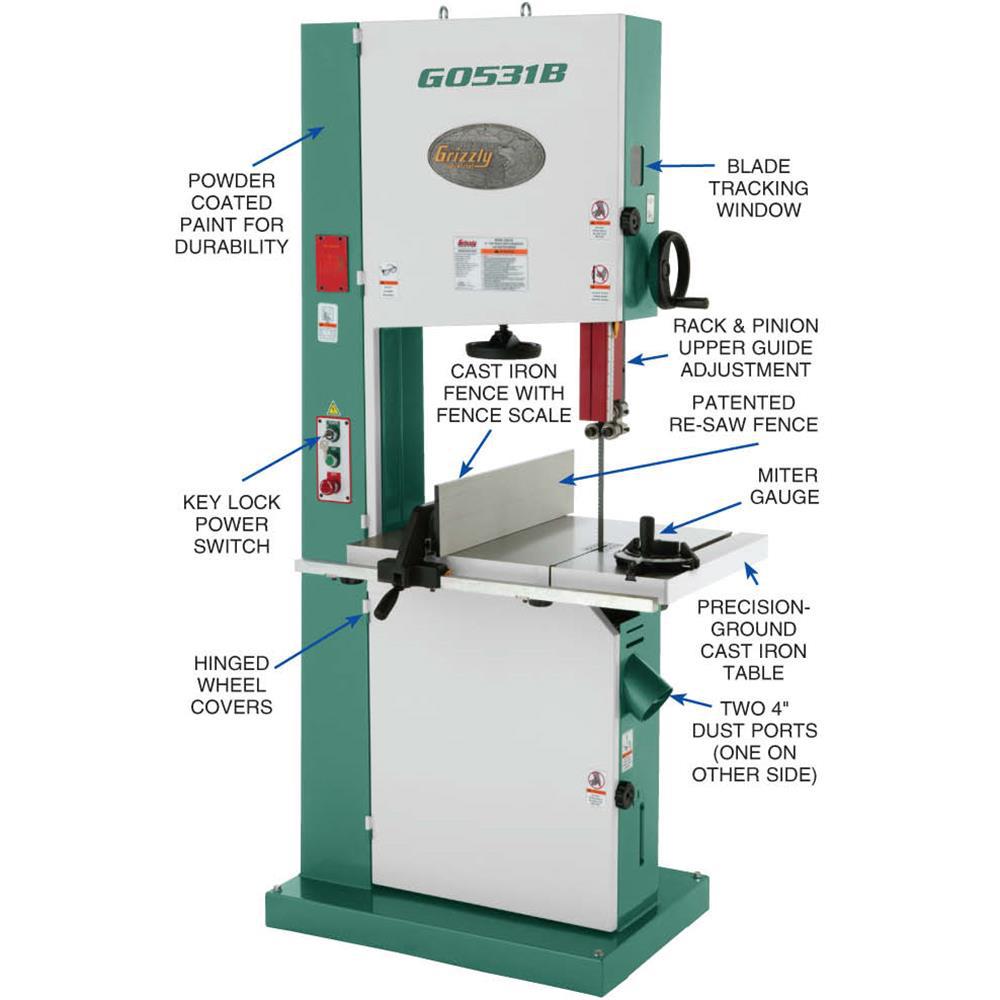

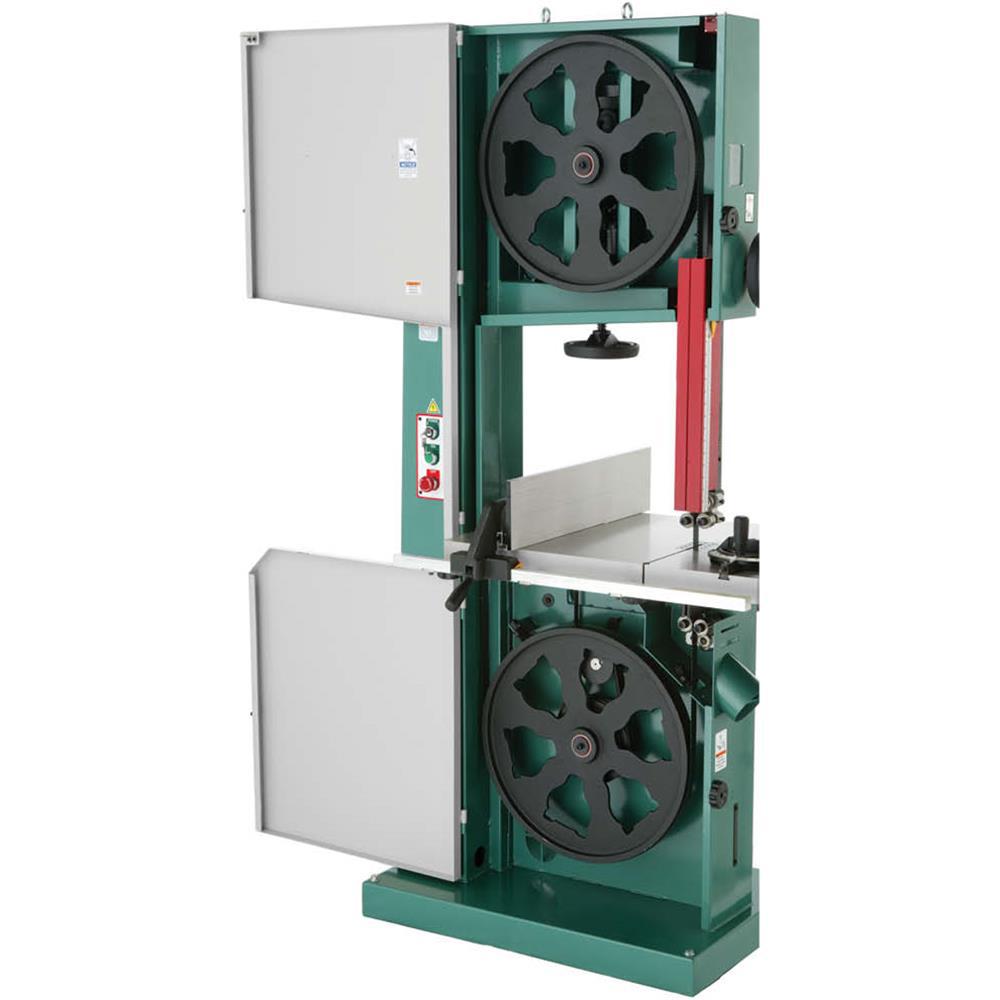

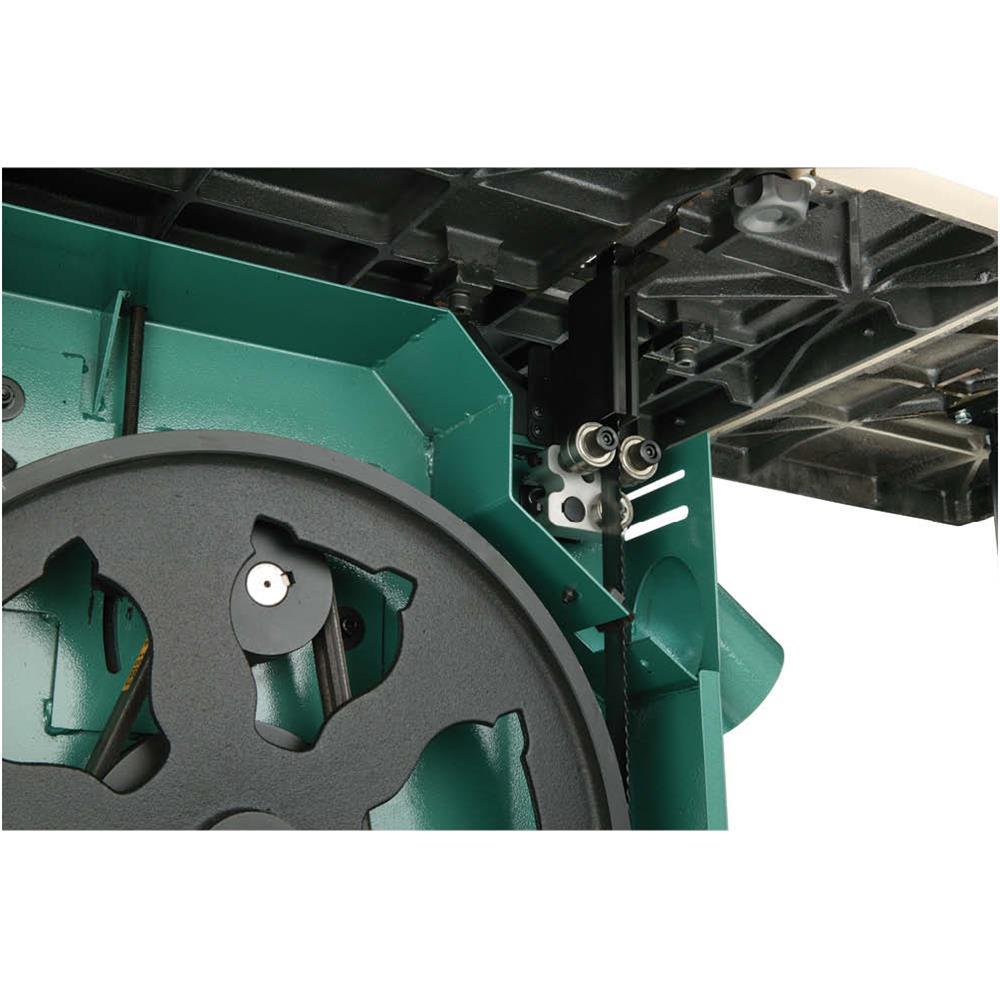

Built for production and sized for cutting work up to 20 in. W to the left of the blade and 14 in. tall, this Heavy-Duty Bandsaw won’t back down to anything less. The 5 HP, TEFC motor powers the fully balanced cast iron wheels for smooth operation all day long. Other features like blade tension indicator, micro adjusting tilt table, motor brake and rack and pinion upper guide adjustment make operating functions quick and convenient.

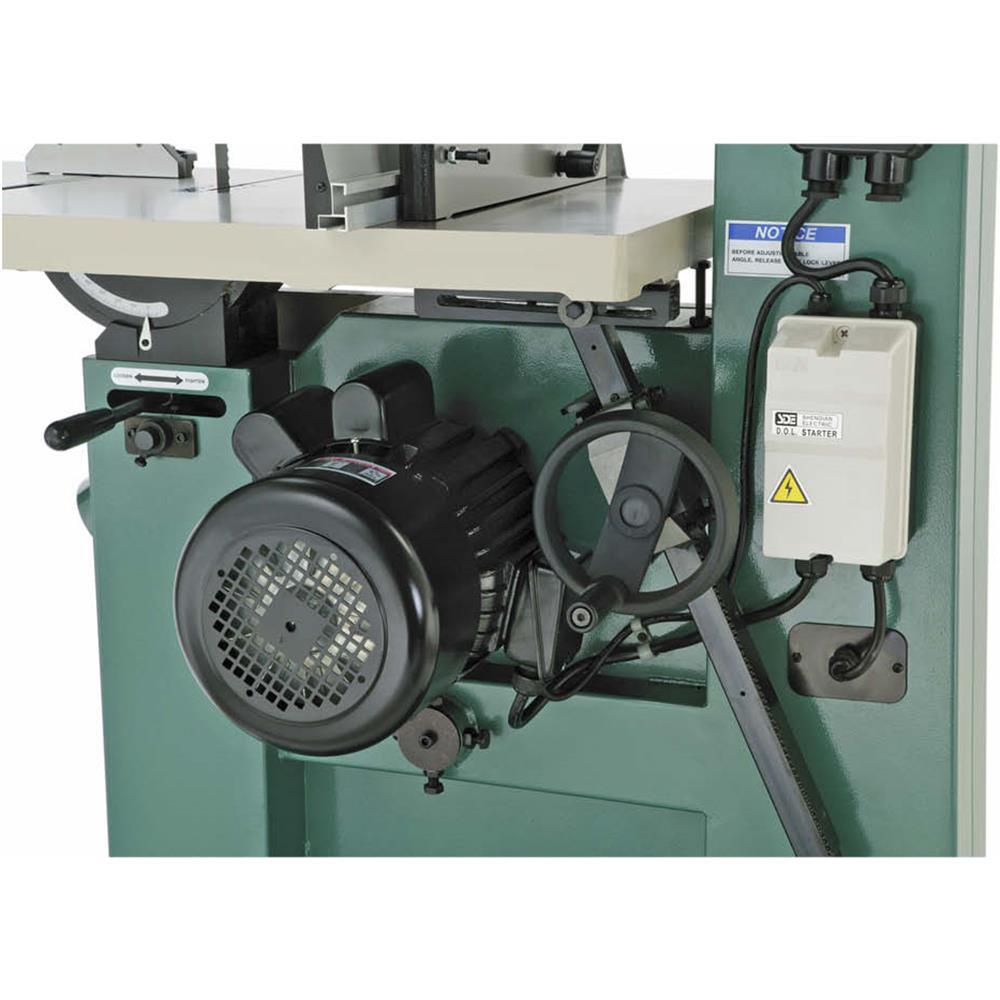

- Motor: 5 HP, 230-Volt, single-phase
- Throat capacity: 20 in.
- Height capacity: 14-1/4 in.
- Table size: 29-1/2 in. x 20-3/4 in. x 1-7/8 in. thick

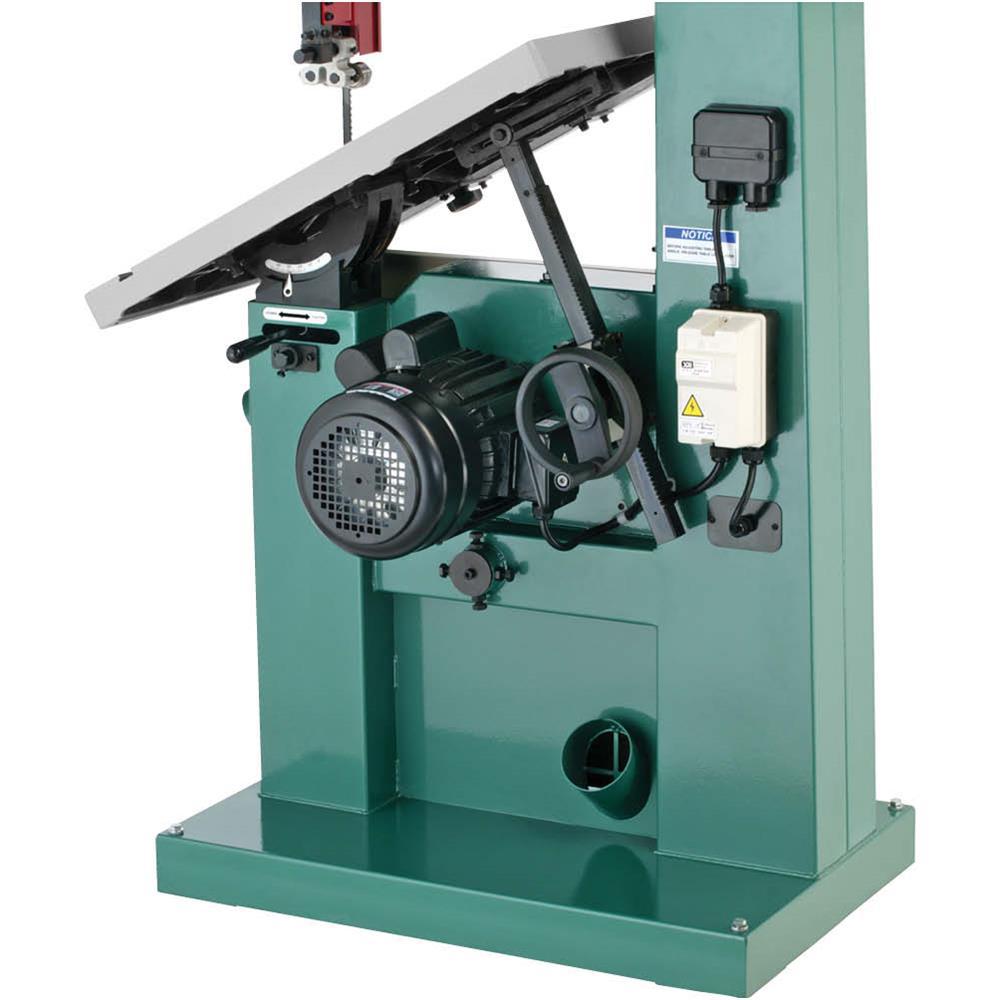

- Table tilt: 5° left, 45° right
- Blade size range: 1/4 in. – 1-3/8 in.
Specifications
- Maximum Speed (rpm): 1720
- Minimum Blade Length: 164
- Table Tilt Right Max (degrees): 45
- Band Saw Type: Vertical
- Cordless/ Corded: Corded
- Dust Collection Method: 4 in. Dust Port
- Tools Product Type: Power Tool
- Amperage (amps): 22
- PT Horsepower (Hp): 5
- Table Tilt Left Max (degrees): 5
- Color Family: Multi-Colored
- Included Accessories: Stand
- Condition: New
- Power Tool Features: Lockout Power Switch,No Tool Blade Change,Quick-Release Tension,Stand Included
- Construction Material: Steel
- Bench & Stationary Tool Type: Band Saw
- Cuts Through: Wood
- Portability: Stationary
- Cord Length (ft.): 0
- Voltage (volts): 230
- Table-Top Material: Cast-Iron
- Product Weight (lb.): 594
- Cutting Capacity Width / Depth Of Throat(In.): 20
- Table Length (in.): 29.5
- Product Height (in.): 78
- Product Depth (in.): 32.25
- Maximum Blade Length: 165-1/2
- Minimum Blade Width: 1/4
- Table Width (in.): 20.75
- Dust Port Size (In.): 4
- Maximum Blade Width: 1-3/8
- Cutting Capacity Height / Height under Guide (In.): 14-1/4
- Work Table Surface: 29.5 in. x 20.75 in.
- Product Width (in.): 39.5
