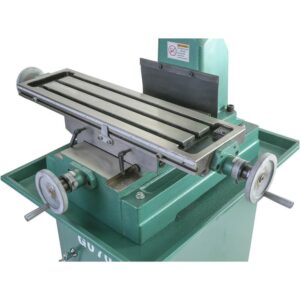

This heavy-duty Mill/Drill has a 2 HP motor and enough table space to make quick work of just about any machining job you can throw at it. Priced so competitively compared to other brands, you can use the savings for the G1076 Clamping Kit or even our G7155 6 in. machining vise. Of course, with the R-8 spindle, tooling up is a snap and with the cabinet in the stand, you’ll have the convenience of storing everything right where you need it most.

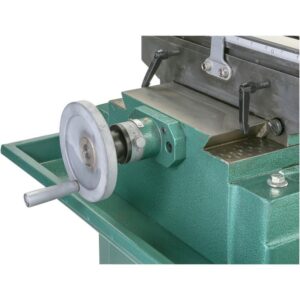

- Table moves 0.100 in. per revolution of handwheel

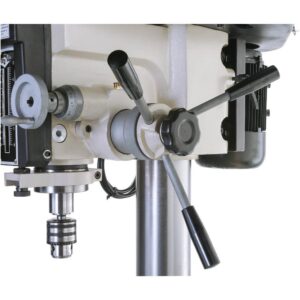

- Quill moves 0.108 in. per revolution of fine feed handwheel
- Coolant trough

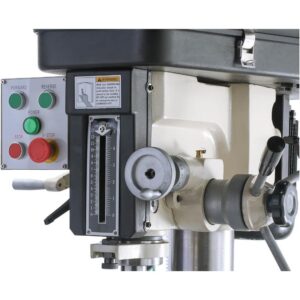

- Fine down feed control, graduated in 0.001 in.
- Calibrated depth stop
- 2 HP motor
Specifications
- Magnetic: No
- Maximum Speed (rpm): 2436
- Spindle Travel: 4
- Chuck Capacity: 1/2 In.
- Chuck Key Storage: No
- Tools Product Type: Power Tool
- Amperage (amps): 17.8 A
- Minimum speed (rpm): 140
- 360- Degree Swivel: No
- Work Light: No
- Color Family: Multi-Colored
- Condition: New
- Number of Speeds: 12
- Bench & Stationary Tool Type: Drill Press
- Built-In Light: No
- Portability: Stationary
- Cord Length (ft.): 6.5
- Voltage (volts): 220
- Lockout Power Switch: No
- Product Weight (lb.): 617
- Product Height (in.): 43.25
- Product Depth (in.): 41
- Product Width (in.): 40.5
