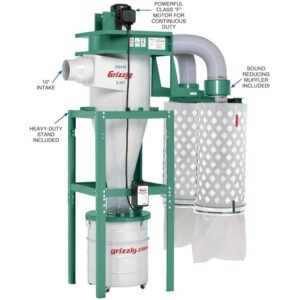

Grizzly Industrial 5 HP Cyclone Dust Collector

Cyclonic action separates the heavy dust particles from the fine particles and drops them into the 55 Gal. steel drum. Any remaining dust travels past the 16 in. Dia impeller and is then trapped by a cartridge filter made of spun-bond polyester that filters 99.9% of particles from 0.2 microns to 2 microns in size. Each cartridge filter is pleated to provide 226 sq. ft. of surface area for efficient air movement and a clear plastic bag collects the fine cake that shakes off the filter for consistent dust collector performance. Casters mounted to the drum also make disposal of the larger chips and dust as easy as it gets. Other features include: a vertical motor support for reduced vibration, thick walled 11-Gauge steel blower housing, 14-Gauge steel cyclone body, 360° blower rotation for easy connection to a duct system, TEFC Class “F” motor, and filter cleaning device. A rugged steel stand is included. Over 2-years in the making, these cyclone dust collectors are the best in their class – at any price.

• BIA certified cartridge filter
• Blower and barrel rotate 360° for inlet and outlet positioning
• Casters mounted on collection drum for easy moving
• Clear disposable plastic collection bags
• Gentle brush cleaning mechanism inside cartridge filter
• Ramped inlet maximizes dust flow into collection drums
• Reinforced motor mount

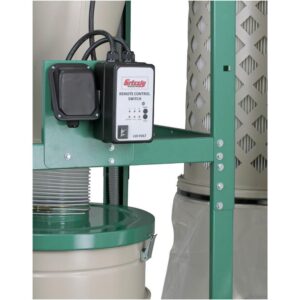

• Remote controlled magnetic switch
• Rugged steel stand
• Standard equipment mufflers reduce noise level without reducing air flow
• Powerful class F motor

Specifications

• Tools Product Type: Power Tool
• Color Family: Multi-Colored
• Dust Collection Product Type: Dust Collector
• Product Weight (lb.): 517
• Bag Capacity/Dry Volume (cu. ft.): 7.4
• Interior Hose Diameter (In.): 10
• Product Height (in.): 111.5
• Product Depth (in.): 63
• Product Width (in.): 56.875
