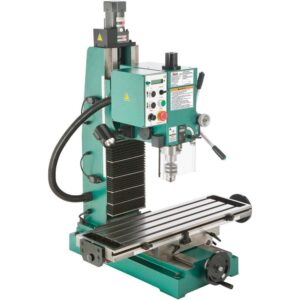

Grizzly Industrial Heavy-Duty Benchtop Milling Machine

These benchtop mills have all the features you need to take on the most demanding projects. Start with the easy to use spindle speed control — just turn the dial to set your speed for optimum cuts and tool life. Tapping is also a breeze with the reversing switch control right in the handles. There are even digital displays for spindle speed, spindle height and head angle for excellent heads-up operation. And, don’t forget the dedicated headstock elevation motor — no more cranking here, just push a button to clear the tooling, change it out and push another button to drop it down to get back into the action.

• Coolant trough
• Headstock and table travel on dovetailed ways
• Optional power feed available
• Milling and tapping mode control
• Headstock tilts 90° left, 45° right
• Front-mounted emergency stop button
• Reversing buttons on down feed handles for tapping
• Digital speed display
• Digital head tilt angle display
• Motorized headstock lift system
• Includes 1 mm to 16 mm B16 drill chuck
• Dovetail column
• Digital spindle scale reads metric or inches, zero set, on/off
• Transparent polycarbonate chip guard with safety switch

Specifications

• Magnetic: No
• Maximum Speed (rpm): 1600
• Spindle Travel: 3
• Chuck Capacity: 5/8 In.
• Chuck Key Storage: No
• Tools Product Type: Power Tool
• Amperage (amps): 10 A
• Minimum speed (rpm): 100
• 360- Degree Swivel: No
• Work Light: No
• Color Family: Multi-Colored
• Condition: New
• Number of Speeds: 12
• Bench & Stationary Tool Type: Drill Press
• Built-In Light: No
• Portability: Bench
• Cord Length (ft.): 8
• Voltage (volts): 110
• Lockout Power Switch: No
• Product Weight (lb.): 596
• Product Height (in.): 43
• Product Depth (in.): 14.5
• Product Width (in.): 30.5
