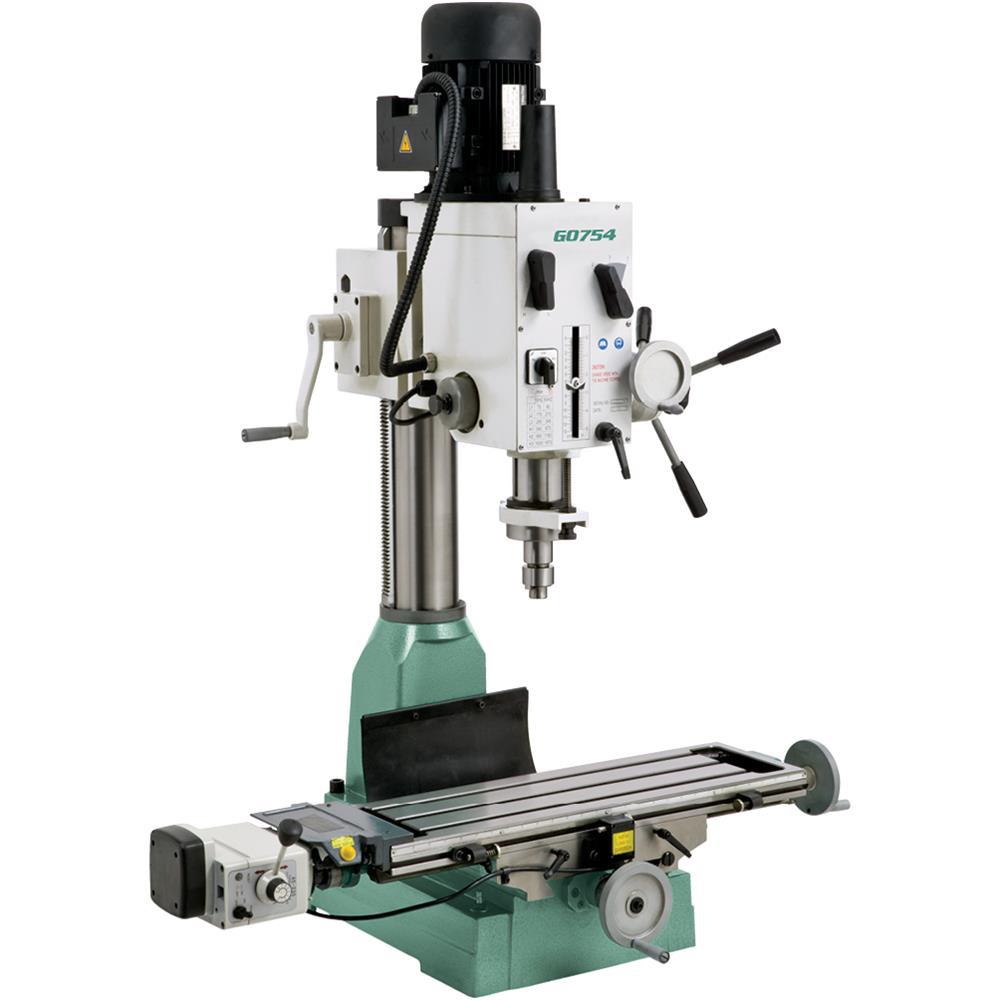

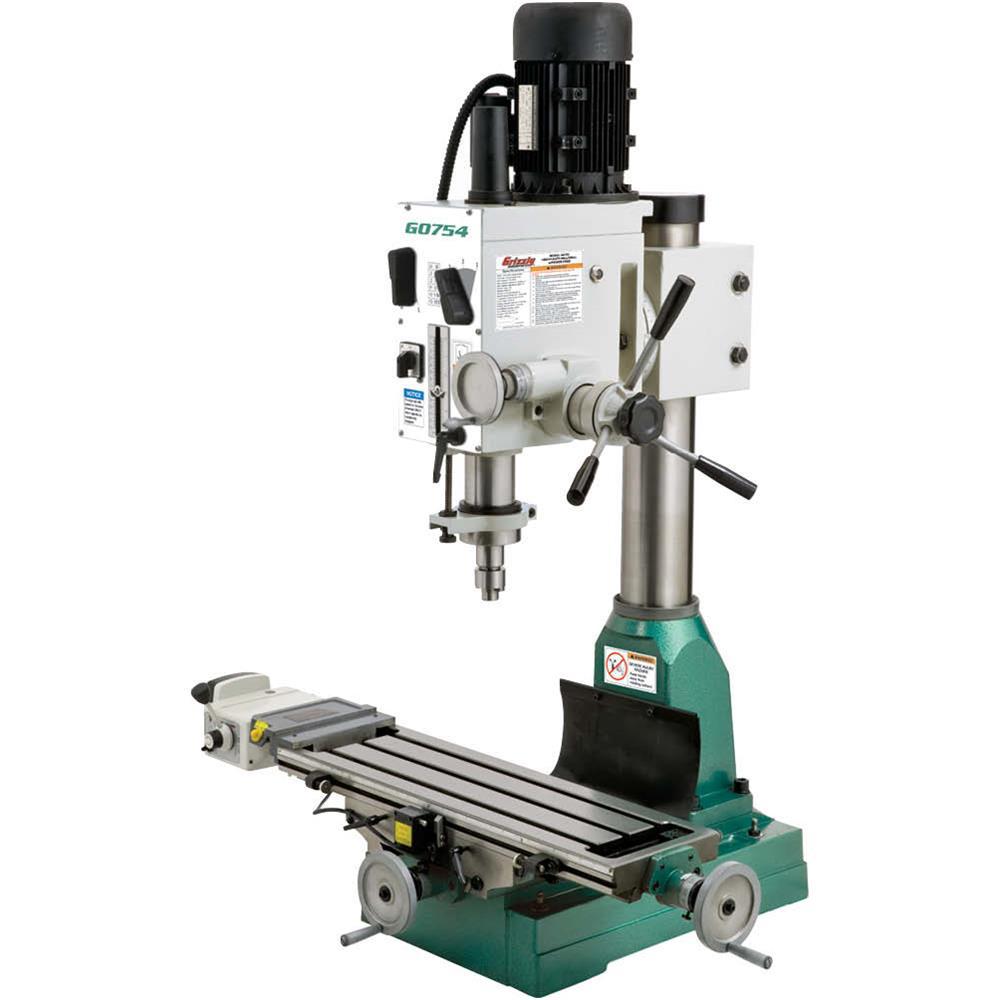

Grizzly Industrial Heavy-Duty Mill/Drill with Power Feed

High-precision P5 spindle bearings and dovetail ways make this Heavy-Duty Gear-head Mill/Drill a serious contender for those who need a precision machine that is also heavy-duty enough to be pushed hard when projects need to get done quickly. The 2 HP, 220-Volt, single-phase motor offers plenty of power for big cuts, and the variable speed power feed makes it easy to dial in the perfect cutting speed for optimum results. Spindle speeds are changed using gear-head levers (instead of moving V-belts on pulleys), making it much faster and more convenient. Head positioning around the workpiece is extremely versatile—the head tilts 90° left or right, rotates 360° around the column, and has a 14-1/2 in. range of Z-travel movement. The spindle has 5 in. of down feed travel—with both coarse and fine down feed controls. We’ve also included a nice package of standard equipment, including spindle adapters for MT#2 or MT #3 tooling, a drill chuck with arbor, T-slot bolts and nuts, and a toolbox with service wrenches.

• Made in ISO 9001 factory
• Table is coolant-system ready
• High-precision P5 (ABEC-5 equivalent) spindle bearings
• Spindle speed change with/gearhead levers
• Dovetail ways
• Heavy-duty cast-iron construction
• Fine down feed control
• Longitudinal variable-speed power feed

Specifications

• Magnetic: No
• Maximum Speed (rpm): 1970
• Spindle Travel: 5
• Chuck Capacity: 5/8 In.
• Chuck Key Storage: No
• Tools Product Type: Power Tool
• Amperage (amps): 8.6 A
• Minimum speed (rpm): 90
• 360- Degree Swivel: No
• Work Light: No
• Color Family: Multi-Colored
• Condition: New
• Number of Speeds: 6
• Bench & Stationary Tool Type: Drill Press
• Built-In Light: No
• Portability: Bench
• Cord Length (ft.): 6
• Voltage (volts): 220
• Lockout Power Switch: No
• Product Weight (lb.): 640
• Product Height (in.): 56
• Product Depth (in.): 47
• Product Width (in.): 31
