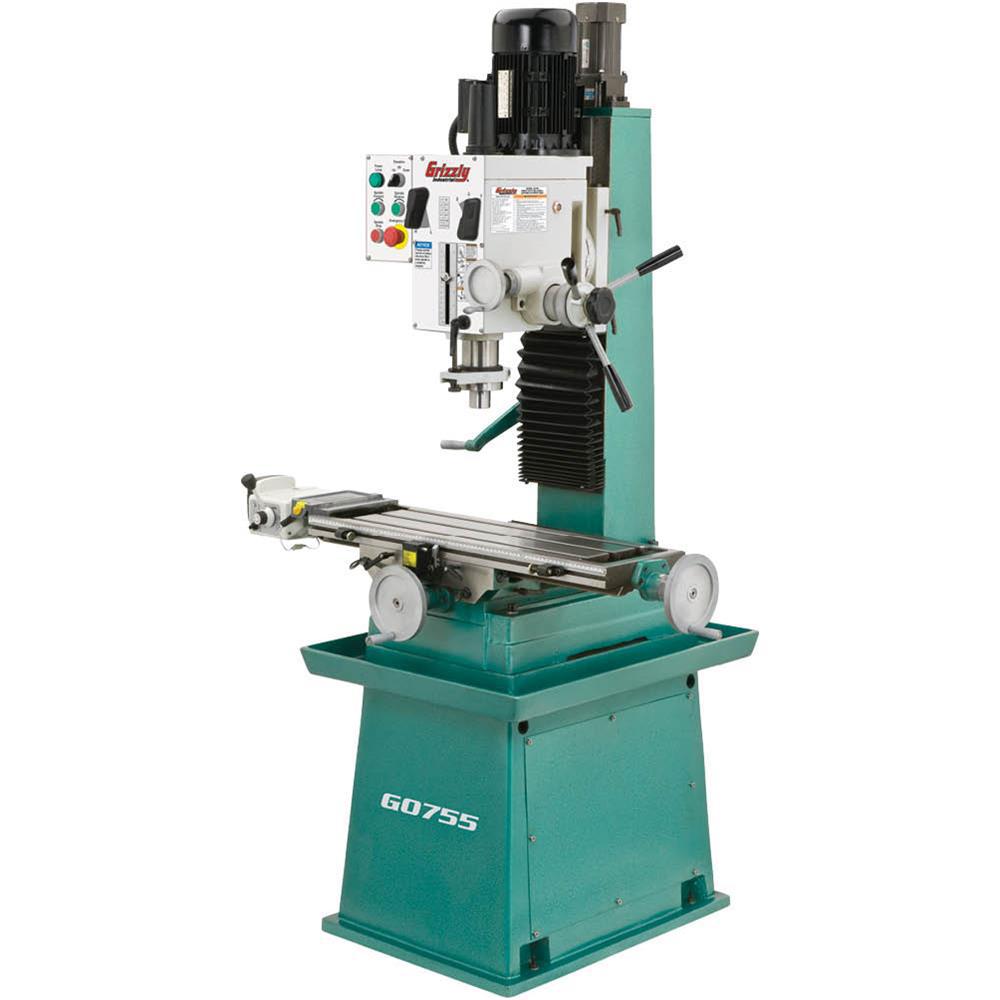

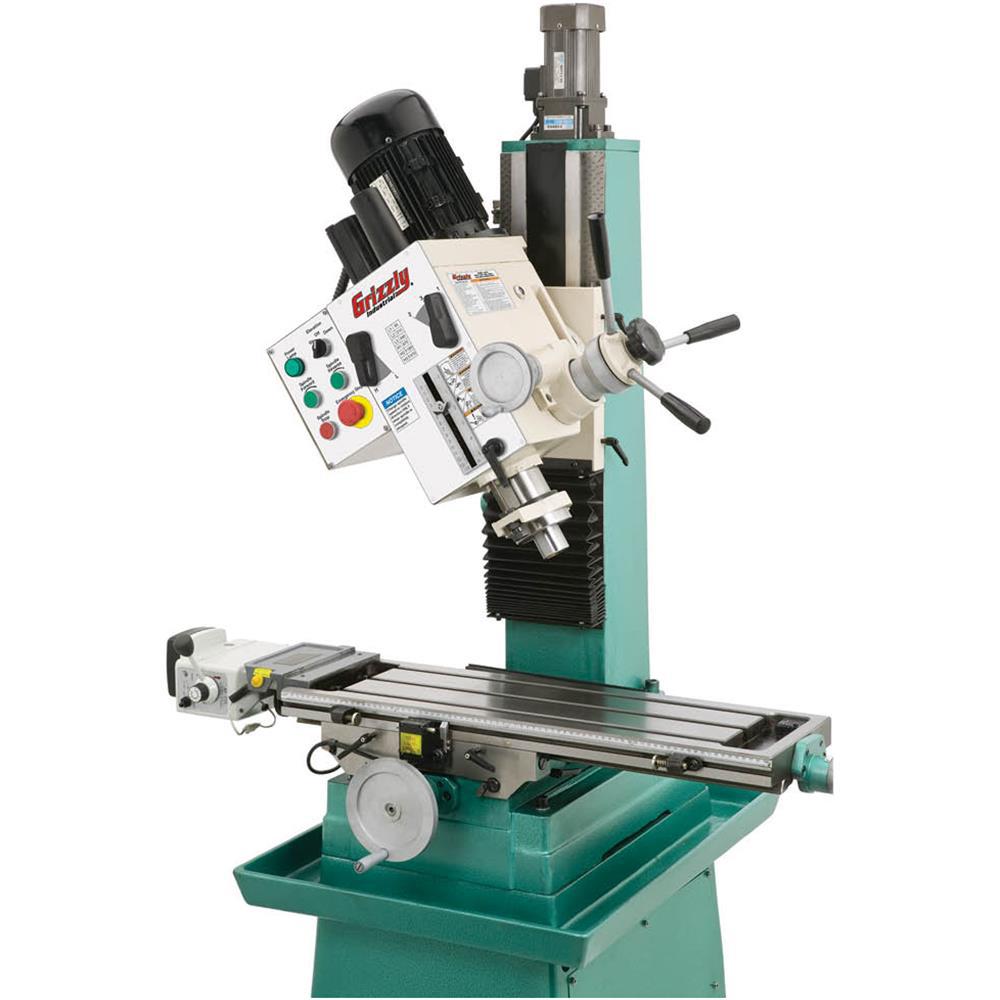

This G0755 Heavy-Duty Gear-head Mill/Drill takes our G0754 Mill/Drill to the next level by including a stand and motorizing the headstock elevation travel on a dovetail-way column, which improves movement accuracy and increases rigidity. Like the G0754, this model features high-precision P5 spindle bearings, convenient gear-head spindle speed controls, dovetail ways, reversible spindle, and longitudinal variable speed power feed. Made in an ISO 9001 factory.
- Longitudinal variable-speed power feed
- High-precision P5 (ABEC-5 equivalent) spindle bearings
- Fine down feed control
- Adjustable spindle depth stop
- Motorized head elevation
- Dovetail column
- Made in ISO 9001 factory
- Floor-to-table height of 34 in.

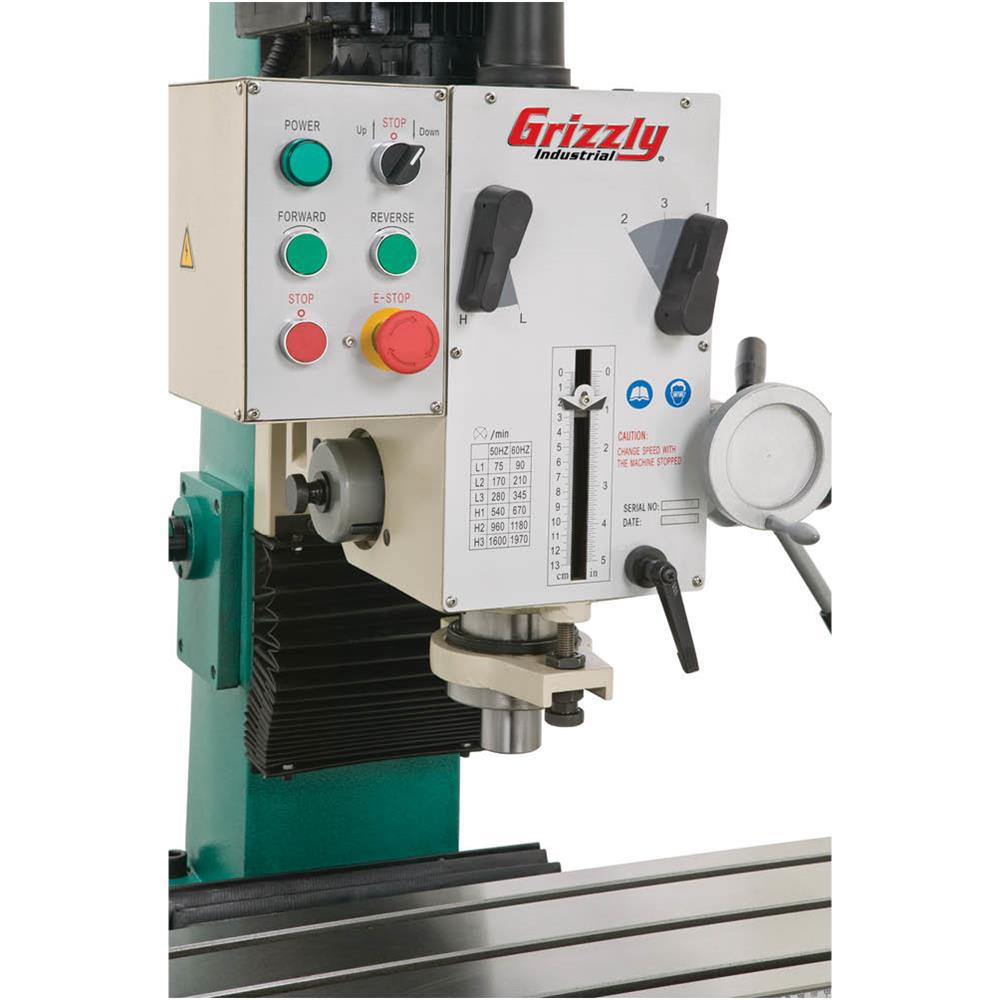

- Spindle speeds controlled wit gearhead levers
- Dovetail ways
Specifications
- Magnetic: No
- Maximum Speed (rpm): 1970
- Spindle Travel: 5
- Chuck Capacity: 3/8 In.
- Chuck Key Storage: No
- Tools Product Type: Power Tool
- Amperage (amps): 8.6 A
- Minimum speed (rpm): 90
- 360- Degree Swivel: No
- Work Light: No
- Color Family: Multi-Colored
- Condition: New
- Number of Speeds: 6
- Bench & Stationary Tool Type: Drill Press
- Built-In Light: No
- Portability: Stationary
- Cord Length (ft.): 6
- Voltage (volts): 220
- Lockout Power Switch: No
- Product Weight (lb.): 992
- Product Height (in.): 76.5
- Product Depth (in.): 49.5
- Product Width (in.): 34.5
