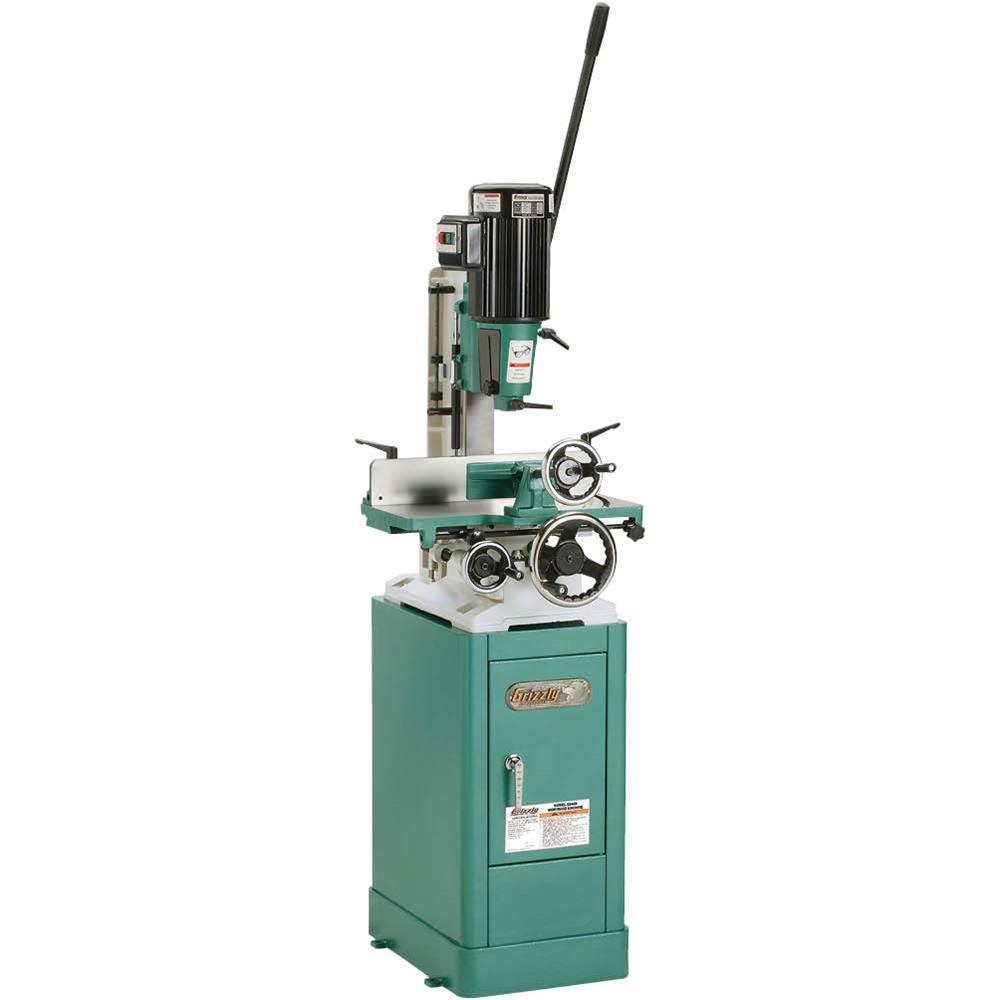

Grizzly Industrial Heavy-Duty Mortiser With Stand

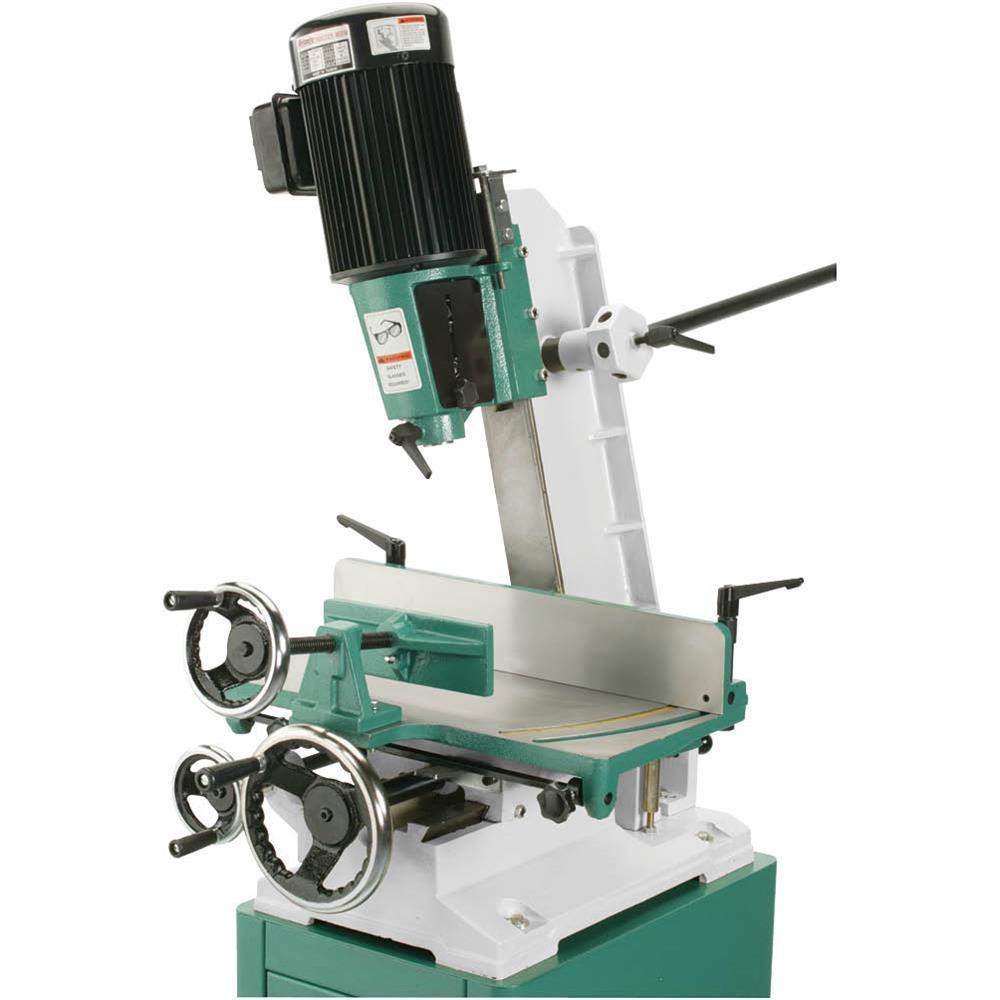

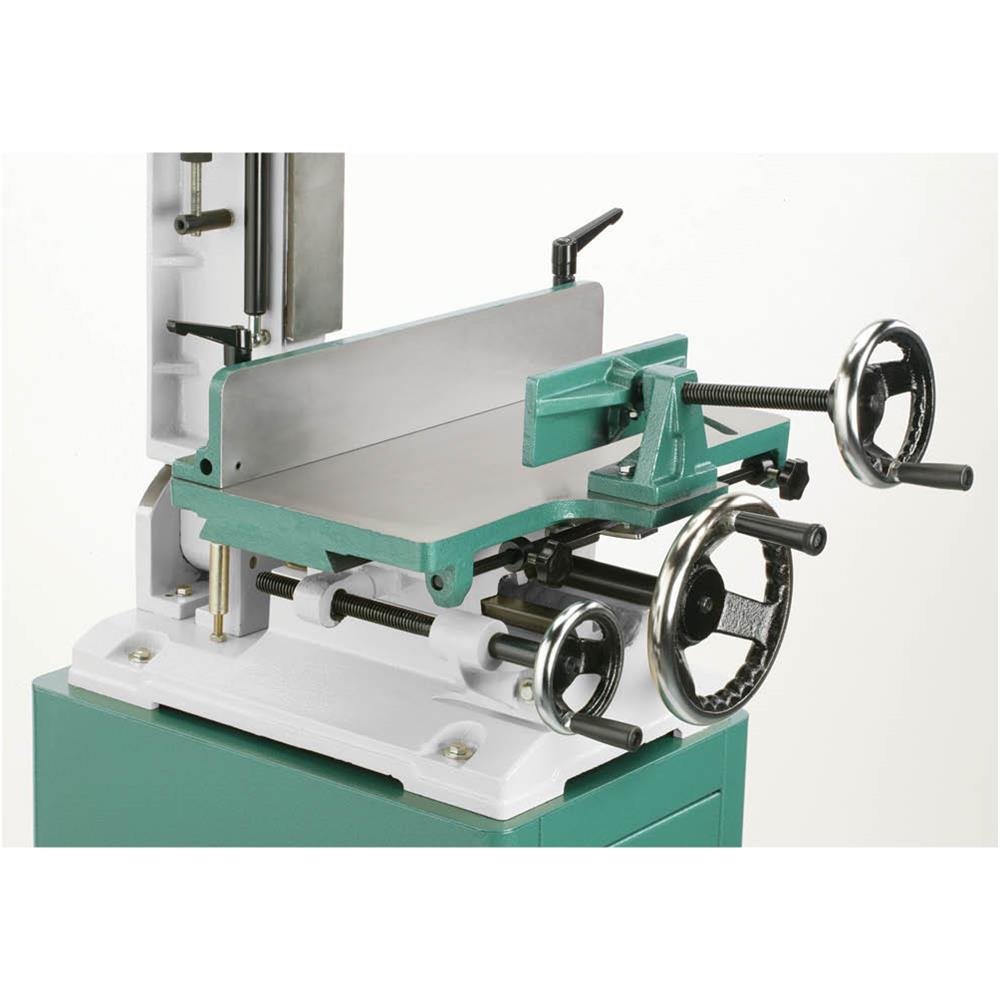

The flexibility to perform compound-angled mortises with perfect control is what sets this Heavy-Duty Mortiser apart from all others. Simple adjustments allow the head to tilt up to 30 left or right, and the fence also pivots up to 30, providing just about any combination of angles. Handwheel controls allow you to move the table left/right and forward/backward with precision and ease. Adjustable work stops help ensure consistent results with production runs. Round all this out with a 1-1/2 HP motor and solid cast iron construction, and you’ll see why this has become the mortiser of choice for busy shops around the country!

• 1-1/2 HP, 110V/220V, single phase, TEFC Motor, prewired 110V
• Rack-and-pinion headstock control

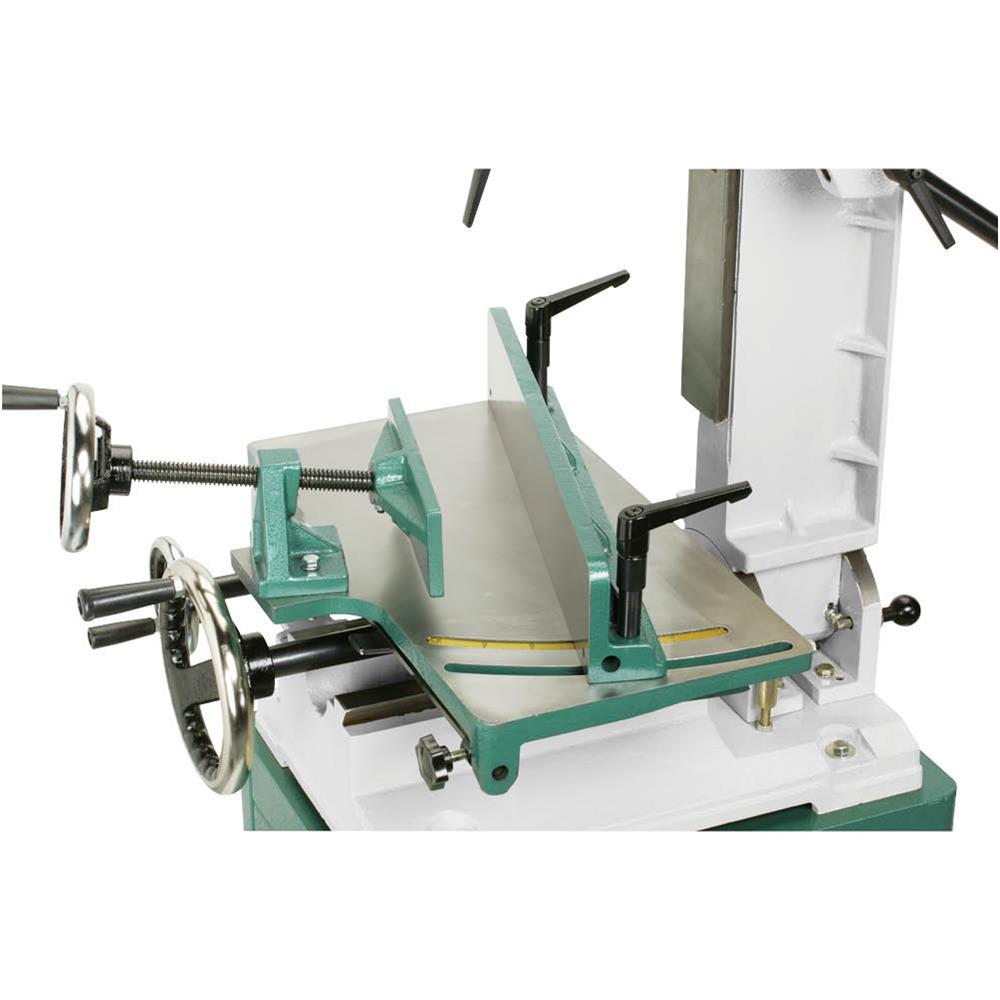

• Angled fence adjustment
• Steel cabinet stand with indexed storage shelf
• Work stop with extension rods for setting each workpiece the same
• Tilting column

Specifications

• Maximum Speed (rpm): 1725
• Chuck Capacity: 1/2 In.
• Chuck Key Storage: No
• Amperage (amps): 14 A
• Minimum speed (rpm): 1725
• 360- Degree Swivel: No
• PT Horsepower (Hp): 1-1/2
• Color Family: Green
• Condition: New
• Bench & Stationary Tool Type: Mortiser
• Built-In Light: No
• Portability: Stationary
• Cord Length (ft.): 6
• Voltage (volts): 110
• Product Weight (lb.): 332 lb
• Pivot Head: No
• Product Height (in.): 71 in
• Product Depth (in.): 24 in
• Base Length (in.): 20.5
• Base Width (in.): 17.5
• Product Width (in.): 36 in
