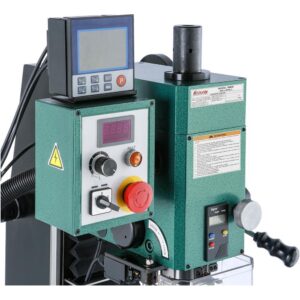

If you need a mill but are not sure what features to choose from, look no further than the G0836 Mini Mill. We have incorporated all the best mini mill features into 1 perfect package. With a variable-speed, hi-torque 1 HP motor and an R-8 spindle, this machine is ready to take some serious cuts. It comes fully loaded with variable-speed power feed, 3-axis digital DRO system, and fine-feed depth control with an additional digital DRO for precise and repeatable results. Also, the 5-1/2 in. x 23-3/8 in. table provides ample space for sizable projects and larger vises. This machine takes the minimum out of mini mill, while still keeping a compact footprint that will not consume your shop or garage. Keep your valuable table space as well by putting this on the optional T28099 stand for a free-standing mill.
- X-, Y-, Z-axis DRO

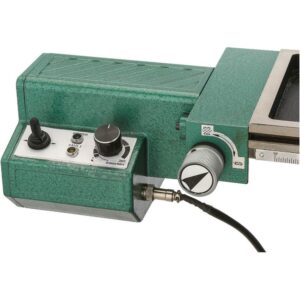

- X-axis power feed
- Coarse and fine spindle down feed
- Dovetail headstock column and table ways
- Front-mounted E-stop button
- R8 spindle
- Variable-speed spindle from 100 RPM to 2000 RPM
- Spindle speed tachometer
- 3/4 in. maximum drill capacity
- Spindle depth digital readout
Specifications
- Magnetic: No
- Maximum Speed (rpm): 2000
- Spindle Travel: 2
- Chuck Capacity: 1/2 In.
- Chuck Key Storage: No
- Tools Product Type: Power Tool
- Amperage (amps): 11 A
- Minimum speed (rpm): 100
- 360- Degree Swivel: No
- Work Light: No
- Color Family: Multi-Colored
- Condition: New
- Number of Speeds: 12
- Bench & Stationary Tool Type: Drill Press
- Built-In Light: No
- Portability: Bench
- Cord Length (ft.): 6
- Voltage (volts): 110
- Lockout Power Switch: No
- Product Weight (lb.): 220
- Product Height (in.): 33
- Product Depth (in.): 39
- Product Width (in.): 25
