Jonard Mid Span Slitter
$62.33
Organize your wire spools with the selection of this effectively priced and adorable Jonard Mid Span Slitter.
Only 13 left in stock

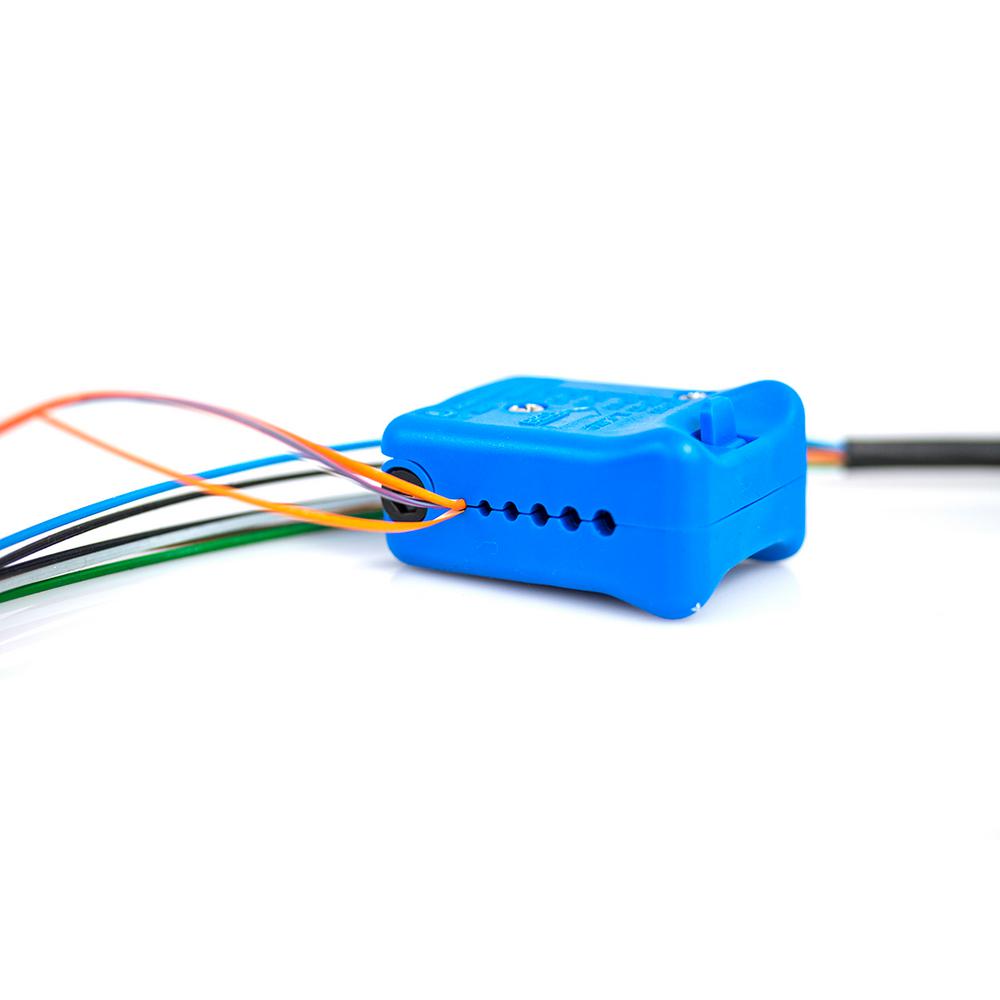

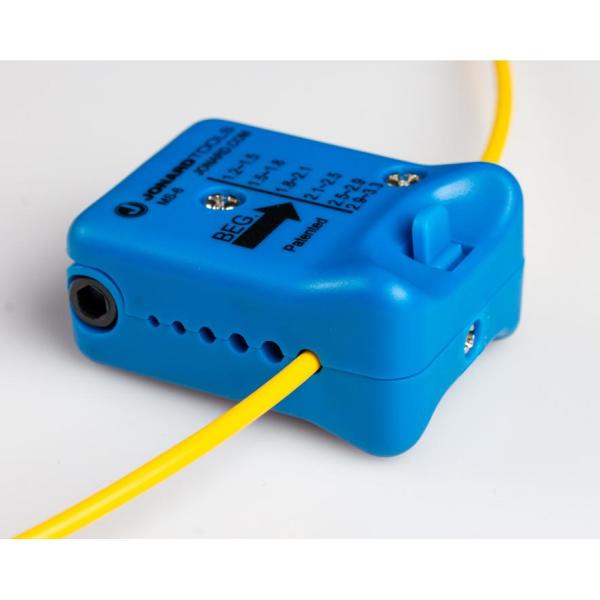

The Jonard Tools patented and award-winning MS-6 mid span slitter is designed to open fiber Jackets and provide easy access to optical fibers in loose buffer tubes with 1.2 – 3.3 mm diameter. With 6 precision grooves to handle various cable sizes, the sleek ergonomic design allows you to open a fiber jacket or buffer tube without damaging the fiber. This tool is designed for use on OFS EZ-Bend 3.0 mm cable and works great on PPC semi-flex 3 mm cables. It also works on Corning’s outdoor Altos loose tube, Microduct MiniXtend HD and MiniXtend cable with Binderless Fast-Access technology, OFS EZ-Bend 3.0 mm cables, and on their indoor/outdoor Freedom and LSZH loose tube cables having 1.4, 1.7, 2.5 mm buffer tubes. Replacement blades (part #: MSB-1533) can be purchased separately.

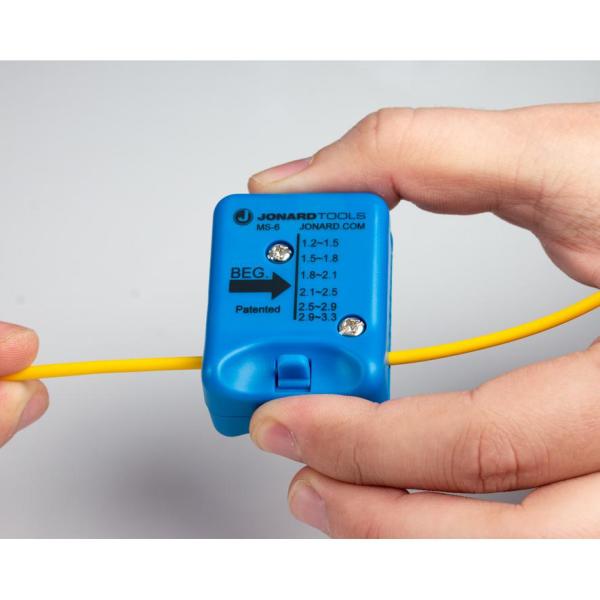

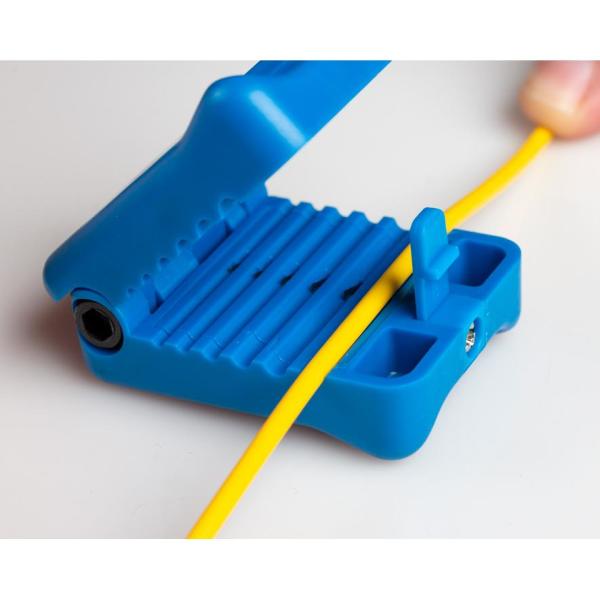

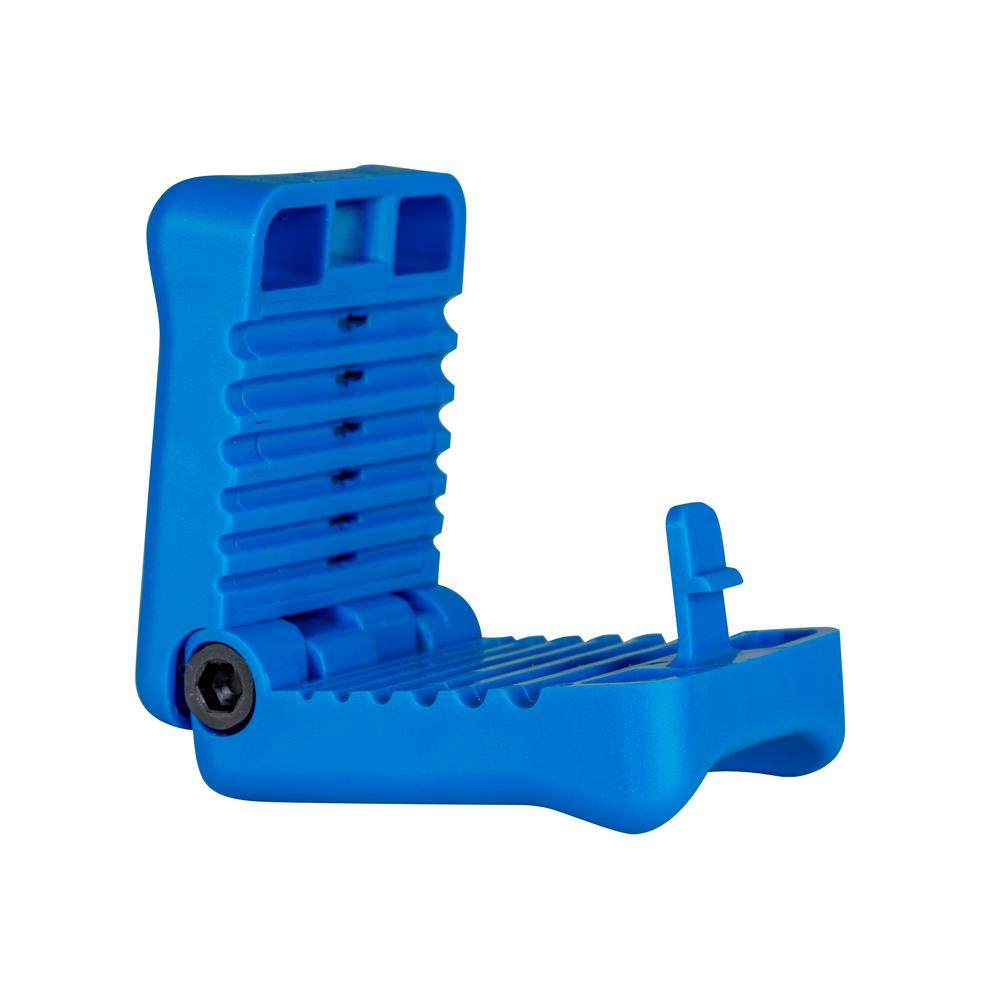

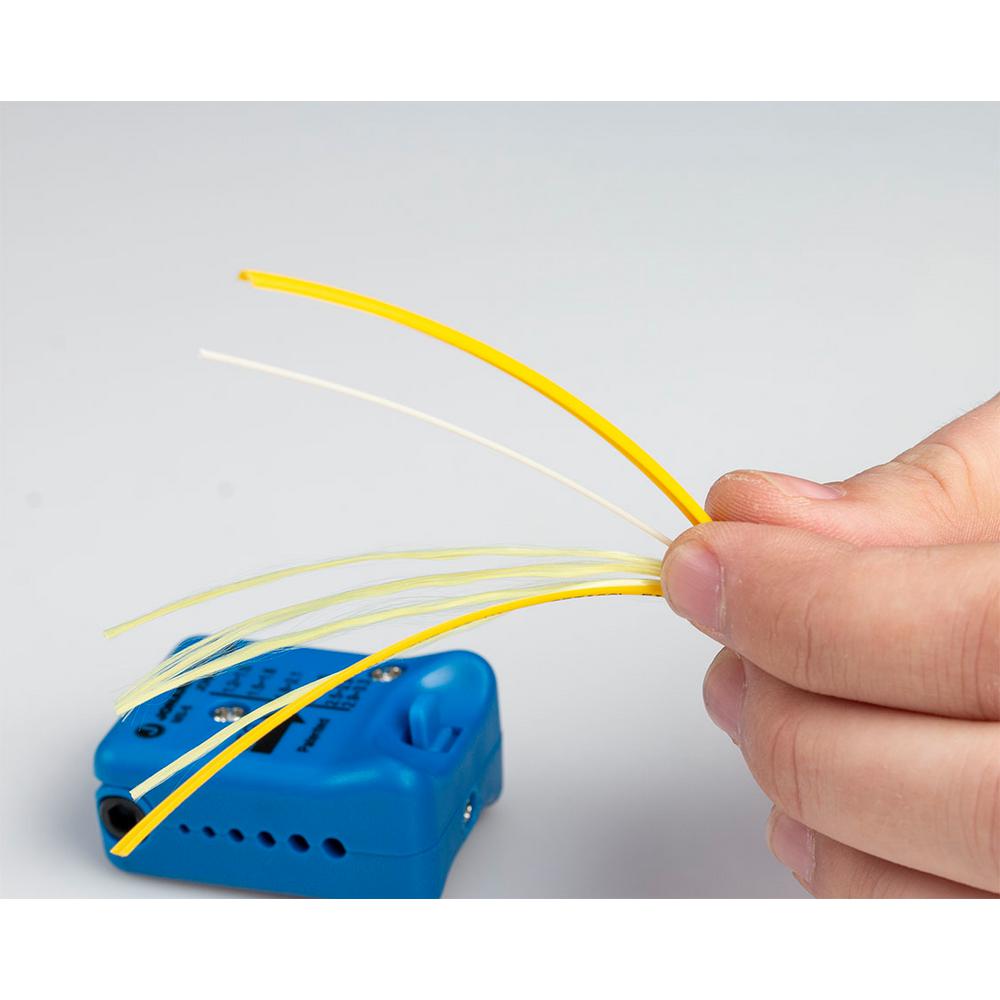

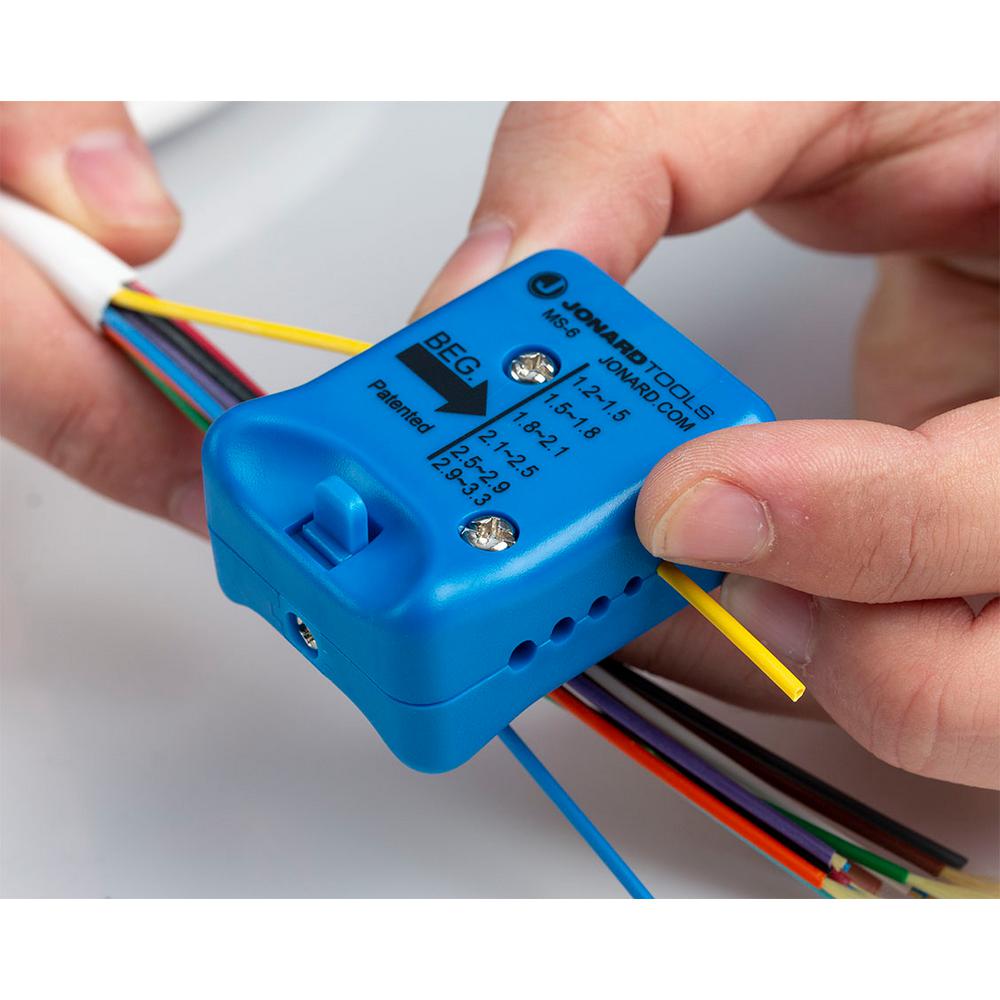

- Easy operation: Simply open the tool, place the fiber in the proper groove, lock the tool, and either pull the fiber through to slit
- Versatile use: Precision grooves are sized 1.2 – 1.5 mm : 1.5 – 1.8 mm : 1.8 – 2.1 mm : 2.1 – 2.5 mm : 2.5 – 2.9 mm : 2.9 – 3.3 mm to accommodate cables 1.2 mm – 3.3 mm without damaging the fiber inside
- Lightweight and portable: Weighing only 4 oz and measuring 2.87 in. x 1.5 in. x 2.1 in. with included tethering hole, this tool is perfect to use in tight spaces and on the go
- Lifetime warranty: Jonard Tools makes high-quality products that are made for life
- Replacement blades: MS-306RB replacement blades can be purchased separately
- Tool is specified for use on the OFS EZ-Bend 3.0 mm cable
- Works on corning’s outdoor ALTOS loose tube, Microduct MiniXtend HD and MiniXtend cable with Binderless FastAccess technology and on their indoor/outdoor FREEDM and LSZH loose tube cables having 1.4, 1.7, 2.5 mm buffer tubes
Specifications
- Joint Type: Locking
- Electrical Tools Features: No Additional Features
- Number of Pieces: 1
- Tools Product Type: Hand Tool
- Handle Material: No Handle
- Jaw Capacity: 0.13 in
- Hand Tool Type: Wire Stripper/Cutter
- Jaw Tip Size: 0 in
- Individual/Set: Individual
- Product Height (in.): 1.1 in
- Product Depth (in.): 2.4 in
- Product Width (in.): 3.1 in
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
| Weight | 0.14 lbs |
|---|---|
| Dimensions | 2.40 × 3.10 × 1.10 in |
| Model | MS-6 |
| UPC | 811490016378 |
