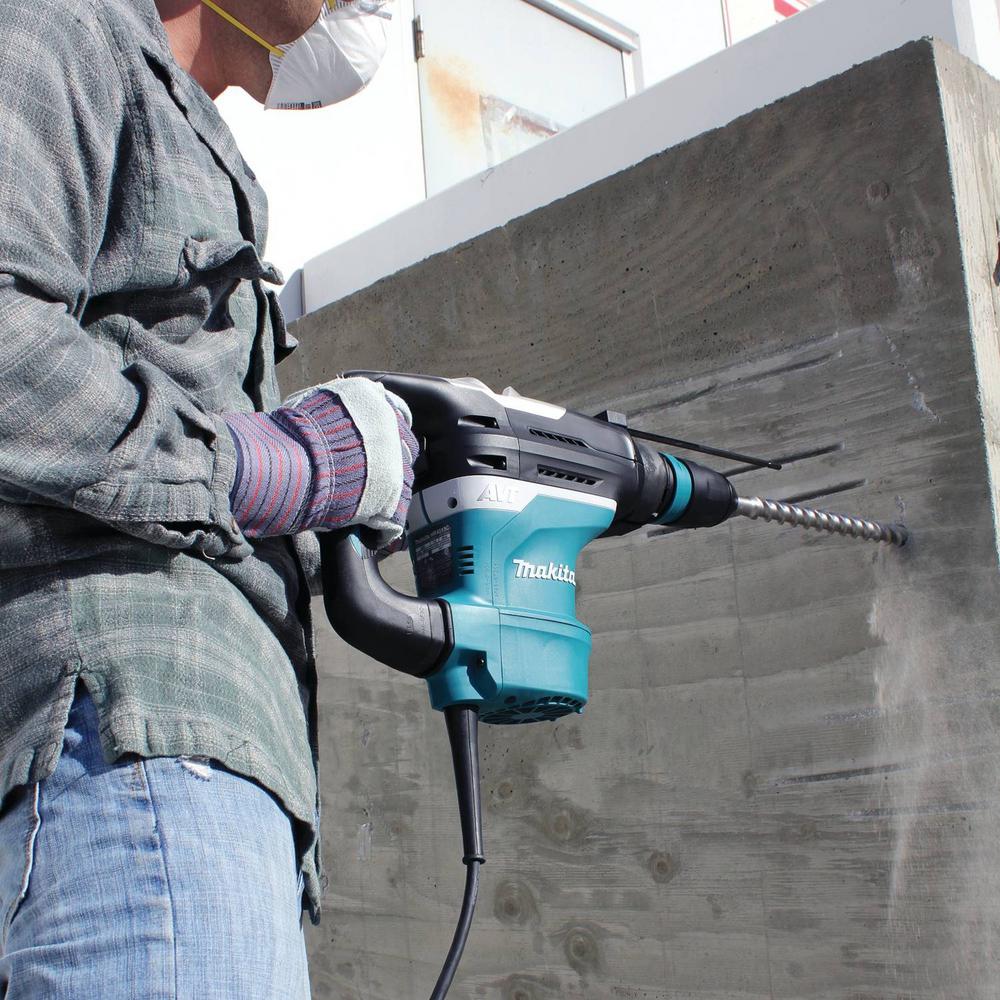

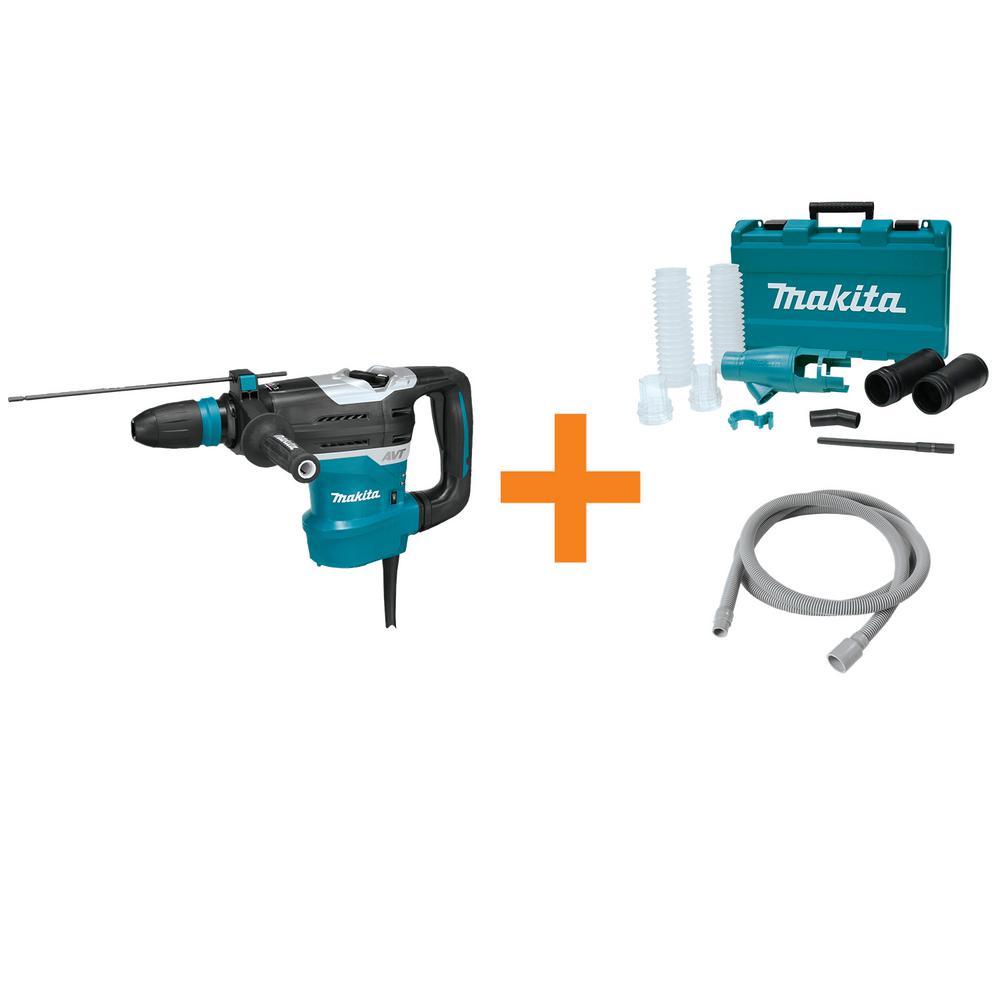

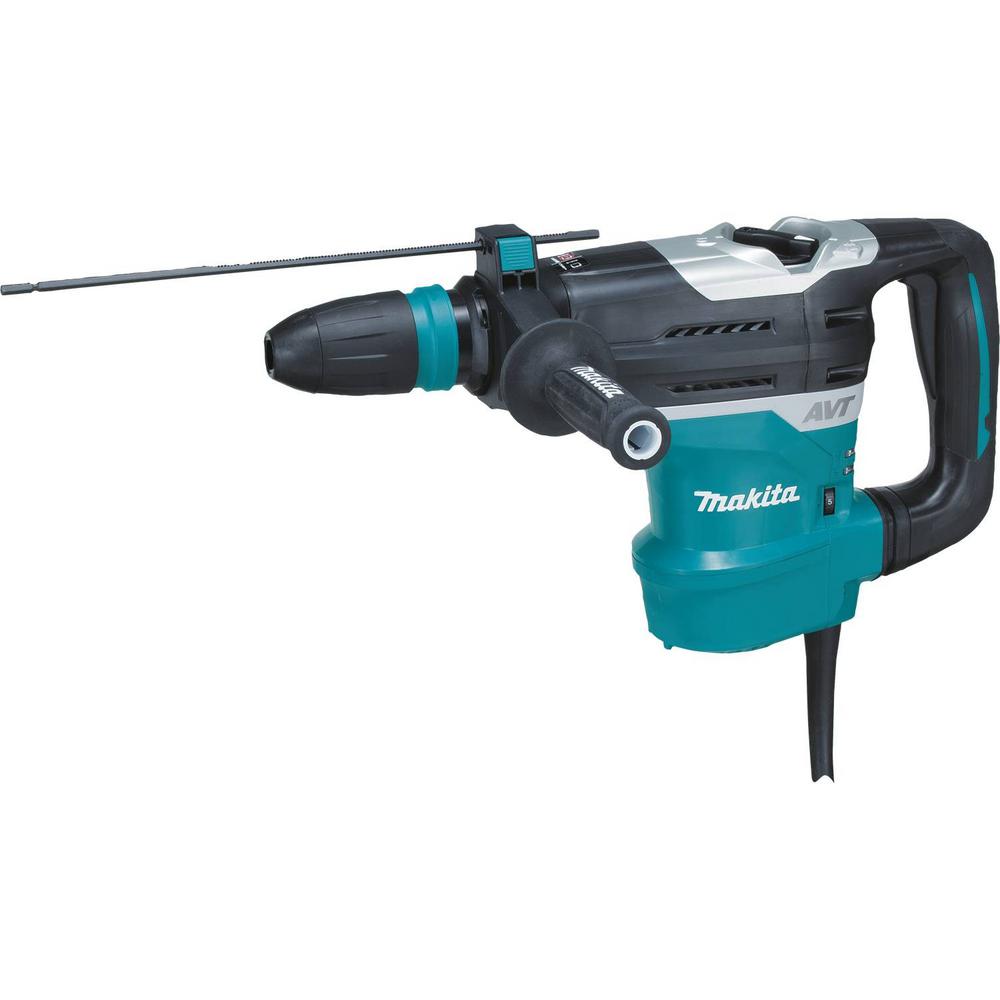

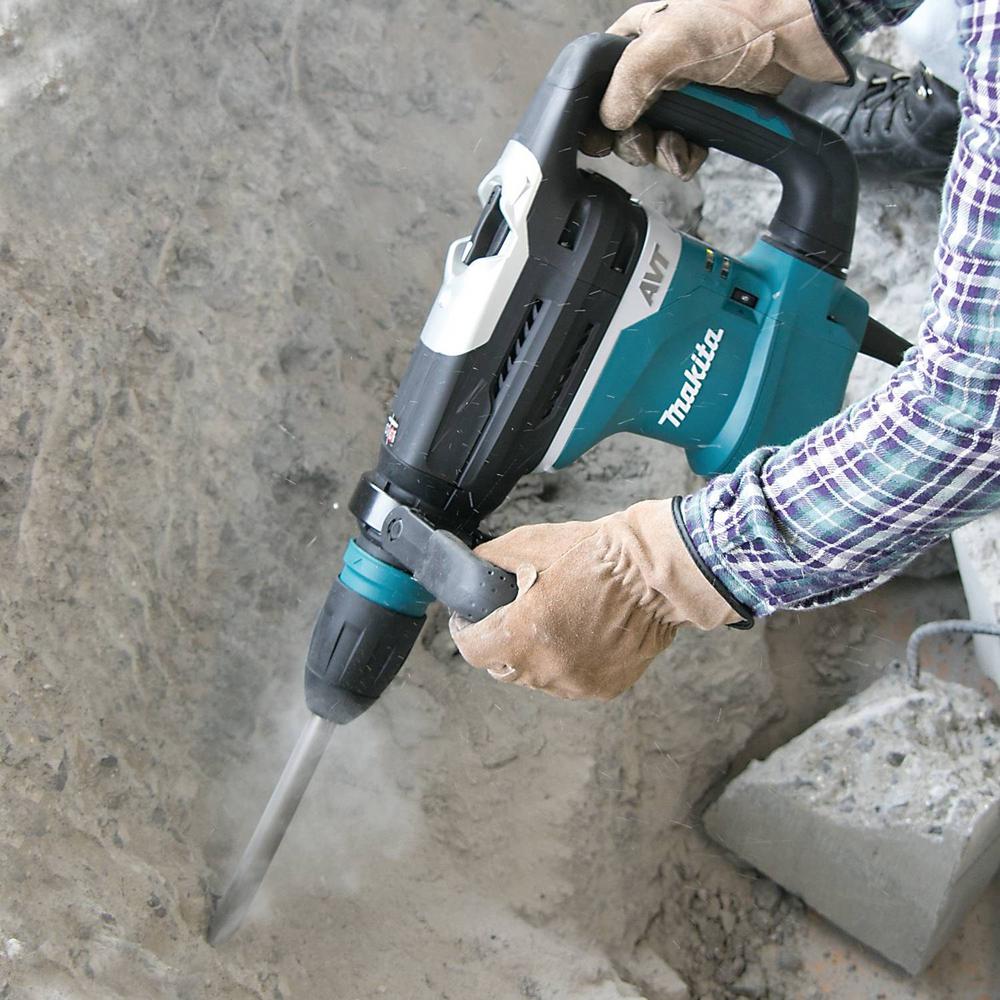

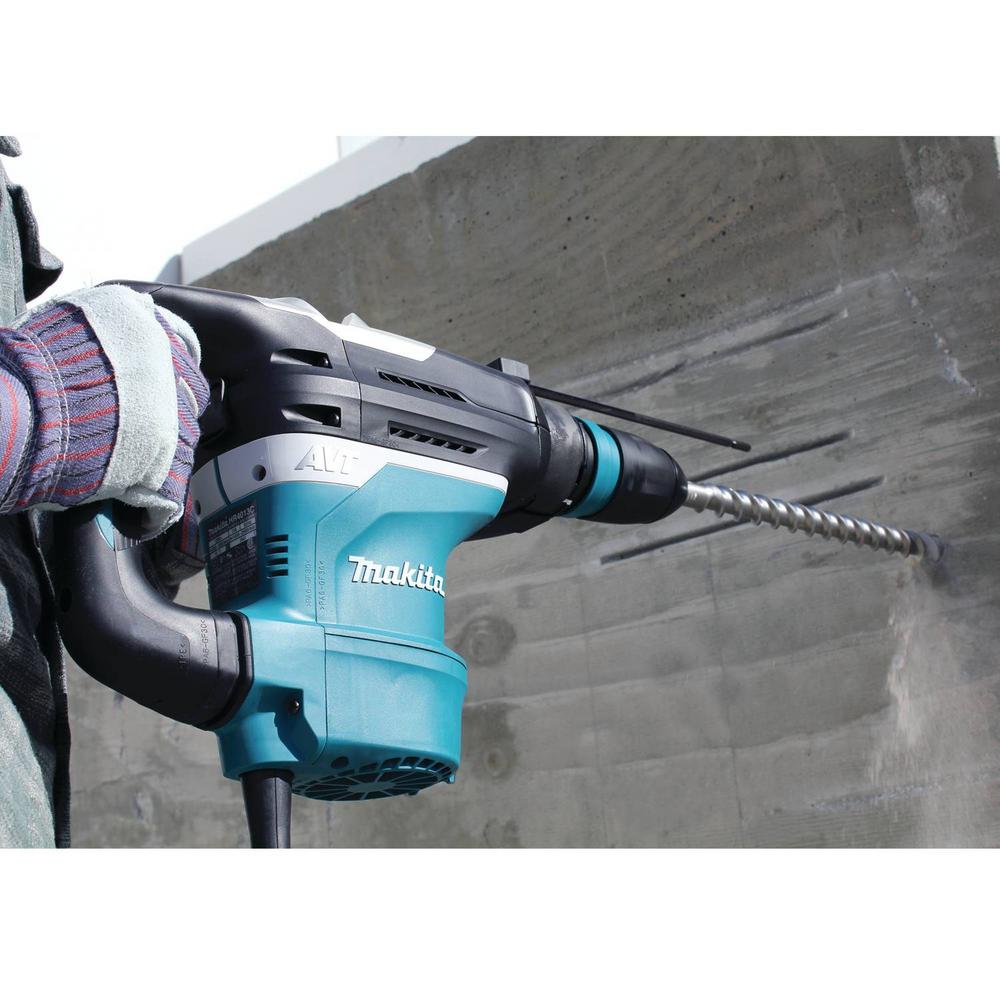

The 1-9/16 in. AVT Rotary Hammer (model HR4013C) has 45% less vibration and 20% more impact energy than the previous model. It is engineered with enhanced Anti-Vibration Technology (AVT), a synchronized 3-component system for significantly less vibration. The result of the enhanced AVT is a category-leading vibration rating of 5m/s. The powerful 11 AMP motor delivers 8.4 ft. lbs. (11.4 Joules) of impact energy, 20% more than the previous model for faster drilling. An added feature is the option of lock-on or trigger-activated in the chipping only mode, with a push button start/stop control for more convenient operation. This promotional item also comes with a Bonus 192108-A 3/4 in. x 10 ft. Vacuum Hose and a Bonus 196537-4 Dust Extraction Attachment, SDS-MAX, Drilling and Demolition, HR4013C. The Makita Vacuum Hose (3/4 in. outer diameter x 10 ft.) is ideal for use with the Makita random orbit sanders. The Makita Dust Extraction Attachment (196537-4) is engineered to reduce the dust created from concrete drilling when used with a jobsite vacuum (sold separately). The Dust Extraction Attachment fits the Makita 1-9/16 in. AVT Rotary Hammer model HR4013C. The 196537-4 includes both drilling and demolition boots for greater versatility and multiple applications. The Dust Extraction Attachment is part of Makita’s expanding line-up of dust extraction solutions, including the VC4710 Jobsite Vacuum (sold separately).
- HR4013C – powerful 11 AMP motor delivers 8.4 ft./ lbs. / 11.4 J. of impact energy to handle the most demanding applications
- HR4013C – advanced anti-vibration technology (AVT) is a synchronized, 3-component system that more effectively reduces vibration resulting in a low 5m/s2
- HR4013C – advanced AVT includes an air actuated counterbalance that directs air pressure from the crank and barrel room into the counterbalance cylinders to move counterweight pistons in the opposite direction of the hammer mechanism to effectively reduce vibration
- HR4013C – advanced AVT includes a vibration absorbing housing with a spring loaded back handle and housing which moves independently of the motor and hammer mechanism effectively isolating more vibration away from the user
- HR4013C – advanced AVT includes an integrated damper spring at the base of the impact bolt engineered to absorb impact vibrations from the drill bit
- HR4013C – constant speed control automatically applies additional power to the motor to maintain speed under load to complete the most challenging jobs
- HR4013C – soft start suppresses start-up reaction for more precision and better accuracy
- HR4013C – soft no-load function automatically reduces the speed of the motor when idling to help increase tool life and performance

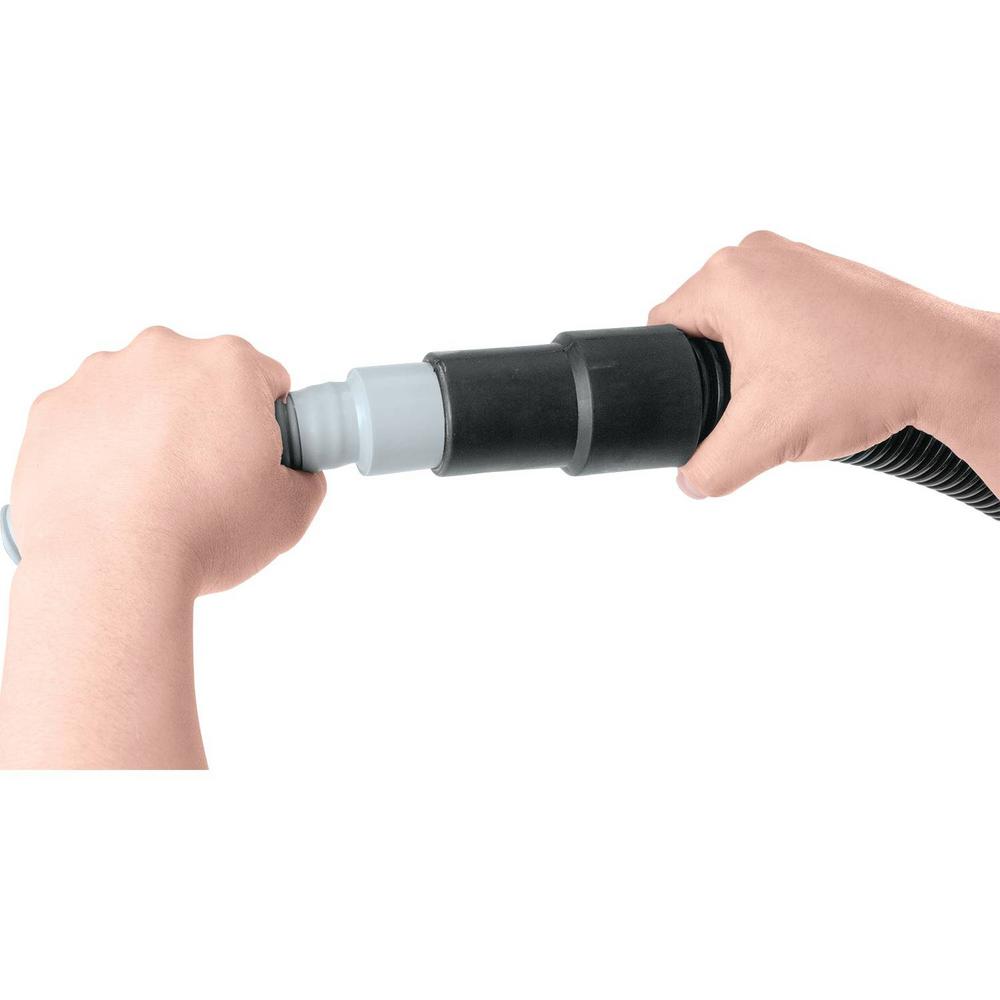

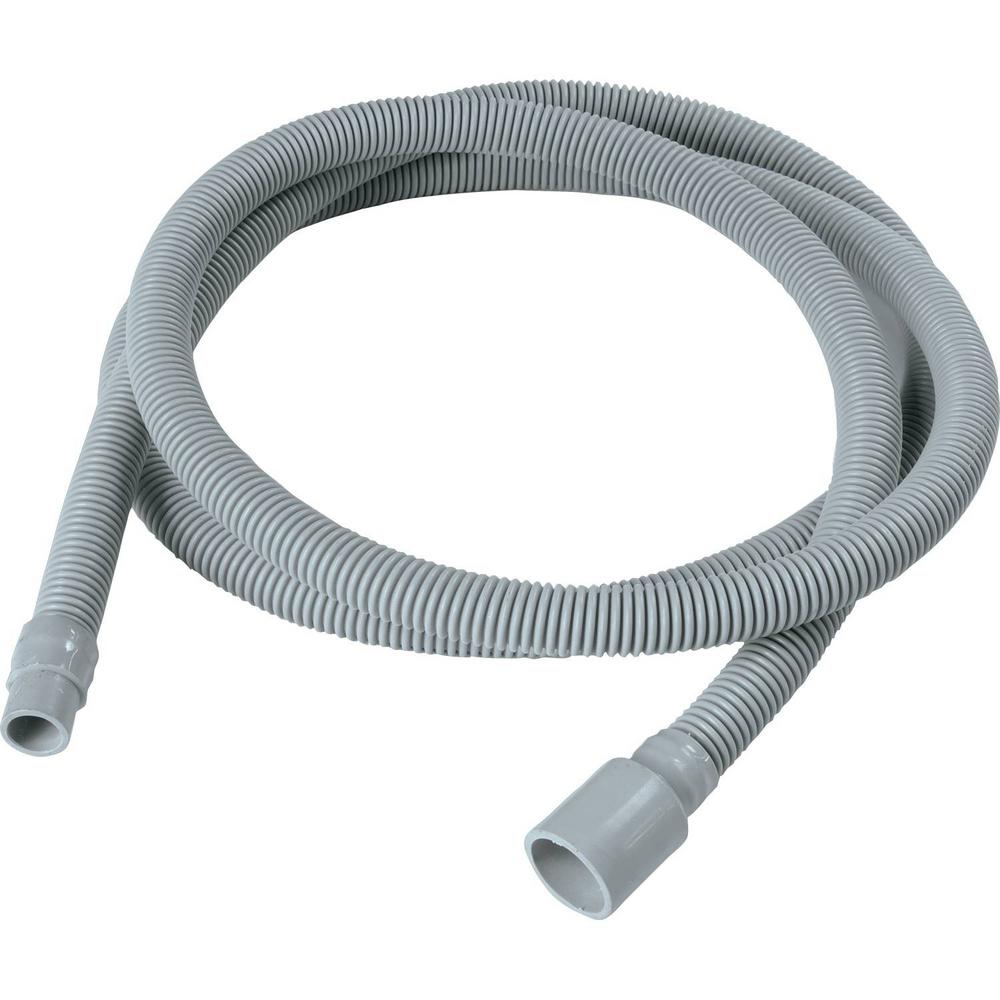

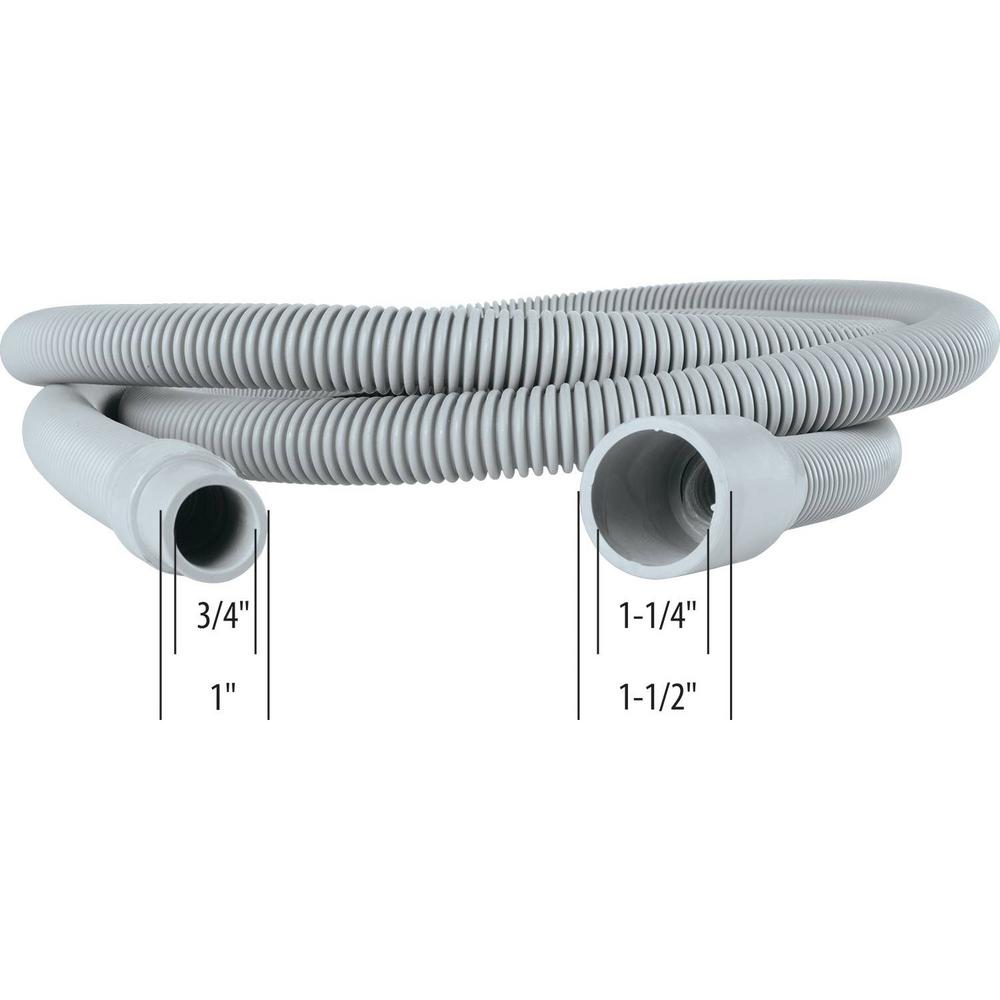

- 192108-A 3/4 in. O.D. x 10 ft. long hose
- 192108-A – dust collection hose ideal for use with most random orbit sanders as well as other tools and adapters
- 192108-A – quality fittings and construction help keep the work surface clear from dust and debris
- 192108-A – fits most wet/dry vacuums

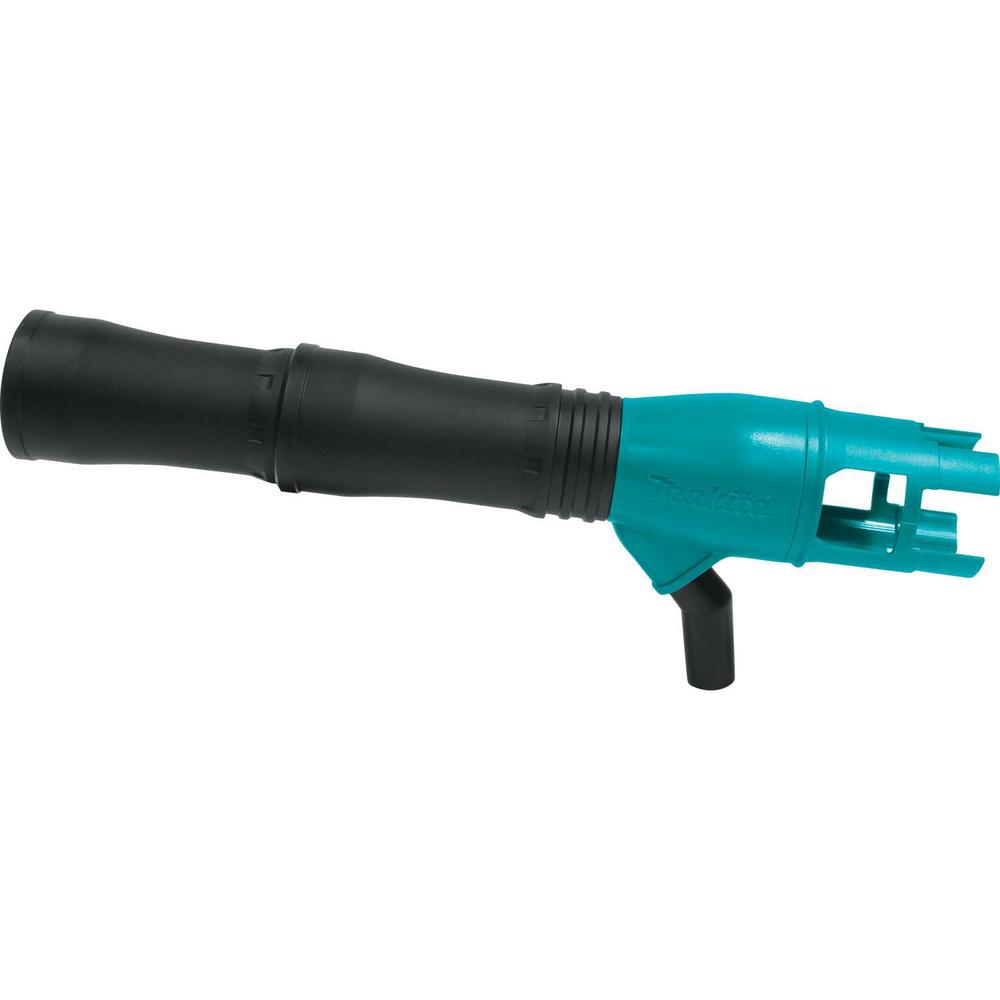

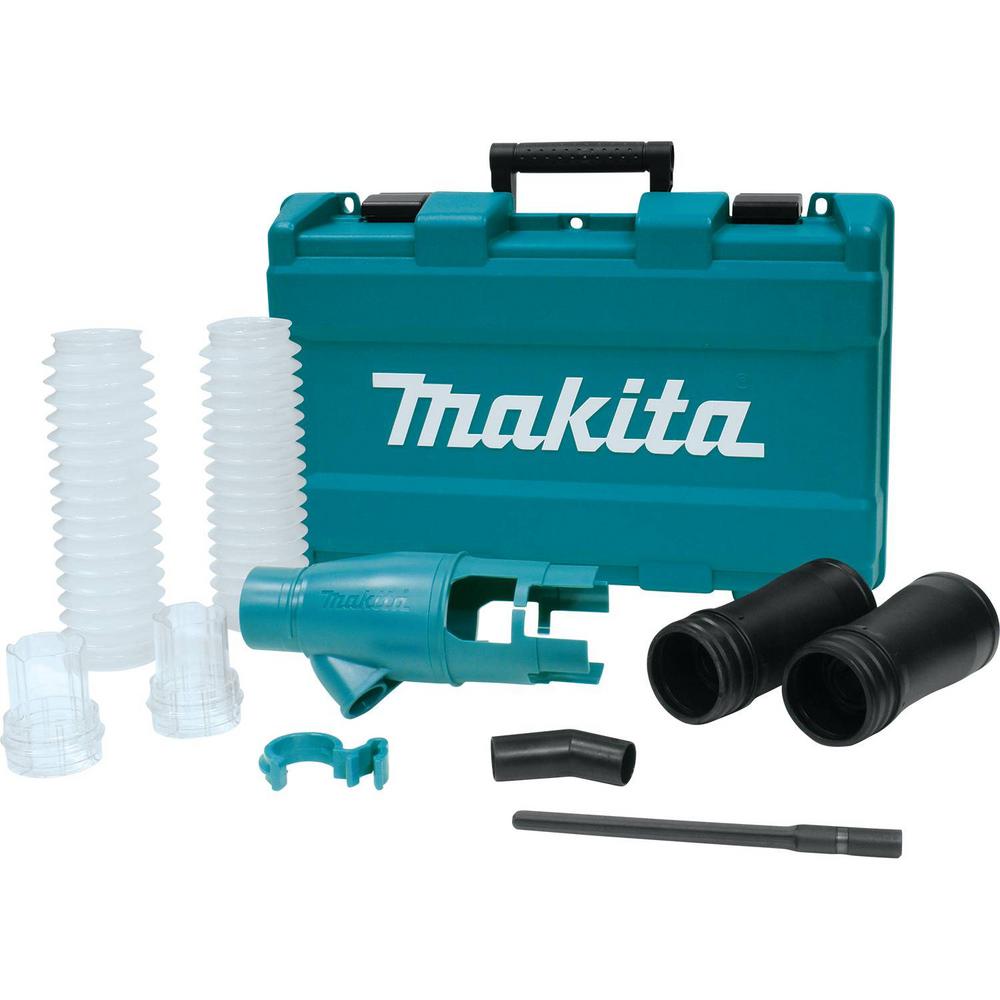

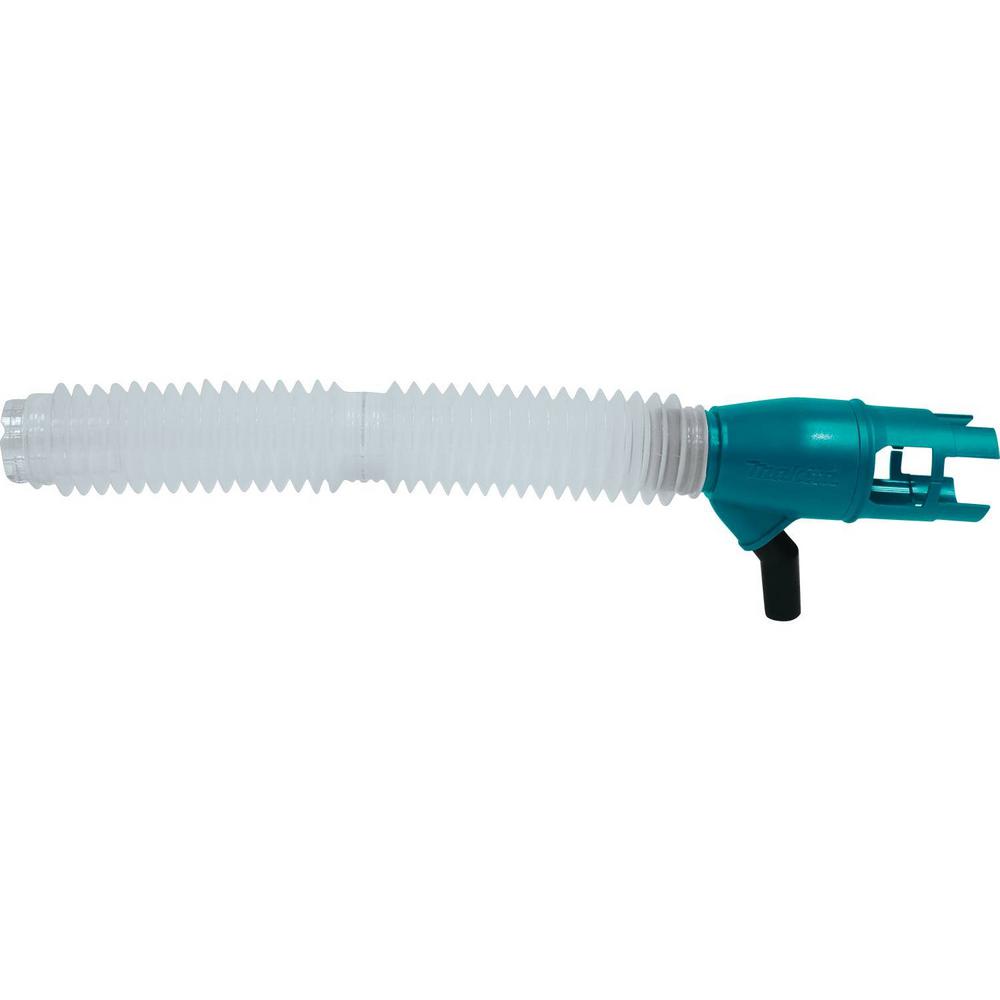

- 196537-4 – includes attachments for drilling and demolition applications
- 196537-4 – replaceable nozzle tips help protect boot from excessive wear
- 196537-4 – boot and depth rod extensions for use with bits up to 24 in. overall length
- 196537-4 – use with Makita 1-9/16 AVT rotary hammer model HR4013C
- 196537-4 – for use with a jobsite vacuum (sold separately)
- 196537-4 – part of Makita’s expanding line-up of dust extraction solutions, including the VC4710 xtract vac (sold separately)
Specifications
- Chuck Size: 1-9/16 In.
- Drill/ Driver Type: Rotary Drill
- Cordless/ Corded: Corded
- Chuck Type: SDS-Max
- Tools Product Type: Power Tool
- Amperage (amps): 11 A
- Included: No Additional Items Included
- Maximum Speed (RPM): 500 RPM
- Color Family: Teal
- Condition: New
- Power Tool Features: Case Included,Keyless Chuck,No Additional Features,Variable Speed
- Blow energy (ft.-lb.): 8.4
- Cord Length (ft.): 15.6
- Product Weight (lb.): 27.8 lb
- Product Height (in.): 17.8 in
- Product Depth (in.): 7 in
- Product Width (in.): 22.5 in
