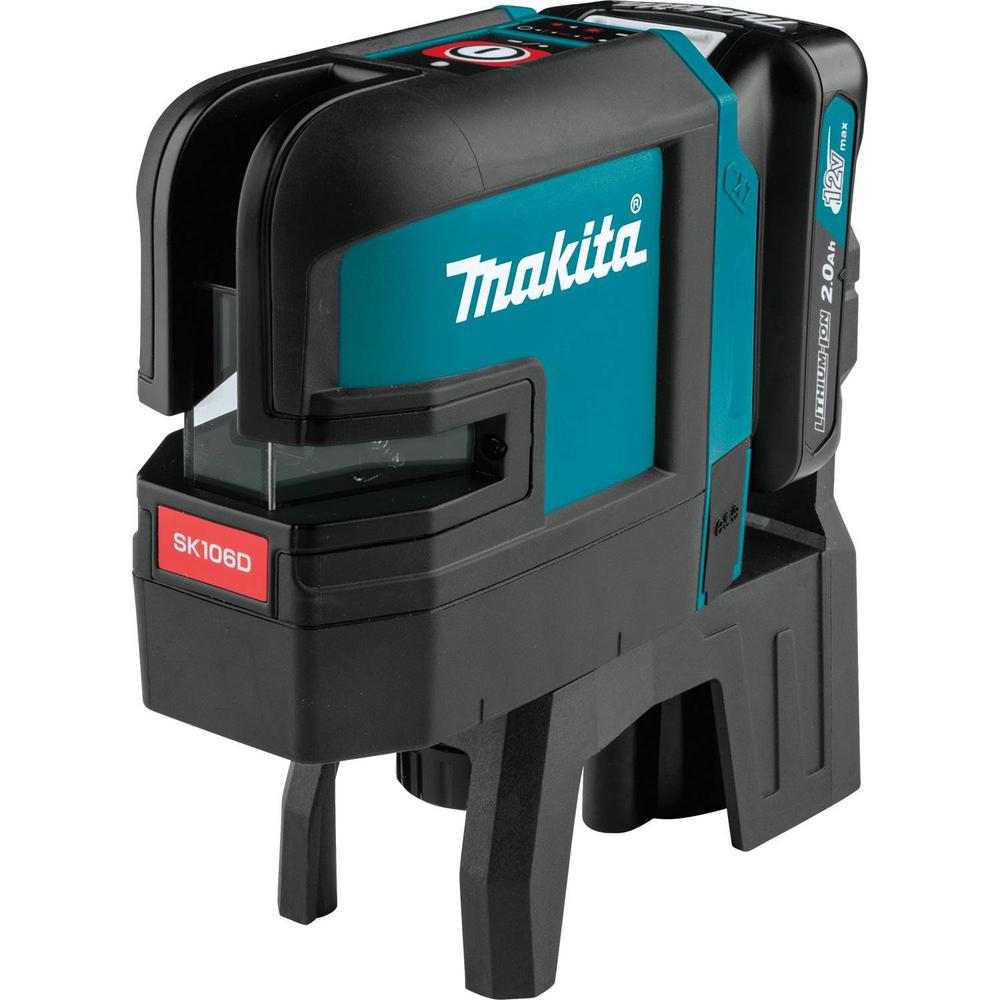

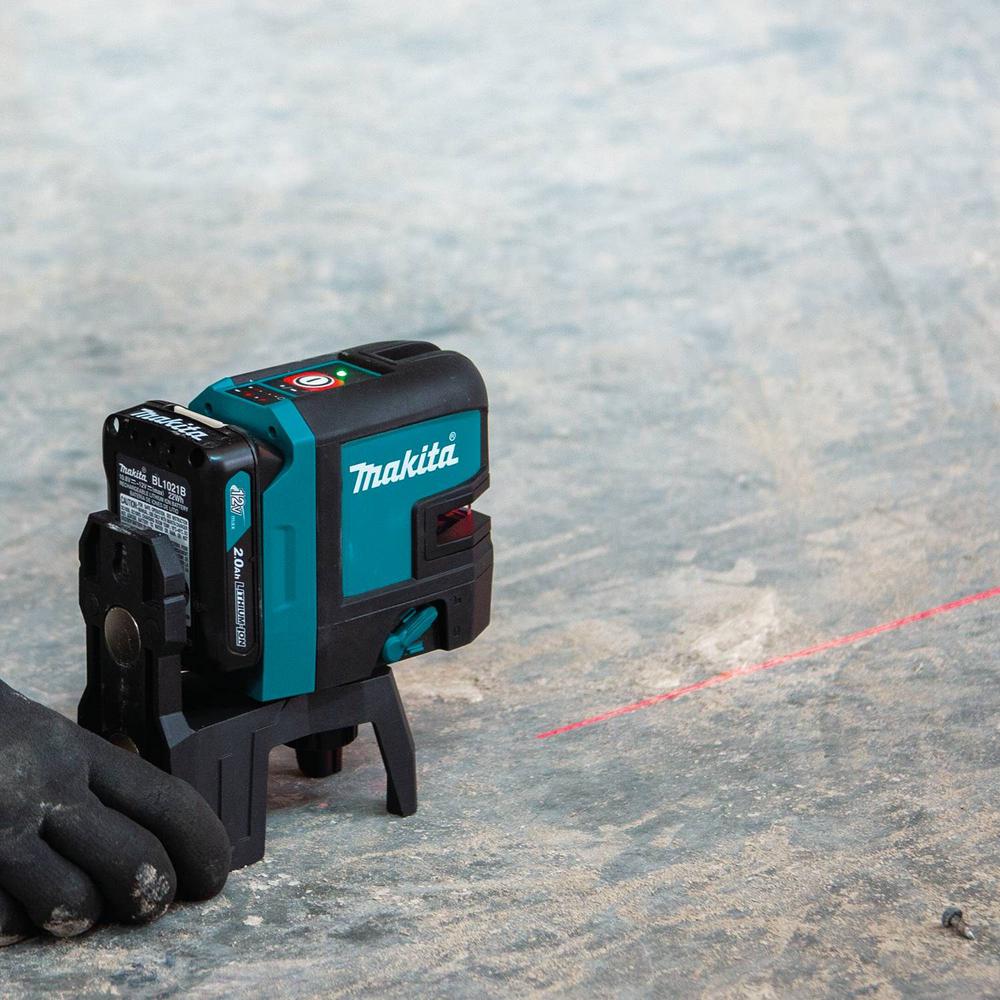

Lasers are typically utilized in the early stages of construction and measurement needs will vary based on application requirements. The Makita 12-Volt MAX CXT Lithium-Ion Self-Leveling Cross-Line/4-Point Red Beam Laser (SK106DNAX) gives the user a cordless solution for selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb and square applications. Depending on ambient light in the working environment, the SK106DNAX has a line visibility range up to 82 ft. and is detectable up to 262 with a Makita Laser Detector (sold separately). The SK106DNAX has a bright 635 nm class II red laser with plus/minus 1/8 at 33 for best-in-class accuracy. The laser line fan length spans past the 90° position to provide 180° horizontal and 160° vertical lines for full reference line coverage. For increased efficiency, self-leveling line stability is achieved in up to 3 seconds for increased productivity. For longer run time, all 12-Volt MAX CXT cordless tools are also compatible with the 12-Volt MAX CXT Lithium-Ion 4.0 Ah battery (BL1041B). 12-Volt MAX CXT lithium-Ion batteries are engineered with a Battery Protection Circuit that protects against overloading, over-discharging and over-heating. Its part of the expanding 12-Volt MAX CXT series, combining performance with superior ergonomics in a compact size.

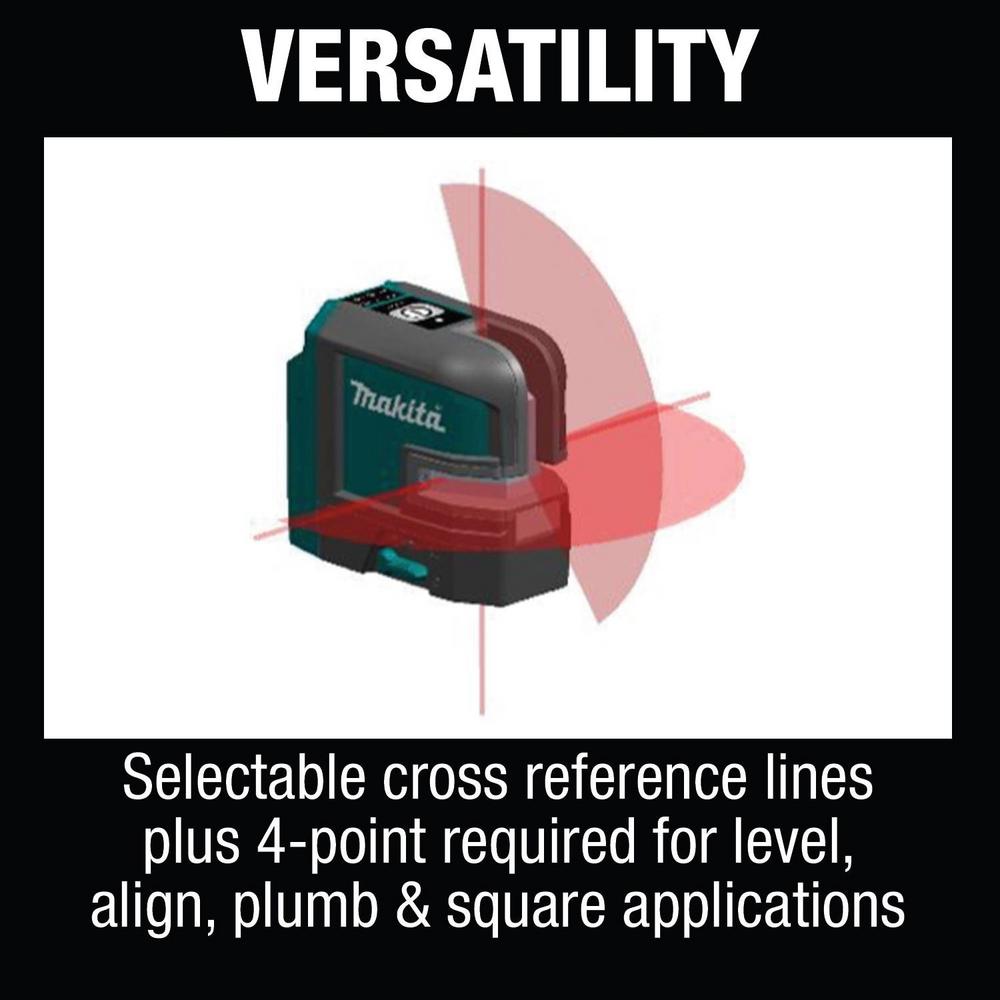

- Selectable horizontal/vertical cross reference lines plus 4-point required for level, align, plumb and square applications

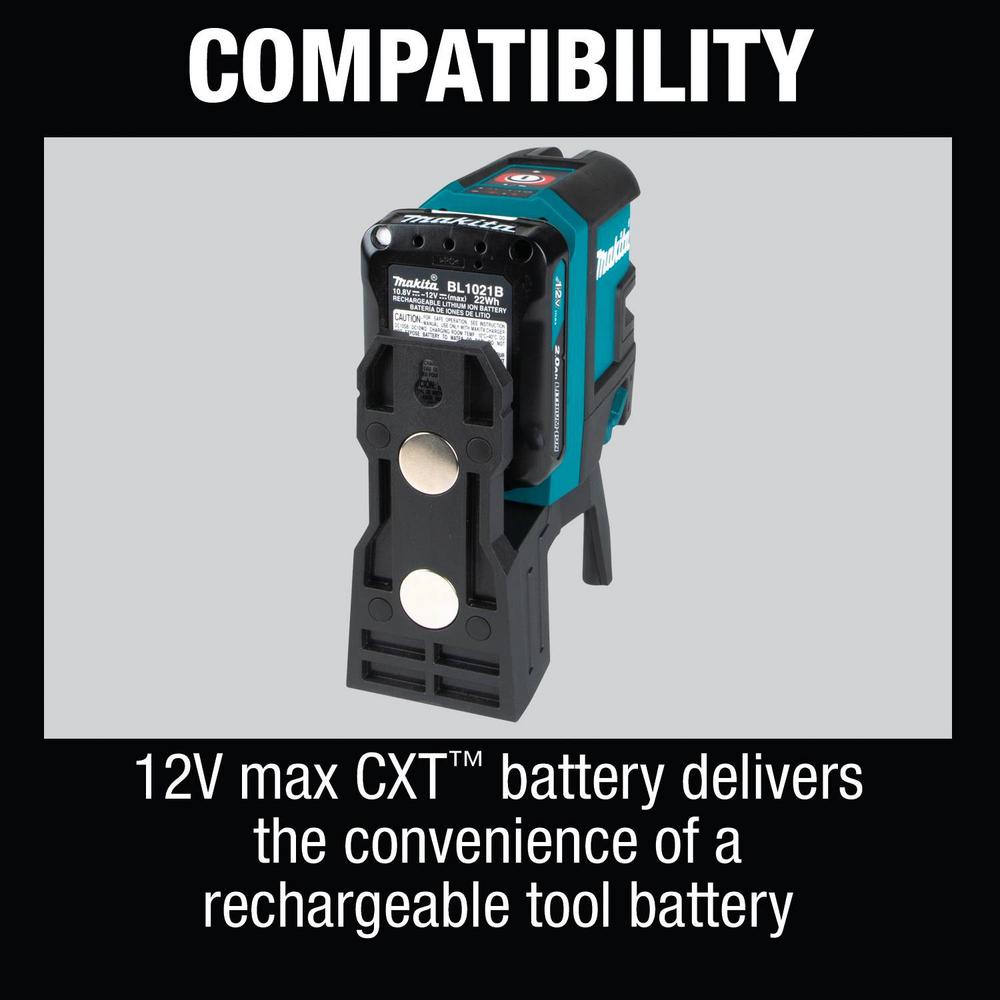

- 12-Volt MAX CXT battery delivers the convenience of a rechargeable tool battery and up to 40-hours of continuous run time

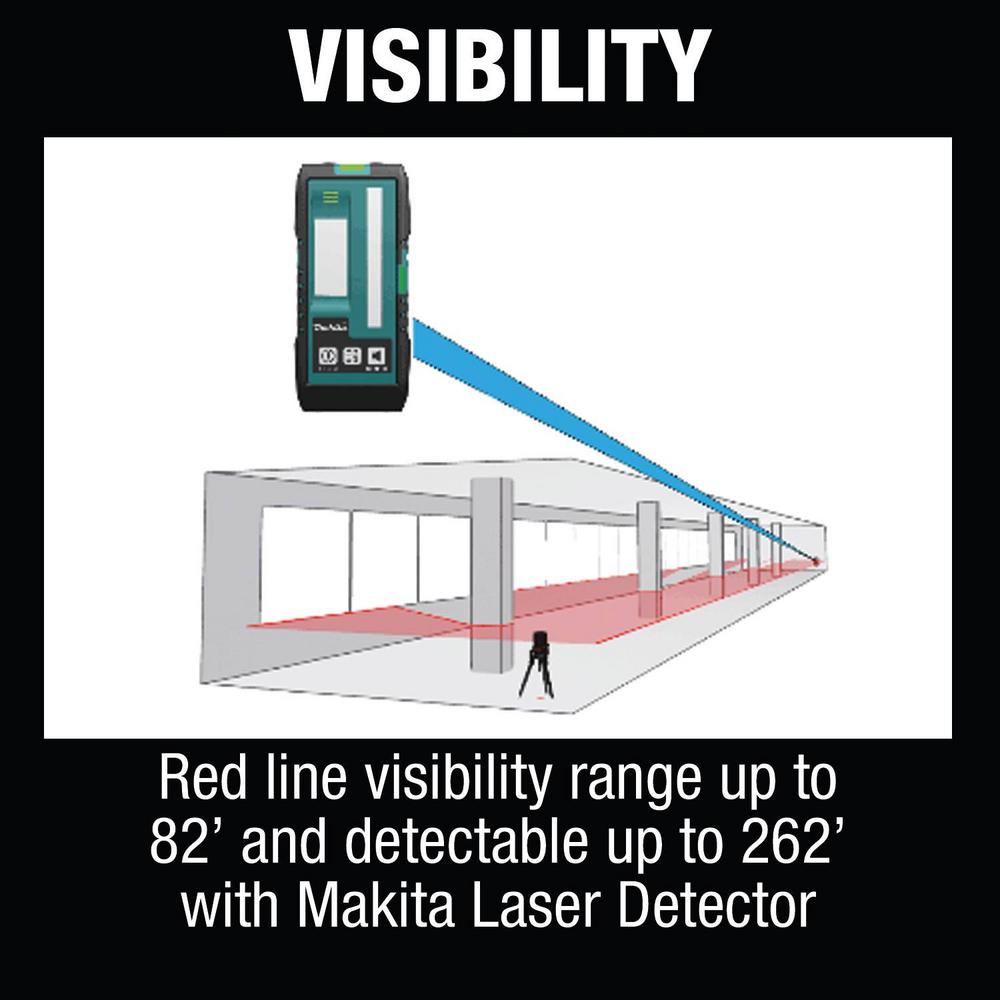

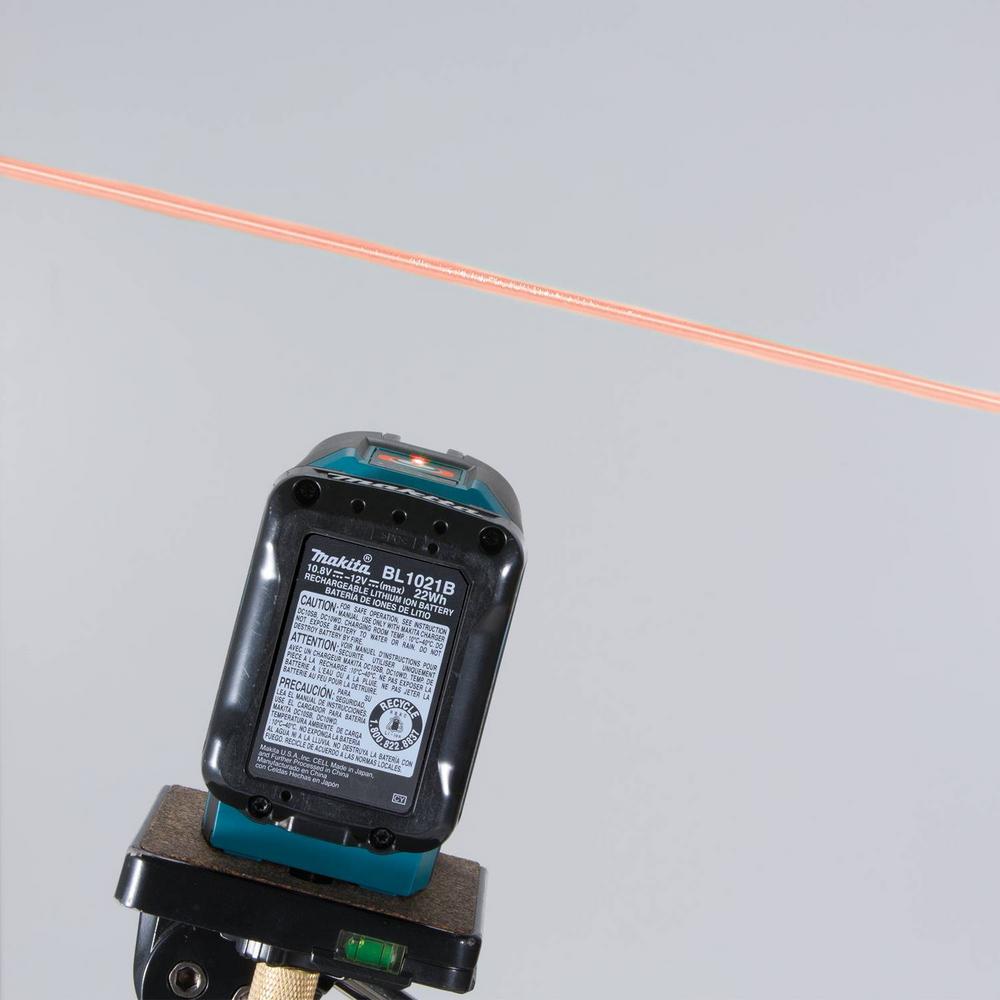

- Red line visibility range up to 82 depending on ambient light and detectable up to 262 ft. with laser detector
- Bright 635 nm class II red laser with plus/minus 1/8 at 33 for best-in-class accuracy

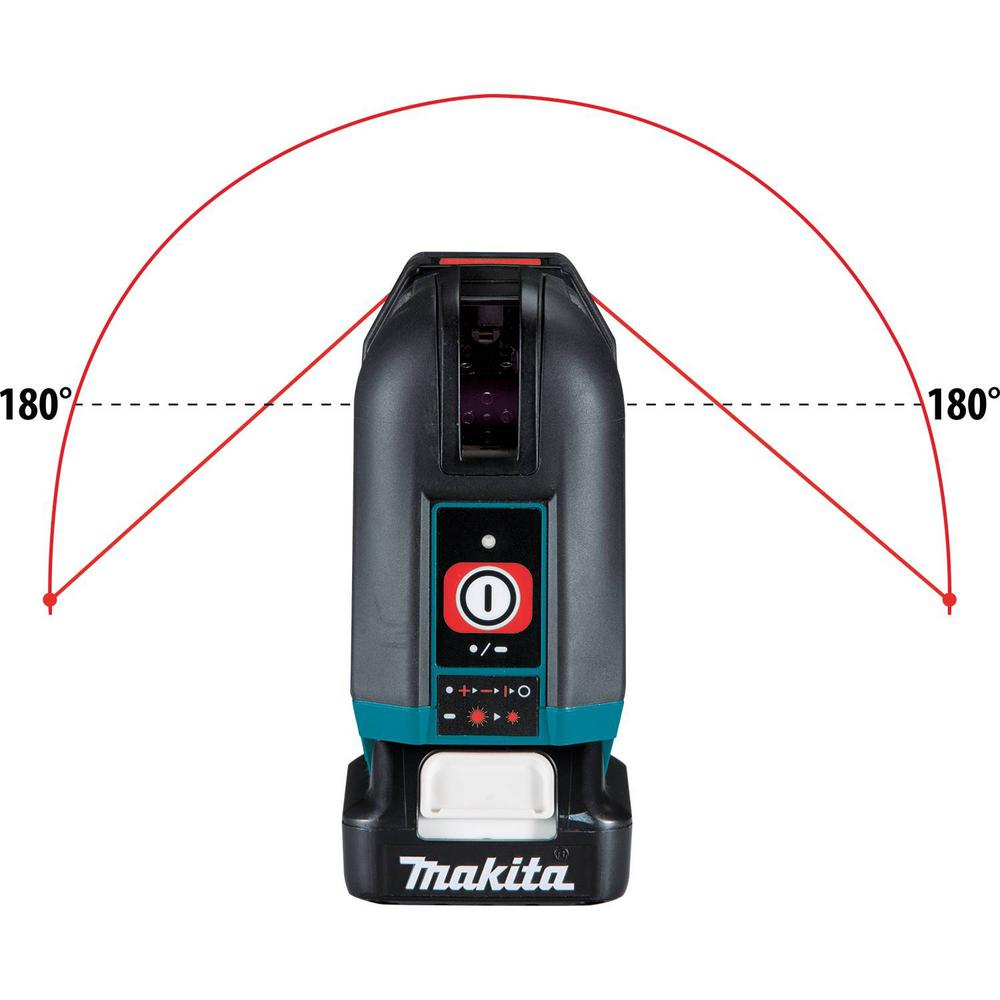

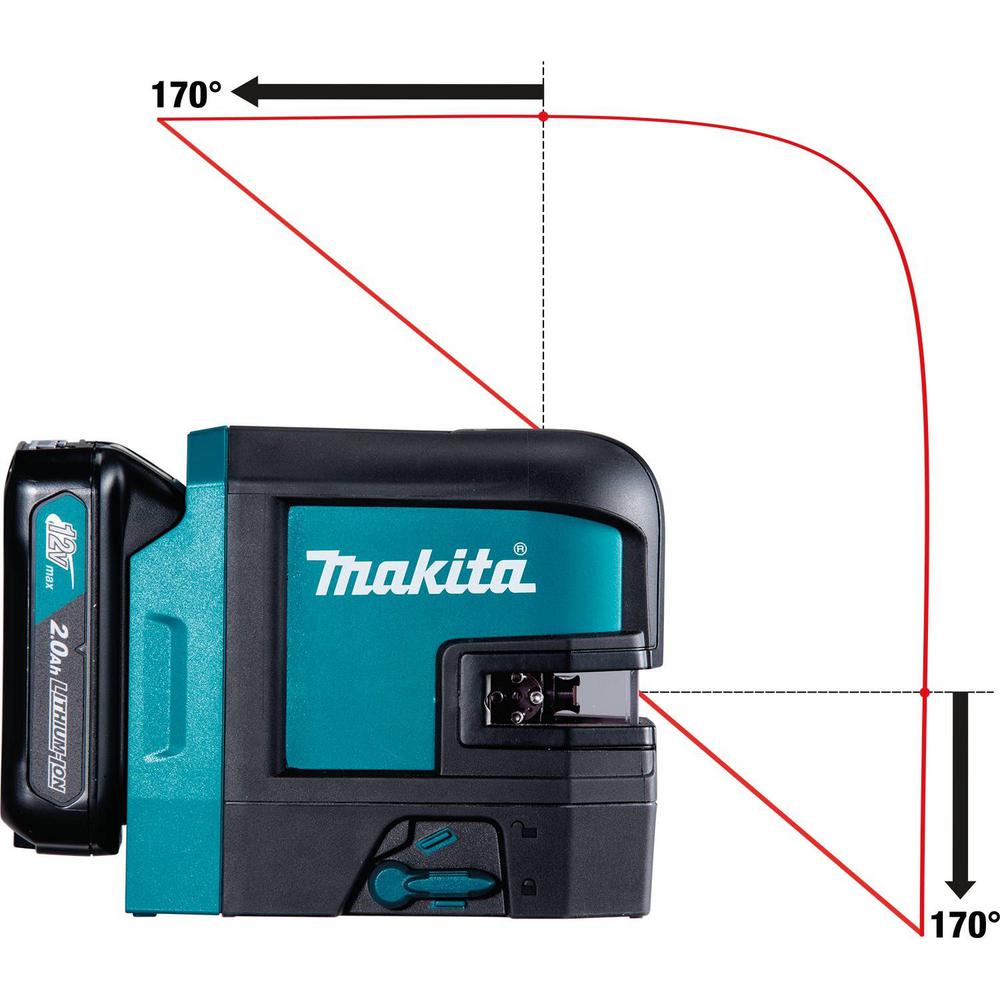

- Laser line fan angle spans past the 180° horizontal line and 170° vertical line positions for full reference line coverage
- Fast self-leveling line stability is achieved in up to 3-seconds for increased productivity
- Self-leveling is correctable up to 4 of slope allowing operation on uneven surfaces

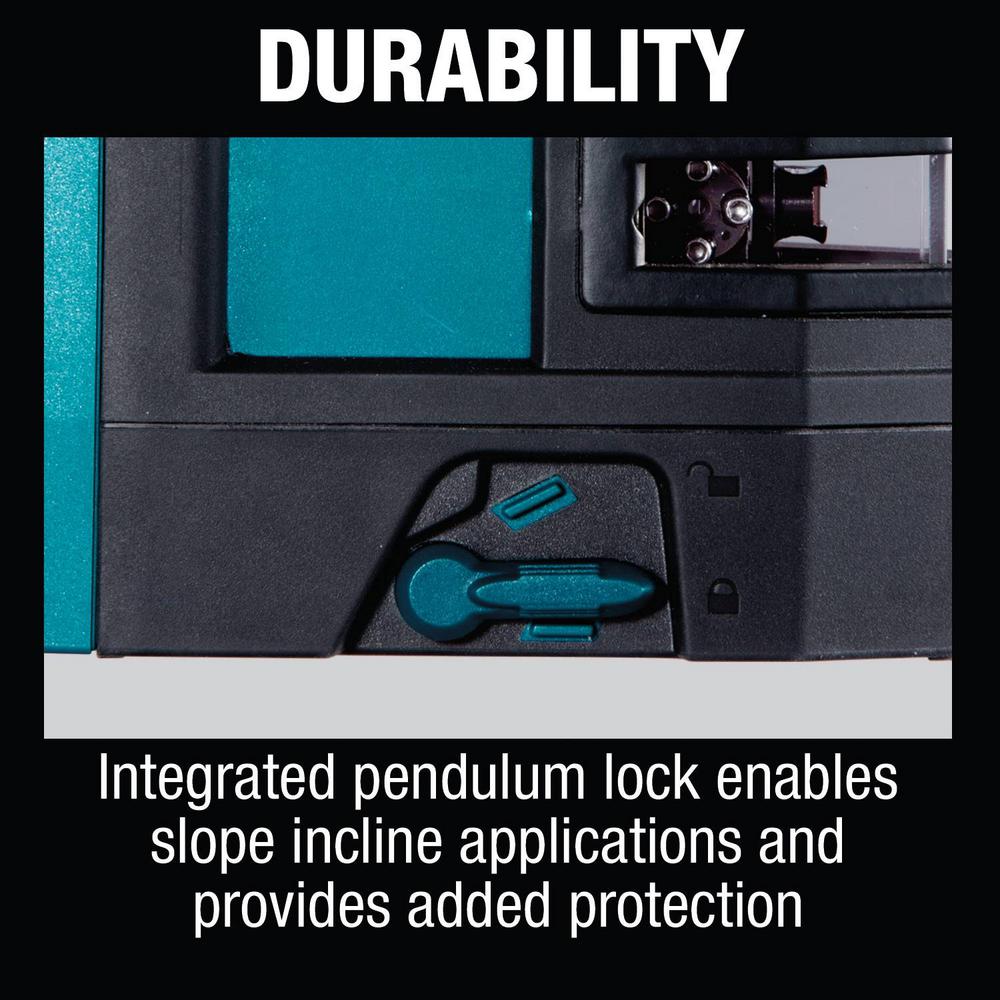

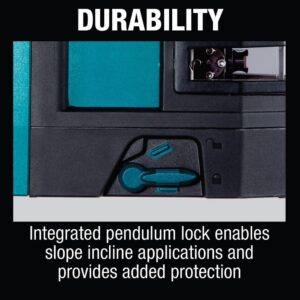

- Integrated pendulum lock enables slope incline applications and provides added protection of laser diode during transport and storage
- Dust and water resistance with IP 54 rating for increased durability

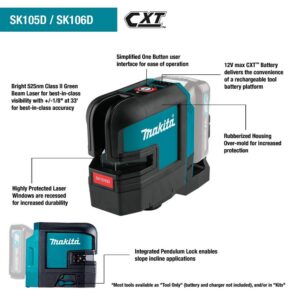

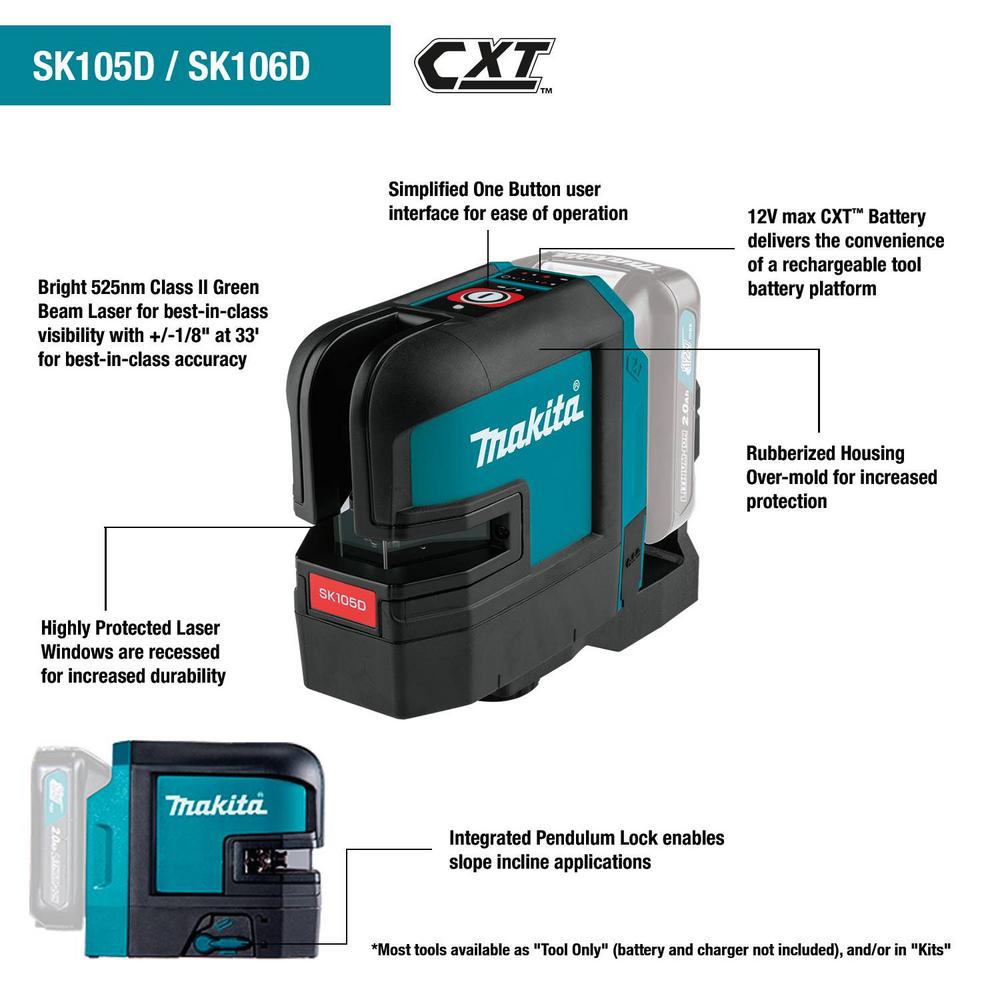

- Highly protected laser windows are recessed into the housing for increased durability
- Rubberized housing over-mold for increased protection
- Simplified 1 button user interface for ease of operation
- Low laser brightness mode conserve battery power for extended run-time performance
- Power connector port allows 18-Volt LXT lithium-ion battery to be used as alternate power source with power source adapter (ADP05) and adapter cord (adapter and cord sold separately)

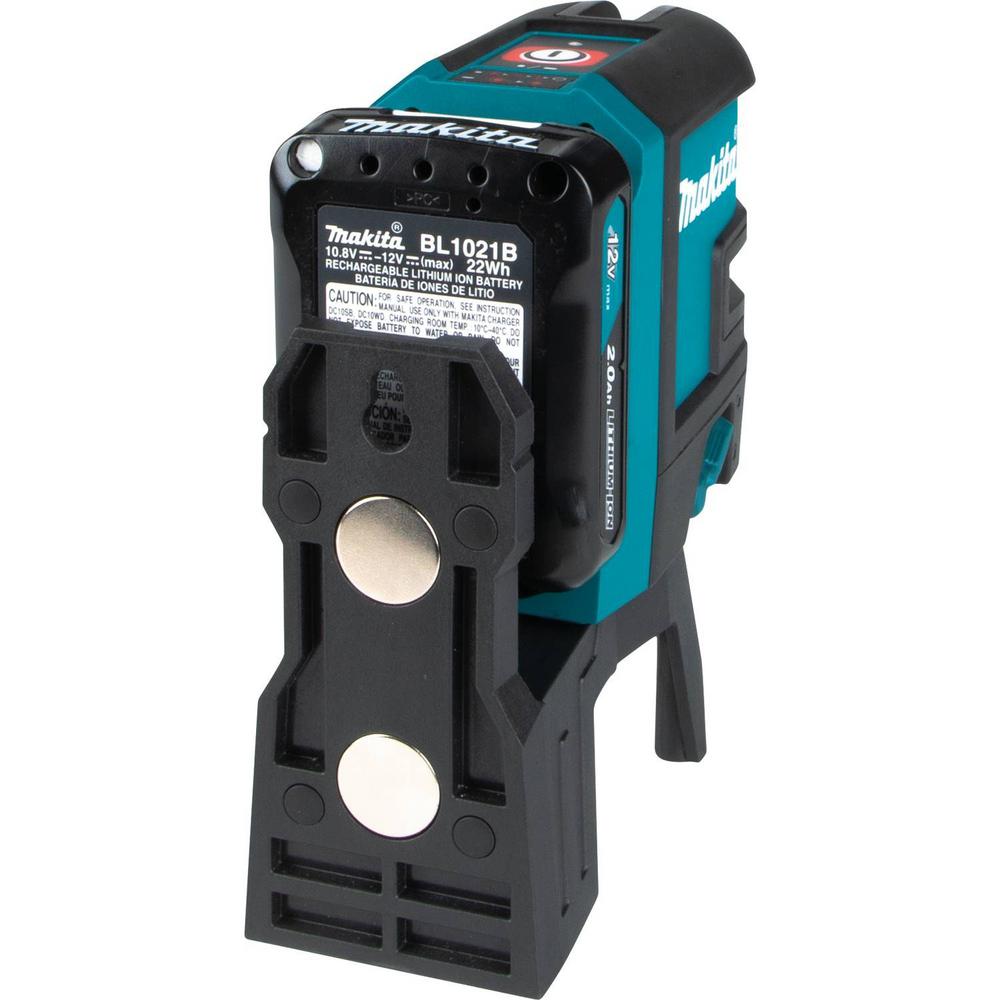

- Multi-purpose magnetic bracket with integrated 1/4 and 5/8 threads allow laser attachment to metal surfaces, wood surfaces or Makita tripods (TK0LM1001F and TK0LM5030F)
- Battery protection circuit protects against overloading, over-discharging and over-heating

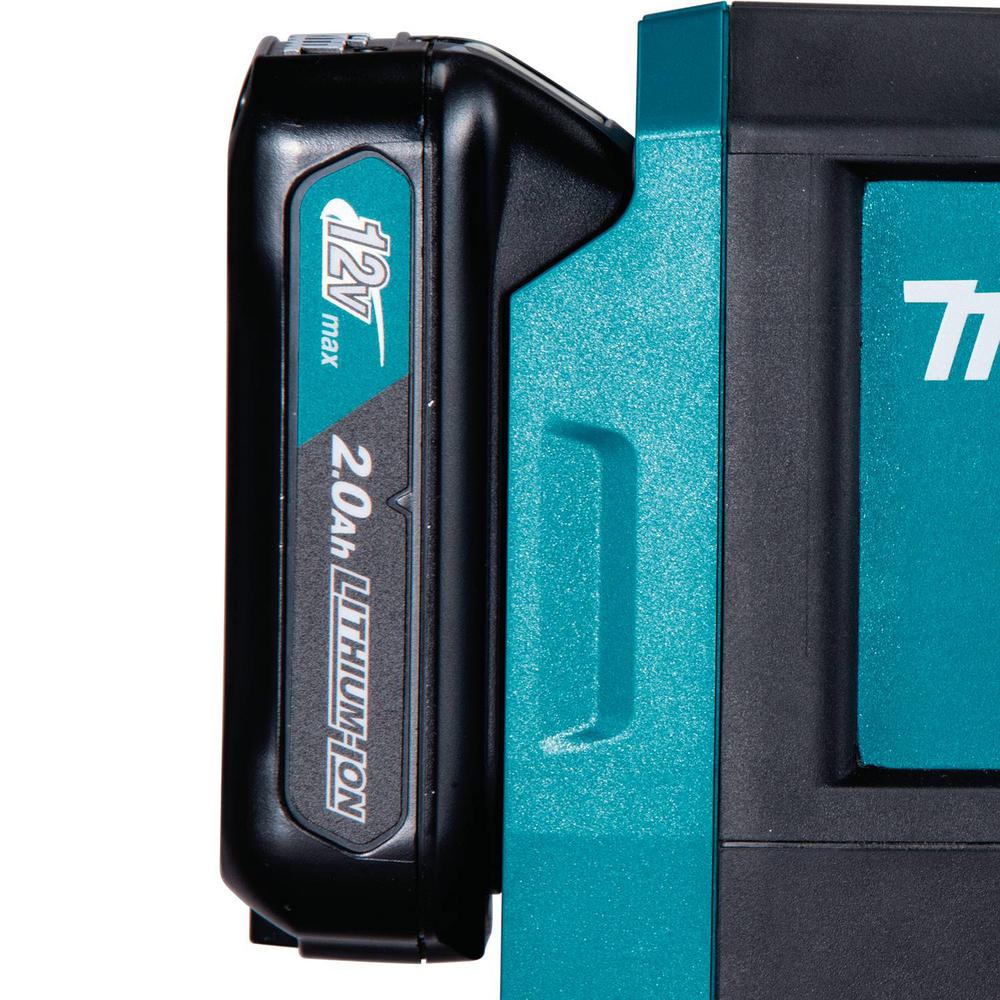

- 12-Volt MAX CXT lithium-ion 2.0 Ah battery BL1021B, features an integrated LED battery charge level indicator
- Part of the expanding 12-Volt MAX CXT series, combining performance with superior ergonomics in a compact size
Specifications
- Laser Color: Red
- Number of beams: 2
- Battery Type Required: 12-volt
- Laser Level Mounting Method: Tripod,Wall
- Max Laser Distance (ft.): 80 ft.
- Tools Product Type: Power Tool
- Condition: New
- Features: Adjustable,Electronic,Magnetic,Self-Leveling

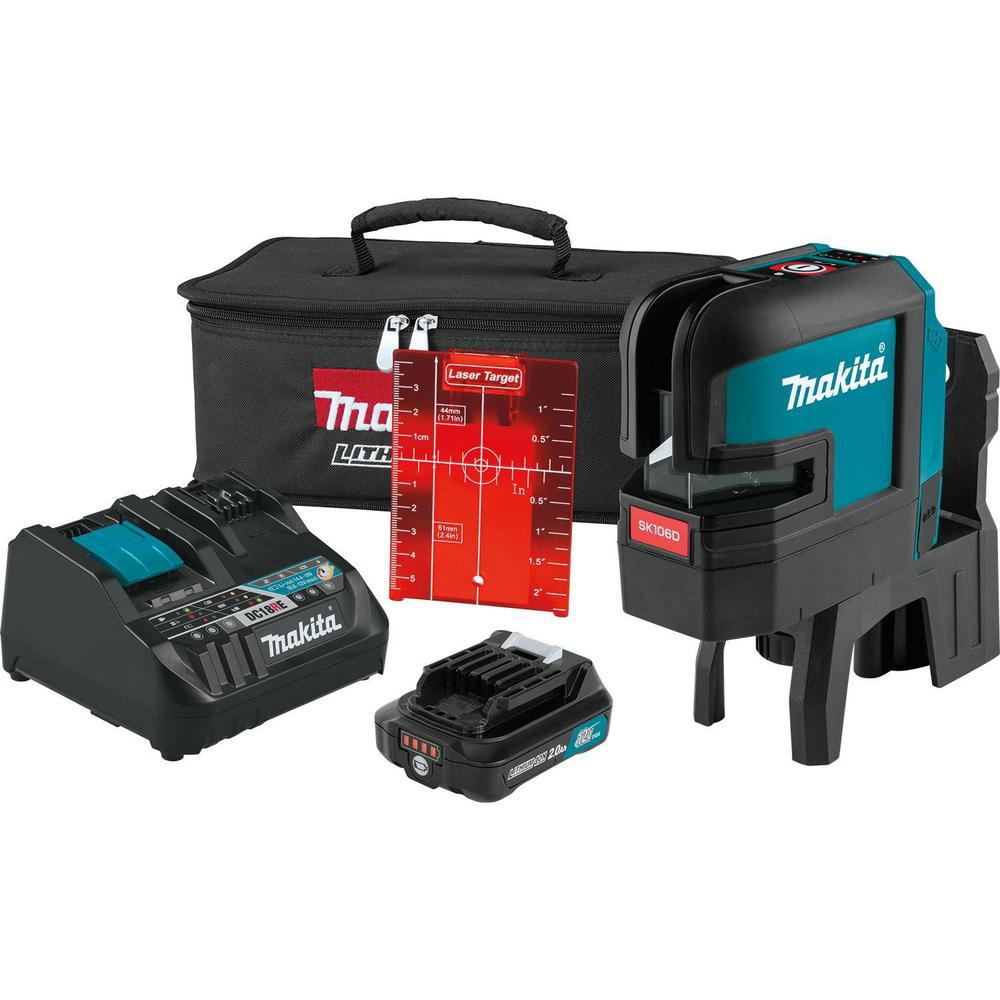

- Included: Battery(s)
- Number of Measurements: 4
- Hand Tool Type: Laser Level
- Number of Batteries Required: 1
- Measurement Accuracy (in.): ±1/8 in.
- Indoor/Outdoor: Indoor
- Compatible Battery Type: 12V max CXT
- Product Length (in.): 0.000 in
- Product Height (in.): 6
- Product Depth (in.): 8
- Product Width (in.): 13.25
