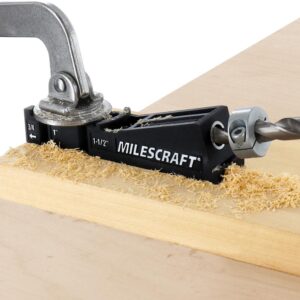

PocketJig100 pocket hole jig allows you to connect your workpieces in a quick and timely manner or do repairs around your house. Small, compact design allows you to do applications where a small jig is required. Built-in board thickness locations for easy measurement and set-up of your workpieces, virtually eliminating the need for manual measurements. Everything you need to get started with your first pocket holes.
- No fence and the small design allows you to get into some of the smallest places to make repairs to many joints
- Hardened steel 3/8 in. drill bushing for precise and accurate pocket holes every time
- Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try
- Recessed clamp pocket with magnet help keep the clamp in the same position as you move to different locations
- With the stronger rare earth magnet, you can easily clamp the jig from 1 location to another
- For speed and accuracy, use the Milescraft 3 in. face clamp
- 4 common board thickness settings built into the jig: 1/2 in., 3/4 in., 1 in. and 1-1/2 in. (12 mm, 19 mm, 27 mm, 38 mm)
- Convenient built-in depth setting to easily set the bit for correct drilling depth
- 3/8 in. split design stop collar with flat prevents slipping of the set screw when tightened and the flat prevents the bit from rolling
- 3/8 in. HSS step drill bit made from high-speed steel the PocketBit with 1/4 in. hex shaft is designed to reduce clogging and provide smooth and precise holes
- Includes magnetic T20 star driver for maximum torque settings without stripping
Specifications
- Material: Acrylonitrile Butadiene Styrene (ABS)
- Number of Pieces: 5
- Tools Product Type: Hand Tool
- Power Tool Accessory Type: Jig
- Jig type: Drill
- Individual/Set: Set
- Product Length (in.): 10.10
- Minimum stock size (in.): .5
- Maximum stock size (in.): 1.5
- Product Width (in.): 3.75
