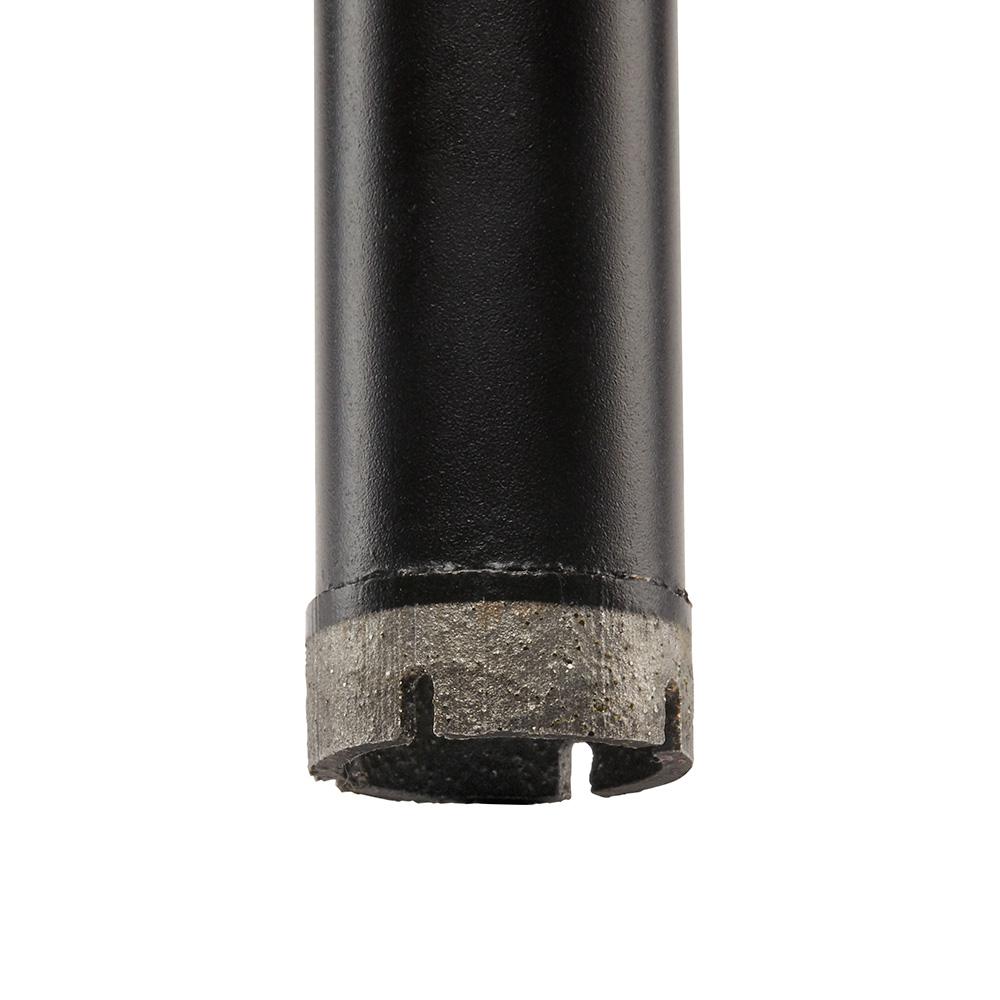

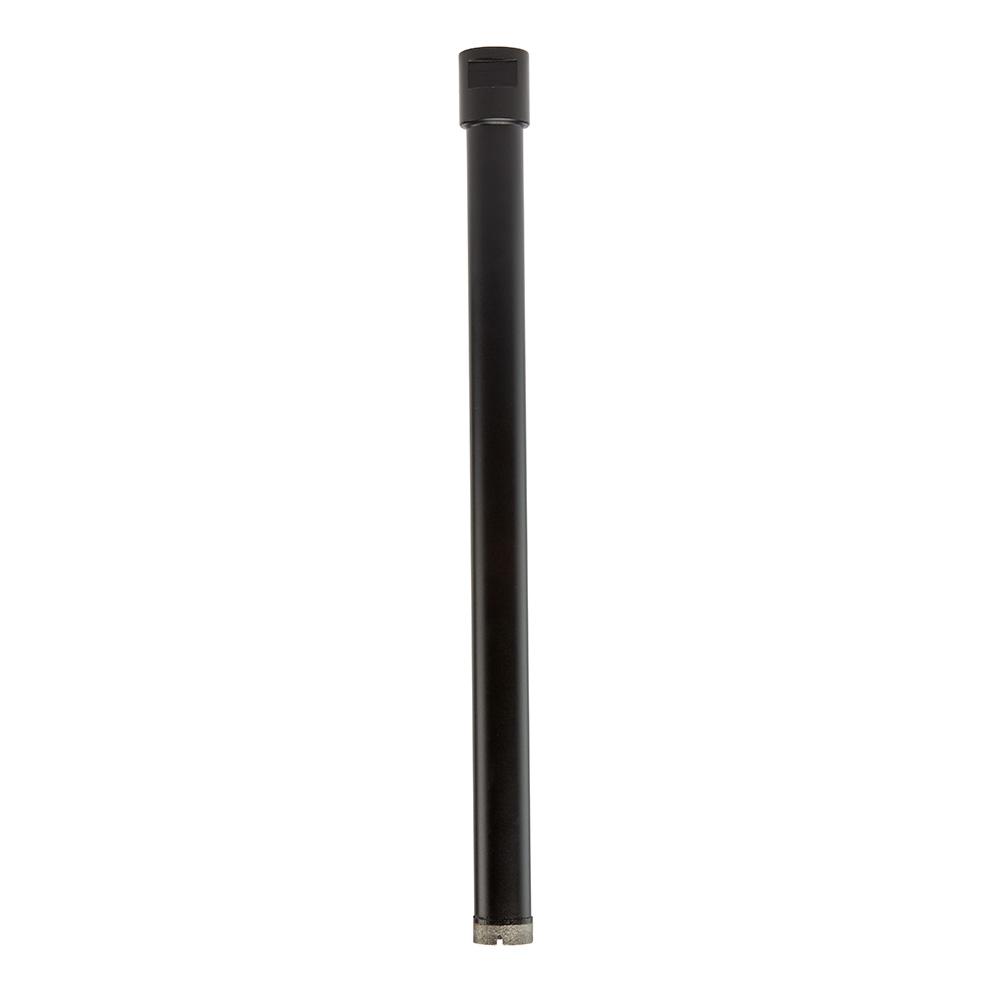

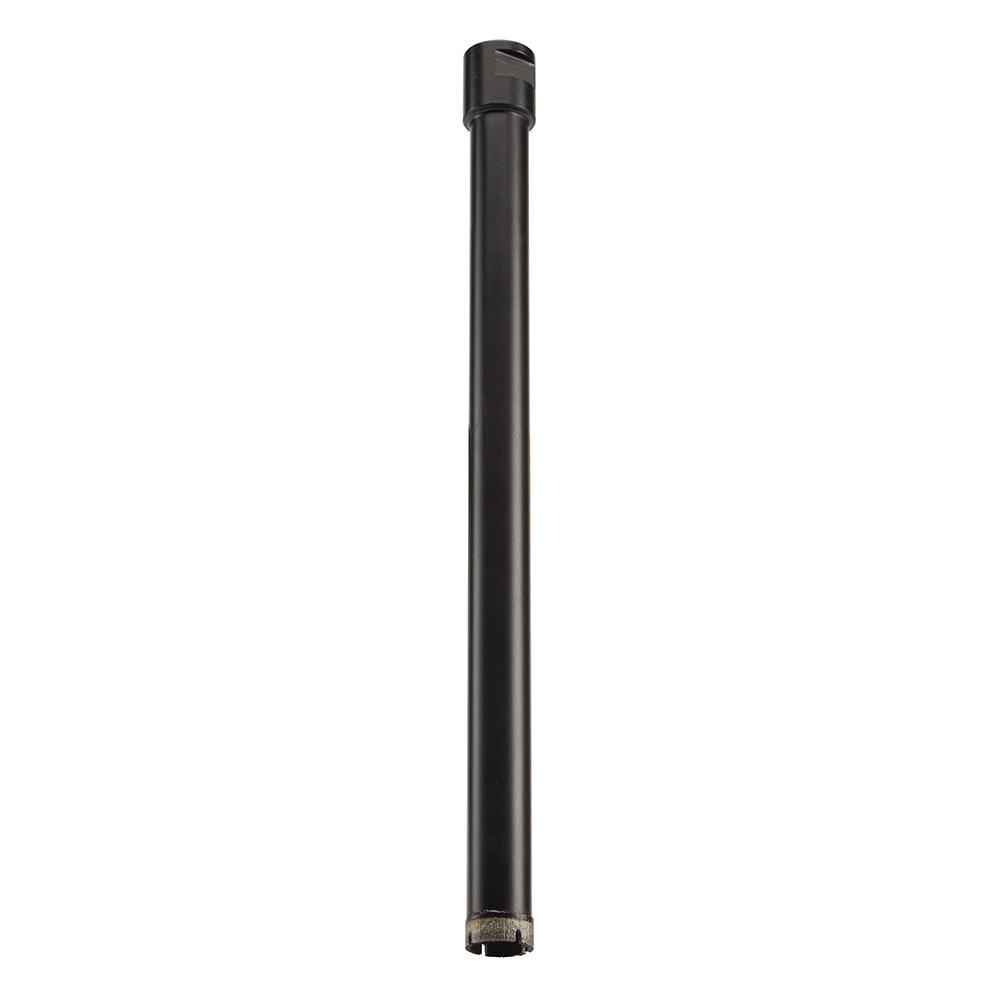

Milwaukee 3/4 in. Diamond Ultra Wet Core Bit

The MILWAUKEE® 3/4″ Diamond Ultra Wet Core Bits are engineered with thin kerf segments to provide users with the fastest drilling in reinforced concrete applications. These diamond ultra wet core bits deliver up to 20% longer run-time versus their previous generation of wet core bits. The diamond wet core bits are specifically designed for use with the MX FUEL™ Core Drill and corded core drills for maximum versatility. The 3/4″ dry core bit has a maximum RPM of 3510 with 3mm thin kerf for faster holes. The dry core bits for brick and concrete block feature a 13” drilling depth and ⅝”-11 thread connection, to connect to 1-¼-7 thread tools use the Milwaukee 48-17-6006 bit adapter.

• Fastest drilling compared to other Milwaukee diamond core bits
• Maximum Run Time
• Ideal for concrete and concrete with rebar
• Thin 3mm kerf delivers faster holes
• Top quality diamonds
• 9mm segment height
• 5/8″-11 thread connection
• Designed to be used wet
• 13″ Drilling depth
• Max RPM: 3510
• Use with 48-17-6006 adapter to connect to 1-1/4″-7 thread tools

Specifications

• Self-Feeding: No
• Connection End Type: 5/8 in. – 11 in.
• Drill Bit Type(s) Included: Coring Bit
• Shank Style: Threaded
• Tools Product Type: Power Tool
• Bit Material: Diamond
• Material Application: Concrete
• Individual/Set: Individual
• Drill Bit Type: Coring Bit
• Assembled Depth (in.): 0.75 in
• Assembled Width (in.): 0.75 in
• Shank Diameter: 5/8 in
• Bit Diameter: 3/4 in
• Bit Length (in.): 13
• Assembled Height (in.): 18.70 in
