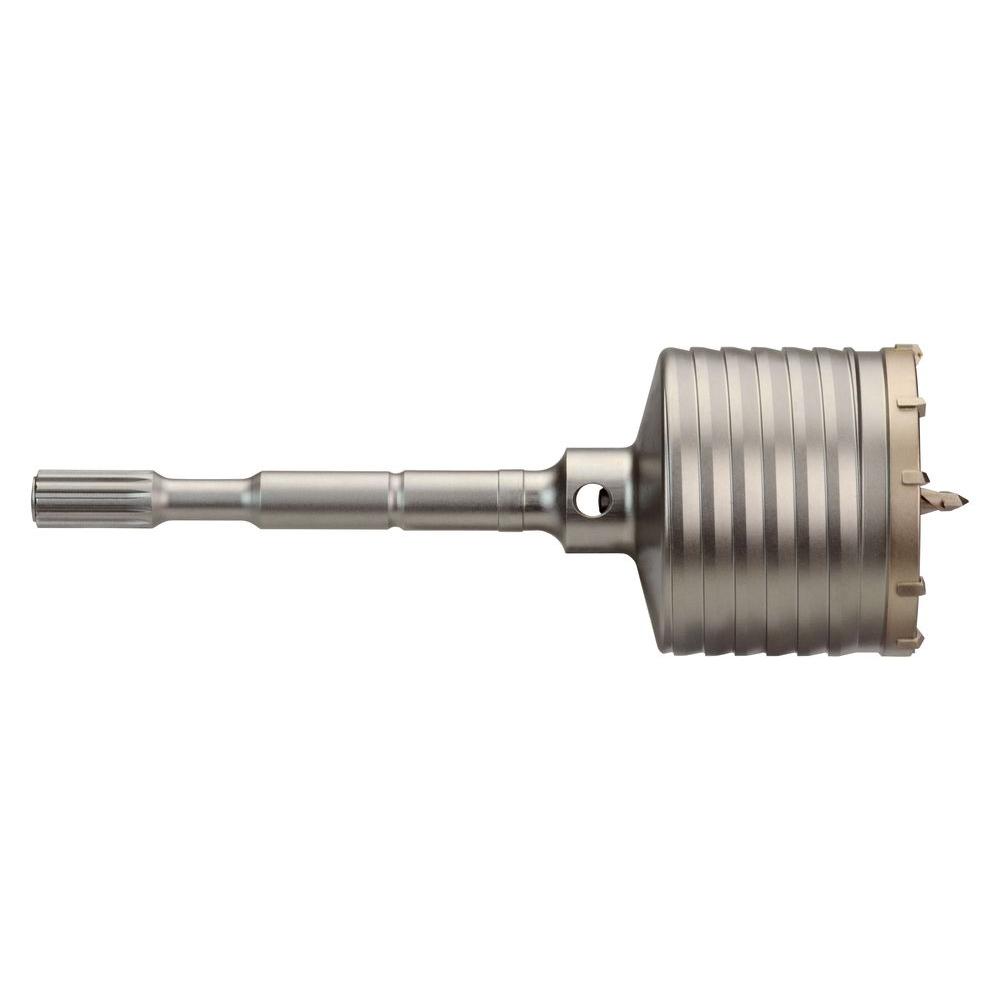

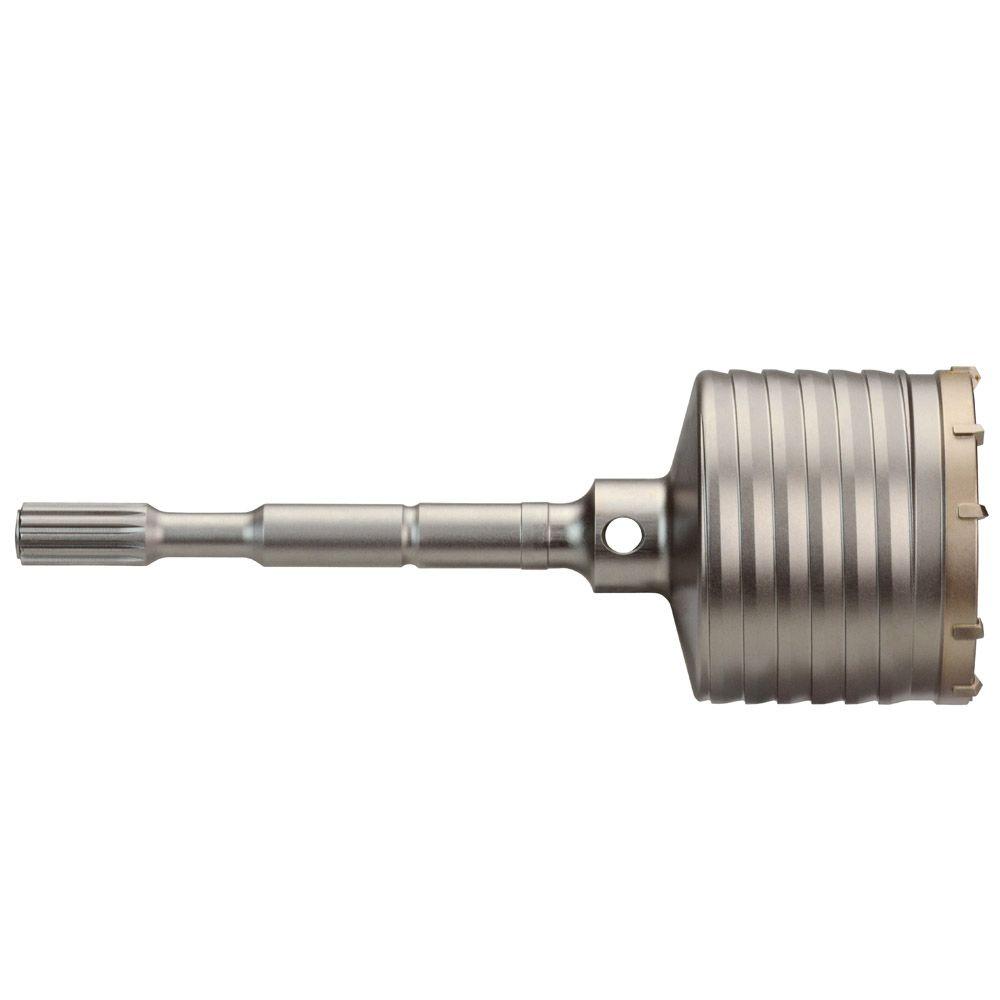

Milwaukee 4 in. x 22 in. Spline Core Bit

Milwaukee’s 1-Piece carbide tipped core bits are ideal for drilling large holes where the depth is relatively shallow. The core bit cuts a kerf only. The inside core must be removed by the operator before deeper drilling can be accomplished. Use of centering bit 48-20-5495 is recommended (not included). Use drift key 48-20-5497 to remove centering bit from The 1-piece core bit. The 1-piece core bits are available in SDS-Max or Spline shanks. They come in a variety of diameters ranging from 1-1/2 in. to 6 in. with overall lengths of 11-3/8 in. or 22 in. and a drilling depth of 3 in. The asymmetric tooth pitch with alternating tooth geometries creates faster material pulverization. The 1-piece design maximizes energy transfer and the thick wall core body is durable even in large hammers. The fluted core exterior minimizes friction loss and removes debris faster.

• Asymmetrical and alternating teeth for faster material pulverization
• Thick-wall core body for durability even in large hammers
• Centering tip to reduce bit walking and create exact spot drilling
• Remove centering bit with drift key 48-20-5497 (not included)
• Drilling depth 3 in.
• Includes (1) 48-20-5484 Milwaukee 4 in. x 22 in. 1-piece spline core bit

Specifications

• Self-Feeding: No
• Connection End Type: 1 1/4 in. – 7 in.
• Drill Bit Type(s) Included: Coring Bit
• Shank Style: SDS Max
• Tools Product Type: Power Tool
• Bit Material: Carbide
• Material Application: Concrete
• Individual/Set: Individual
• Drill Bit Type: Coring Bit
• Assembled Depth (in.): 4 in
• Assembled Width (in.): 4 in
• Shank Diameter: 4 in
• Bit Diameter: 4 in
• Bit Length (in.): 22
• Assembled Height (in.): 25.00 in
