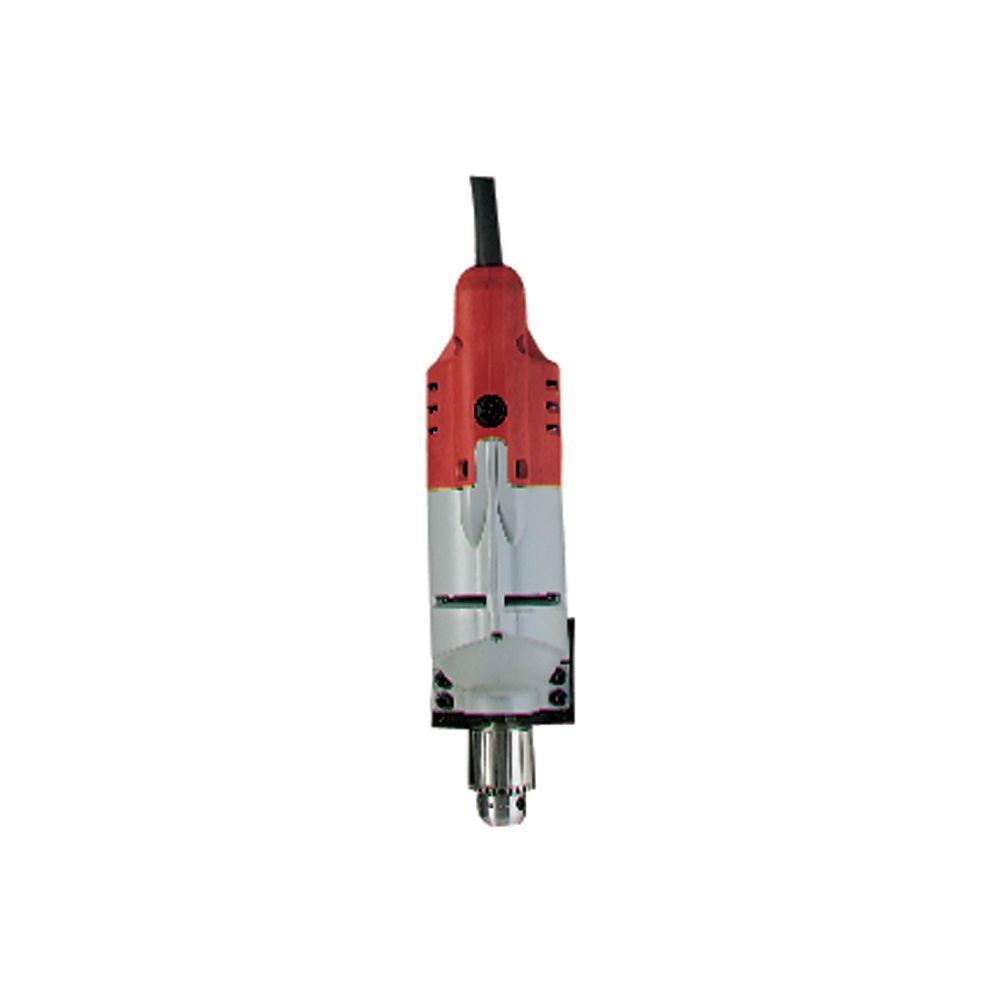

The 4253-1 electromagnetic drill motor features 6.2 amps and a 1/2 in. chuck turning at 600 rpm. This motor is best used on the 4202 fixed position base. Light weight and ample power make this a good choice for smaller holes into steel. The 4253-1 has a Tap Capacity of 5/8 inch -18 and develops up to 1650 pounds of Drill point pressure.
- 1/2 in. capacity, 6.2-Amp motor, 600 RPM
- 1/2 inch keyed chuck
- Taps up to 5/8 inch -18 threaded hole. 5/8-11 and 1/2-13 taps not recommended
- Develops up to 1650 lbs. of drill point pressure with a 1 in. steel plate
Specifications
- Magnetic: Yes
- Maximum Speed (rpm): 600
- Spindle Travel: 0 in
- Chuck Capacity: 1/2 In.
- Chuck Key Storage: No
- Tools Product Type: Power Tool
- Amperage (amps): 6.2
- Minimum speed (rpm): 600
- 360- Degree Swivel: No
- Work Light: No
- Color Family: Red
- Condition: New
- Number of Speeds: 1
- Bench & Stationary Tool Type: Drill Press
- Built-In Light: No
- Portability: Bench
- Cord Length (ft.): 3
- Voltage (volts): 120
- Lockout Power Switch: No
- Product Weight (lb.): 9.7
- Product Height (in.): 15.62
- Product Depth (in.): 5.56
- Product Width (in.): 5.5
