POWERTEC 1/4 in. Dowel Drilling Jig with Cobalt M-35 Drill Bit and Split Ring Stop Collar

It is a cinch to create perfectly placed and centered 1/4 in. dowel drill holes in 1/2 in. thick wood stock with the POWERTEC 71496 Dowel Drilling Jig Kit (1/4 in.) with Premium 1/4 in. drill bit, Stop Collar and Tightening Wrench. We have thought of everything you will need for an optimal joint setup. The drill jig body features 2 guide holes located 3/4 in. on center and is precision machined of hardened steel. Its integrated viewing/guide plate is constructed of clear hardened acrylic (3/16 in. thick) for easy viewing. The included (M35) drill bit is made of high-speed steel (with an 8% cobalt alloy), a uniquely strong metal that offers both heat and scratch resistance. The tip of the bit features a 135° split point that both requires less user force and drills directly on contact, thus resulting in cleanly drilled dowel holes. A handy stop collar and compatible Allen wrench make for uniform and precise dowel-hole depths. To utilize, align the jig to your workpiece using the centerline that is conveniently imprinted on the acrylic faceplate and then clamp the device into place. 2 drill-guide lines set above and below the centerline allow you to pinpoint exactly where to drill the dowel holes. Then simply place drill into the drill guide and you are good to go. It is the ideal device to optimize a wide variety of frame applications. Perfect dowel joints make for perfect furniture dimensions. Reliable, efficient and satisfying to use.

• Allows for fast, easy and ultra-precise dowel joint assembly
• Drill guide ensures impeccably placed and centered drill holes 1/4 in. dowel holes in 1/2 in. thick stock, with minor adjustments, it can be used with thicker stock

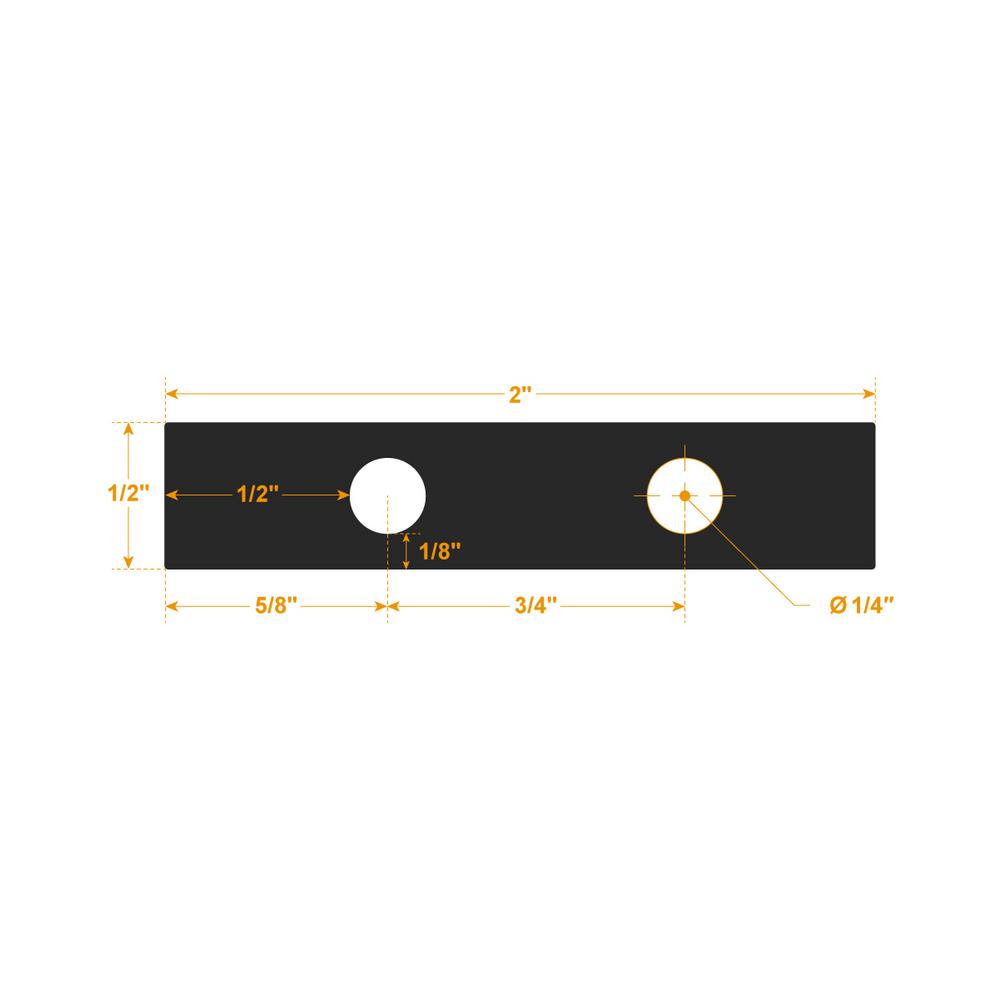

• Drill guide is constructed of rugged, hardened steel, features 2 guide holes located 3/4 in. on center, clear-view guide plate is constructed of 3/16 in. clear hardened acrylic
• Premium M35 drill bit is precision machined of high-speed steel, designed with a 135° split point for precise, clean drilling action

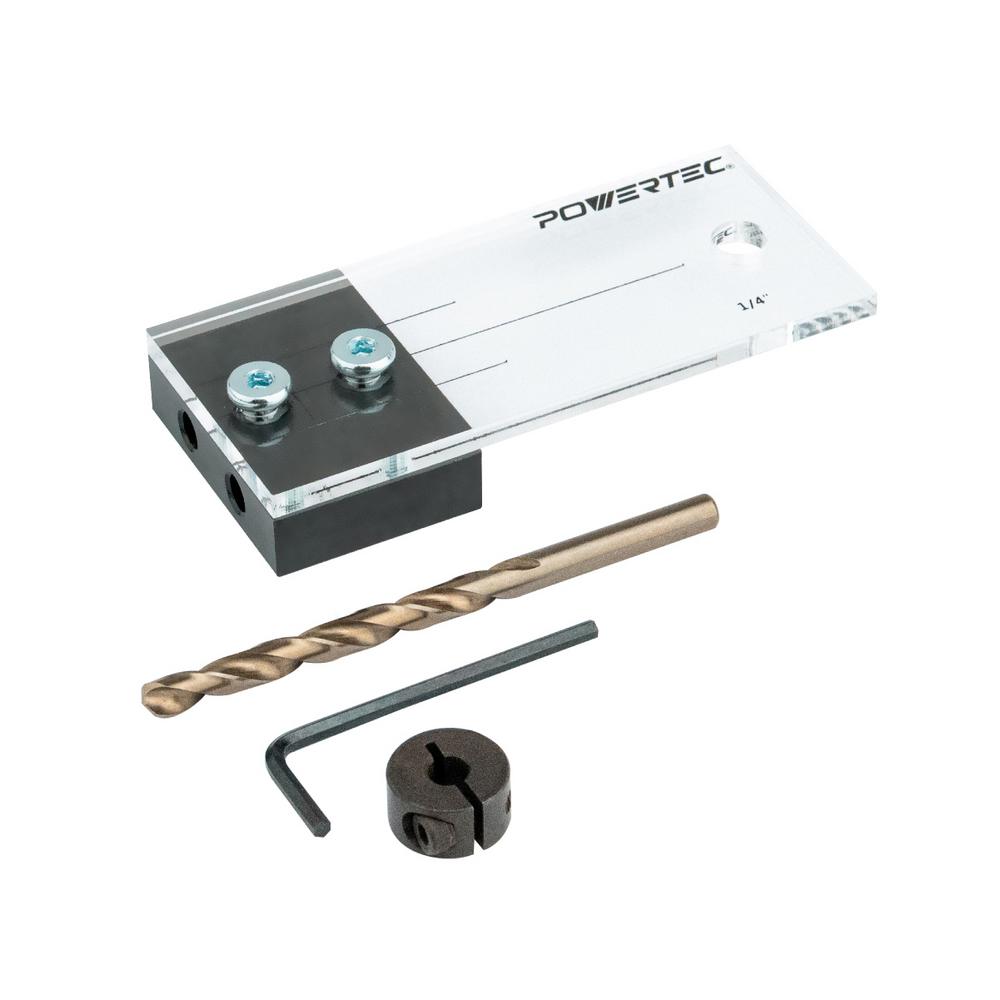

• Durable and long-lasting through many a successful projects, handy storing with pre-cut hanging hole, set includes 1 drill guide, 1/4 in. drill bit, stop collar and tightening wrench

Specifications

• Material: Acrylic
• Number of Pieces: 3
• Tools Product Type: Power Tool
• Power Tool Accessory Type: Jig
• Jig type: Doweling
• Individual/Set: Set
• Product Length (in.): 6.8 in
• Minimum stock size (in.): 0.5
• Maximum stock size (in.): 0
• Product Width (in.): 5 in
