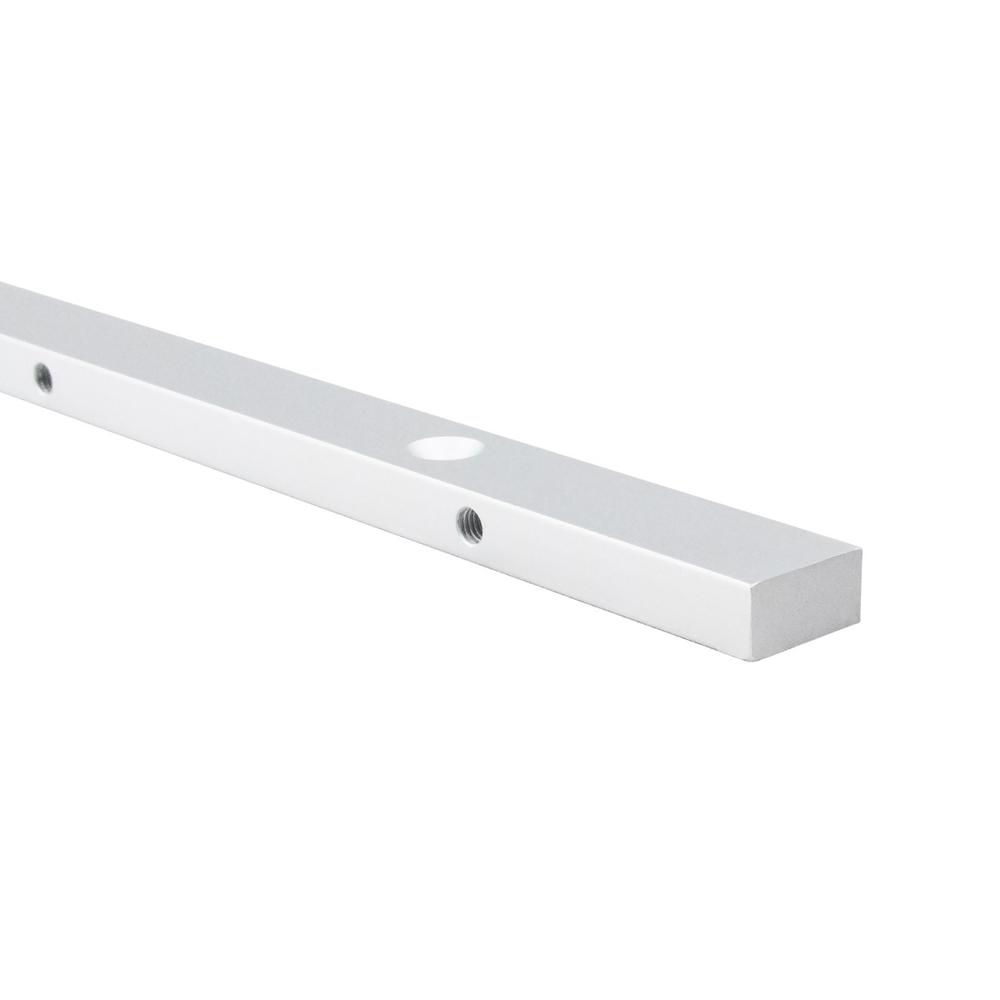

Introducing the Miter Gauge Jig and Fixture Bar by POWERTEC. This miter bar was designed to help your produce quality results when building jigs and fixtures for your router table, band saw, and other woodworking tools using a table saw miter slot. With it’s highly functional design, this aluminum bar is precision machined for a highly accurate fit with minimal movement. Premium and Versatile Design: Our Jig and Fixture Bar is 24 in. L, and possesses flat, straight profile. It flaunts 6 countersunk mounting holes along the top that are approximately 5 in. on center. (TIP: #8 wood screws fit exceptionally well.) An extra hole along the top is included. Along the side, this bar possesses eight 10-32 tapped holes that are 3-3/4 in. on center. These holes are for adjustment screws so that the bar can fit the saw miter slot to perfection. All of the holes are burr free. Package Contains: 24 in. Jig and Fixture Bar, Mounting Hardware (8,10-32 adjustment screws and 6, #8 flat head wood screws, 3/4 in. L).
- Includes: 1 jig and fixture bar with a set of 10-32 nylon adjustment screws (mounting hardware)
- Application: a necessary addition to your collection of workshop tools for creating woodworking jigs and fixtures for your router table, band saw or table saw
- Functional design: features 6 countersunk mounting holes along the top of the bar (plus an additional non-countersunk hole), with 8 tapped holes (10/32 in.) on the side – all holes are clean and burr free
- Versatility: the top mounting holes are 5 in. on center, while the side mounting holes are 3-3/4 in. on center – providing you with a host of mounting options
- Quality build: this miter gauge bar is manufactured with high precision aluminum – delivering a polished profile, excellent fit and long-term durability
Specifications
- Material: Aluminum
- Number of Pieces: 1
- Tools Product Type: Power Tool
- Power Tool Accessory Type: Jig
- Jig type: Miter
- Individual/Set: Individual
- Product Length (in.): 24 in
- Minimum stock size (in.): 0
- Maximum stock size (in.): 0
- Product Width (in.): 0.75 in
