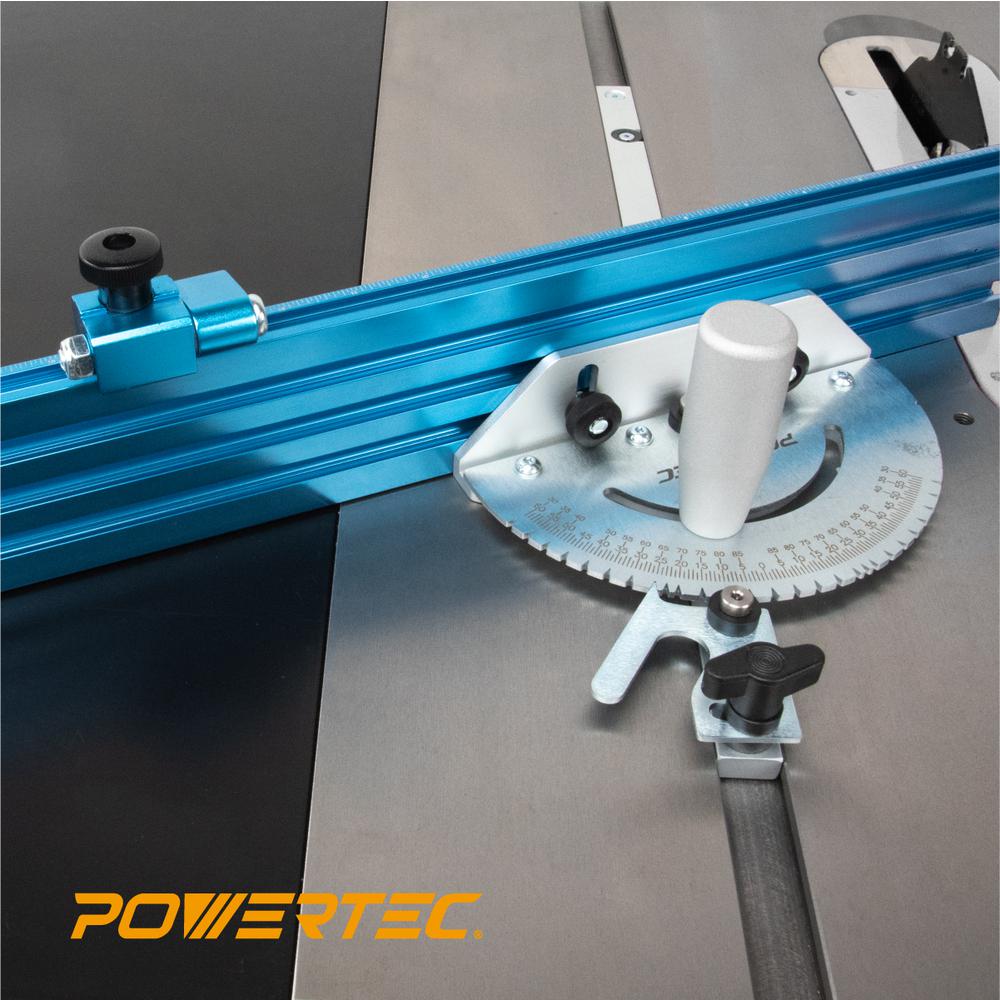

This 3-piece set was designed to provide you with everything you need to produce consistently accurate cross-cutting and miter cuts, with featured stops and without calibrating. Set Contains the Following: (1) High Precision Miter Gauge (1) Multi Track Fence with Scale (24 inch long by x 3 inch tall) (1) 3” T-Track Flip Stop (multi position) Miter Gauge Features .27 angle indexing stops .Laser-cut aluminum construction .A multi-functional 45 Degree setting .4 expansion discs that adjust to remove all side play .A removable plates that can be used with t-track miter slots .Works in standard ¾” x 3/8” miter slot, with or without t-slots .The gauge can be used as is, with a sacrificial fence, or with the included 24” x 3” multi –track fence Fence Features .Laser engraved 24” scale, right to left .24” x 3” tall multi-track (fence section) .Made out of anodized extruded aluminum for strength and durability .Universal t-track slots that accept 1/4″-20 hex bots, 1/4” t-bolts and 5/16” t- bolts .Possesses optimal versatility as a miter gauge fence, router or shaper fence and table saw sub-fence, chop or radial arm saw fence Flip Stop Features .Can work as a right or left stop .Tongue firmly locks into track to clamp down and prevent unnecessary movement .Anodized aluminum body and a move-able stop arm (measuring at 3” x ¾”x 5/16”) .Puts the control in your hands, allowing you to set whether it works with the extruded fence face or you can set it to work with a sacrificial fence

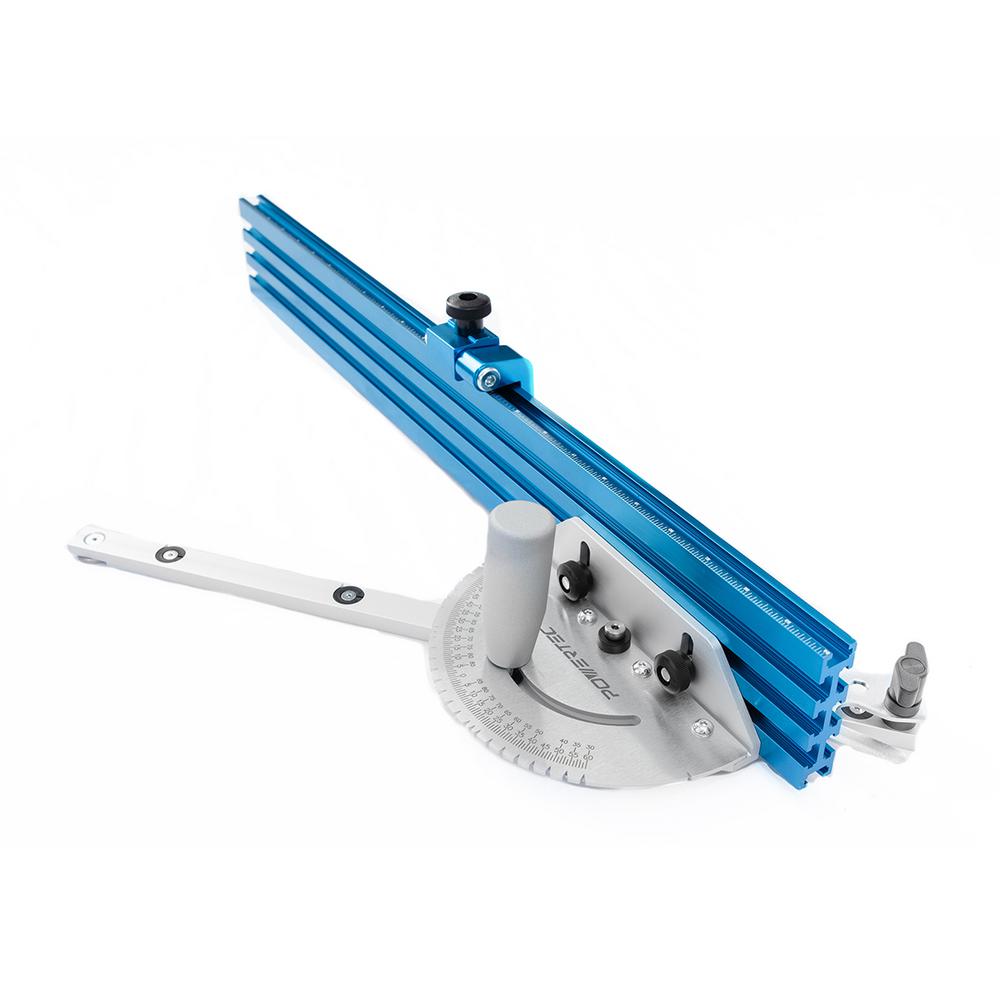

- Includes: 1 table saw miter gauge, 1 multi-track miter fence, 1 T-track flip stop
- Function: cost effective 3-piece set designed to give you everything you need to produce higher precision cuts (including cross cutting) while guaranteeing quick and accurate project results

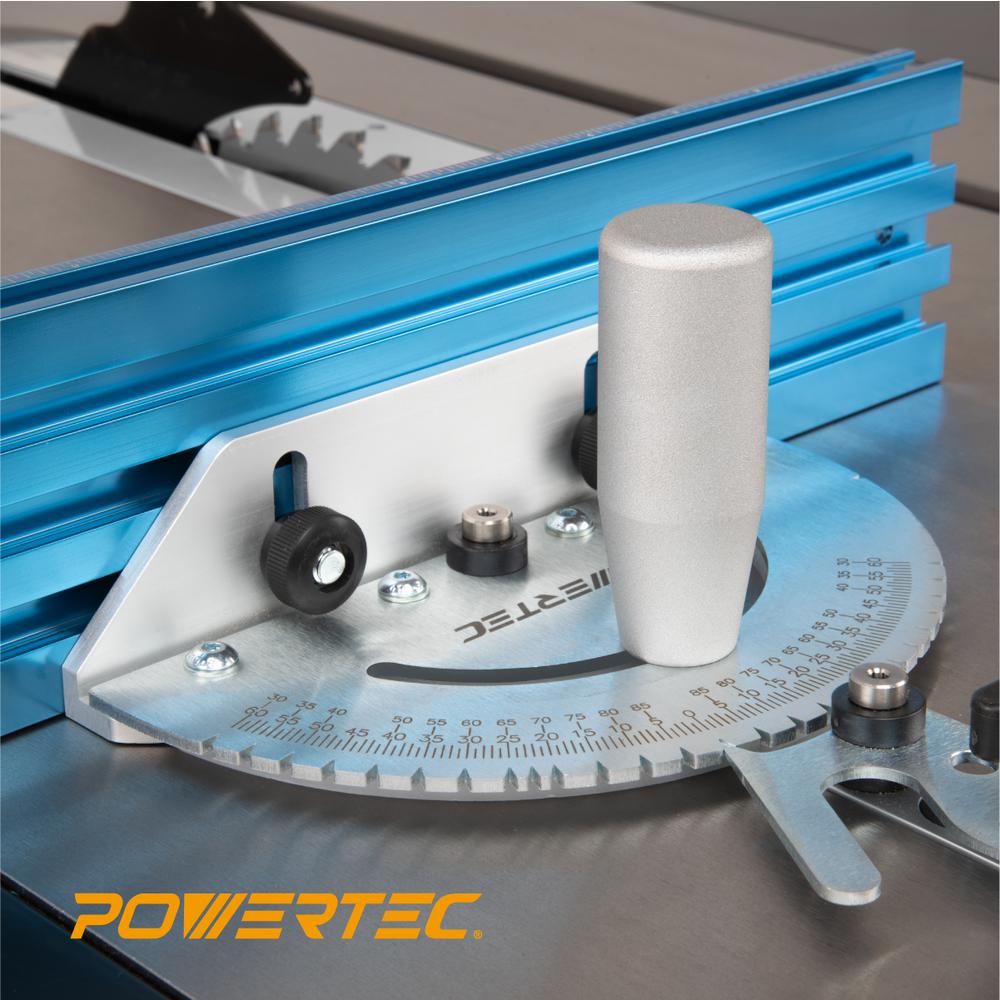

- High precision miter gauge: features 27 angle indexing stops with 1° step spacing and positive stops at 0°, 10°, 22-1/2°, 30° and 45° and 9 others, both left and right
- Multi-track miter fence: smooth, laser engraved scale, extruded aluminum profile with a universal design that accepts accept 1/4 in. 20 hex bots, 1/4 in. t-bolts and 5/16 in. t- bolts

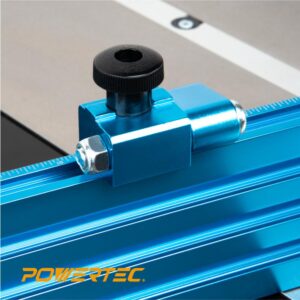

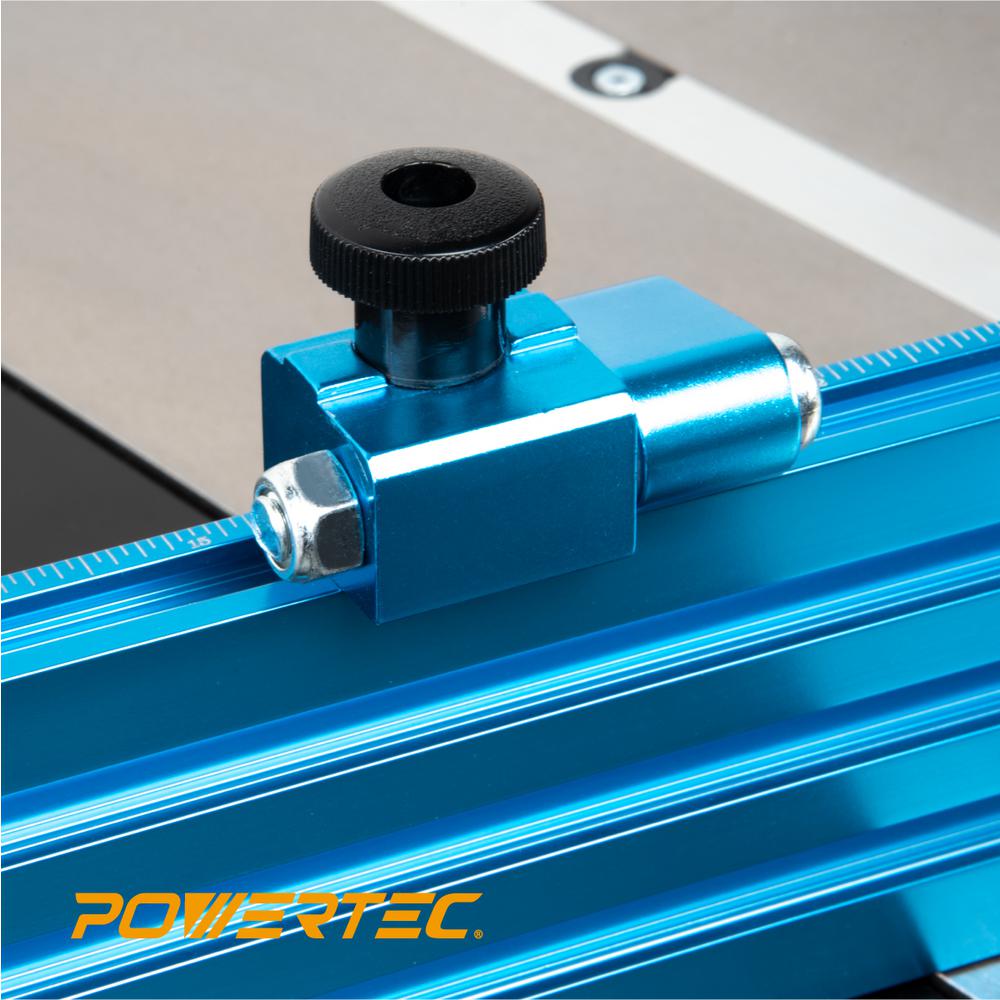

- Miter saw flip stop: delivers exceptional cut-length control, with a convenient locking mechanism and an adjustable setting to work from left or right
Specifications
- Material: Aluminum
- Tools Product Type: Power Tool
- Power Tool Accessory Type: Other Accessory
- Color Family: Silver
- Product Weight (lb.): 5.8 lb
- Ideally Used With: T-Track
- Product Length (in.): 4.12 in
- Product Height (in.): 24.5 in
- Product Width (in.): 3 in
