POWERTEC 500 lbs. Horizontal Quick-Release Toggle Clamp (10-Pack)

The POWERTEC Horizontal Quick-Release Toggle Clamp, is a must-have addition to your jig assembly. With its sturdy construction and efficient design, this essential tool ensures that you achieve a rock-solid grip on your work piece, thus providing a hold that wont slip. Features a low height design and mechanism to allow for maximum clearance. Vinyl colored grip for easy identification and comfort. Zinc-plated coating for corrosion resistance. Retracted clamp will allow for vertical removal of clamped item. This versatile and handy clamp makes woodworking perfection a breeze. Small tool, big help!

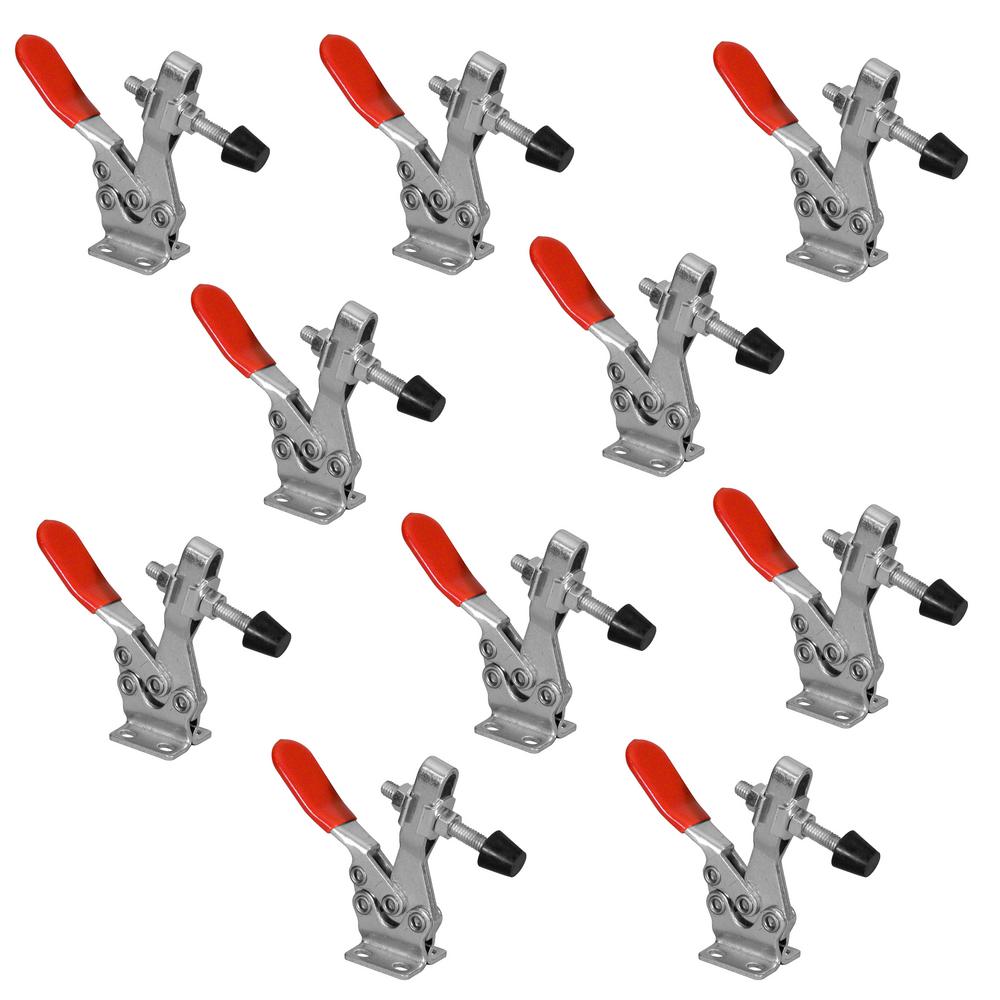

• INCLUDES: (10) Horizontal Quick Release Toggle Clamp
• FUNCTION: An essential hand tool and addition to your jig assembly, delivering a dependable and secure non-slip grip on your work pieces, jigs and fixtures
• DESIGN: A hold down toggle clamp constructed from cold-rolled carbon steel, possessing a low height design, a pressure adapter for easy depth adjustment and maximum clearance
• HOLDING CAPACITY: Toggle Clamp can hold up to 500 lbs.

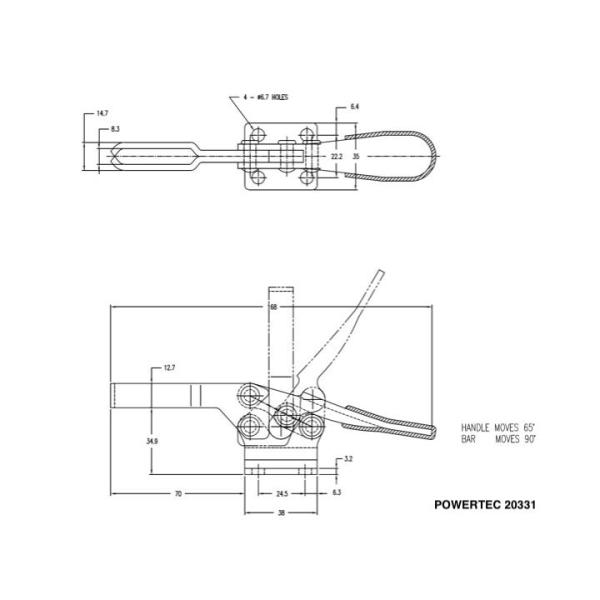

• CLAMP SPECS: Base 1-3/8” x 1-1/2” : Mounting Slots 1/4” x 3/8” spaced 7/8” x 7/8” : Bolt length, including rubber foot: 2-1/2”
• Clamp base: 1-3/8 in. x 1-1/2 in.
• Clamp height when clamped: 2 in. total length, including handle, when clamped: 7
• Mechanism allows maximum clearance low height design

Specifications

• Material: Steel
• Clamp Type: Toggle
• Tools Product Type: Hand Tool
• Maximum Opening (in.): 0.5 in
• Duty Rating: Standard
• Hand Tool Type: Clamp
• Clamping Strength (lb.): 500
• Individual/Set: Individual
• Throat Depth: 2.625 in
• Jaw Width: 0 in
