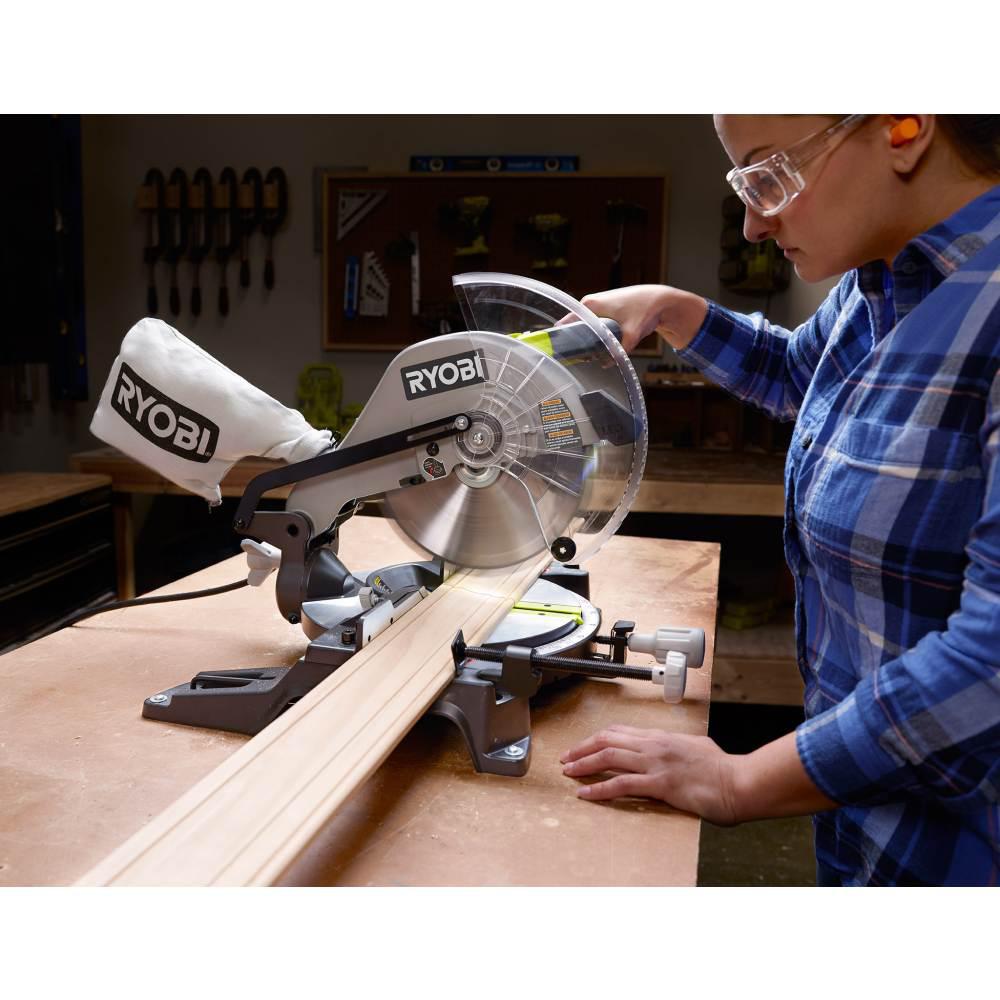

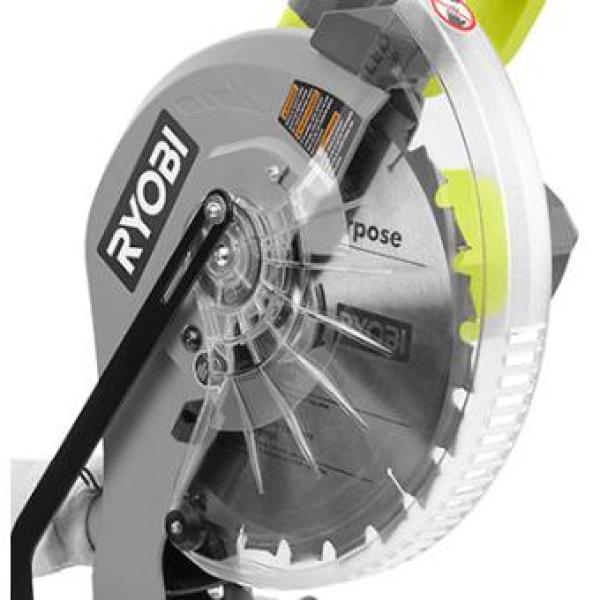

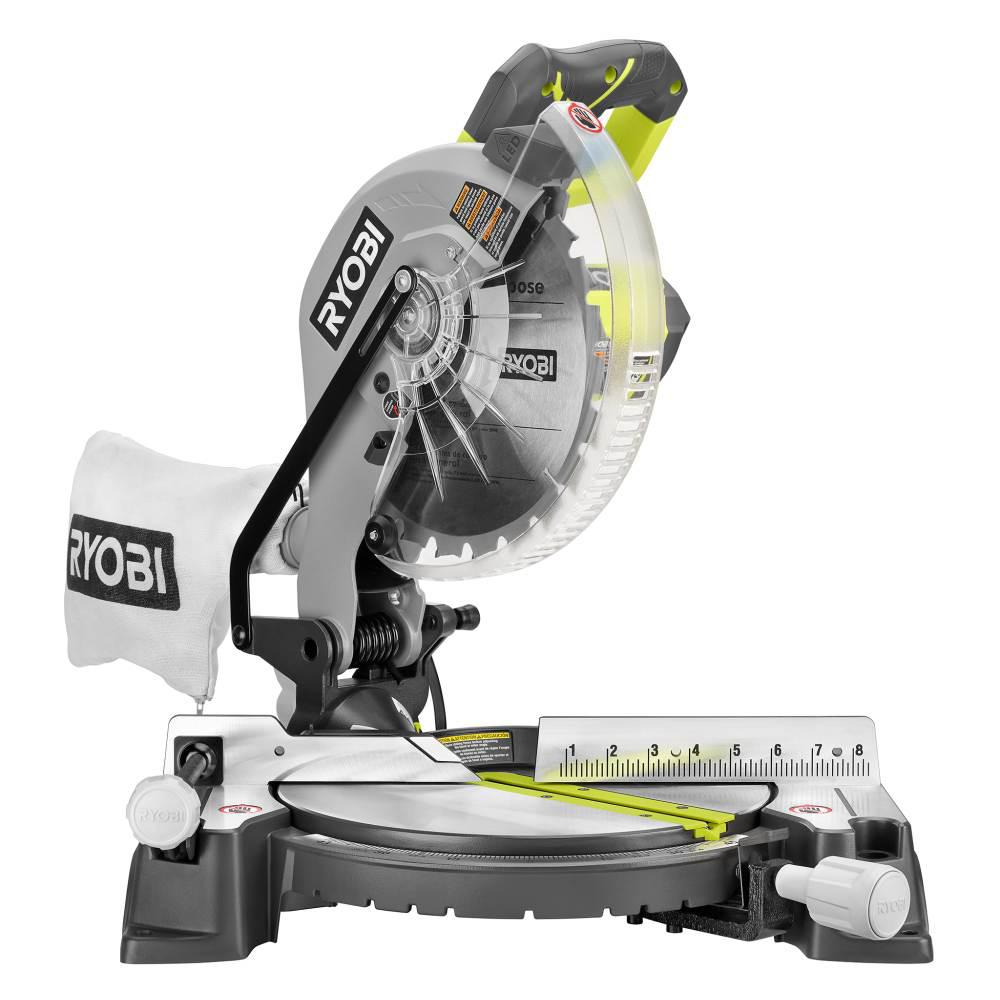

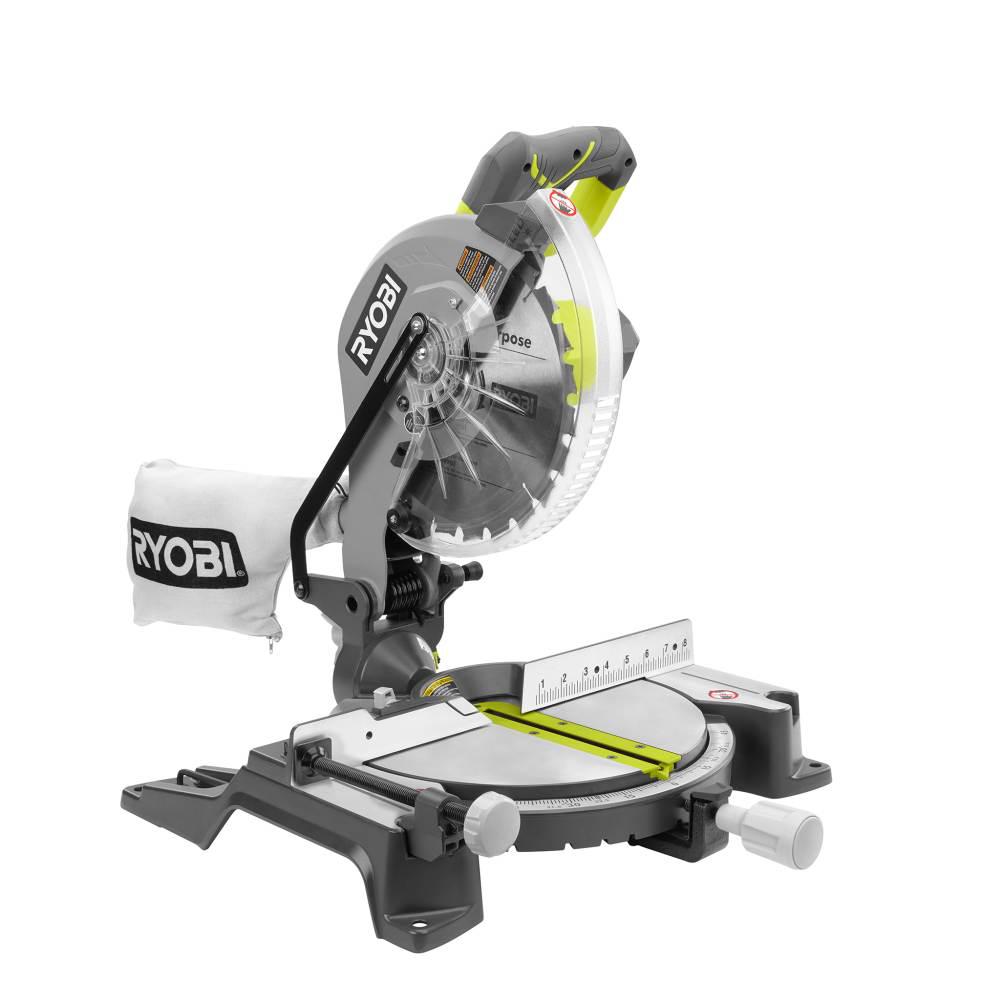

RYOBI introduces the 10 in. Compound Miter Saw with LED. The heavy duty 14 Amp motor delivers up to 5,500 RPM for the power to make difficult cuts. It features a 1-1/4 in. dust port to help keep your work area clean. The 24-tooth Carbide-Tipped blade provides improved performance for fast, clean cuts and an LED Cutline Indicator for higher accuracy. Backed by the RYOBI 3-Year Manufacturer’s Warranty, the 10 in. Compound Miter Saw with LED includes a 24-tooth Carbide Tipped Blade, a blade wrench, a dust bag, a work clamp, and an operator’s manual.
- Powerful 14 Amp motor boasts 5,500 RPM for heavy duty cutting
- LED Cutline Indicator for higher accuracy cutting
- Miter stops located at the most common angles 0°, 15°, 22.5°, 31.6°, and 45° left and right for quick cut settings
- Electric brake stops the blade in seconds
- Adjustable bevel 0° – 45° with adjustable positive stops at 0° and 45°
- Spindle lock for easy single wrench blade changes
- Extended miter range from 47° left and right for a wide variety of cuts

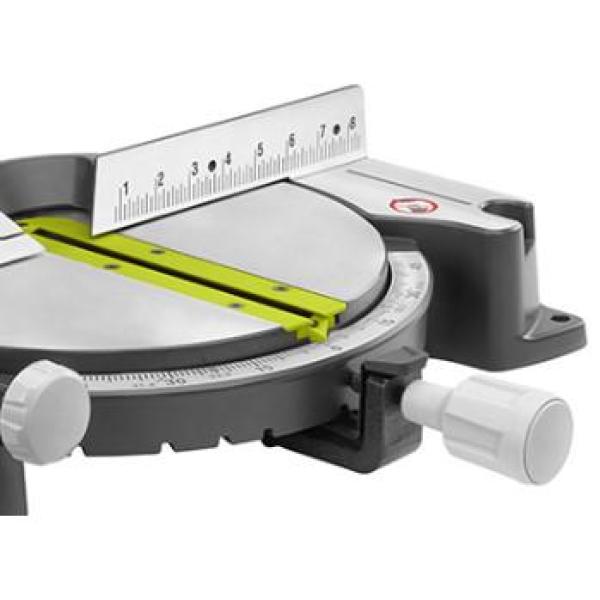

- Machined and cast miter scale for accuracy
- 3-year manufacturer’s warranty

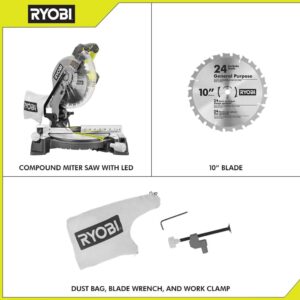

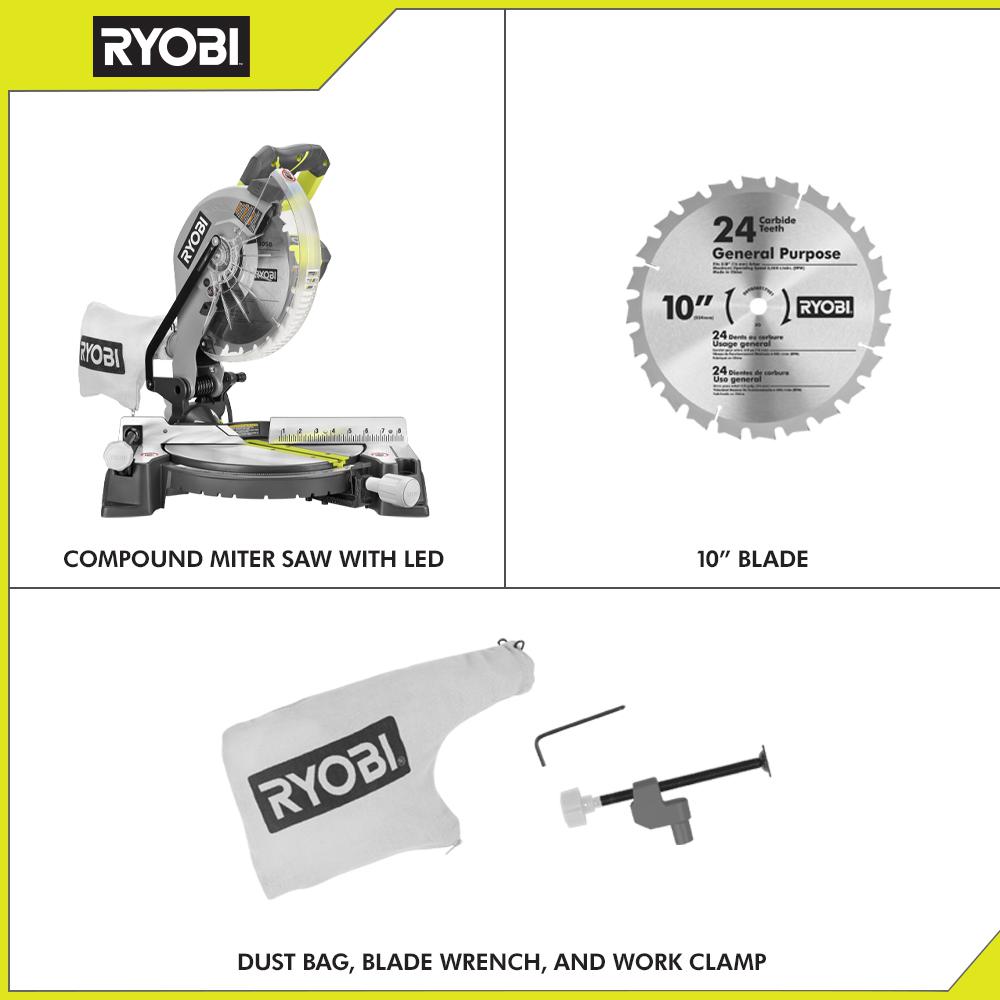

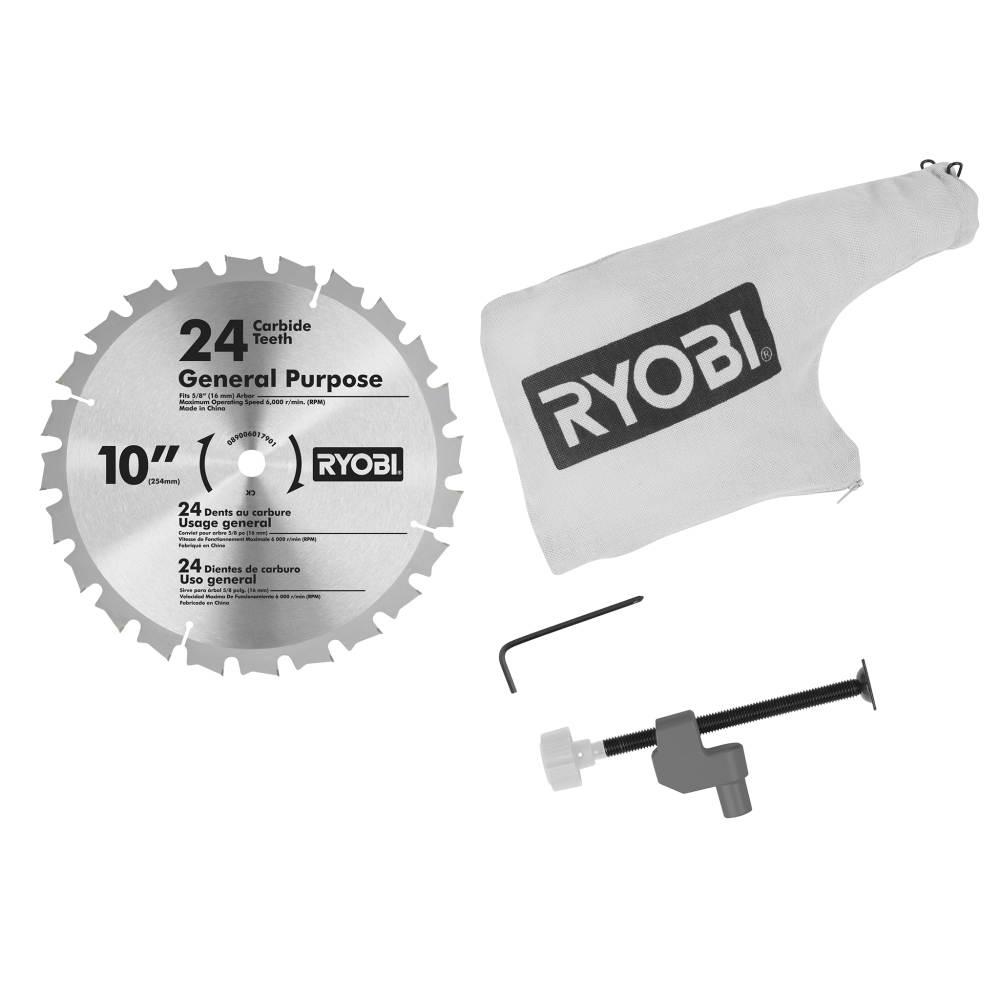

- Includes: (1) TS11346 10 in. Compound Miter Saw, 24-tooth Carbide-Tipped blade, blade wrench, dust bag, work clamp, and operator’s manual
Specifications
- Blade Diameter (in.): 10
- 90 Degree Crosscut Capacity Maximum – Right: 2 in. x 6 in.
- Maximum Speed (rpm): 5000
- Maximum Cutting Thickness (in.): 3.5
- Bevel Type: Single
- Arbor Size: .625
- Cordless/ Corded: Corded
- Maximum Degree Bevel Cuts – Right: 0
- Maximum Degree Bevel Cuts – Left: 45

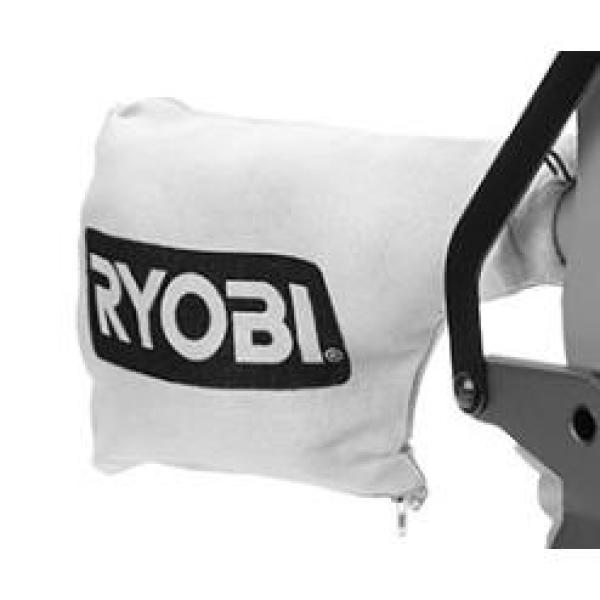

- Dust Collection Method: Bag
- 45 Degree Crosscut Capacity Maximum: 2 in. x 4 in.
- Tools Product Type: Power Tool
- Amperage (amps): 14
- 90 Degree Crosscut Capacity Maximum – Left: 2 in. x 6 in.
- Color Family: Green
- Included Accessories: Allen Key/Wrench,Blades
- Condition: New
- Power Tool Features: Electric Brake,Positive Stops
- Construction Material: Acrylonitrile Butadiene Styrene (ABS)
- Miter Saw Type: Compound
- Maximum Degree Miter Cuts – Left: 45
- Bench & Stationary Tool Type: Compound Miter Saw
- Cuts Through: Wood
- Portability: Stationary
- Cord Length (ft.): 6
- Product Weight (lb.): 28.27
- Maximum Degree Miter Cuts – Right: 45
- Table Length (in.): 18
- Product Height (in.): 23.21
- Product Depth (in.): 16.92
- Table Width (in.): 6
- Product Width (in.): 15.34
