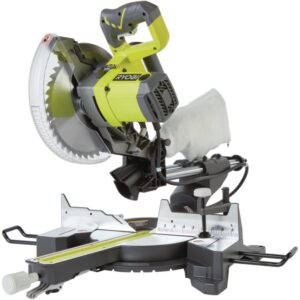

RYOBI introduces the 15 Amp 10 in. Sliding Compound Miter Saw and 18-Volt Cordless Airstrike ONE+ Pin Nailer Kit. This saw features a 15 Amp, 4,600 RPM motor and has a 12 in. cross cut capacity. The LED Cutline Indicator and work-light illuminates material to help improve accuracy of the cut and visibility. The extended miter range from 47° left and right provides versatility for all DIY and professional projects by accommodating a wide variety of cuts. The headless pin nailer drives 1/2 in. to 1-3/8 in. pins and can shoot up to 3500 pin nails per charge with a 4.0 Ah LITHIUM+ 18-Volt battery (not included). The dry-fire lockout protects your pin nailer and extends its life. The double-action trigger design allows for convenient, sequential driving and the included non-marring pads keep the work surface free of tool marks. The LED light optimizes vision throughout the job and GRIPZONE overmold adds comfort. Backed by the RYOBI 3-Year Manufacturer’s Warranty, this kit includes the 15 Amp 10 in. Sliding Compound Miter Saw with LED Cutline Indicator, a 40-tooth carbide-tipped blade, table extensions, a work clamp, a blade wrench, a dust bag, the 18-Volt ONE+ Lithium-Ion Cordless AirStrike 23-Gauge 1-3/8 in. Headless Pin Nailer, a 1.5 Ah battery, an 18-Volt charger, an edge guide for consistent placement of pins, a belt clip, sample nails, and operator’s manuals.
- Saw: Heavy duty 15 Amp motor to to easily cut through larger material while sliding head provides maximum capacity for up to 12 in. cross cut
- Saw: Miter stops located at the most common crown molding angles 0°, 15°, 22.5°, 31.6°, and 45° left and right for quick cut settings
- Saw: LED Cutline Indicator and work-light projects cut line and illuminates material to improve accuracy of the cut and visibility
- Saw: Miter Detent Override: Quick action lever bypasses miter detent index points with one simple motion
- Saw: Machined cast-in miter scale for accurate table alignment
- Saw: Electric brake stops the blade in seconds and spindle lock provides easy single wrench blade changes
- Saw: Extended miter range from 47° left and right to accommodate a wide variety of cuts
- Saw: Fixed Dust Port maintains the ideal position to optimize dust collection efficiencies for both plunge and sliding cuts
- Saw: 1-1/4 in. dust port provides connection to standard dust collection systems to help keep work area clean
- Nailer: Drives 1/2 in. to 1-3/8 in. 23-Gauge pin nails
- Nailer: Double-action trigger design for sequential driving
- Nailer: (2) non-marring pads to keep work surface free of tool marks
- Nailer: Dry-fire lockout feature extends tool life
- Nailer: LED light feature for optimal vision
- Battery: Over 50% more runtime (compared to the P102, RYOBI 18-Volt ONE+ Lithium-Ion 1.3 Ah Compact Battery)
- Charger: Compatible with all RYOBI 18-Volt ONE+ Lithium-Ion Batteries
- 3-year manufacturer’s warranty

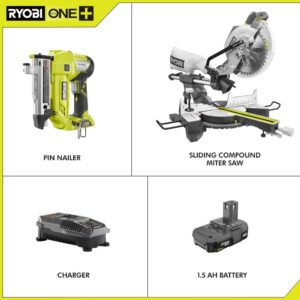

- Includes: (1) TSS103T Miter Saw with LED and 40-tooth carbide-tipped blade, table extensions, work clamp, blade wrench, dust bag, (1) P318 18-Volt ONE+ AirStrike 23-Gauge 1-3/8 in. Headless Pin Nailer, (1) P189 1.5 Ah Battery, (1) P118B 18-Volt Charger, (1) edge guide, (1) belt clip, sample pinner nails, and operator’s manual
Specifications
- Blade Diameter (in.): 10
- 90 Degree Crosscut Capacity Maximum – Right: 1-1/2″ x 12″
- Maximum Speed (rpm): 4800
- Maximum Cutting Thickness (in.): 3.5
- Bevel Type: Single
- Arbor Size: .63
- Cordless/ Corded: Corded
- Dust Collection Method: 1.5 in. Dust Port
- 45 Degree Crosscut Capacity Maximum: 2 x 8 inches (nominal)
- Tools Product Type: Power Tool
- Amperage (amps): 15
- 90 Degree Crosscut Capacity Maximum – Left: 1-1/2″ x 12″
- Color Family: Green
- Included Accessories: Allen Key/Wrench,Blades,Clamp
- Condition: New
- Power Tool Features: Positive Stops
- Construction Material: Acrylonitrile Butadiene Styrene (ABS)
- Miter Saw Type: Sliding Compound
- Maximum Degree Miter Cuts – Left: 45
- Bench & Stationary Tool Type: Slide Miter Saw
- Portability: Bench
- Cord Length (ft.): 6
- Product Weight (lb.): 35.84
- Maximum Degree Miter Cuts – Right: 45
- Table Length (in.): 18
- Product Height (in.): 16.92
- Product Depth (in.): 36.19
- Table Width (in.): 10
- Product Width (in.): 22.82
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
