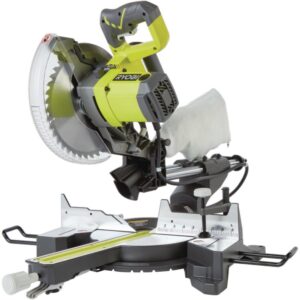

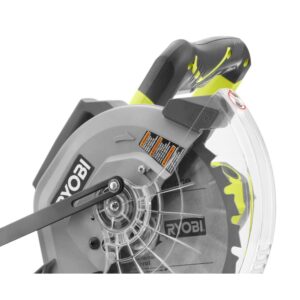

RYOBI introduces the 15 Amp 10 in. Sliding Compound Miter Saw. This saw features a 15 Amp, 4,600 RPM motor and has a 12 in. cross cut capacity. The LED Cutline Indicator and work-light illuminates material to help improve accuracy of the cut and visibility. The extended miter range from 47° left and right provides versatility for all DIY and professional projects by accommodating a wide variety of cuts. Backed by the RYOBI 3-Year Manufacturer’s Warranty, the 15 Amp 10 in. Sliding Compound Miter Saw includes an LED Cutline Indicator, a 40-tooth carbide-tipped blade, table extensions, a work clamp, a blade wrench, a dust bag, and an operator’s manual.
- Heavy duty 15 Amp motor to easily cut through larger material
- Sliding head provides maximum capacity for up to 12 in. cross cut
- Miter stops located at the most common crown molding angles 0°, 15°, 22.5°, 31.6°, and 45° left and right for quick cut settings
- LED Cutline Indicator and work-light projects cut line and illuminates material to improve accuracy of the cut and visibility
- Miter Detent Override: Quick action lever bypasses miter detent index points with one simple motion
- Machined cast-in miter scale for accurate table alignment
- Electric brake stops the blade in seconds
- Spindle lock for easy single wrench blade changes
- Extended miter range from 47° left and right to accommodate a wide variety of cuts
- Fixed Dust Port maintains the ideal position to optimize dust collection efficiencies for both plunge and sliding cuts
- 1-1/4 in. dust port provides connection to standard dust collection systems to help keep work area clean
- Horizontal “D” handle for improved comfort
- 3-year manufacturer’s warranty
- Includes: (1) TSS103T Miter Saw with LED and 40-tooth carbide-tipped blade, table extensions, work clamp, blade wrench, dust bag, and operator’s manual
Specifications
- Blade Diameter (in.): 10
- 90 Degree Crosscut Capacity Maximum – Right: 1-1/2″ x 12″
- Maximum Speed (rpm): 4800
- Maximum Cutting Thickness (in.): 3.5
- Bevel Type: Single
- Arbor Size: .63
- Cordless/ Corded: Corded
- Dust Collection Method: 1.5 in. Dust Port
- 45 Degree Crosscut Capacity Maximum: 2 x 8 inches (nominal)
- Tools Product Type: Power Tool
- Amperage (amps): 15
- 90 Degree Crosscut Capacity Maximum – Left: 1-1/2″ x 12″
- Color Family: Green
- Included Accessories: Allen Key/Wrench,Blades,Clamp
- Condition: New
- Power Tool Features: Positive Stops
- Construction Material: Acrylonitrile Butadiene Styrene (ABS)
- Miter Saw Type: Sliding Compound
- Maximum Degree Miter Cuts – Left: 45
- Bench & Stationary Tool Type: Slide Miter Saw
- Portability: Bench
- Cord Length (ft.): 6
- Product Weight (lb.): 35.84
- Maximum Degree Miter Cuts – Right: 45
- Table Length (in.): 18
- Product Height (in.): 16.92
- Product Depth (in.): 36.19
- Table Width (in.): 10
- Product Width (in.): 22.82
