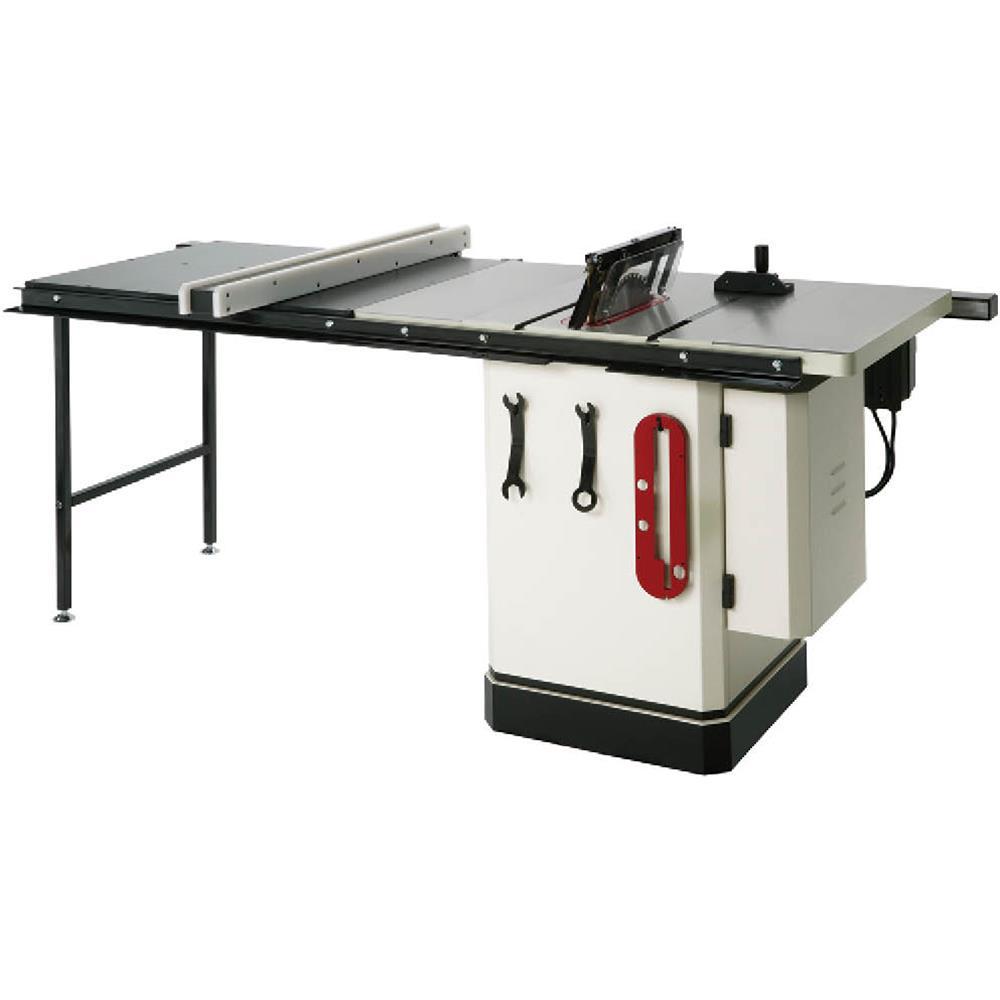

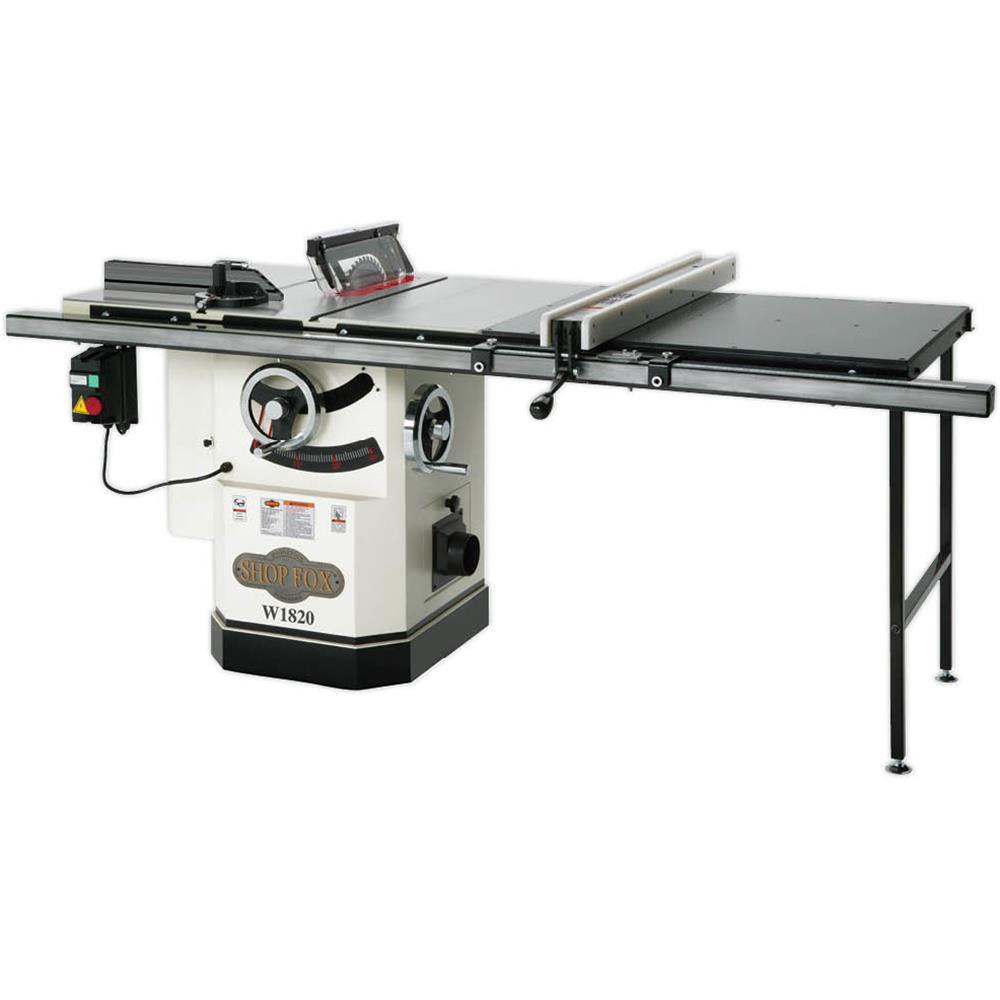

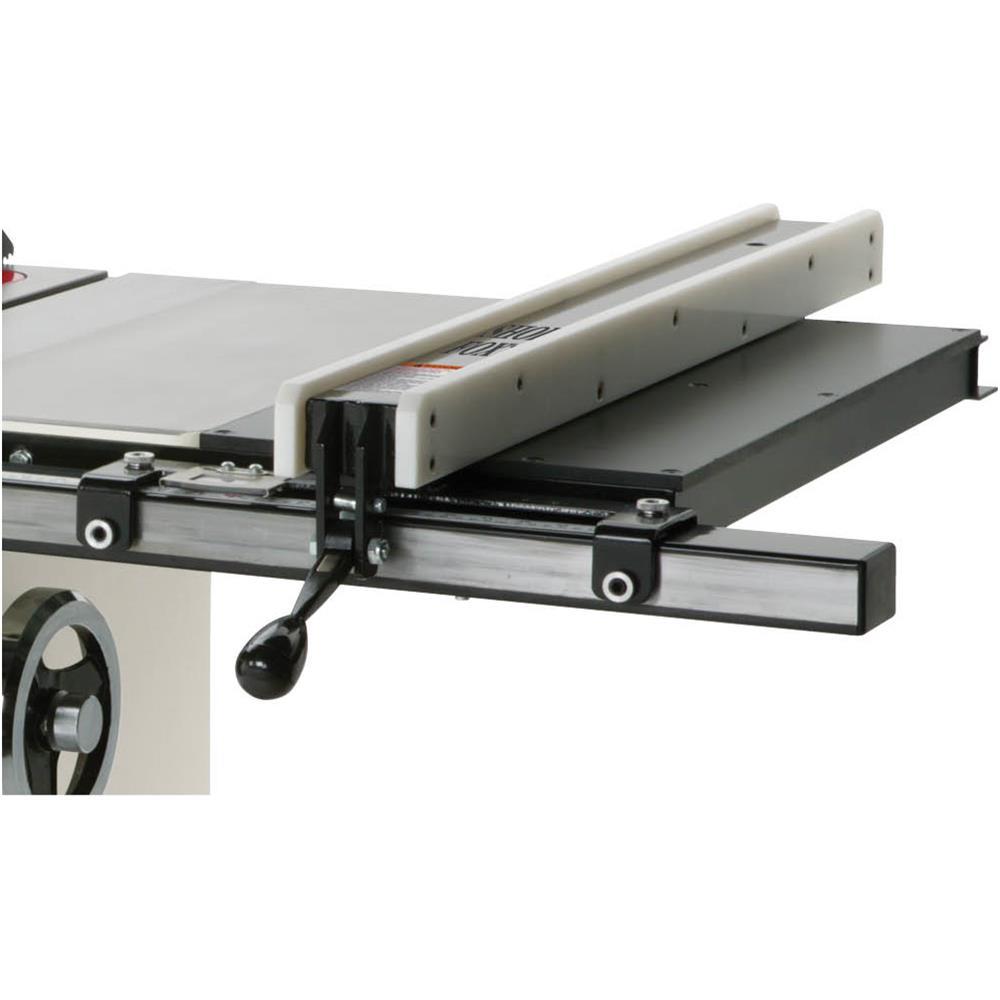

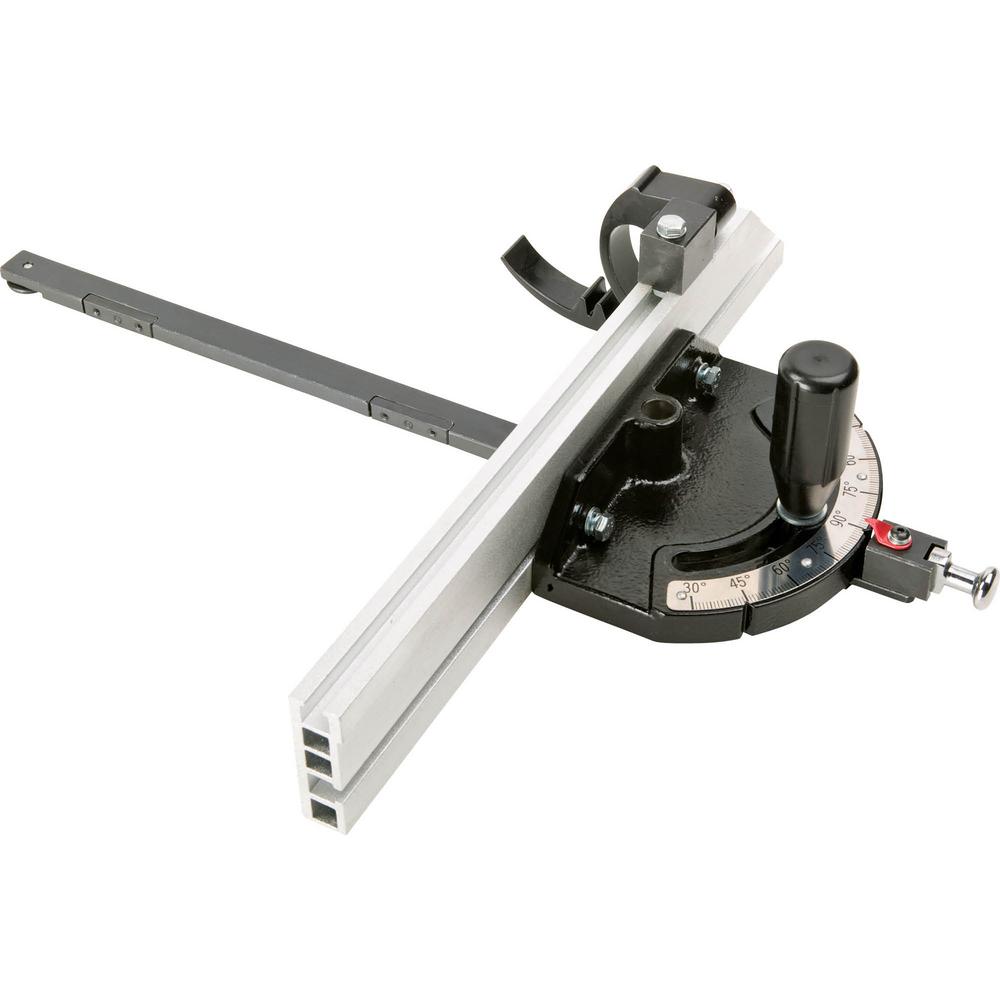

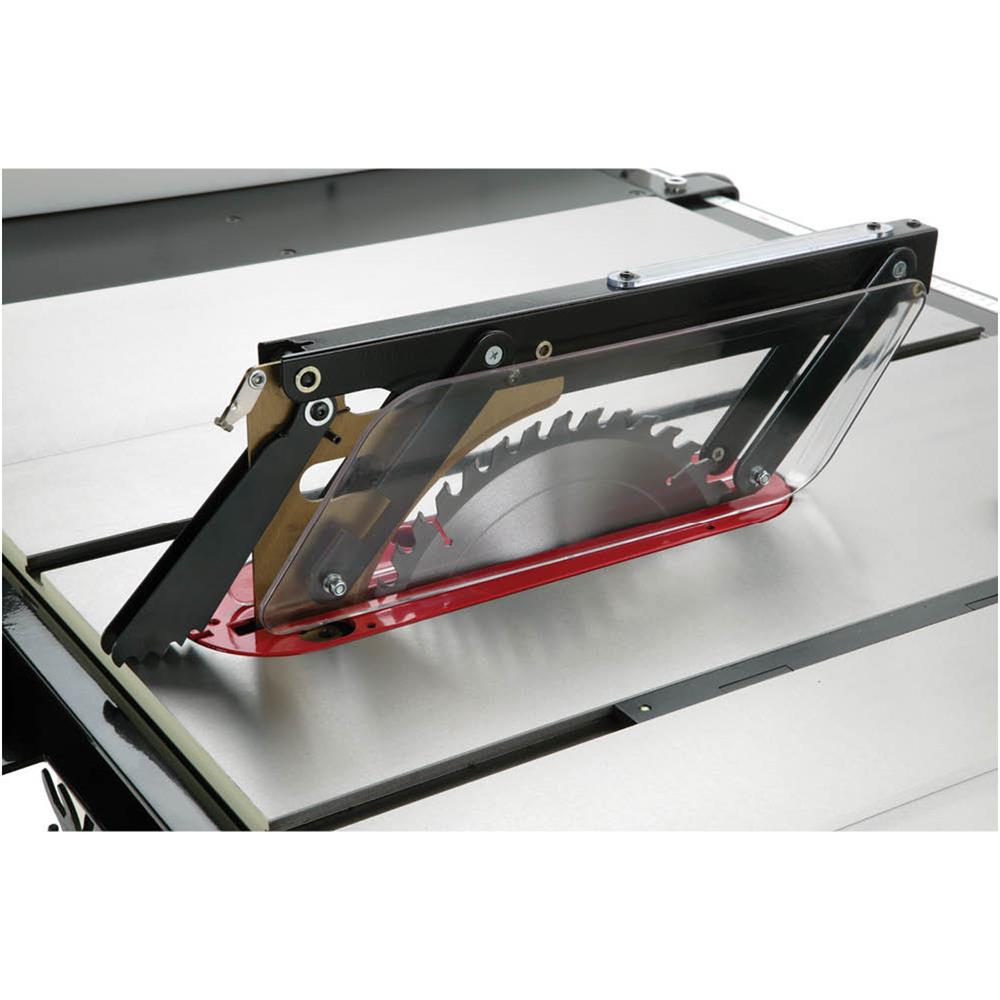

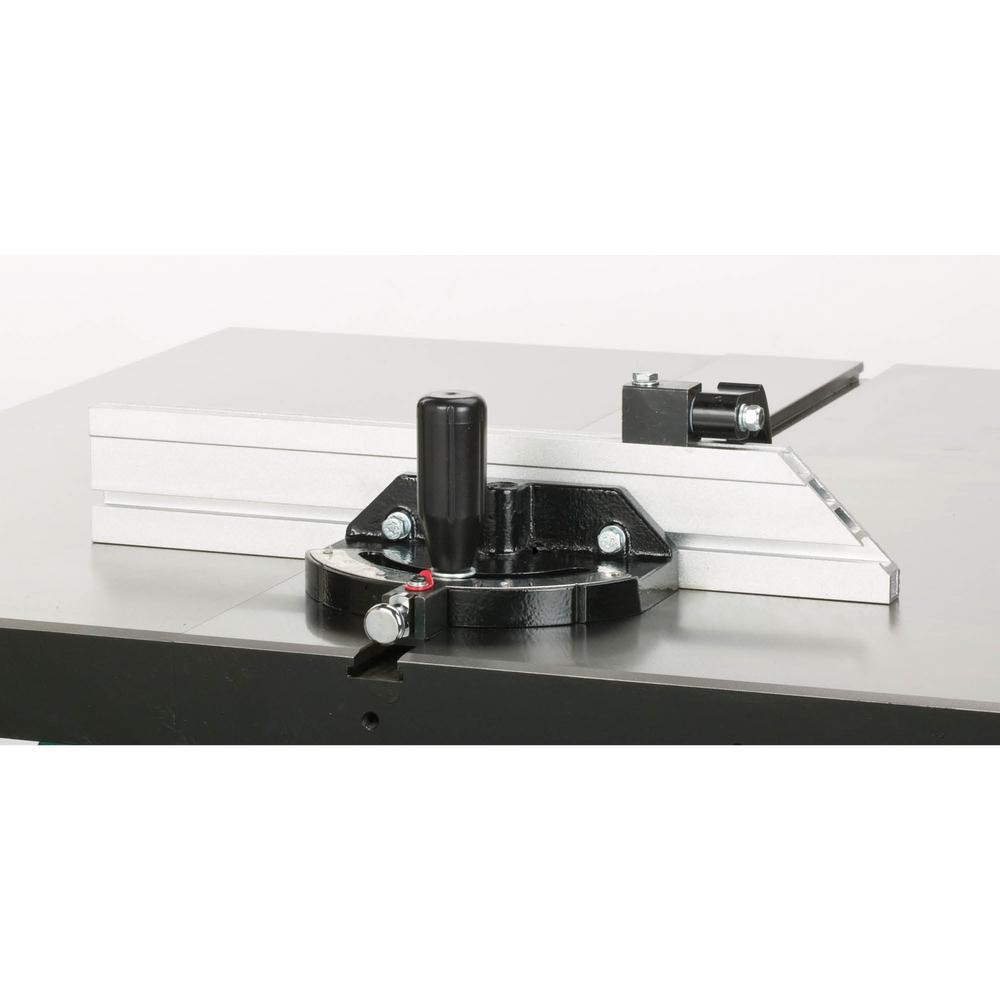

Every part of this saw says quality and performance. From the heavy-duty cast-iron trunnions, 3 HP motor and triple-belt drive to the massive cast-iron table and wings, this table saw is built to last a lifetime. You’ll also appreciate the camlock T-fence, included riving knife, heavy cast handwheels, magnetic switch, T-slot miter gauge with fence extension and flip stop and 4 in. dust collection port. Features an extra-wide 49 in. rip capacity more than enough to rip to the center of a standard sheet of plywood, a long extension table with adjustable legs, square steel tubing frame and dimensionally stable extension table.
- Motor: 3 HP, 230-Volt, single-phase, 12.8 Amp
- Blade tilt: 0° to 45° left
- Arbor size: 5/8 in.
- Arbor speed: 4300 RPM
- Cast-iron table size: 27 in. x 40-1/4 in.
- Table size with extension: 27 in. x 74 in.
Specifications
- Blade Diameter (in.): 10
- Maximum Speed (rpm): 4300
- Blade Speed: 4300 RPM
- Horsepower (hp): 3 hp
- Table Tilt Right Max (degrees): 0
- Cordless/ Corded: Corded
- Dust Collection Method: 4 in. Dust Port
- Tools Product Type: Power Tool
- Amperage (amps): 12.8 A
- Rip Capacity – Left: 13.5 in
- Blade Location: Centered
- PT Horsepower (Hp): 3
- Table Tilt Left Max (degrees): 0
- Color Family: White
- Included Accessories: Stand
- Condition: New
- Power Tool Features: Lockout Power Switch
- Construction Material: Cast Iron
- Bench & Stationary Tool Type: Table Saw
- Cuts Through: Wood
- Portability: Stationary
- Cord Length (ft.): 6
- Depth Control: Adjustable
- Product Weight (lb.): 507 lb
- Rip Capacity – Right: 29.5 in
- Maximum Cut Depth @ 45 Deg.: 2.19 in
- Maximum Cut Depth @ 90 Deg.: 3.13 in
- Table Length (in.): 27
- Product Height (in.): 40 in
- Product Depth (in.): 45.5 in
- Table Width (in.): 53.38
- Work Table Surface: 27 in. x 53.38 in.
- Product Width (in.): 62 in
