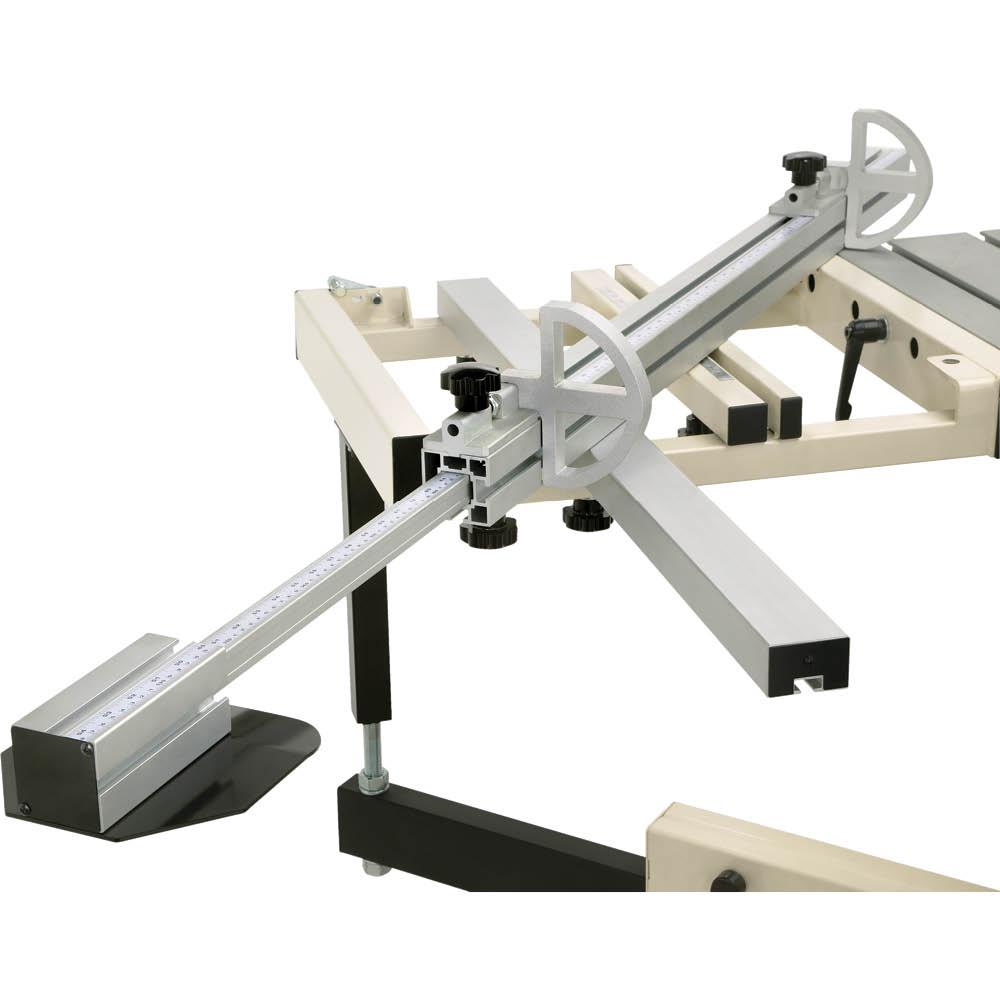

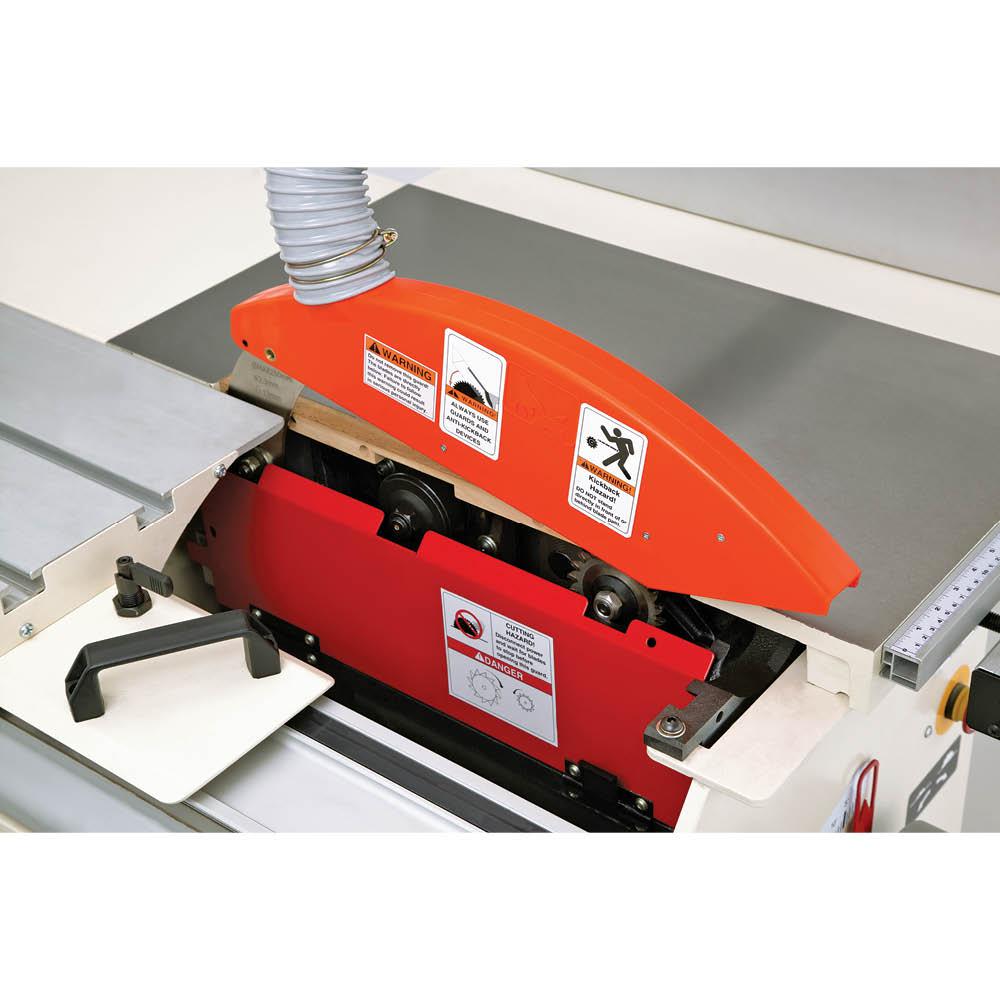

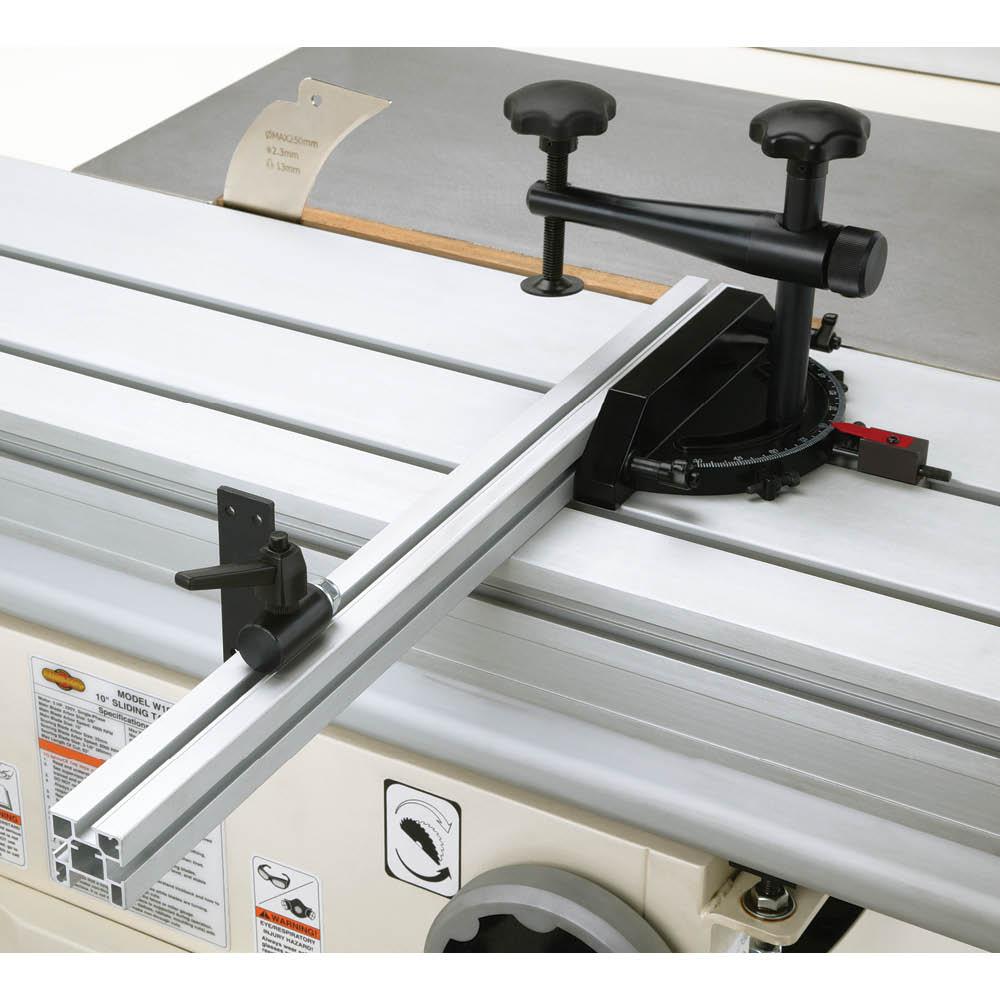

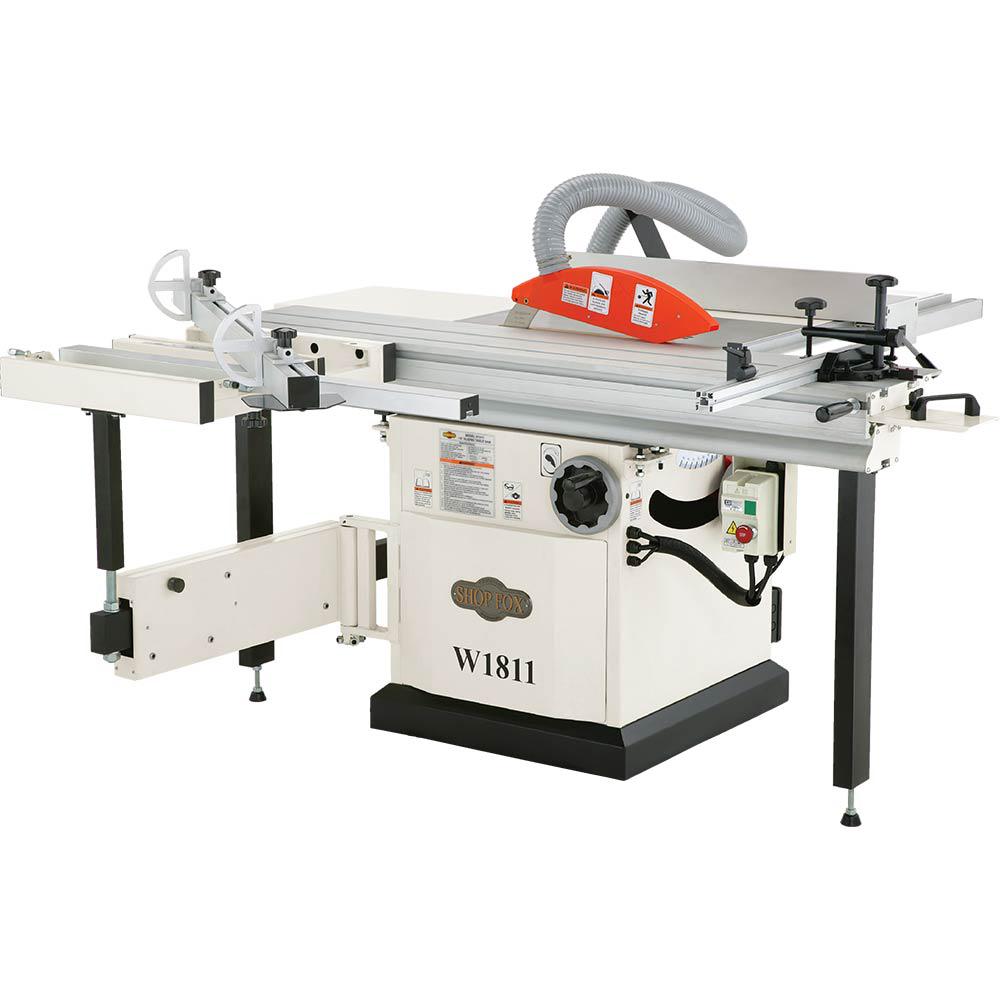

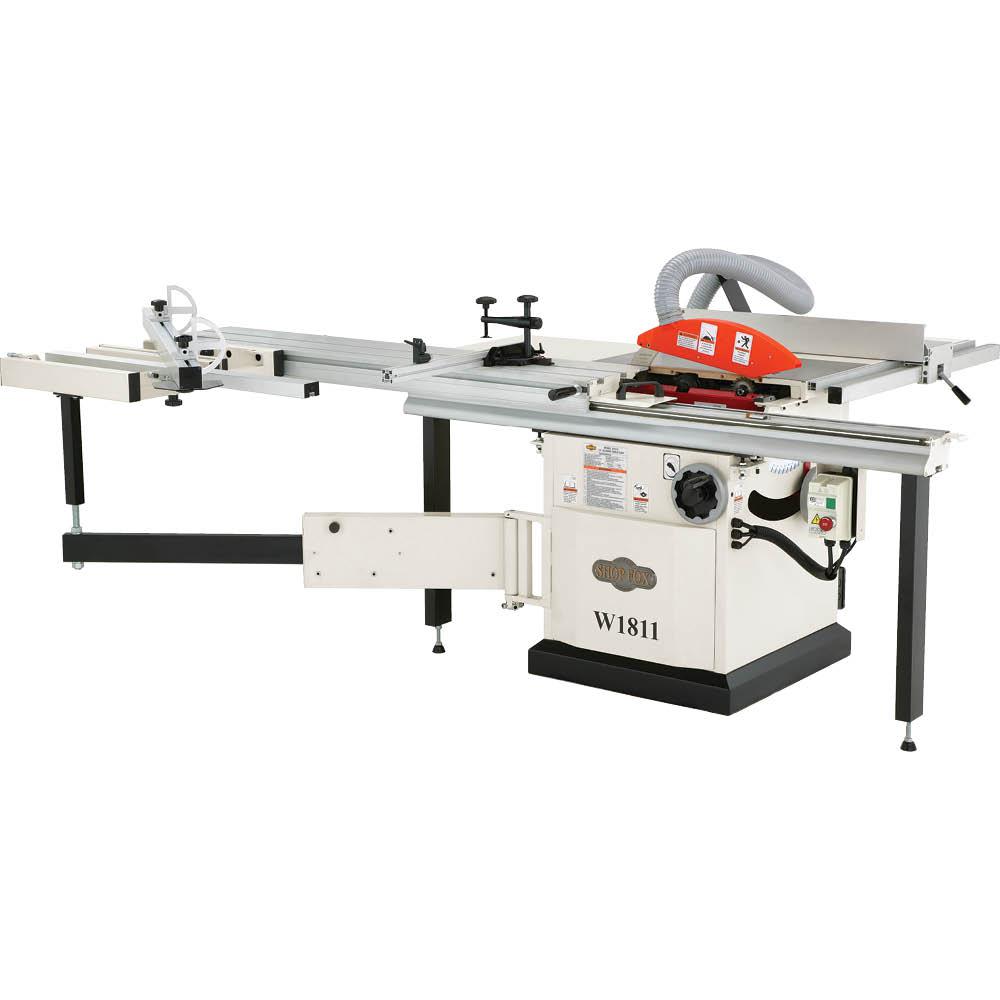

Perfect for cutting wide panels in limited shop space, this 10 in. Sliding Table Saw features a scoring blade to eliminate cross grain tear-out, a 63 in. L crosscut capacity, telescoping crosscut fence with 2 rock-solid flip stops, fully-adjustable miter fence with its own flip stop, 2-position extruded-aluminum rip fence, riving knife and large blade guard with integral dust port. This 10 in. Sliding Table Saw makes quick work of all standard plywood panels. Accepts 10 in. saw blades with 5/8 in. arbor bores or dado blades up to 13 in. to 16 in. W.

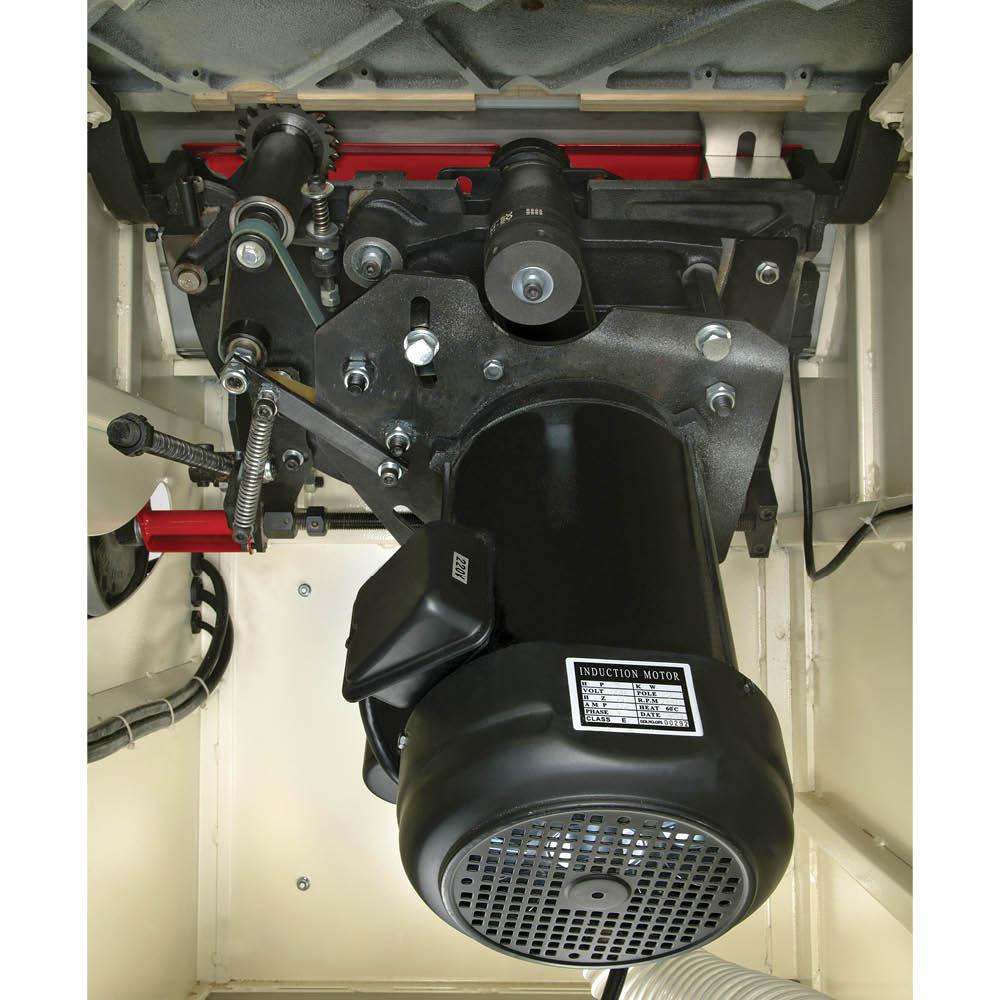

- Motor: 5 HP, 230-Volt, single-phase, TEFC, 3450 RPM, 19 Amp
- Blade tilt: 0° to 45°
- Table size with extension wings: 47 in. L x 40 in. W
- Sliding table size: 63 in. L x 12-1/4 in. W
- Main blade diameter: 10 in.

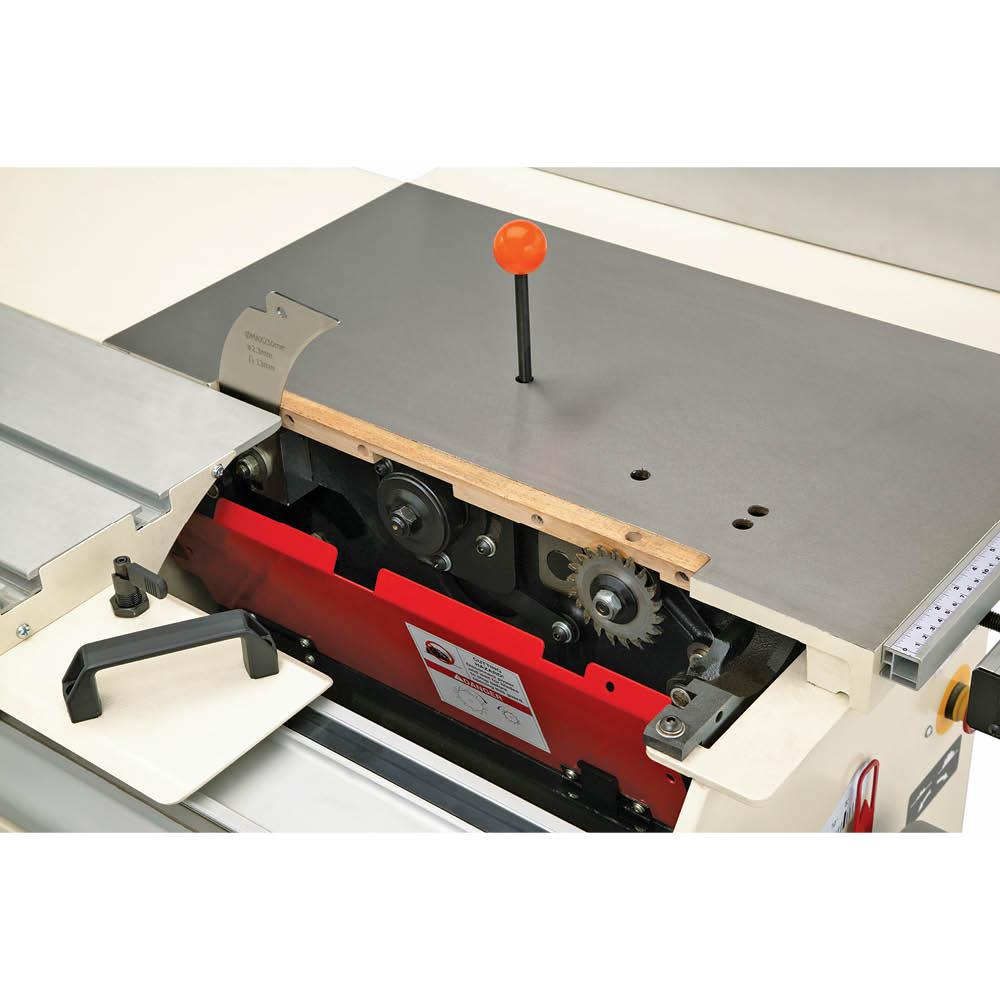

- Scoring blade diameter: 3-1/8 in.
Specifications
- Blade Diameter (in.): 10
- Maximum Speed (rpm): 3450
- Blade Speed: 4000
- Horsepower (hp): 5
- Table Tilt Right Max (degrees): 45
- Cordless/ Corded: Corded
- Dust Collection Method: 4 in. Dust Port
- Tools Product Type: Power Tool
- Amperage (amps): 19
- Rip Capacity – Left: 33 in
- Blade Location: Centered
- PT Horsepower (Hp): 5
- Table Tilt Left Max (degrees): 45
- Color Family: White
- Included Accessories: Stand
- Condition: New
- Power Tool Features: Blade Guard System,Lockout Power Switch,Stand Included
- Construction Material: Steel
- Bench & Stationary Tool Type: Table Saw
- Cuts Through: Wood
- Portability: Stationary
- Cord Length (ft.): 6
- Depth Control: Adjustable
- Product Weight (lb.): 688 lb
- Rip Capacity – Right: 33 in
- Maximum Cut Depth @ 45 Deg.: 2-1/4
- Maximum Cut Depth @ 90 Deg.: 3-1/8
- Table Length (in.): 27
- Product Height (in.): 46
- Product Depth (in.): 125
- Table Width (in.): 15
- Work Table Surface: 27 in. x 15 in.
- Product Width (in.): 76 in
