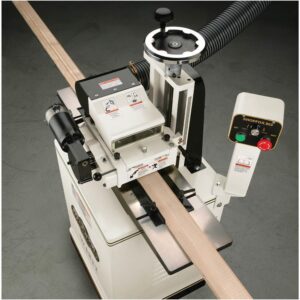

This next generation Planer/Moulder features precision-ground cast-iron wings for increased work support, T-slots for easy guide rail adjustment, a 1-piece enclosed stand and a pedestal-mounted control switch with variable-speed feed motor for unsurpassed control over planing and moulding cutting results. Open-end design allows you to make curved mouldings with the optional elliptical jig. If you make your own mouldings and frames, you need this machine.
- Motor: 2 HP, 240-Volt, single-phase, 10.8 Amp
- Variable-speed feed motor: 1/8 HP
- Power transfer: cutterhead is belt drive, feed rollers are chain drive
- Cutterhead speed: 7000 RPM
- Cuts per minute: 14,000 cuts per minute
- Cuts per inch: 64 in. to 300 in.
Specifications
- Maximum Speed (rpm): 3450
- Maximum Board Thickness: 7.5
- Minimum cut depth (in.): 0.13
- Tools Product Type: Power Tool
- Amperage (amps): 10.8
- Color Family: White
- Condition: New
- Color/Finish: White
- Bench & Stationary Tool Type: Planer
- Portability: Stationary
- Number of Cutting Blades: 2
- Product Weight (lb.): 306
- Blade(s) Included: Yes
- Product Height (in.): 34.5
- Product Depth (in.): 36.25
- Maximum cut depth (in.): 0.75
- Product Width (in.): 22
