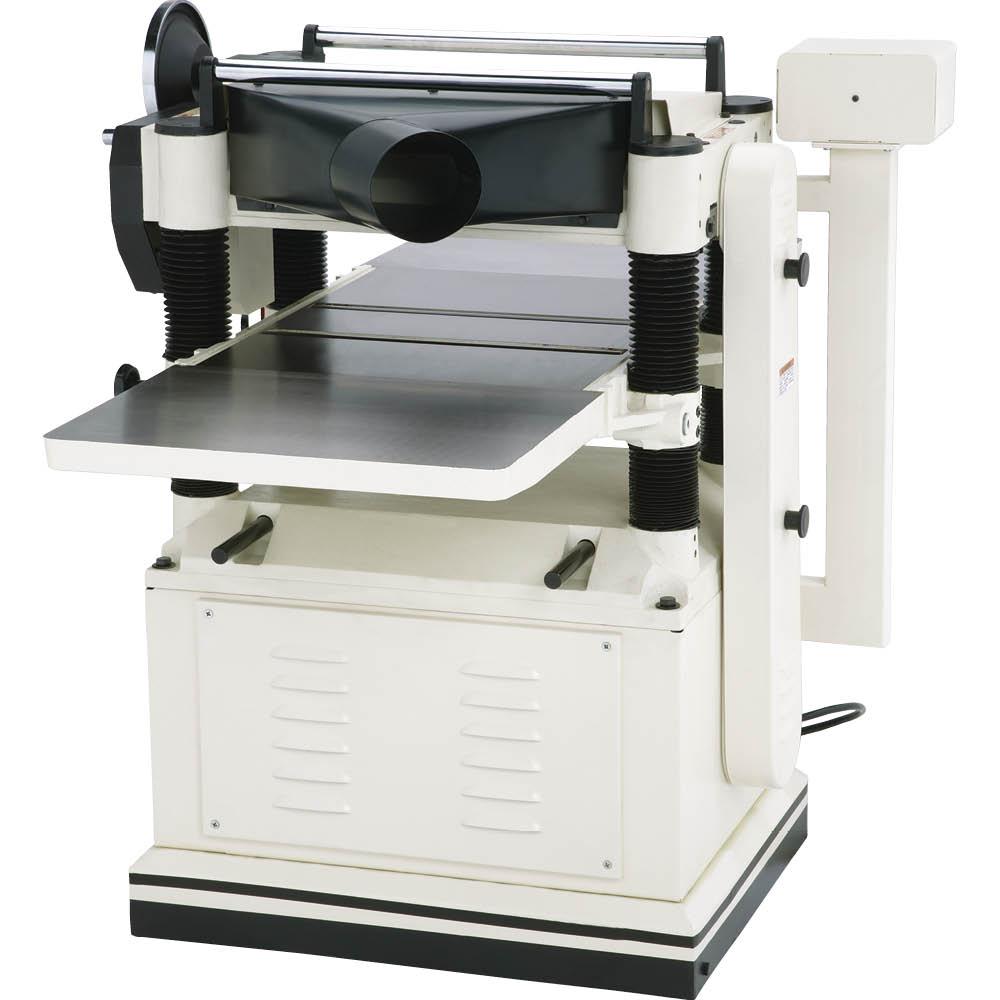

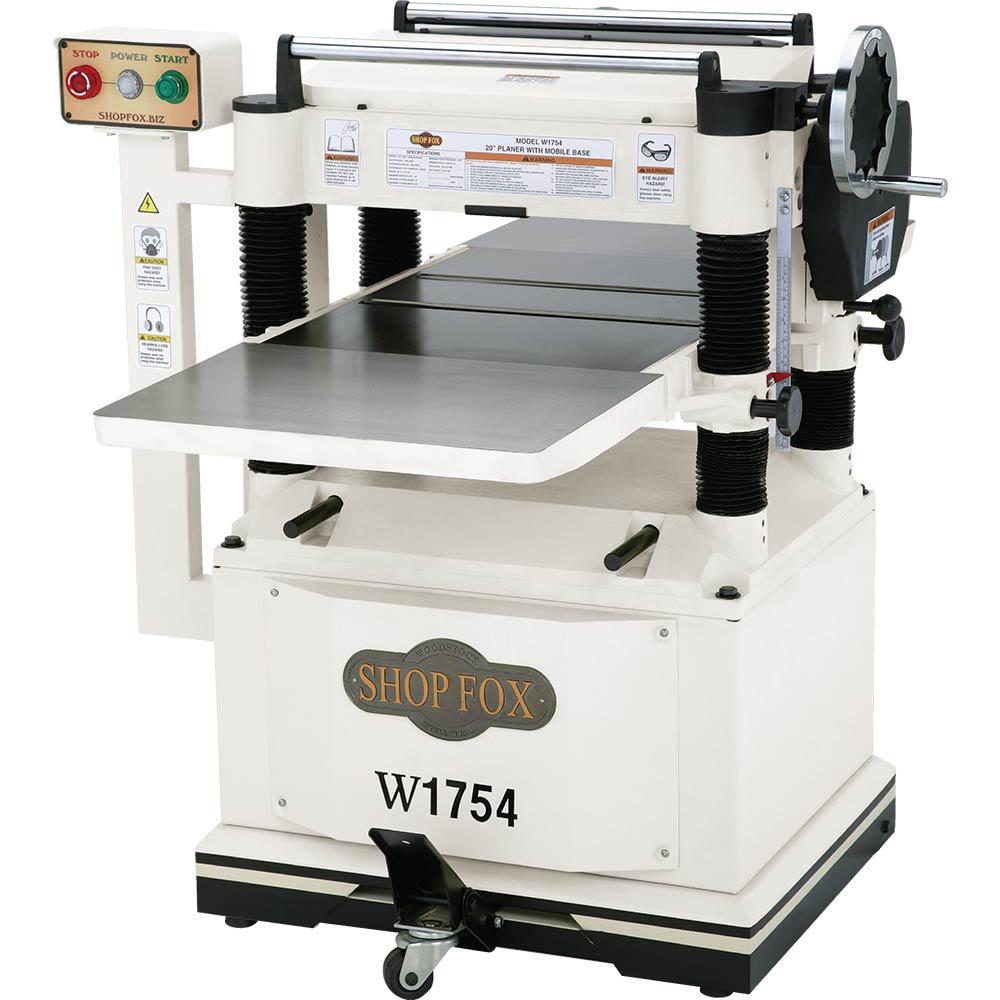

Shop Fox 20 in. 5 HP 240-Volt Planer with Built-in Mobile Base

With its built-in locking mobile base and pedestal-mounted switch, our Model W1754 planer is easy to move and operate. Just press down on the lock lever with your foot and this planer is mobile. Standard features include a 55-5/8 in. L precision-ground cast iron table with the cast iron extension wings, 2 feed speeds, return rollers, a 20 in. x 8 in. capacity, adjustable bed rollers, magnetic switch with thermal overload protection and a 5 HP motor.

• Motor: 5 HP, 240-Volt, single-phase, 19 Amp
• Infeed roller: solid serrated steel
• Outfeed rollers: knurled steel
• 4 column support with table locks
• 2 speed gear box
• Cast-iron table and extension wings

Specifications

• Maximum Speed (rpm): 3450
• Maximum Board Thickness: 8 in
• Minimum cut depth (in.): 0.03125
• Tools Product Type: Power Tool
• Amperage (amps): 19 A
• Color Family: Steel
• Condition: New
• Color/Finish: White
• Bench & Stationary Tool Type: Planer
• Portability: Stationary
• Number of Cutting Blades: 4
• Product Weight (lb.): 924 lb
• Blade(s) Included: Yes
• Product Height (in.): 48 in
• Product Depth (in.): 43 in
• Maximum cut depth (in.): 0.125
• Product Width (in.): 29 in
