Shop Fox 37 in. 10 HP 240-Volt Drum Sander

Designed for production shops, this 37 in. sander has what it takes to get those big jobs done fast. Sand boards and panels up to 4 in. T and 36-1/2 in. W, using 2 different abrasive grits in the same pass with the dual 6 in. sanding drums. Feed speed is adjustable from 6 to 18 FPM. The variable-speed knob conveyor adjustment and amp meter make it easy to monitor the sanding load to ensure maximum efficiency. Other great features include a hinged hood, emergency stop bar, pedestal-mounted controls, four 4 in. dust ports and a 10 HP, 240-Volt, single-phase motor.

• Sanding drum motor: 10 HP, 240-Volt, single-phase, TEFC, 1725 RPM

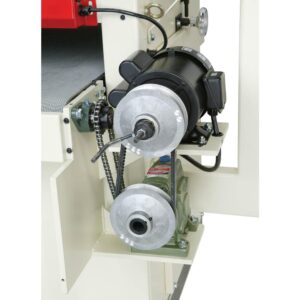

• Conveyor motor: 1/3 HP
• Drum surface speed: 2800 FPM
• Conveyor feed rate: variable, 618 FPM

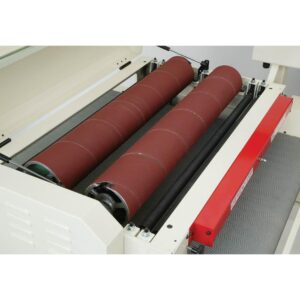

• Sanding drums: 2 steel/rubber
• Dust ports: four 4 in.

Specifications

• Maximum Speed (rpm): 1725
• Dust collection type: Port
• Tools Product Type: Power Tool
• Maximum feed rate (ft./min.): 18
• Amperage (amps): 46.7 A
• Variable Speed: Yes
• Color Family: White
• Condition: New
• Power Tool Features: Variable Speed
• Bench & Stationary Tool Type: Drum Sander
• Portability: Stationary
• Cord Length (ft.): 9
• Voltage (volts): 220
• Product Weight (lb.): 1379 lb
• Reconditioned: No
• Table Length (in.): 90.5
• Belt length (in.): 90.5
• Belt width (in.): 36.5
• Product Height (in.): 43 in
• Product Depth (in.): 56.25 in
• Minimum feed height (in.): 0.0625
• Table Width (in.): 36.5
• Maximum feed height (in.): 4
• Product Width (in.): 61.25 in
