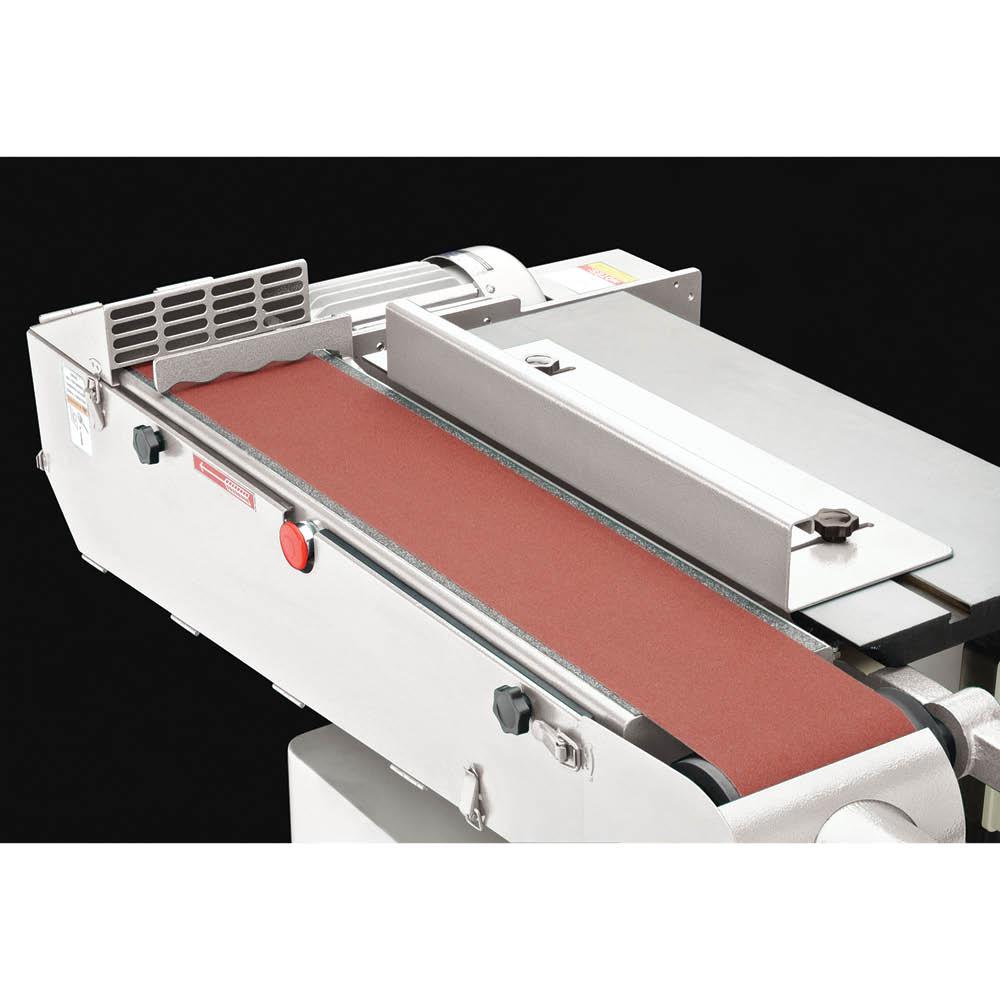

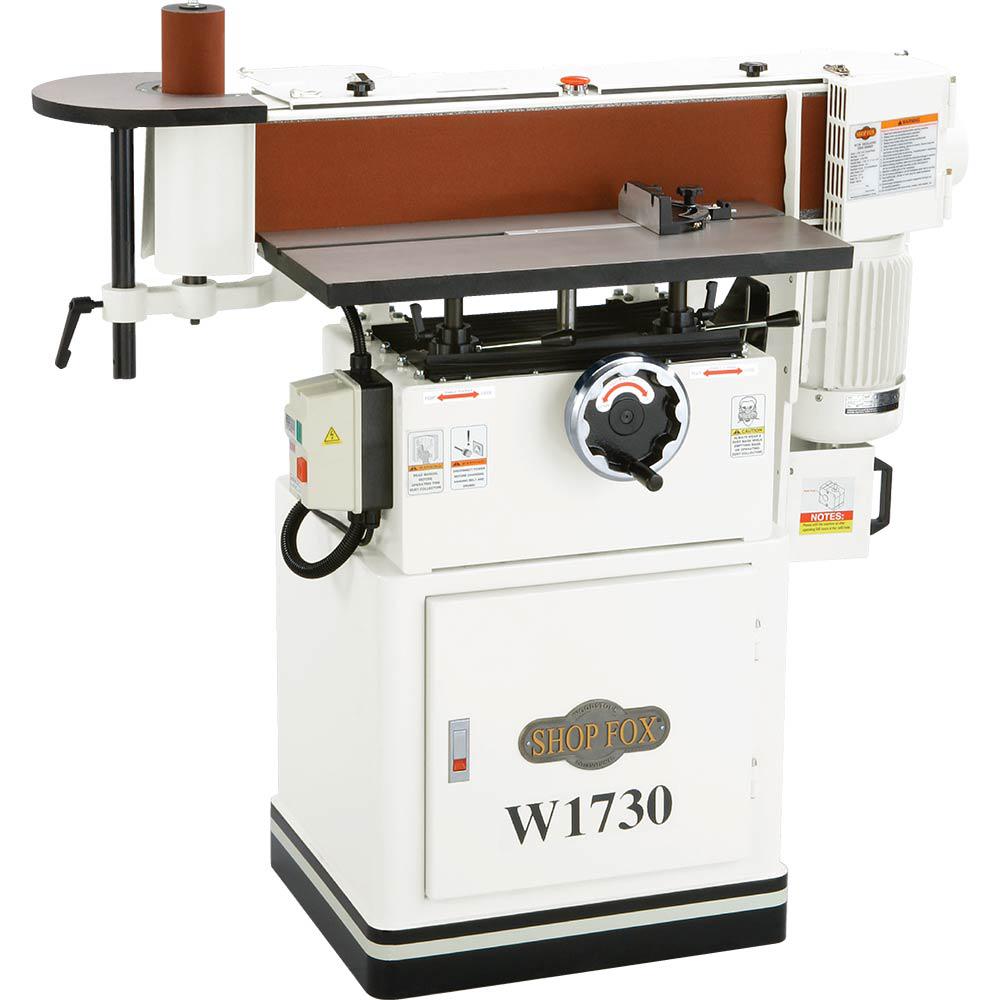

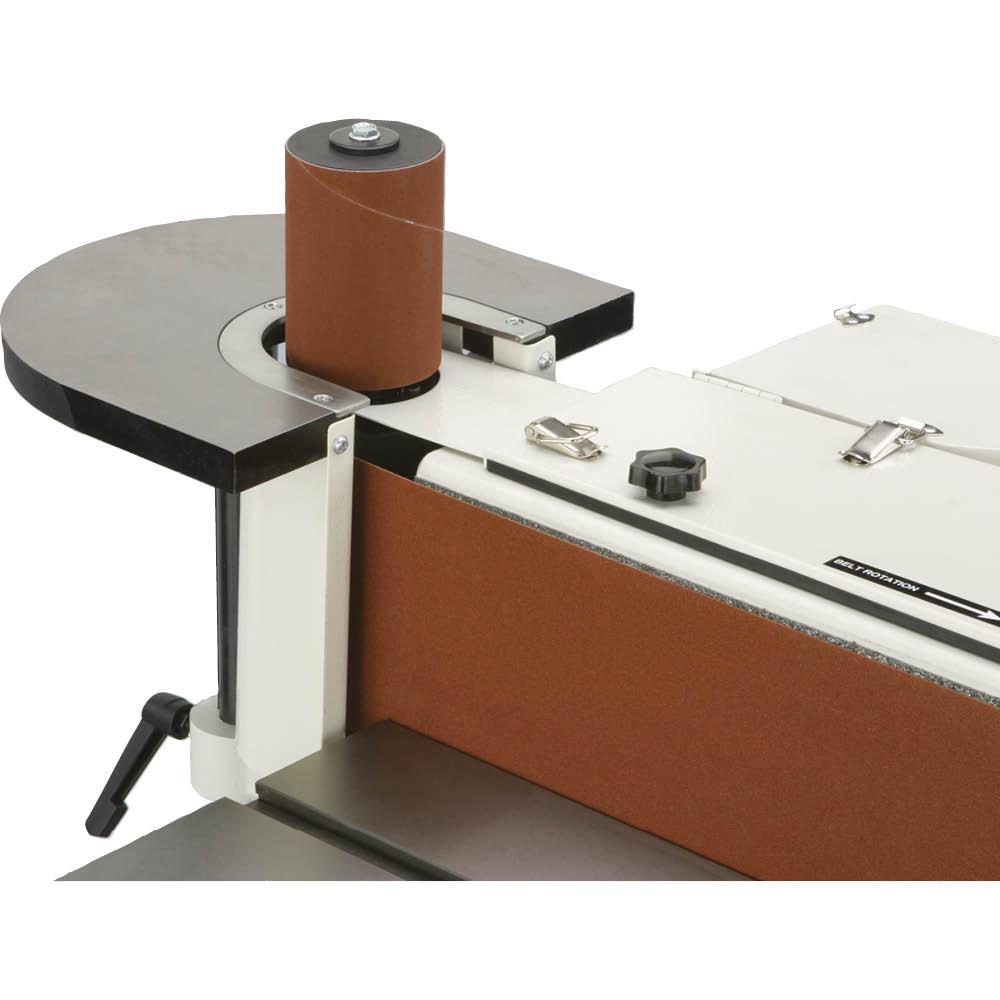

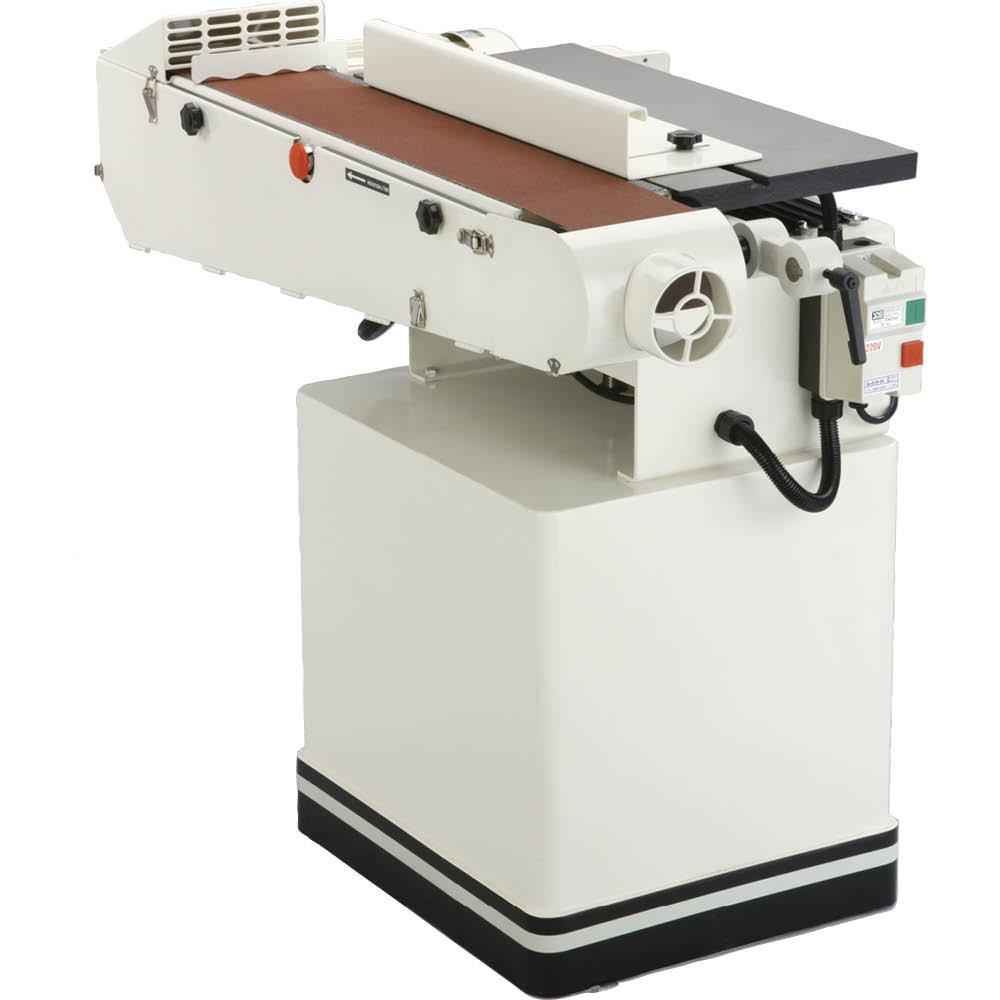

This sander features a 6 in. x 89 in. belt that oscillates 1/4 in. vertically at 52 times per minute. It also has a quick-release belt tension lever, graphite-coated platen that tilts 0° to 90° and a 2 HP, 240-Volt motor. The W1730 has a 26-7/8 in. x 12 in. precision-ground cast-iron main table for edge sanding and a 10 in. x 11-1/2 in. cast-iron auxiliary table for spindle sanding. 3 non-oscillating spindle sanding drums, measuring 1-1/2 in., 2 in. and 3 in. Dia are included for sanding smaller contoured surfaces. Other features include a 180° adjustable miter gauge, two 4 in. dust ports, powder-coated finish and a removable fence.
- Motor: 2 HP, 240-Volt, single-phase, 1725 RPM
- Table size: 26-7/8 in. x 12 in.
- Table travel: 3-3/4 in. vertical
- Aux. table size: 10 in. x 11-1/2 in., travel: 10 in.
- Sanding belt size: 6 in. x 89 in.
- Sanding belt speed: 3150 FPM
Specifications
- Dust collection type: Port
- Maximum belt sanding speed (ft./min.): 3150
- Tools Product Type: Power Tool
- Amperage (amps): 9
- Variable Speed: No
- Color Family: White
- Condition: New
- Power Tool Features: Lockout Power Switch,Stand Included
- Bench & Stationary Tool Type: Edge/Belt Sander
- Portability: Stationary
- Cord Length (ft.): 10
- Voltage (volts): 240
- Product Weight (lb.): 396
- Minimum belt sanding speed (ft./min.): 3150
- Reconditioned: No
- Table Length (in.): 26.88
- Belt length (in.): 89
- Belt width (in.): 6
- Product Height (in.): 49
- Product Depth (in.): 23
- Table Width (in.): 12
- Product Width (in.): 50.5
