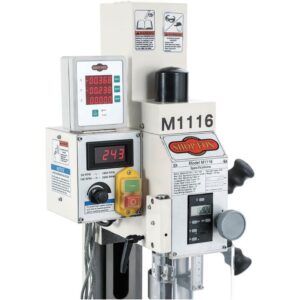

Shop Fox Variable Speed Mill/Drill with Dro

This great little machine sports some of the same features found on much larger mill/drills: dovetail column, variable speed 3/4 HP motor, R8 spindle with digital read out, tapered gibs with double locks and large 5-1/2 in. x 19-11/16 in. table. This is an excellent value and great for just starting out or even as a dedicated, single-purpose machine in the shop. Purchase the optional D4780 Stand for the ultimate mill/drill package.

• Motor: 3/4 HP, 110-Volt, 8 Amp, single-phase
• Max. distance spindle to table: 13 in.
• Spindle taper: R8
• Variable speed range: 50 RPM to 200 RPM
• Head tilt: 45° left and right
• Swing: 15 in.

Specifications

• Magnetic: No
• Maximum Speed (rpm): 200
• Spindle Travel: 2
• Chuck Capacity: 5/8 In.
• Chuck Key Storage: No
• Tools Product Type: Power Tool
• Amperage (amps): 8 A
• Minimum speed (rpm): 50
• 360- Degree Swivel: No
• Work Light: No
• Color Family: White
• Condition: New
• Number of Speeds: 50
• Bench & Stationary Tool Type: Drill Press
• Built-In Light: No
• Portability: Stationary
• Cord Length (ft.): 6
• Voltage (volts): 110
• Lockout Power Switch: Yes
• Product Weight (lb.): 161
• Product Height (in.): 32.5 in
• Product Depth (in.): 19.5 in
• Product Width (in.): 25.5 in

 WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
