A VFD (Variable Frequency Drive) with digital readout provides infinitely variable blade speeds between 150 FPM and 3000 FPM, making this saw great for cutting wood and metal alike. Just turn the speed control dial to set the perfect cutting speed for each type of material you’re cutting. Besides providing the variable-speed control, the VFD also allows this machine to take full advantage of the high-torque/low-speed characteristics of a 3-phase motor while only requiring a single-phase power supply. The vertical cutting configuration and massive cast-iron table also makes it easy to feed intricate, curved cuts. All in all, the strong versatility of this 18 in. Vertical Wood/Metal Bandsaw makes it an ideal choice when shop space is limited and the range of prefect types is diverse.
- Motor: 1-1/2 HP, 220-Volt, 3-phase
- Power supply requirement: 220-Volt, single-phase, 15 Amp
- Maximum cutting height: 12 in.
- Throat capacity: 17-1/2 in.
- Blade length: 133 in.
- Blade size range: 1/8 in. to 1-1/4 in.
Specifications
- Maximum Speed (rpm): 1725
- Minimum Blade Length: 133
- Table Tilt Right Max (degrees): 45
- Band Saw Type: Vertical
- Cordless/ Corded: Corded

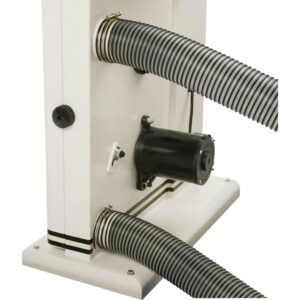

- Dust Collection Method: 4 in. Dust Port
- Tools Product Type: Power Tool
- Amperage (amps): 5
- PT Horsepower (Hp): 1-1/2
- Table Tilt Left Max (degrees): 5
- Color Family: White
- Included Accessories: Stand
- Condition: New
- Power Tool Features: Lockout Power Switch,Quick-Release Tension,Stand Included
- Construction Material: Steel
- Bench & Stationary Tool Type: Band Saw
- Cuts Through: Steel,Wood
- Portability: Stationary
- Cord Length (ft.): 6
- Voltage (volts): 220
- Table-Top Material: Cast-Iron
- Product Weight (lb.): 314
- Cutting Capacity Width / Depth Of Throat(In.): 17.5
- Table Length (in.): 24
- Product Height (in.): 76
- Product Depth (in.): 31
- Maximum Blade Length: 133
- Minimum Blade Width: .13
- Table Width (in.): 18
- Dust Port Size (In.): 4
- Maximum Blade Width: 1.25
- Cutting Capacity Height / Height under Guide (In.): 12
- Work Table Surface: 24 in. x 18 in.
- Product Width (in.): 40
