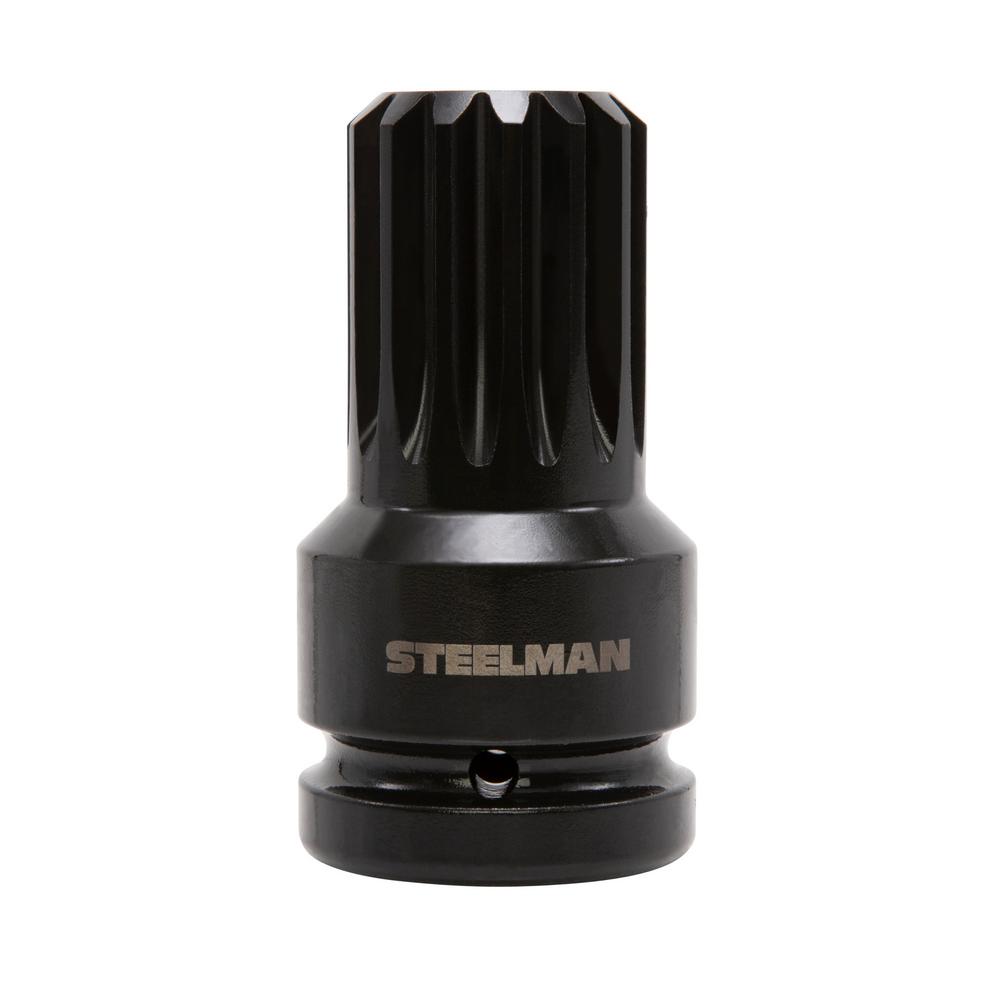

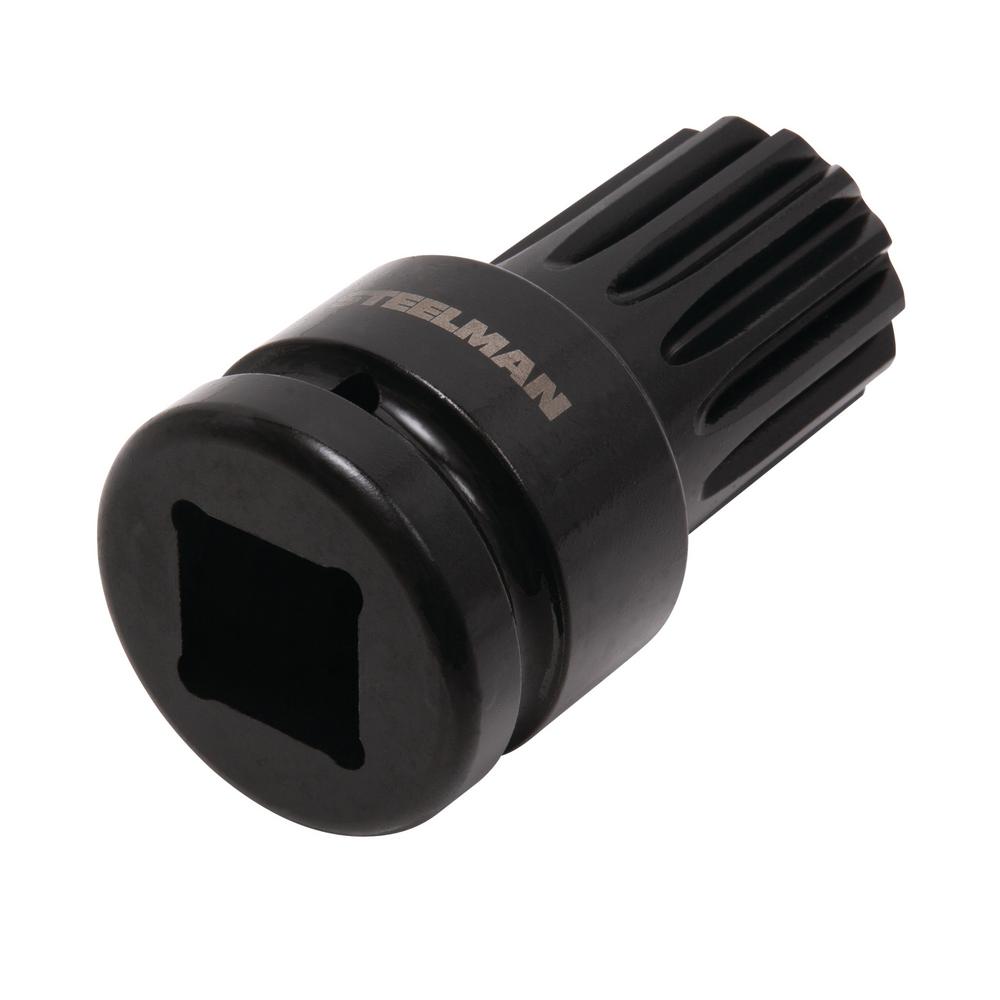

Steelman 1 in. Square Drive (F) to #5 Spline Drive (M) Impact Socket Adapter

Transition easily between industrial level pneumatic drive sizes with the Steelman 60562 1 in. Square Drive (Female) to #5 Spline (Male) Drive Impact Adapter. The 1 in. drive end fits onto the drive end of 1 in. drive impact wrenches and the #5 spline drive end of the adapter then allows the use of that size’s slip resistant sockets and accessories. Forged from heat-treated chromoly steel, this tool has the durability and resilience needed for heavy-duty use in any environment, from the truck repair bay to the industrial assembly line. The female end of the adapter has a cutout for a spring-loaded ball detent or locking pin to help securely grip the adapter onto extensions and wrenches during use to prevent them coming loose before the job is done. The attractive black oxide finish supplies rust and corrosion resistance to the tool. Laser etched size callouts and markings are burned directly into the steel and will not rub off or wear away like printed or painted on markings.

• Drive adapter: heavy-duty adapter enables #5 spline drive tools to use 1 in. drive accessories
• Resilient steel: made from durable and resilient heat-treated chrome molybdenum (chromoly) steel
• Corrosion resistant finish: protective black oxide finish provides additional rust and corrosion resistance
• Impact grade tool: impact grade construction can handle the immense stresses of industrial level wrench use
• Laser etched: markings are laser etched into the steel and won’t rub off or wear away

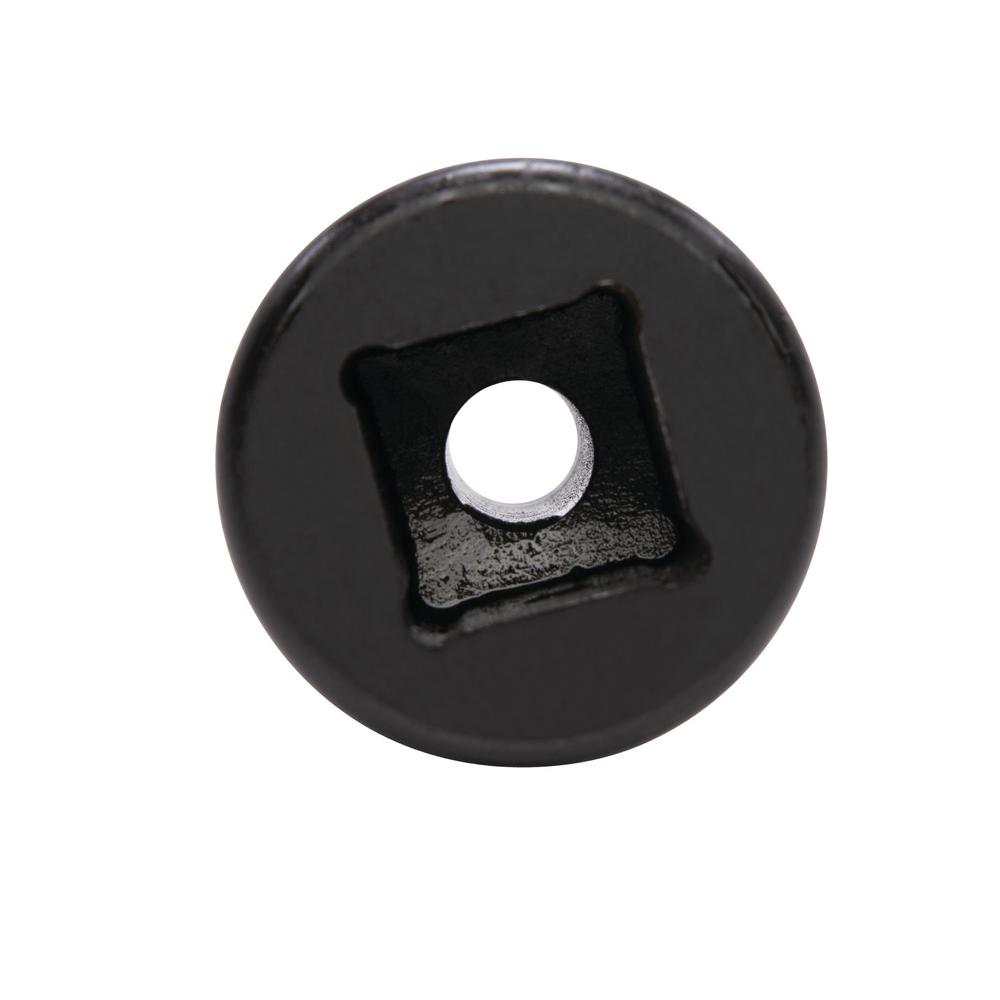

• Detent hole: 1 in. female drive end has a cutout to allow a spring-loaded detent ball to securely hold it onto wrenches during use

Specifications

• Output Drive Type: Male Hex
• Material: Steel
• Drive Type: Female Square
• Universal: Universal
• Number of Pieces: 1
• Tools Product Type: Hand Tool
• Color Family: Black
• Hand Tool Type: Socket/Ratchet Adapter
• Individual/Set: Individual
• Drive Size: 1 in
• Product Height (in.): 2.16 in
• Product Depth (in.): 4.13 in
• Output Drive Size: #5
• Product Width (in.): 2.16 in
