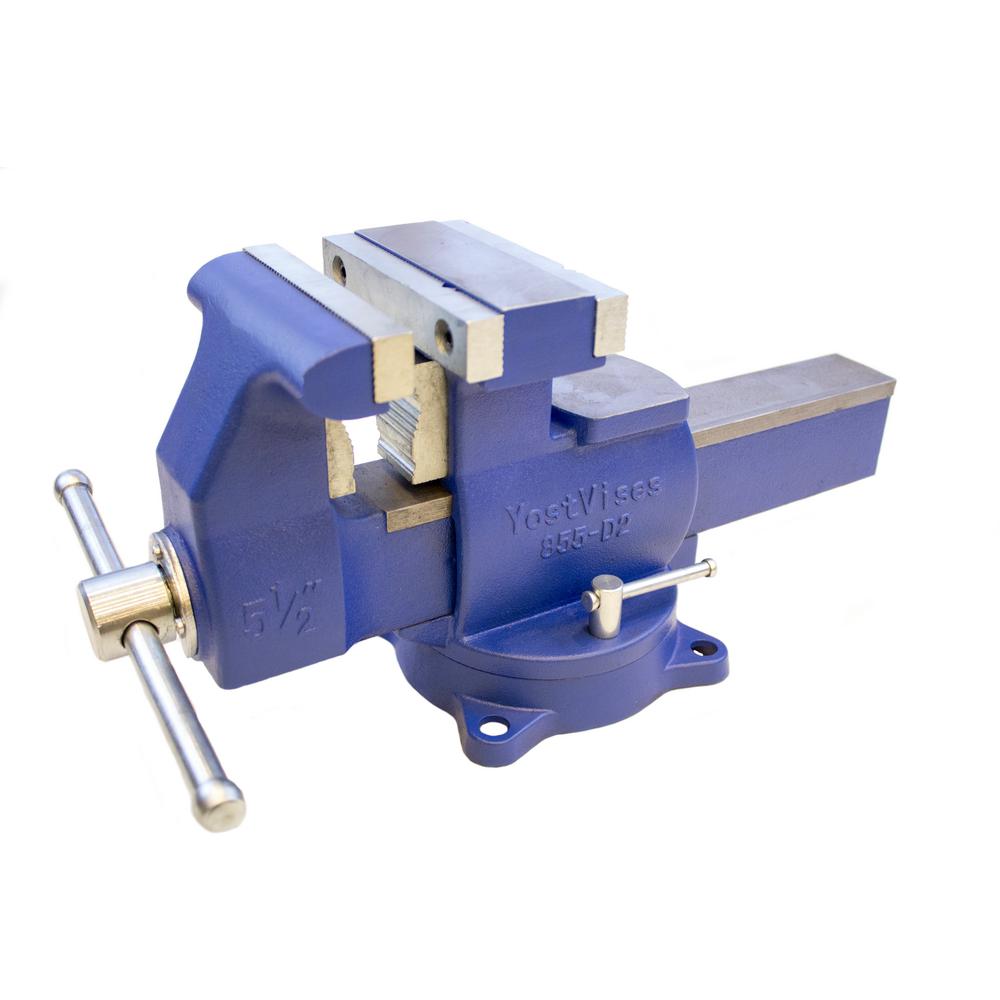

Yost 5.5 in. Reversible Mechanics Vise

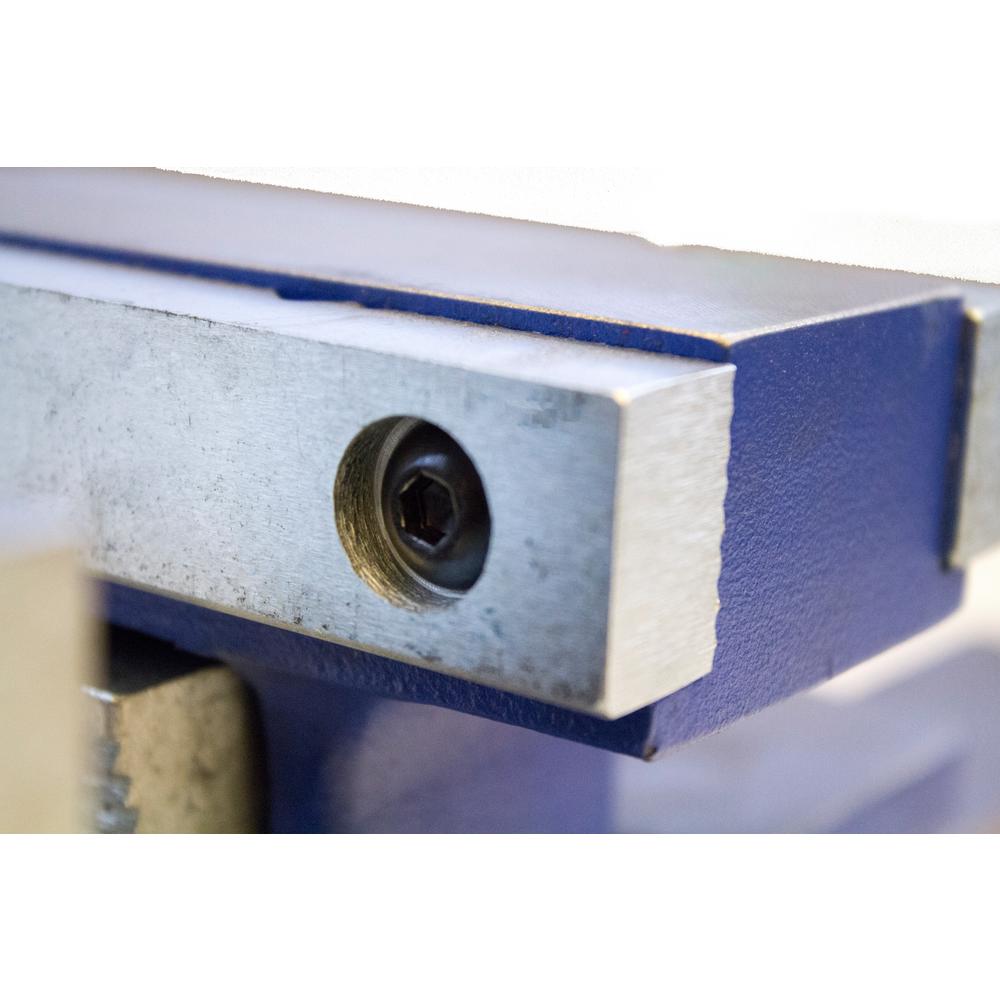

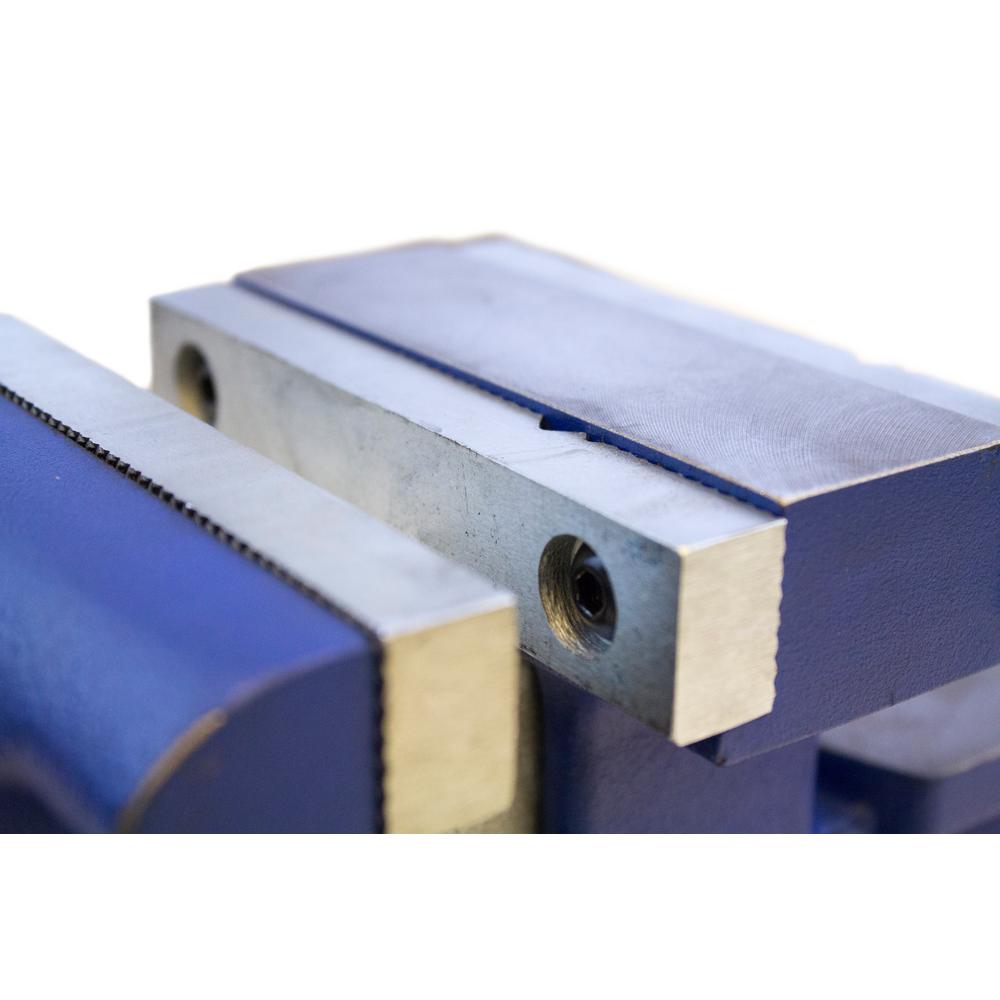

The Yost 855 Professional Reversible Vise is designed for mechanics that need a vise with large jaw opening capabilities. This vise is constructed from 30,000 psi cast iron for extra durability. For unmatched versatility this vise features a reversible main jaw. When the front jaw is reversed, the jaw capacity is increased to a phenomenal 9-3/4 in. The 5.5 in. W serrated machinist jaws feature 2 small V-Grooves to grip parts vertically. The 2 machined anvils provide a smooth work surface for forming or shaping. Cast in place pipe jaws allow this vise to grip pipe up to 3 in. thick. The 360° swivel base allows the vise to be rotated to any position for easy operation. The base features 2 lockdowns that will prevent the vise from rotating once the lockdowns have been tightened. The base also features 4 mounting tabs to secure the vise to the workbench (mounting hardware not included).

• 5.5 in. W jaws
• 6 in. jaw opening (9-3/4 in. when reversed)
• 3.75 in. throat depth (2.75 in. when reversed)

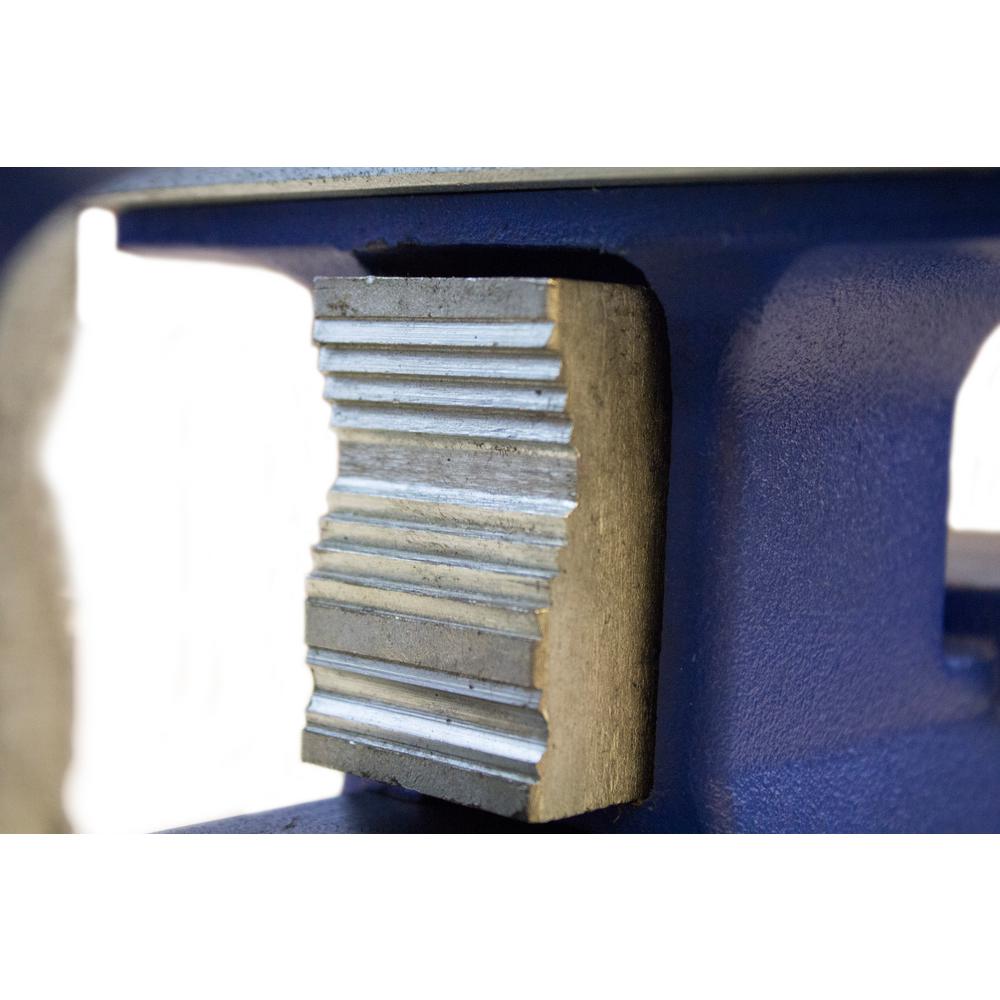

• 1/8 in. to 3 in. pipe jaw capacity
• 360° swivel base
• Gear type locking system with double lock down bolts
• 2 anvils: lower: 3.5 in. x 3.7 in. upper: 5.2 in. x 2.5 in.

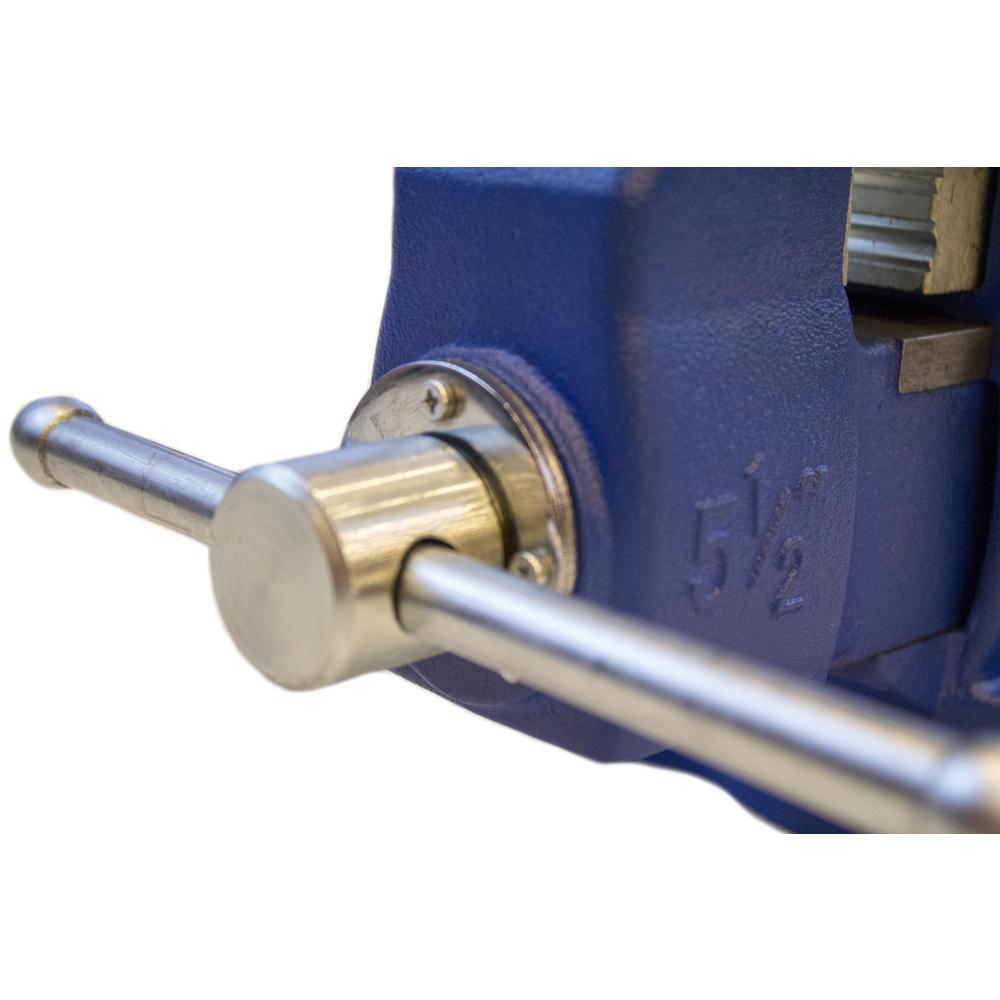

• Acme threaded main screw

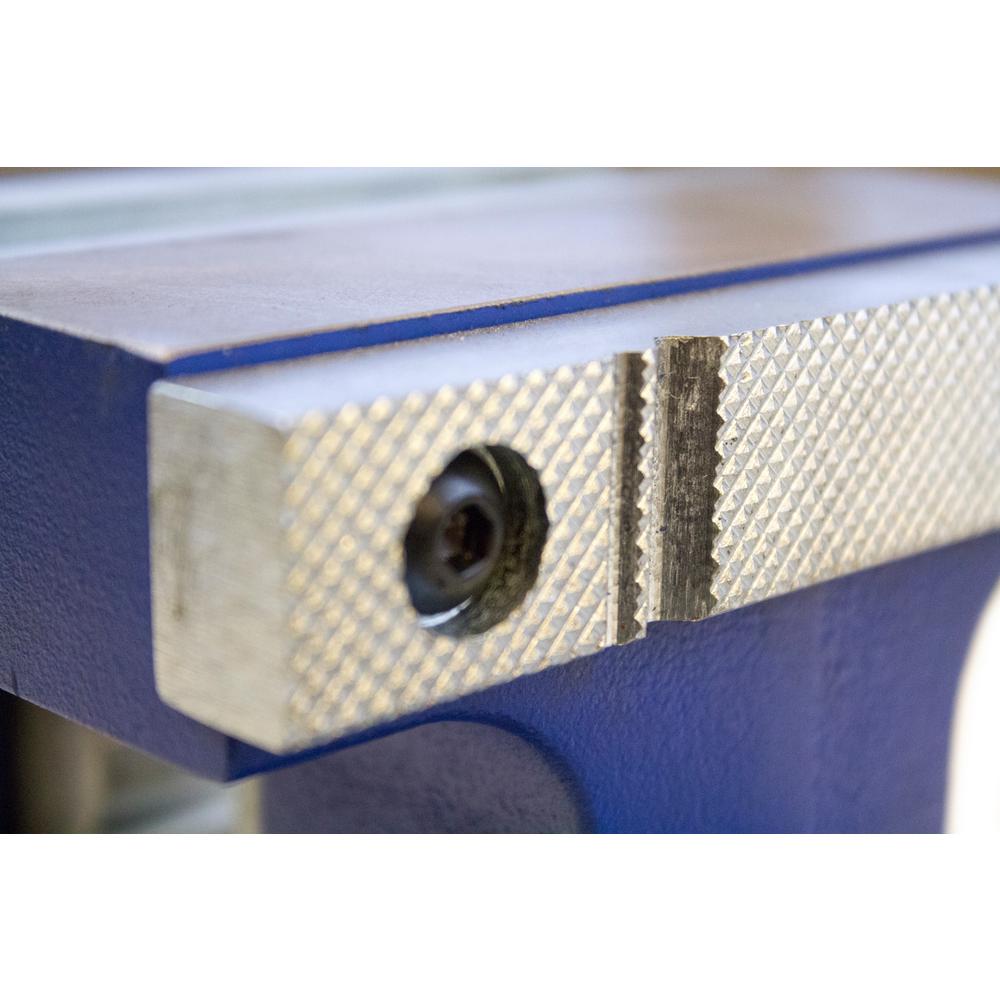

• Replaceable, hardened steel serrated jaw faces
• 4 mounting holes for securing the vise to a workbench (mounting hardware not included)
• Maximum clamping load force: 4,950 lbs.

Specifications

• Vise Type: Bench
• Material: Cast Iron
• Tools Product Type: Hand Tool
• Duty Rating: Heavy
• Swivel base: Yes
• Jaw Capacity: 9-3/4 in
• Hand Tool Type: Vise
• Clamping Strength (lb.): 4950
• Individual/Set: Individual
• Throat Depth: 3.75 in
• Jaw Width: 5.5 in
