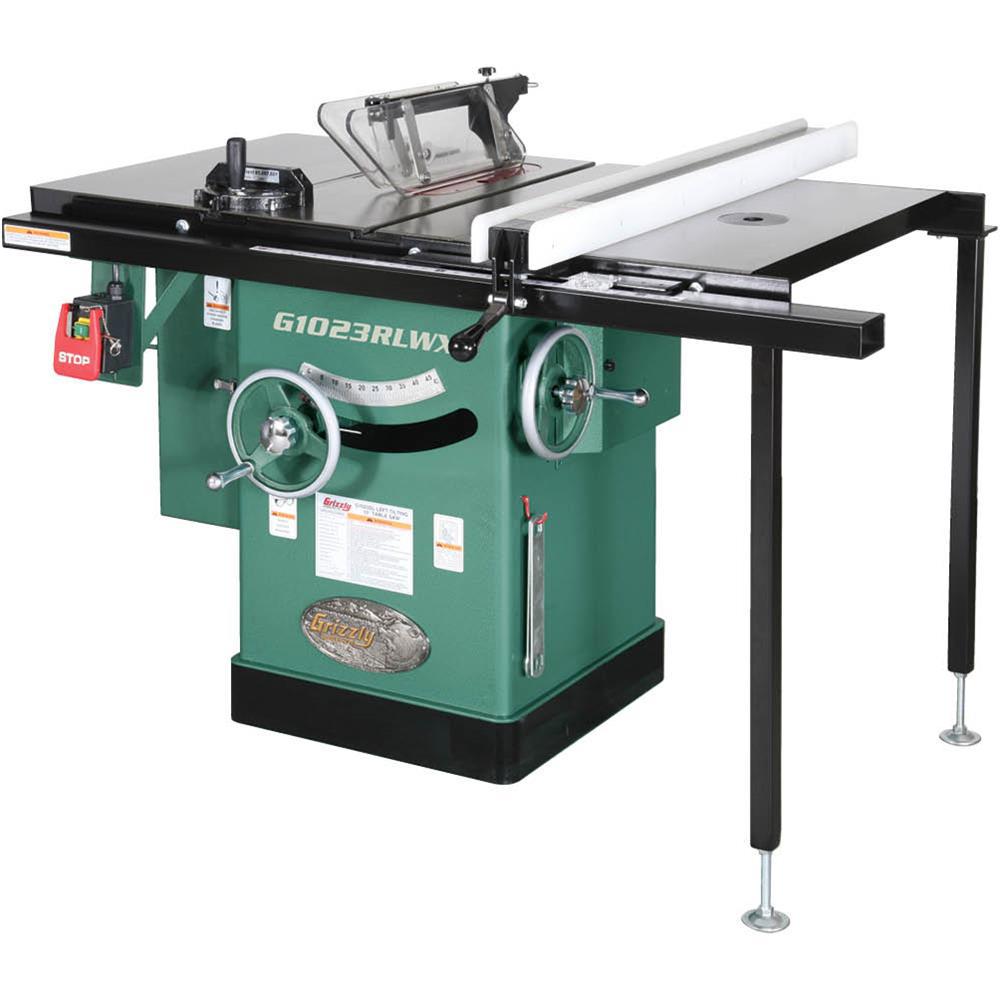

We took our G1023RL Table Saw with riving knife and made it even better by including a built-in router table that doubles as a table extension wing. The router table includes support legs and universal T-track router clamping system, and the Shop Fox Classic Fence included for the table saw doubles as a router table fence. You’ll find that using this system is actually much nicer and more convenient than using a typical router table or hand held router for those cuts where the fence is not required to be offset, especially if the table saw is set up with large outfeed tables. Another great advantage is being able to make laser straight dadoes without having to change table saw blades. CSA certified meeting CSA C22.2 #105-1953 and UL 987 standards. Features: Motor: 5 HP, 240-Volt, single-phase. Solid cast iron table is first heat treated to remove warpage, then milled perfectly flat and ground to a mirror like finish. Fully assembled table size: 48 in. W x 27 in. D. Table has T-slots so your miter gauge will not fall off the table when retracted. 5/8 in. Dia arbor is long enough to accept dado blades up 7/8 in. Extra large handwheels are the heaviest in the industry and really ease arbor movement.

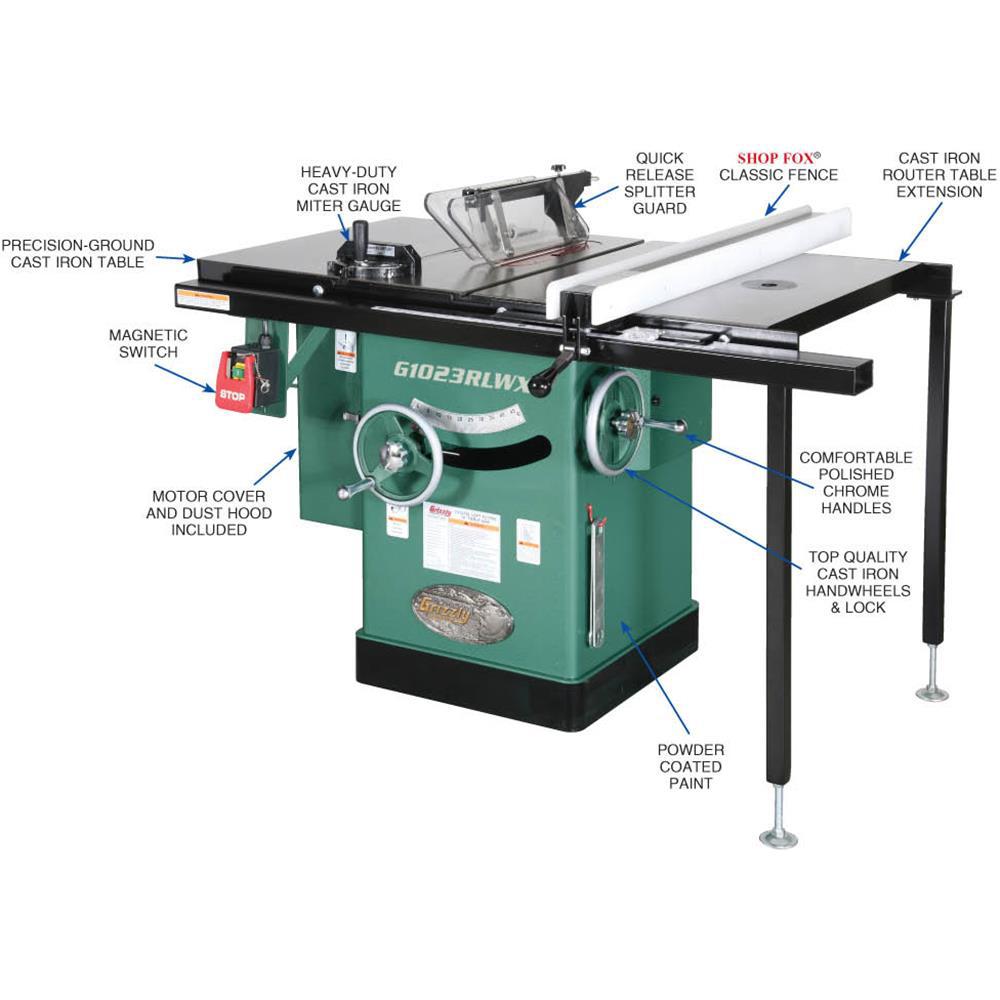

- Router table doubles as an extra-wide wing extension for the table saw
- All sealed ball bearing construction
- Table has T-slots so your miter gauge will not fall off the table when retracted
- 2 table inserts for blade and dado
- Angled dust chute in bottom of stand
- Cast-iron router table extension
- Precision-ground cast-iron table with beveled edge
- Router table includes support legs and universal T-track router clamping system
- Included 10 in. x 40 in. T carbide-tipped blade
- Shop Fox classic fence doubles as guide fence for a router
- Magnetic safety switch protects motor and operator
- Powder coated paint
- All machined cast-iron internal structure
- Heavy-duty miter gauge
- Extra-large cast-iron handwheels and lock
- 4 in. dust port
- Hinged motor cover
- Riving knife included
Specifications
- Blade Diameter (in.): 10
- Maximum Speed (rpm): 4200
- Blade Speed: 4200
- Horsepower (hp): 5
- Table Tilt Right Max (degrees): 0
- Cordless/ Corded: Corded
- Dust Collection Method: 4 in. Dust Port
- Tools Product Type: Power Tool
- Amperage (amps): 23 A
- Rip Capacity – Left: 8
- Blade Location: Centered
- PT Horsepower (Hp): 5
- Table Tilt Left Max (degrees): 45
- Color Family: Multi-Colored
- Included Accessories: Blade Guard System,Blades
- Condition: New
- Power Tool Features: Blade Guard System,Stand Included
- Construction Material: Cast Iron
- Bench & Stationary Tool Type: Table Saw
- Cuts Through: Wood
- Portability: Stationary
- Cord Length (ft.): 6
- Depth Control: Adjustable
- Product Weight (lb.): 509
- Rip Capacity – Right: 32
- Maximum Cut Depth @ 45 Deg.: 2.13
- Maximum Cut Depth @ 90 Deg.: 3
- Table Length (in.): 48
- Product Height (in.): 39.75
- Product Depth (in.): 47
- Table Width (in.): 48
- Work Table Surface: 48 in. x 48 in.
- Product Width (in.): 47
