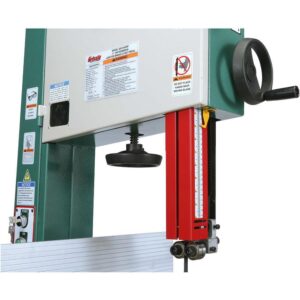

Grizzly is proud to offer these full-featured Extreme 17 in. Heavy-duty Bandsaws with cast iron wheels. The 2 HP motor powers through wood at a maximum 12 in. cutting capacity and the 16-1/4 in. throat is plenty for most applications. Features like the deluxe fence, extra-wide cast iron table, heavy-duty miter gauge, dual 4 in. dust ports, micro-adjusting geared table, and double ball-bearing blade guides are usually found on machines costing much more. And, the ISO 9001 factory designation assures high quality standards. The motor brake on the G0513X2BF stops the blade in 3 seconds and ensures greater safety and faster production times. The foot pedal activates the electronic motor brake and the manual brake so that you can have both of your hands on the workpiece when bringing the blade to a stop.
- Motor: 2 HP, 220-Volt, single-phase, TEFC capacitor-start induction, 60 Hz, 1720 RPM, 8.7 Amp
- Table size: 23-5/8 in. x 17-1/4 in. x 1-1/2 in. thick
- Table tilt: 5° left, 45° right
- Floor to table height: 37-1/2 in.
- Cutting capacity/throat: 16-1/4 in. left of blade
- Maximum cutting height: 12 in.
Specifications
- Maximum Speed (rpm): 1720
- Minimum Blade Length: 130
- Table Tilt Right Max (degrees): 45
- Band Saw Type: Vertical
- Cordless/ Corded: Corded
- Dust Collection Method: 4 in. Dust Port
- Tools Product Type: Power Tool
- Amperage (amps): 10
- PT Horsepower (Hp): 2
- Table Tilt Left Max (degrees): 5
- Color Family: Multi-Colored
- Included Accessories: Stand
- Condition: New
- Power Tool Features: Lockout Power Switch,No Tool Blade Change,Quick-Release Tension,Stand Included
- Construction Material: Steel
- Bench & Stationary Tool Type: Band Saw
- Cuts Through: Wood
- Portability: Stationary
- Cord Length (ft.): 0
- Voltage (volts): 220
- Table-Top Material: Cast-Iron
- Product Weight (lb.): 357
- Cutting Capacity Width / Depth Of Throat(In.): 16-1/4
- Table Length (in.): 23.052
- Product Height (in.): 73
- Product Depth (in.): 32
- Maximum Blade Length: 131-1/2
- Minimum Blade Width: 1/8
- Table Width (in.): 17.25
- Dust Port Size (In.): 4
- Maximum Blade Width: 1
- Cutting Capacity Height / Height under Guide (In.): 12
- Work Table Surface: 23.052 in. x 17.25 in.
- Product Width (in.): 32
WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov
