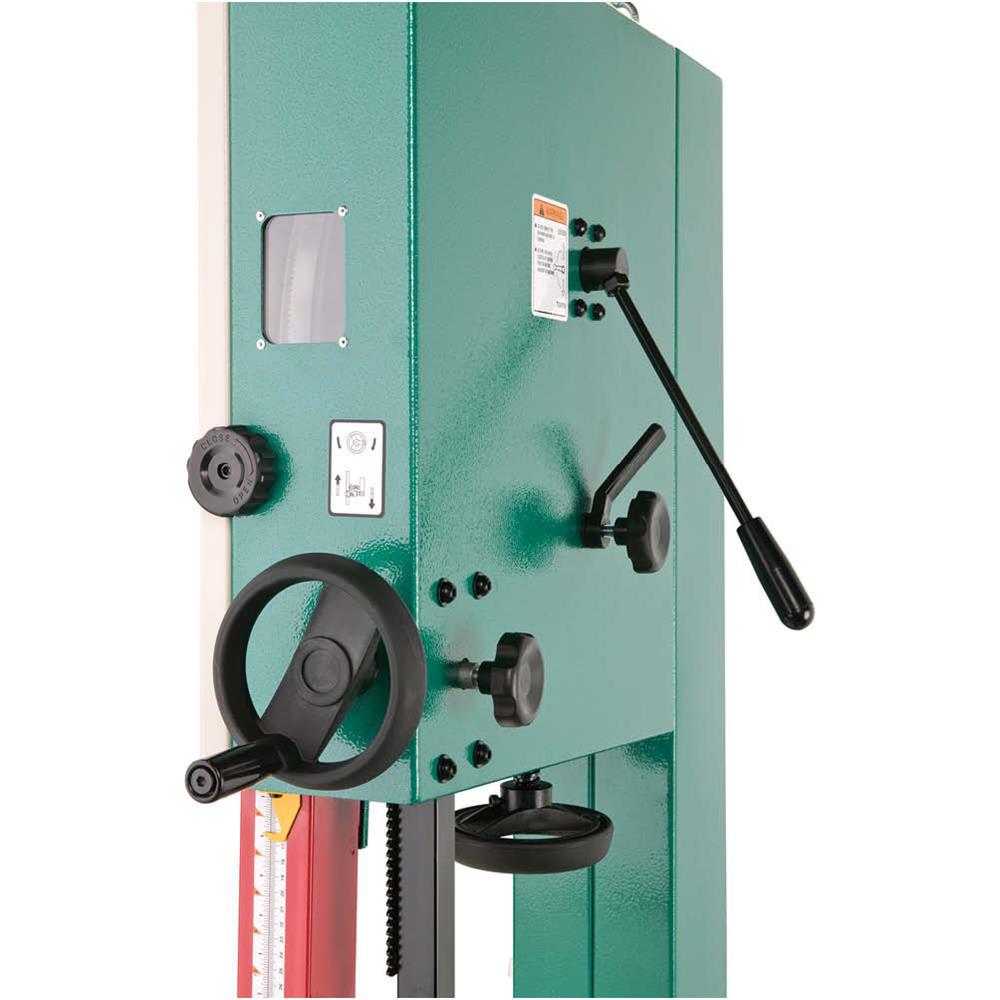

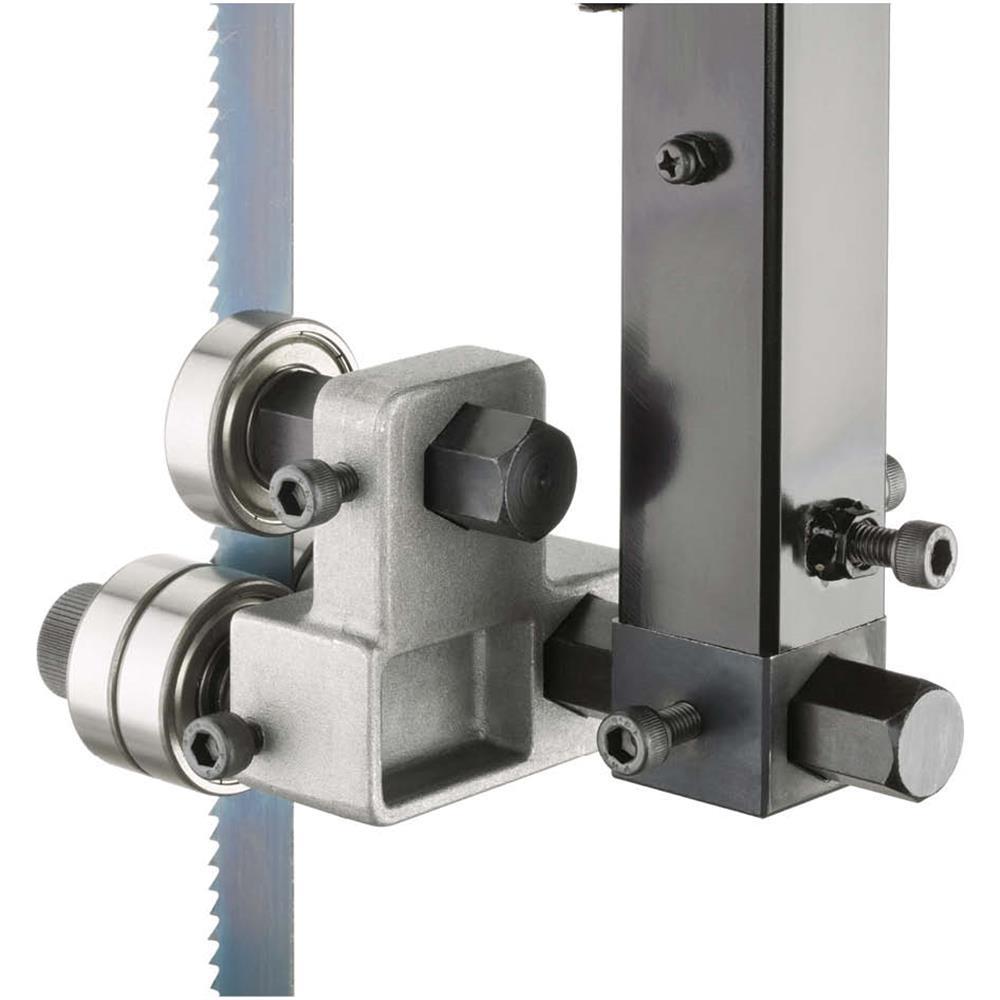

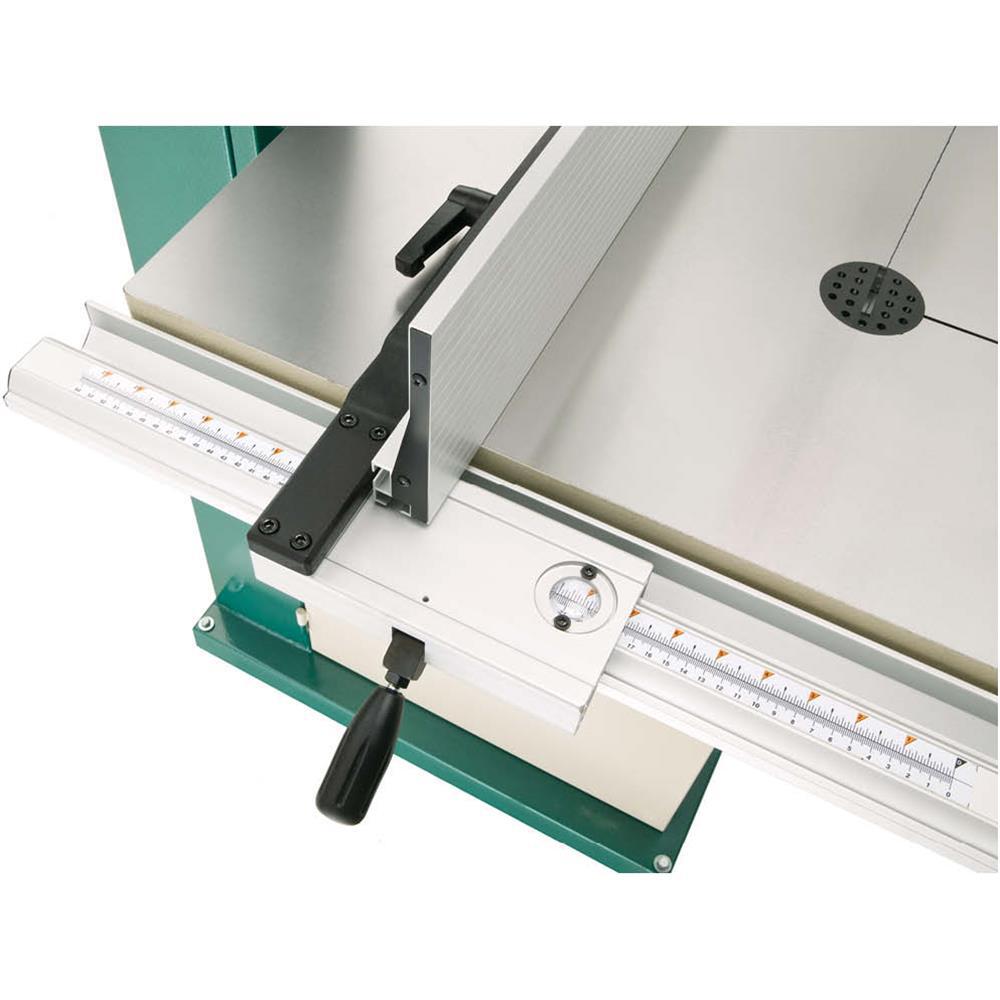

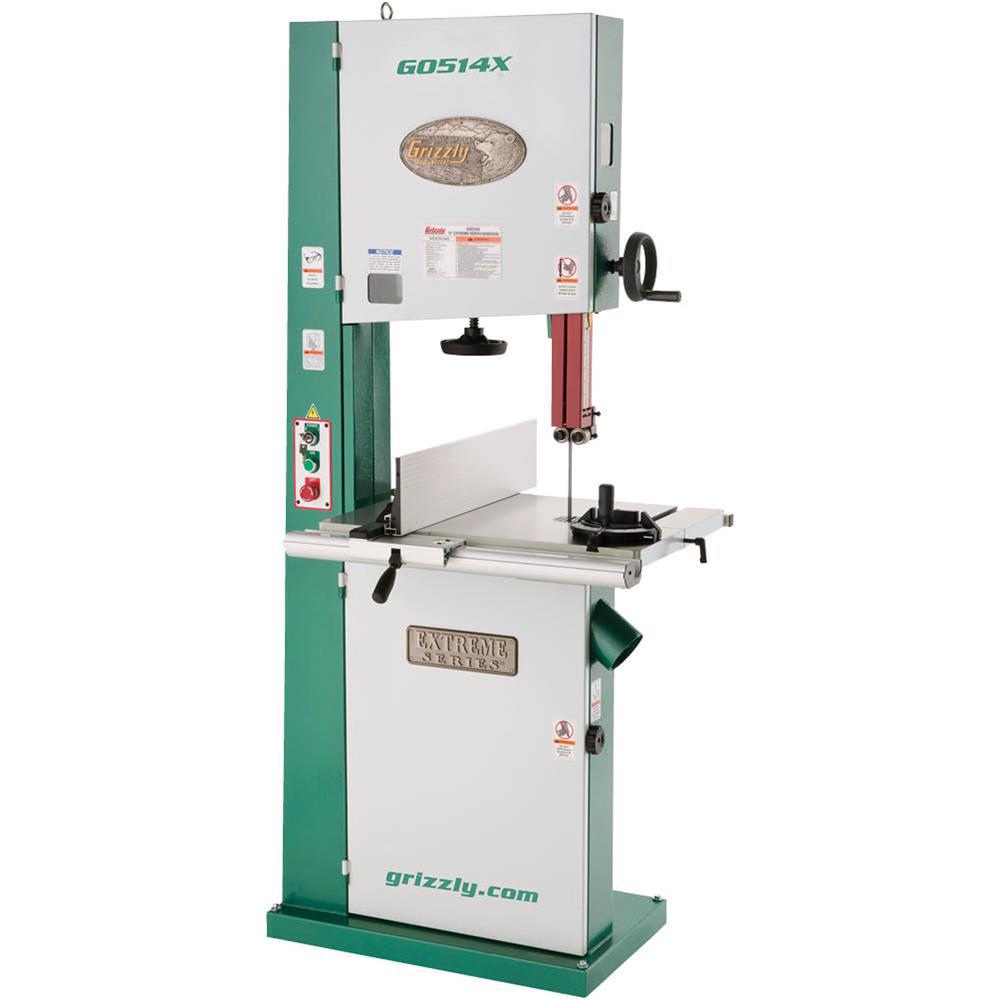

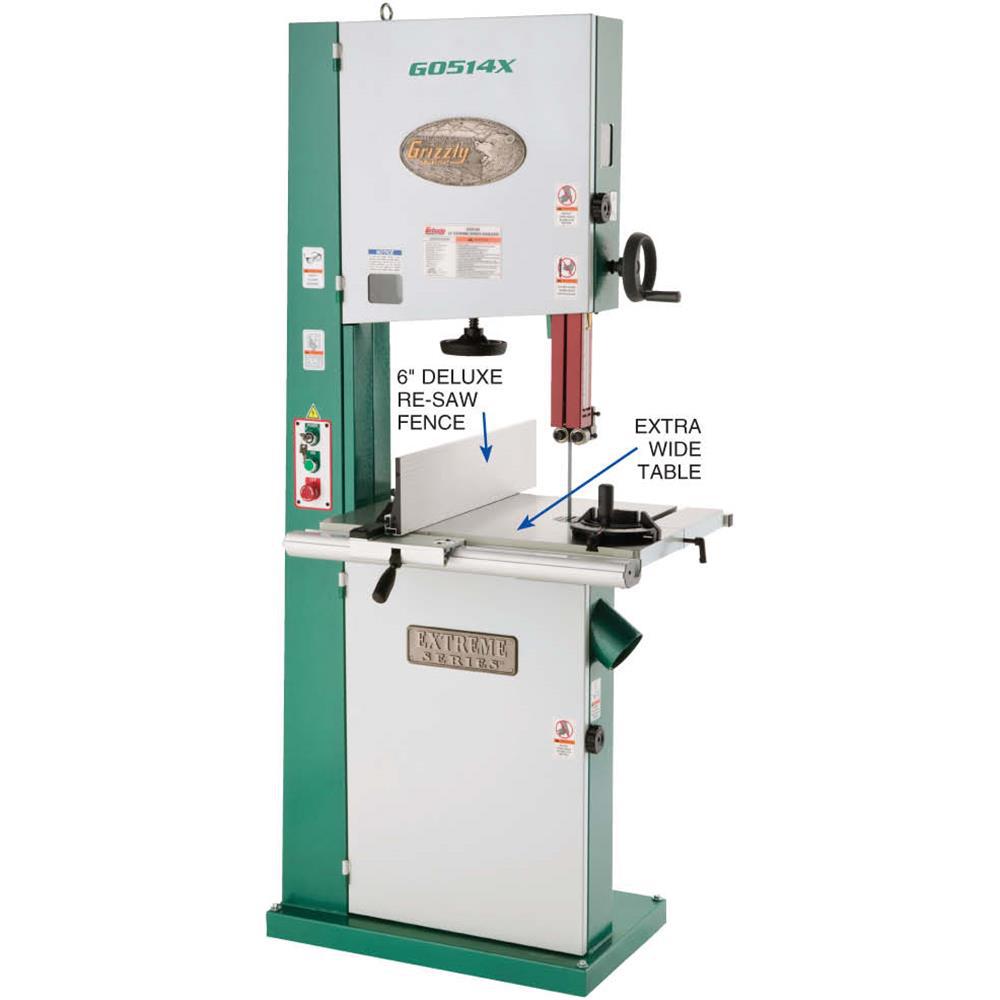

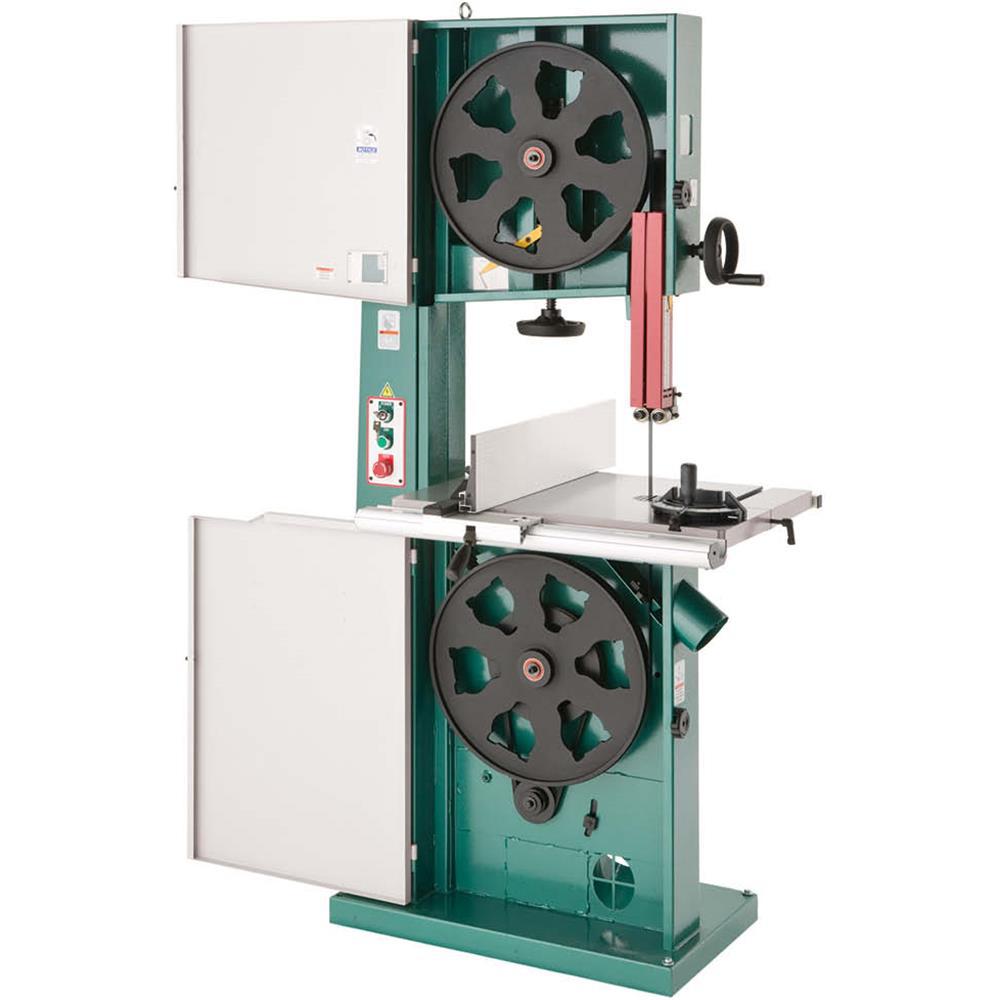

We’ve taken our ever popular and highly regarded G0514 and made another Extreme Machine. Cast-iron wheels, double-row ball-bearing blade guides, and a 3 HP motor help make this a wood devouring saw. Also, the extra-large tilting table and Grizzly patent-pending Re-saw Fence make controlling the cut easy. You’ll really appreciate the extra features like two 4 in. dust ports, a tracking window, quick-release blade tension device, and blade tension scale. Both blade guide height and blade tension are handwheel controlled, and the wheel covers are hinged for convenience.
- Motor: 3 HP, 220-Volt, single-phase, TEFC capacitor start induction, 60 Hz, 12 Amp, 1725 RPM
- Table size: 26-3/4 in. x 19 in. x 1-1/2 in. thick
- Floor to table height: 37-1/2 in.
- Cutting capacity/throat: 18-1/4 in.
- Maximum cutting height: 12 in.
- Blade size: 143 in. L
Specifications
- Maximum Speed (rpm): 1725
- Minimum Blade Length: 141-1/2
- Table Tilt Right Max (degrees): 45
- Band Saw Type: Vertical
- Cordless/ Corded: Corded
- Dust Collection Method: 4 in. Dust Port
- Tools Product Type: Power Tool
- Amperage (amps): 12
- PT Horsepower (Hp): 3
- Table Tilt Left Max (degrees): 5
- Color Family: Multi-Colored
- Included Accessories: Stand
- Condition: New
- Power Tool Features: Lockout Power Switch,No Tool Blade Change,Quick-Release Tension,Stand Included
- Construction Material: Steel
- Bench & Stationary Tool Type: Band Saw
- Cuts Through: Wood
- Portability: Stationary
- Cord Length (ft.): 6
- Voltage (volts): 220
- Table-Top Material: Cast-Iron
- Product Weight (lb.): 383
- Cutting Capacity Width / Depth Of Throat(In.): 18-1/4
- Table Length (in.): 26.75
- Product Height (in.): 76
- Product Depth (in.): 32
- Maximum Blade Length: 143
- Minimum Blade Width: 1/8
- Table Width (in.): 19
- Dust Port Size (In.): 4
- Maximum Blade Width: 1-1/4
- Cutting Capacity Height / Height under Guide (In.): 12
- Work Table Surface: 26.75 in. x 19 in.
- Product Width (in.): 36
