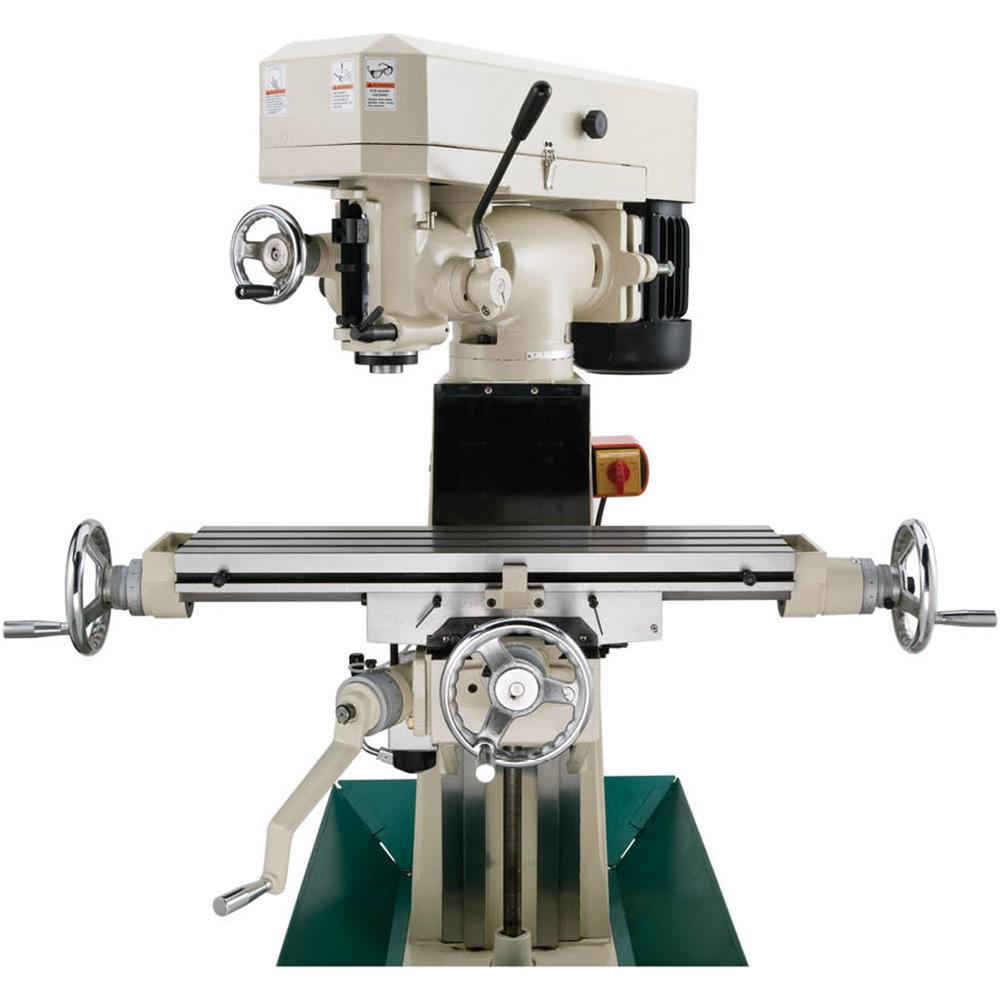

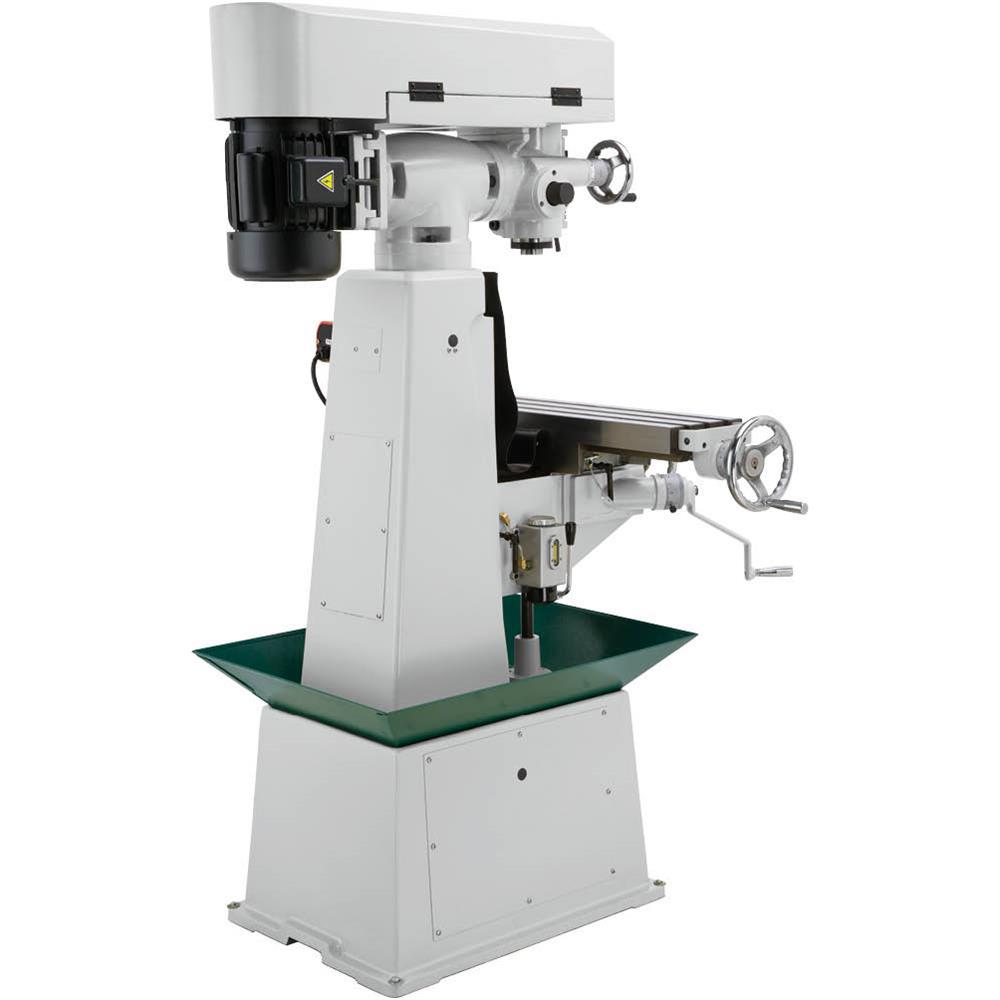

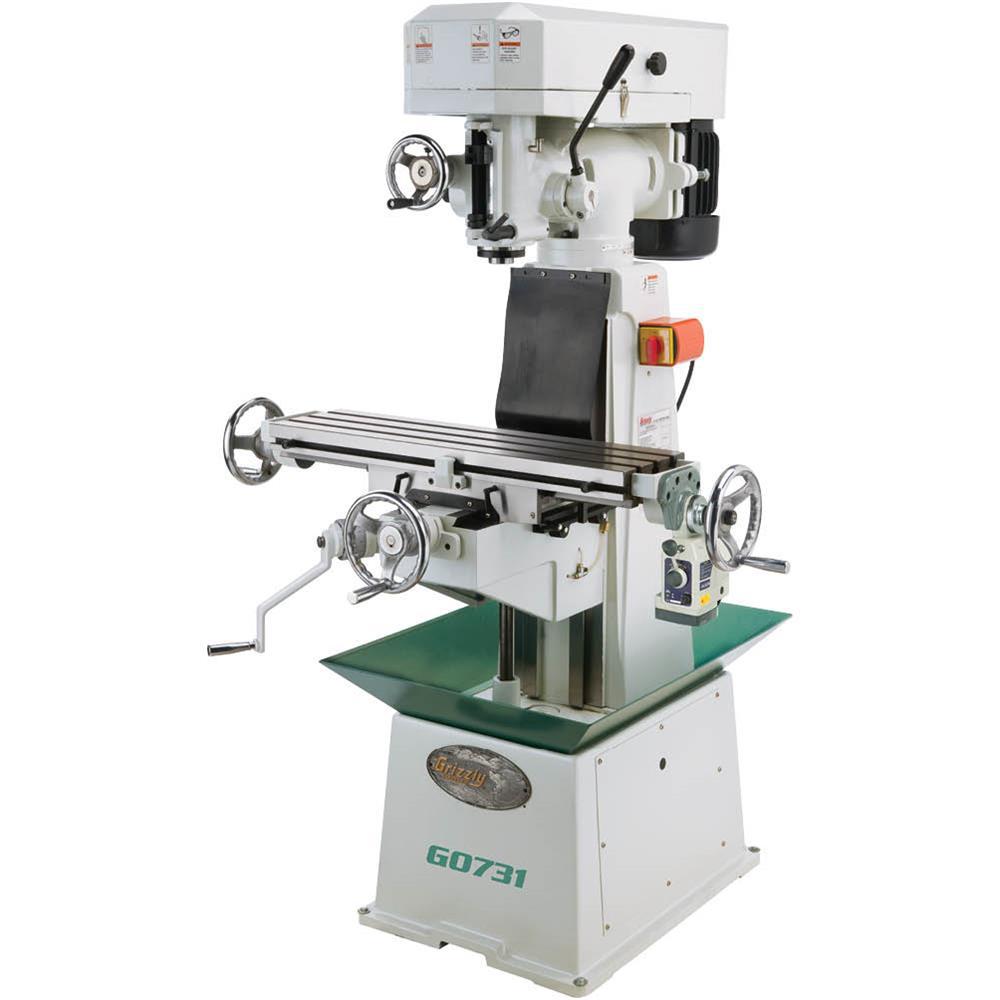

This 8 in. x 30 in. Vertical Milling Machine includes all the same features as its 6 in. x 26 in. little brother (G0728/G0729), but is constructed with a heavy, 1-piece casting for even greater rigidity and an extra 300 pounds of mass. It also accommodates up to a 14 in. swing and 20 in. between table and spindle. Features a cabinet designed to accept aftermarket coolant systems, making it readily upgradable. Available with or without longitudinal power feed.
- Dovetail sliding ways for accuracy
- 1-shot oiler lubrication system
- Catch tray allows for coolant system upgrade
- Large stroke handle
- Forward/reverse switch
- Rotating turret-style column

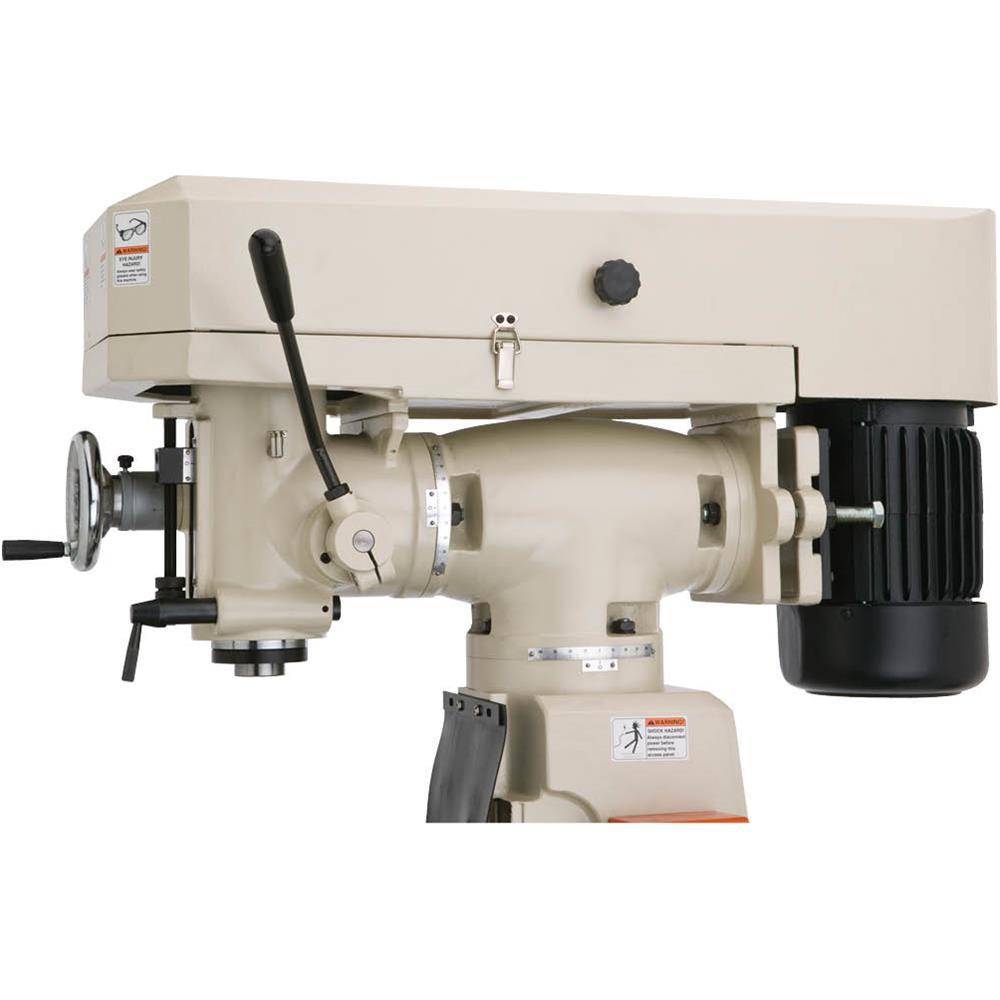

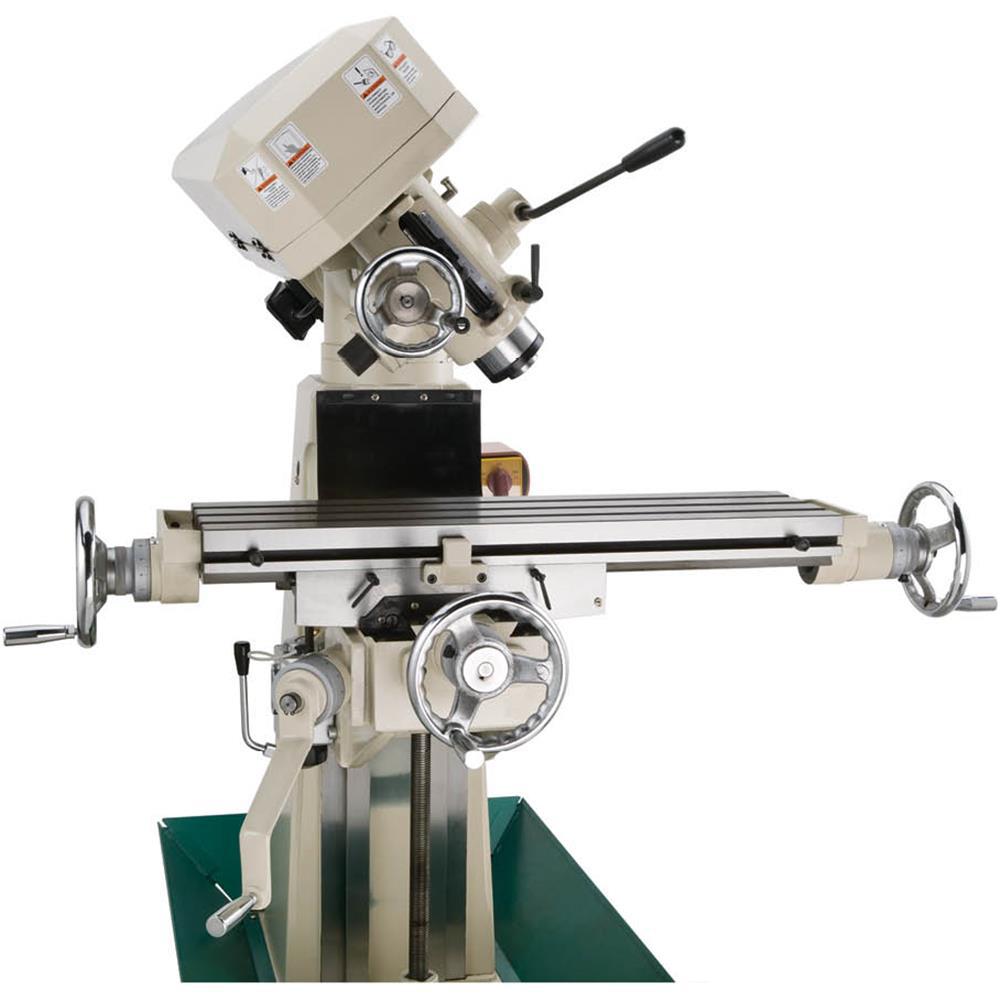

- Head tilts side-to-side
- Precision-ground table
- Coarse and fine down feed controls
- Adjustable down feed stop system
Specifications
- Magnetic: No
- Maximum Speed (rpm): 3200
- Spindle Travel: 3
- Chuck Capacity: 5/8 In.
- Chuck Key Storage: No
- Tools Product Type: Power Tool
- Amperage (amps): 18 A
- Minimum speed (rpm): 270
- 360- Degree Swivel: No
- Work Light: No
- Color Family: Multi-Colored
- Condition: New
- Number of Speeds: 9
- Bench & Stationary Tool Type: Drill Press
- Built-In Light: No
- Portability: Stationary
- Cord Length (ft.): 6
- Voltage (volts): 110
- Lockout Power Switch: No
- Product Weight (lb.): 935
- Product Height (in.): 67
- Product Depth (in.): 40.5
- Product Width (in.): 42.75
