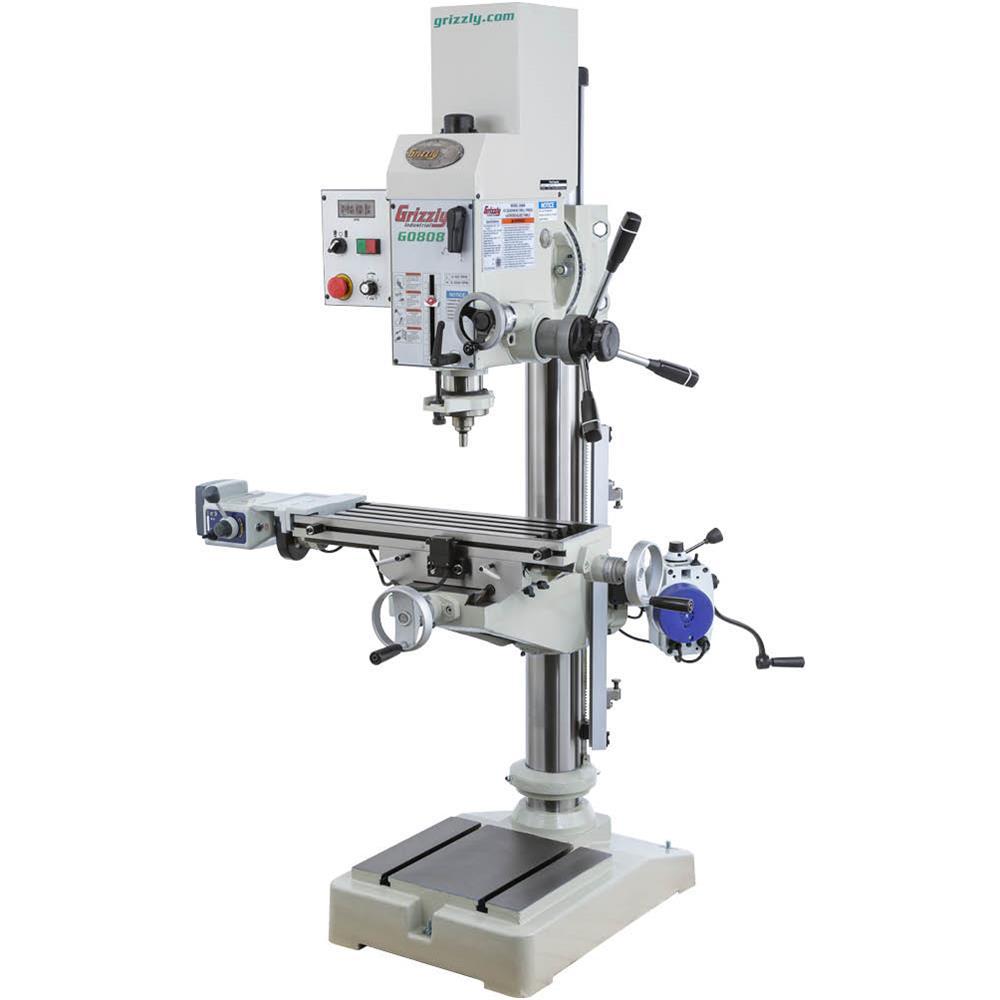

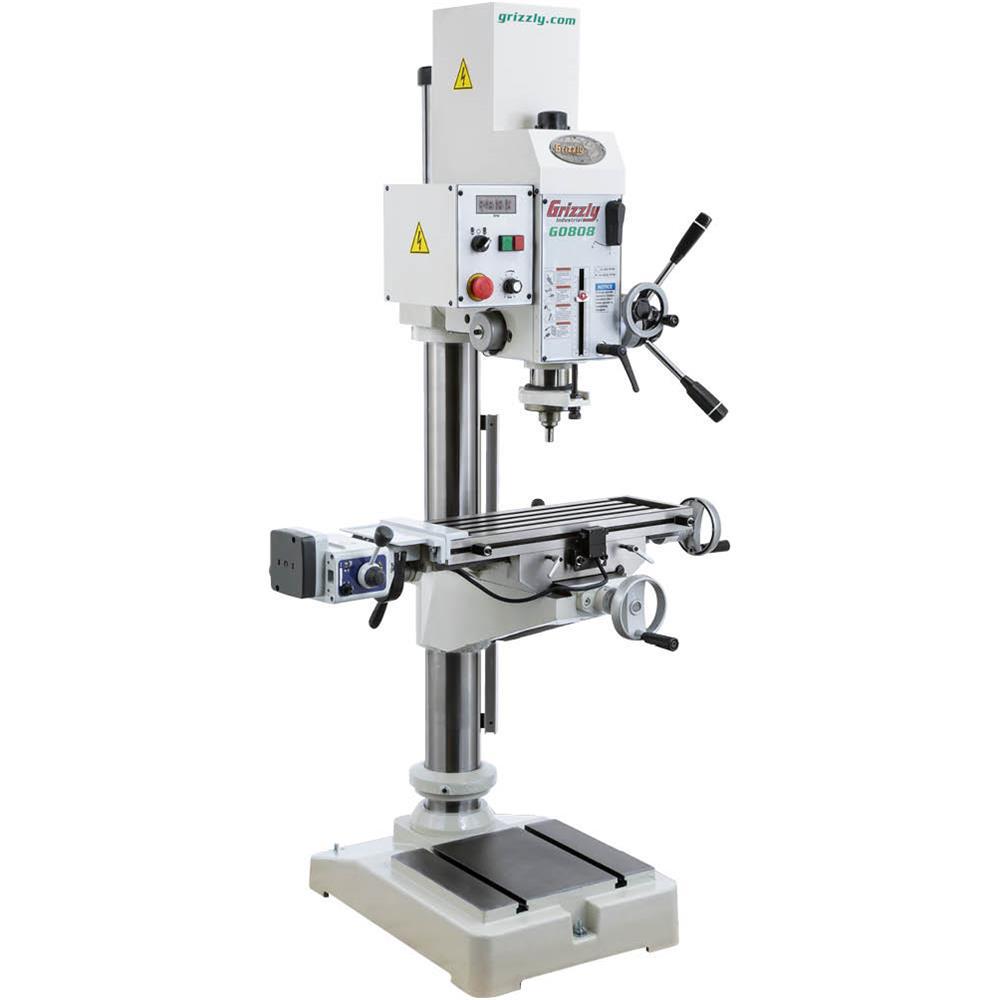

Grizzly Industrial Variable-Speed Gearhead Drill Press with Cross-Slide Table

This Drill Press came about as a personal project of the President of Grizzly. He wanted the convenience of a gearhead drill press with variable speeds, a digital speed readout, long spindle throw, nice beefy handles, a crossable with table power feed, and the most important feature, a power feed to move the heavy table up and down. This had not been done before and the factory’s initial reaction was, we cannot do that. Not accepting that as an answer, several meetings were held with engineers and some special parts were made and, voila. We had a table which powered up and down.

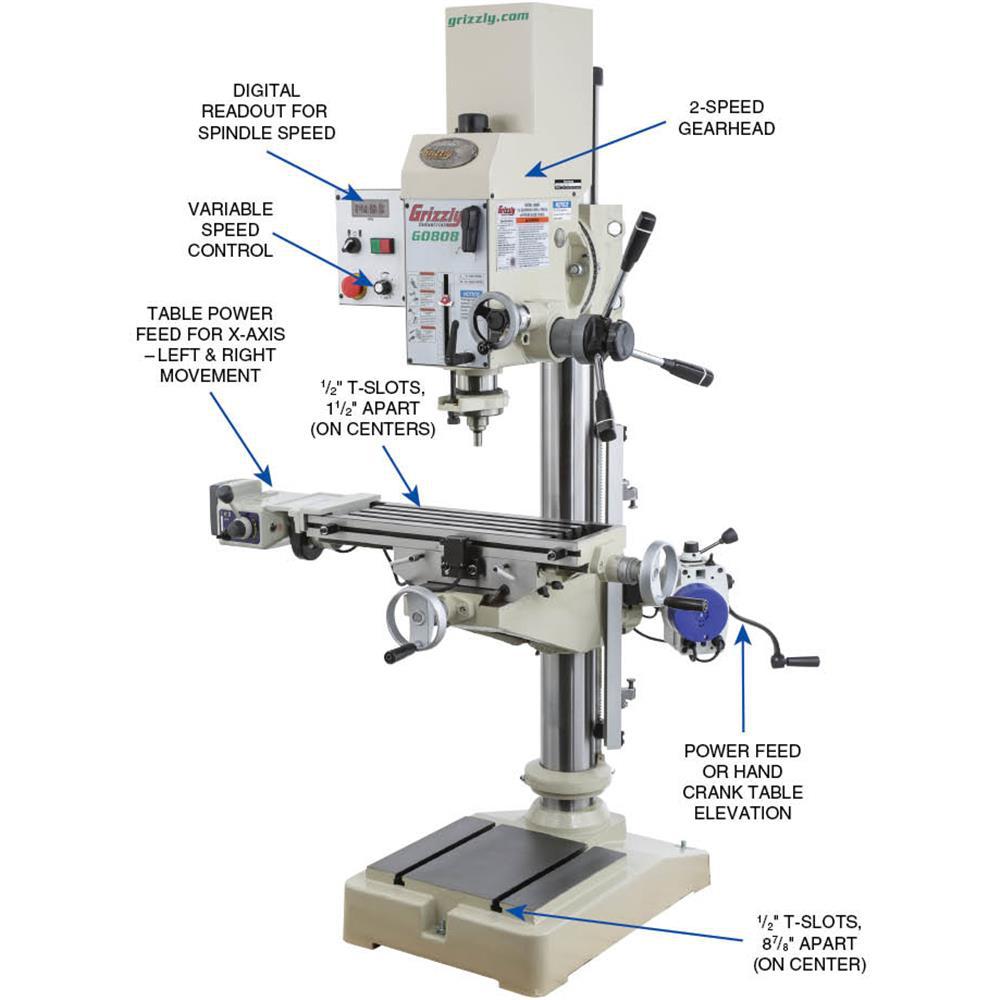

• Forward/reverse spindle switch
• Power feed or hand crank-enabled rack and pinion table elevation
• Cast-iron base with Two 1/2 in. T-slots, 8-7/8 in. on center
• 360° table positioning around column
• 360° head positioning around column
• Coarse and fine down feed controls
• Front-mounted E-stop button
• Variable frequency drive for 3-phase speed control with single-phase power
• Headstock features 2.64 qt. capacity

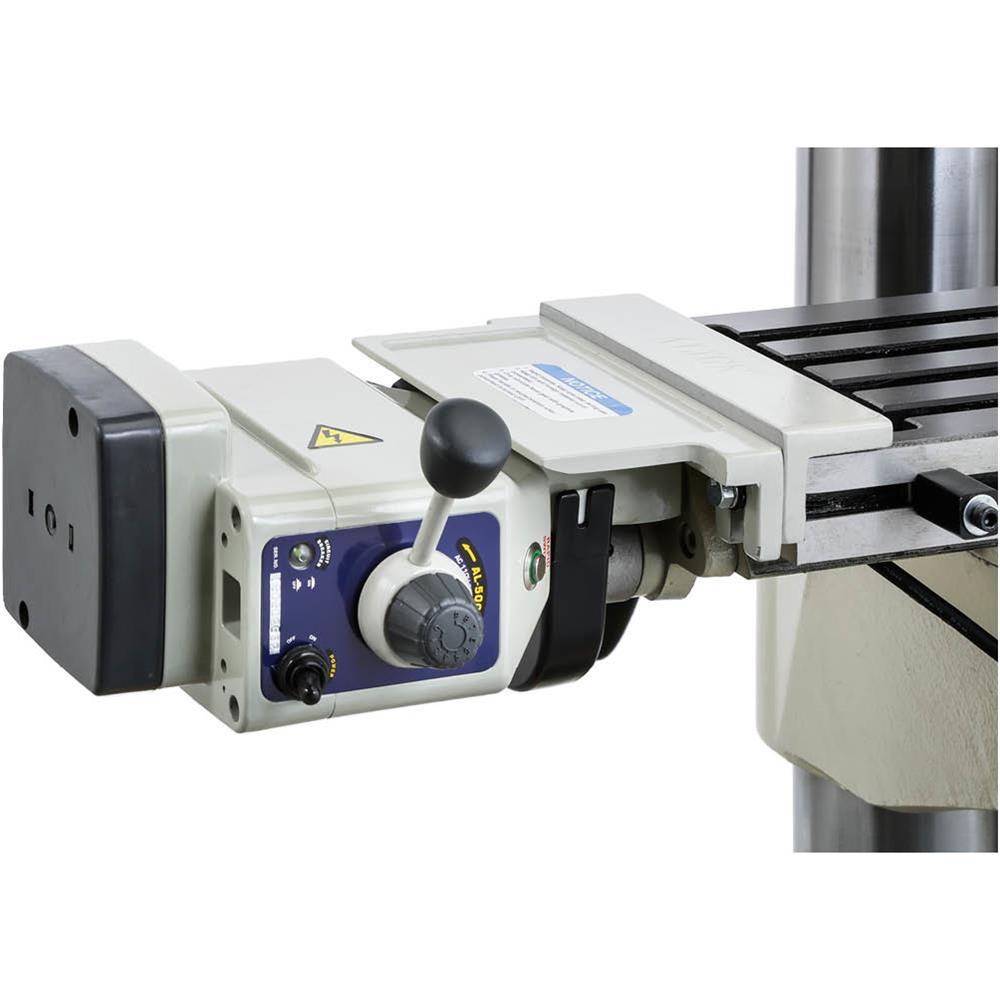

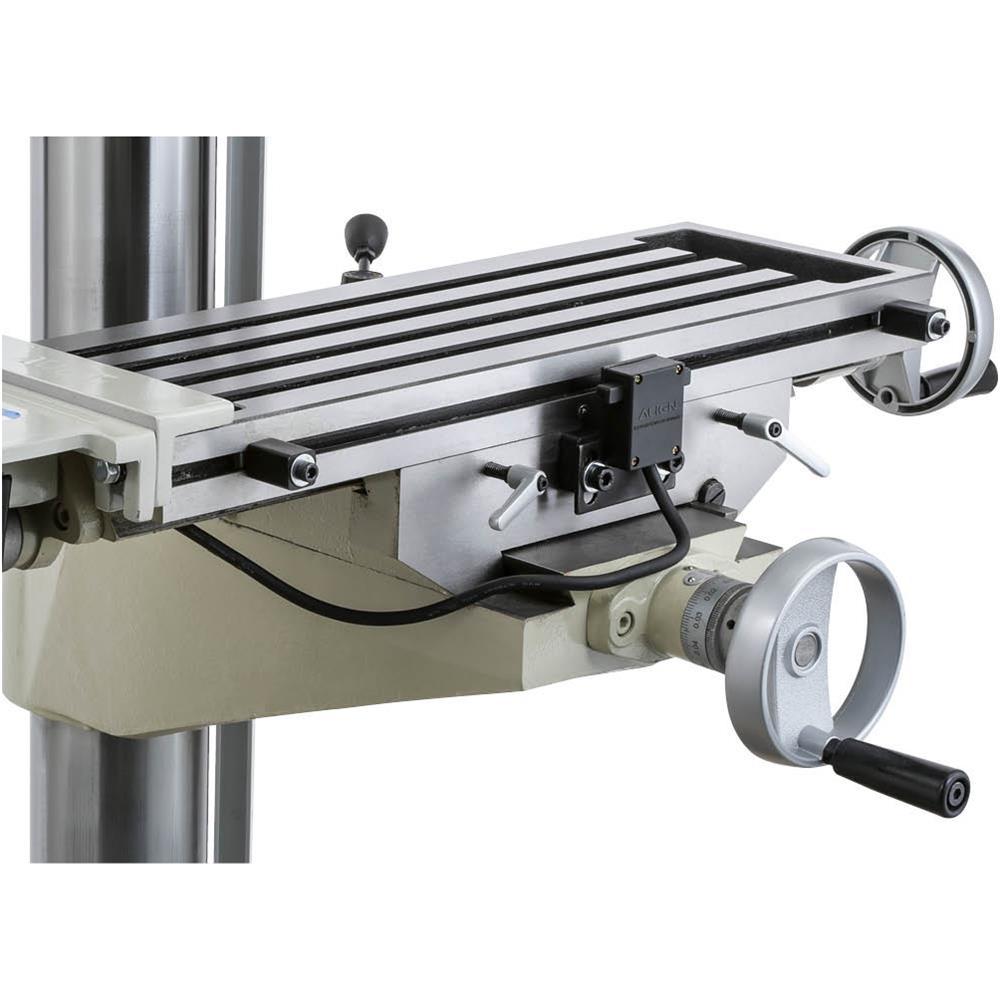

• Longitudinal power feed on precision-ground cast-iron table with independent power supply
• Digital speed display

Specifications

• Magnetic: No
• Maximum Speed (rpm): 2500
• Spindle Travel: 4.875
• Chuck Capacity: 1-9/16 In.
• Chuck Key Storage: No
• Tools Product Type: Power Tool
• Amperage (amps): 5.5 A
• Minimum speed (rpm): 0
• 360- Degree Swivel: No
• Work Light: No
• Color Family: White
• Condition: New
• Number of Speeds: 12
• Bench & Stationary Tool Type: Drill Press
• Built-In Light: No
• Portability: Stationary
• Cord Length (ft.): 6
• Voltage (volts): 220
• Lockout Power Switch: No
• Product Weight (lb.): 790
• Product Height (in.): 78.25
• Product Depth (in.): 35.75
• Product Width (in.): 37
