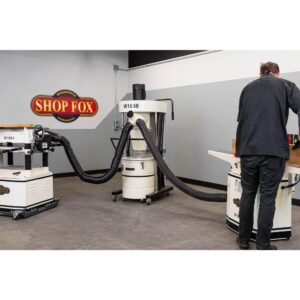

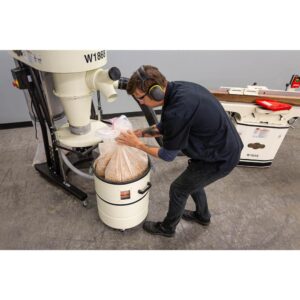

This Cyclone Dust Collector provides the efficiency of a 2-stage cyclone system with the portability of a single-stage dust collector. Features include high surface area pleated filters with paddles to mechanically knock off dust cake, remotely controlled magnetic switches, easy lid lifting levers for emptying collection drums and a compact design for moving around the shop. 3 models are available to suit most dust collection needs.
- Motor: 2 HP, 220-Volt, 3450 RPM, 9 Amp
- Intake hole size: 7 in.
- Impeller: 13 in. welded steel
- Collection drum size: 20 Gal.
- Air suction capacity: 1023 CFM
- Static pressure: 10.9 in.
Specifications
- Tools Product Type: Power Tool
- Color Family: White
- Dust Collection Product Type: Dust Collector
- Product Weight (lb.): 285
- Bag Capacity/Dry Volume (cu. ft.): 2.67
- Interior Hose Diameter (In.): 7
- Product Height (in.): 70
- Product Depth (in.): 52
- Product Width (in.): 28.5
