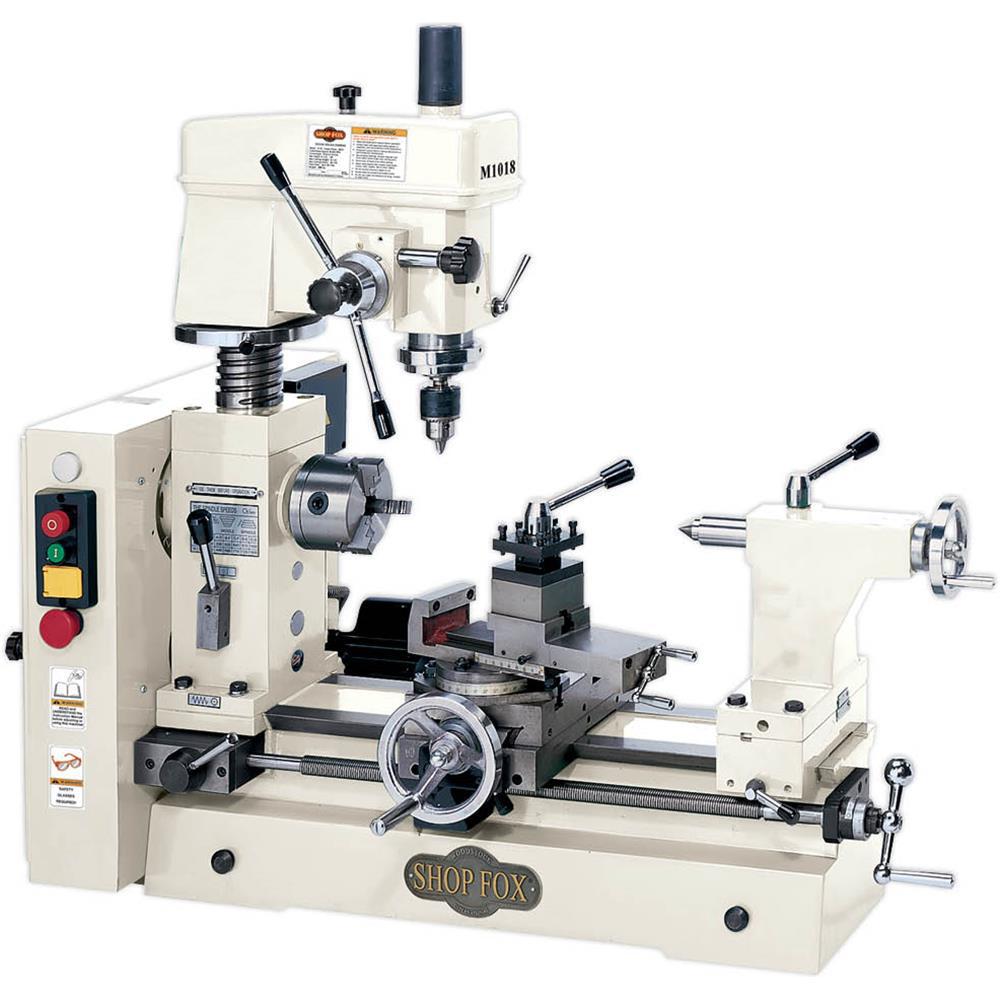

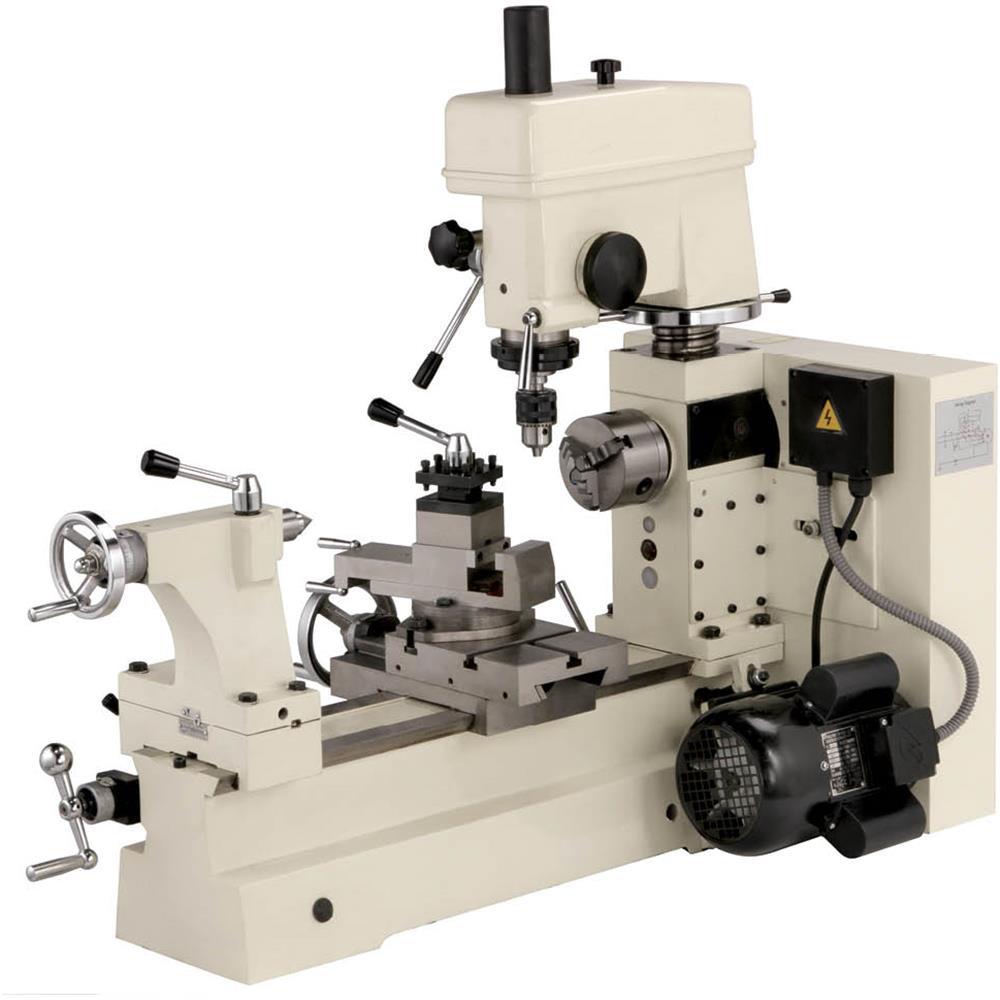

Shop Fox Small Combo Lathe/Mill

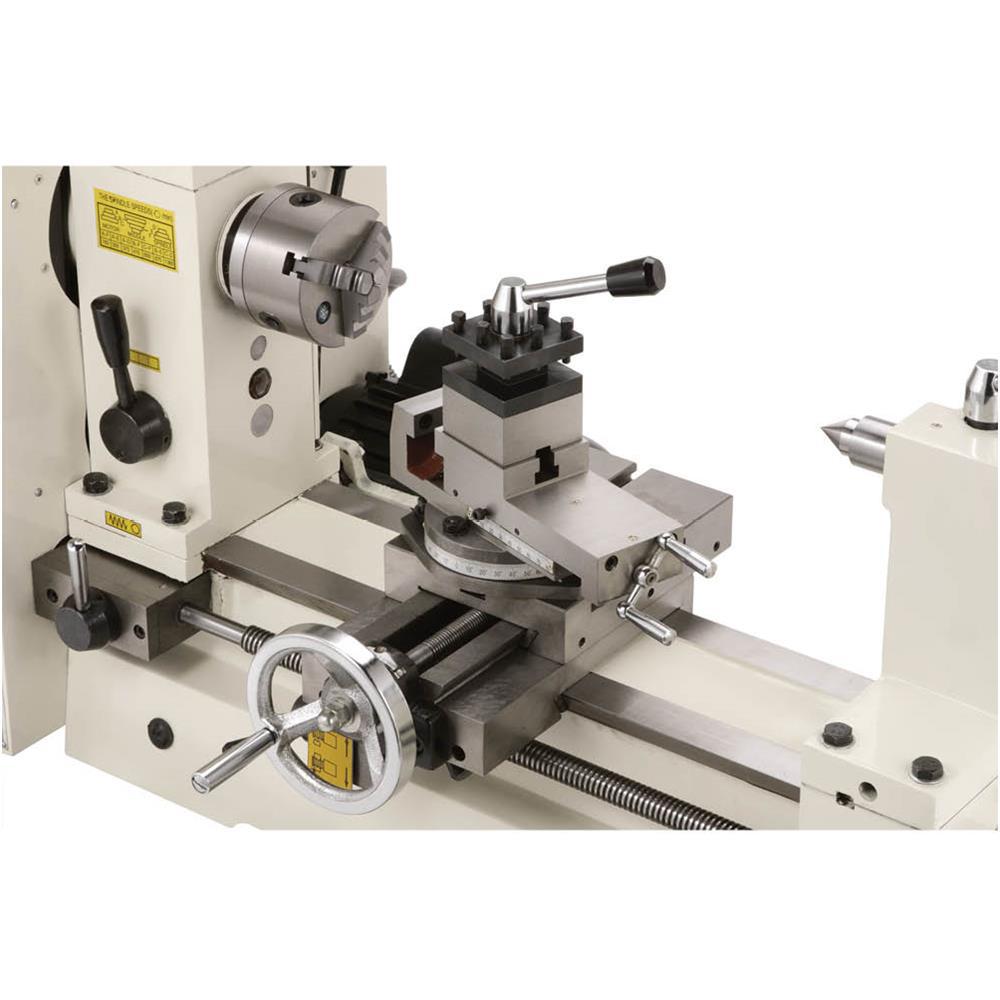

Hobby or entry-level machinists will not want to pass up this versatile machine. Great for turning, cutting threads and drilling and milling small projects, this combo lathe is packed with extra add-ons like a 4-way turret tool post, 9-1/2 in. faceplate, 4 in. 3-jaw chuck and a built-in rotating vise. Features a 16-1/2 in. swing over bed, 11-1/2 in. swing over saddle, 19-1/4 in. distance between centers, 3/4 in. spindle bore and MT#3 tapers.

• Lathe motor: 3/4 HP, 110-Volt, single-phase
• Lathe swing over bed: 16-1/2 in.
• Lathe swing over saddle: 11-1/2 in.
• Mill swing: 12 in.
• Distance between centers: 19-1/4 in.
• Includes 1/2 in. drill chuck, 2 dead centers, 4 in. 3-jaw chuck, 4-way tool post, 5 in. back plate, 9-1/2 in. faceplate, change gears, MT#3 chuck arbor, hex and combo wrenches

Specifications

• Maximum Speed (rpm): 1725
• Tools Product Type: Power Tool
• Minimum speed (rpm): 160
• PT Horsepower (Hp): 3/4
• Color Family: White
• Condition: New
• Bench & Stationary Tool Type: Lathes
• Portability: Bench
• Product Weight (lb.): 440
• Product Height (in.): 35
• Product Depth (in.): 23
• Product Width (in.): 42
